CW Laser Diode Modules

CW Laser Diode Modules have corrective optics built in and typically single mode modules deliver a circular, collimated output beam. The divergence angle depends on the collimating optics used. CW DPSS Laser Modules are highly directional with very low divergence.

CW Modules typically have either a Plug and Play (turn-key) version or an OEM version.

Filters Reset

Type

Wavelength Selection

Power Selection

Mode

Output

Linewidth

Series

Manufacturer

Picture Part Number Type Wavelength (nm) Output power (W) Mode Output Linewidth Duty Package
4201-DR   -   Laser Diode Driver 4200-DR CW Laser Diode Driver CW
4302   -   Laser Diode Driver 4300 CW Laser Diode Driver CW
4400 CW Laser Diode Driver CW
485-02-15   -   Combo Driver/Controller 485 CW Laser Diode Driver CW
5240   -   Temperature Controller 5240 Temperature Controllers CW
8/24/5300: Temperature Controller 5300 Temperature Controllers CW
5400 Temperature Controllers CW
585-04-08: OEM Temperature Controller 585 Temperature Controllers CW
temperature controller 586 Temperature Controllers CW
6301   -   Combo Driver/Controller 6300 Combo -Driver/Controller CW
685-0.1-04-03-04   -   Combo Driver/Controller 685 Combo -Driver/Controller CW
762-CW   -   OEM Seed Laser Diode Driver Assembly 762 CW Laser Diode Driver, Pulsed Laser Diode Driver CW, QCW, Pulsed
763-CW   -   OEM Seed Laser Diode Driver Assembly 763 CW Laser Diode Driver, Pulsed Laser Diode Driver CW, QCW, Pulsed
Laser Accessories 785A CW Laser Diode Driver, Pulsed Laser Diode Driver CW, QCW, Pulsed
787 787 CW Laser Diode Driver, Pulsed Laser Diode Driver CW, QCW, Pulsed
Model 8261C 8261C Pockels Cell Driver CW, QCW, Pulsed
880D   -   High Power CW Laser Diode Controller 880D CW Laser Diode Driver CW
BDL130-808-F4-F Multi-Emitter Laser Diodes 808 130.0 Multimode MM Fiber CW Fiber Coupled
CWV-TO-P100-W850 CWV-TO-P100-W850 VCSELs 850 0.100 Multimode Free Space CW TO-46
FL-FCSE08-7-808-200 Single Emitter 808 7.0 Multimode MM Fiber CW Fiber Coupled

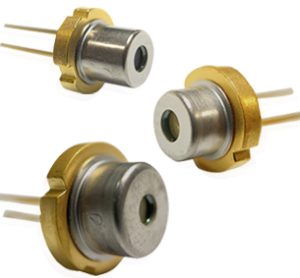

HL375 Single Emitter 375 0.200 Multimode Free Space CW 5.6mm
HL405 Single Emitter 405 0.300, 0.600, 1.0, 3.5 Single Mode, Multimode Free Space CW 5.6mm, 9mm
HL633 Single Emitter 633 0.100 Single Mode Free Space CW 5.6mm
HL637 Single Emitter 637 0.007, 0.120, 0.250, 0.450, 1.0, 1.2 Single Mode, Multimode Free Space CW 5.6mm, 9mm
HL638 Single Emitter 638 0.005, 0.007, 0.010, 0.015, 0.120, 0.170, 0.200, 0.700, 1.5, 2.2, 2.4 Single Mode, Multimode Free Space CW 3.8mm, 5.6mm, 9mm
HL639 Single Emitter 639 0.010, 0.012, 0.020, 0.025, 0.030, 0.200 Single Mode Free Space CW 5.6mm
HL640 Single Emitter 640 0.045 Single Mode Free Space CW 5.6mm
HL642 Single Emitter 642 0.065, 0.090, 0.150 Single Mode Free Space CW 5.6mm
HL649 Single Emitter 649 0.150 Single Mode Free Space CW 5.6mm
HL6548FG Single Emitter 660 0.100 Single Mode Free Space CW
HL658 Single Emitter 658 0.035, 0.085 Single Mode Free Space CW 5.6mm
HL659 Single Emitter 659 1.2 Multimode Free Space CW 9mm
HL660 Single Emitter 660 0.100, 0.110, 0.120, 0.130, 0.150, 0.210 Single Mode Free Space CW 5.6mm
HL670 Single Emitter 670 0.010, 0.015 Single Mode Free Space CW 5.6mm, 9mm
HL685 Single Emitter 685 0.055 Single Mode Free Space CW 5.6mm
HL63603TG HL690 Single Emitter 690 0.035 Single Mode Free Space CW 5.6mm
HL705 Single Emitter 705 0.050 Single Mode Free Space CW 5.6mm
HL730 Single Emitter 730 0.050 Single Mode Free Space CW 5.6mm
HL830 Single Emitter 830 0.050 Single Mode Free Space CW 5.6mm
HL852 Single Emitter 852 0.050 Single Mode Free Space CW 5.6mm
JDL-1020 Array (Bar) 1020 120.0, 200.0 Multimode Free Space CW None
JDL-1060 Single Emitter, Array (Bar) 1060 10.0, 40.0, 60.0, 80.0, 120.0, 200.0, 250.0, 350.0 Multimode Free Space CW, QCW None
JDL-760 Array (Bar) 760 40.0 Multimode Free Space CW None
JDL-792 Array (Bar) 792 60.0, 80.0 Multimode Free Space CW None
JDL-808 Single Emitter, Array (Bar) 808 6.0, 8.0, 10.0, 20.0, 40.0, 50.0, 60.0, 80.0, 92.0, 200.0, 300.0 Multimode Free Space CW, QCW None
JDL-905 Array (Bar) 905 200.0 Multimode Free Space CW None
JDL-915 Array (Bar) 915 40.0, 60.0, 80.0, 200.0 Multimode Free Space CW None
JDL-940 Array (Bar) 940 60.0, 80.0, 120.0, 200.0, 300.0 Multimode Free Space CW, QCW None
JDL-976 Array (Bar) 976 60.0, 80.0, 120.0 Multimode Free Space CW None
JDL-BAB-20-47-976-TE-80-2.0-LAR Array (Bar) 976 80.0 Multimode Free Space CW None
JDL-BAB-25-23-808-TM-92-2.0 Array (Bar) 808 92.0 Multimode Free Space CW None
JOLD-100-HS-2L-808 Array (Bar) 808 100.0 Multimode MM Fiber CW Fiber Coupled

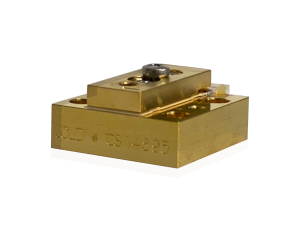

JOLD-180-CPFN-1L 1035 Array (Bar) 1035 180.0 Multimode Free Space CW CN
JOLD-35-CPNF-1L 975 Array (Bar) 975 35.0 Multimode Free Space CW CS

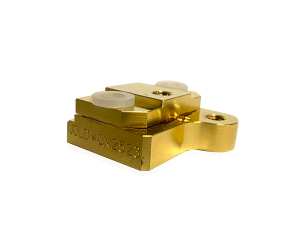

JOLD-50-CPNN-1L 791 Array (Bar) 792 50.0 Multimode Free Space CW CS, CN
JOLD-60-CPNN-1L 891 Array (Bar) 891 60.0 Multimode Free Space CW CS, CN
JOLD-70-CPFN-1L 808 Array (Bar) 808 70.0 Multimode Free Space CW CS

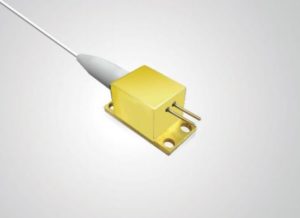

JOLD-FC-1470 Array (Bar) 1470 20.0 Multimode MM Fiber CW Fiber Coupled
JOLD-FC-808 Array (Bar) 808 30.0, 45.0, 70.0, 75.0, 100.0, 120.0, 140.0, 210.0, 250.0, 400.0 Multimode MM Fiber CW, QCW Fiber Coupled
JOLD-FC-880 Array (Bar) 880 30.0, 45.0, 75.0, 100.0 Multimode MM Fiber CW Fiber Coupled
JOLD-FC-915 Array (Bar) 915 30.0, 45.0, 75.0, 100.0, 120.0, 140.0, 210.0, 250.0, 400.0 Multimode MM Fiber CW, QCW Fiber Coupled
JOLD-FC-940 Array (Bar) 940 30.0, 45.0, 70.0, 75.0, 100.0, 120.0, 140.0, 210.0, 250.0, 400.0 Multimode MM Fiber CW, QCW Fiber Coupled
JOLD-FC-976 Array (Bar) 976 30.0, 45.0, 75.0, 100.0, 120.0, 140.0, 210.0, 250.0, 400.0 Multimode MM Fiber CW, QCW Fiber Coupled
JOLD-Open-808-CW Array (Bar) 808 40.0, 50.0, 60.0, 80.0 Multimode Free Space CW CS, CN, MCC Stack
JOLD-Open-808-CW-FAC Array (Bar) 808 35.0, 55.0, 90.0 Multimode Free Space CW CS, CN
JOLD-Open-808-CW-FAC/SAC Array (Bar) 808 32.0, 50.0 Multimode Free Space CW CS, CN
JOLD-Open-880-CW Array (Bar) 880 40.0, 60.0, 80.0 Multimode Free Space CW CS, CN
JOLD-Open-880-CW-FAC Array (Bar) 880 35.0, 50.0, 68.0 Multimode Free Space CW CS, CN
JOLD-Open-880-CW-FAC/SAC Array (Bar) 880 32.0, 50.0, 68.0 Multimode Free Space CW CS, CN
JOLD-Open-915-CW Array (Bar) 915 40.0, 60.0, 80.0, 275.0 Multimode Free Space CW CS, CN, LK Package, MCC Stack
JOLD-Open-915-CW-FAC Array (Bar) 915 32.0, 35.0, 55.0 Multimode Free Space CW CS, CN
JOLD-Open-915-CW-FAC/SAC Array (Bar) 915 32.0, 50.0, 68.0 Multimode Free Space CW CS, CN
JOLD-Open-938-CW Array (Bar) 938 40.0, 60.0, 80.0, 100.0, 120.0, 200.0, 275.0 Multimode Free Space CW CS, CN, LK Package, MCC Stack
JOLD-Open-938-CW-FAC Array (Bar) 938 35.0, 55.0, 90.0, 180.0 Multimode Free Space CW CS, CN
JOLD-Open-938-CW-FAC/SAC Array (Bar) 938 32.0, 35.0, 50.0, 68.0 Multimode Free Space CW CS, CN
JOLD-Open-976-CW Array (Bar) 976 40.0, 60.0, 80.0, 100.0, 120.0, 160.0, 275.0 Multimode Free Space CW CS, CN, LK Package, MCC Stack
JOLD-Open-976-CW-FAC Array (Bar) 976 55.0, 90.0 Multimode Free Space CW CS, CN
JOLD-Open-976-CW-FAC/SAC Array (Bar) 976 32.0, 35.0, 50.0, 68.0 Multimode Free Space CW CS, CN
JOLD-720-CANN-6A: Laser Diode Stack JOLD-Stack-808-CW-FAC Stack 808 288.0, 432.0, 576.0, 720.0, 864.0 Multimode Free Space CW MCC Stack
JOLD-720-CANN-6A: Laser Diode Stack JOLD-Stack-808-CW-FAC/SAC Stack 808 200.0, 300.0, 400.0, 500.0, 600.0 Multimode Free Space CW MCC Stack
JOLD-720-CANN-6A: Laser Diode Stack JOLD-Stack-808-CW Stack 808 310.0, 320.0, 480.0, 640.0, 800.0, 960.0 Multimode Free Space CW Stack, MCC Stack
JOLD-720-CANN-6A: Laser Diode Stack JOLD-Stack-940-CW-FAC Stack 940 440.0, 660.0, 880.0, 1100.0, 1320.0 Multimode Free Space CW MCC Stack
JOLD-720-CANN-6A: Laser Diode Stack JOLD-Stack-940-CW-FAC/SAC Stack 940 200.0, 300.0, 400.0, 500.0, 600.0 Multimode Free Space CW MCC Stack
JOLD-720-CANN-6A: Laser Diode Stack JOLD-Stack-940-CW Stack 940 310.0, 480.0, 720.0, 960.0, 1200.0, 1440.0 Multimode Free Space CW Stack, MCC Stack
JOLD-720-CANN-6A: Laser Diode Stack JOLD-Stack-980-CW-FAC Stack 980 440.0, 660.0, 880.0, 1100.0, 1320.0 Multimode Free Space CW MCC Stack
JOLD-720-CANN-6A: Laser Diode Stack JOLD-Stack-980-CW-FAC/SAC Stack 980 200.0, 300.0, 400.0, 500.0, 600.0 Multimode Free Space CW MCC Stack
JOLD-720-CANN-6A: Laser Diode Stack JOLD-Stack-980-CW Stack 980 480.0, 720.0, 960.0, 1200.0, 1440.0 Multimode Free Space CW MCC Stack

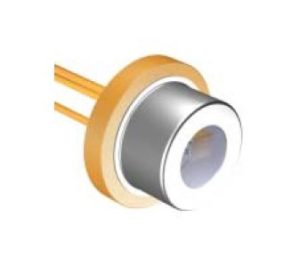

Single Emitter LDX-XXXX-1030 Single Emitter 1030 3.0, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-1064 Single Emitter 1064 1.5, 3.0, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-1120 Single Emitter 1120 2.0, 3.5, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 9-pin HHL
Single Emitter LDX-XXXX-1210 Single Emitter 1210 1.5, 2.0 Multimode Free Space, MM Fiber CW C-Mount, B-Mount, TO-3 no TEC, HHL
Single Emitter LDX-XXXX-1280 Single Emitter 1280 3.5, 5.0, 7.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-1370 Single Emitter 1370 3.5, 5.0 Multimode Free Space, MM Fiber CW C-Mount, B-Mount, TO-3 no TEC, HHL
Single Emitter LDX-XXXX-1470 Single Emitter 1470 3.5, 5.0, 7.0 Multimode Free Space, MM Fiber CW C-Mount, B-Mount, TO-3 no TEC, HHL
Single Emitter LDX-XXXX-1550 Single Emitter 1550 0.800, 1.0, 1.5, 1.75, 2.5, 3.5, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 9-pin HHL
Single Emitter LDX-XXXX-1620 Single Emitter 1620 1.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, HHL
Single Emitter LDX-XXXX-1640 Single Emitter 1640 1.2 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, TO-3 no TEC, HHL
Single Emitter LDX-XXXX-1675 Single Emitter 1675 2.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, TO-3 no TEC, HHL, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-1850 Single Emitter 1850 1.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-445 Single Emitter 445 3.5 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-520 Single Emitter 520 1.0 Multimode Free Space, MM Fiber CW TO-3 no TEC, HHL
Single Emitter LDX-XXXX-622 Single Emitter 622 0.150 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-627 Single Emitter 627 0.250, 0.350 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-630 Single Emitter 630 0.250, 0.400 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-635 Single Emitter 635 0.300, 0.400, 0.600, 1.2 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-645 Single Emitter 645 0.300, 0.400 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-650 Single Emitter 650 1.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-660 Single Emitter 660 0.350, 0.750, 1.0, 2.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-665 Single Emitter 665 0.350, 0.750, 1.0, 2.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-680 Single Emitter 680 0.400, 0.800, 1.2, 2.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-685 Single Emitter 685 0.400, 0.800, 1.2, 2.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-690 Single Emitter 690 0.400, 0.750, 1.1 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-735 Single Emitter 735 1.0, 1.75, 2.0, 4.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-750 Single Emitter 750 1.0, 2.0, 3.0, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-760 Single Emitter 760 1.0, 2.0, 3.0, 6.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-780 Single Emitter 780 1.2, 2.5, 3.5, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-785 Single Emitter 785 3.5, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-792 Single Emitter 792 1.2, 2.5, 3.5 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-797 Single Emitter 797 3.0, 4.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-808 Single Emitter 808 1.2, 2.0, 3.0, 4.0, 6.0, 10.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-825 Single Emitter 825 4.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-830 Single Emitter 830 1.6 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-860 Single Emitter 860 1.0, 1.5, 2.0, 3.0, 4.0, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-885 Single Emitter 885 2.5, 6.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-900 Single Emitter 900 2.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-915 Single Emitter 915 3.0, 6.0, 10.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-940 Single Emitter 940 3.0, 5.0, 6.0, 16.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-960 Single Emitter 960 10.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, TO-3 no TEC, HHL, 2-Pin FC, 8-pin HHL, 9-pin HHL
Single Emitter LDX-XXXX-980 Single Emitter 980 1.5, 4.0, 5.0, 6.0, 10.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Superlumiscent Laser Diodes LTC-OSE-1300 Superluminescent 1300 0.012, 0.020, 0.025, 0.035, 0.040, 0.045, 0.070, 0.090, 0.115, 0.125, 0.130 Single Mode Free Space, SM Fiber, PM Fiber Broadband CW Fiber Coupled, Butterfly - Open Beam, Butterfly FC
Superlumiscent Laser Diodes LTC-OSE-1340 Superluminescent 1340 0.012, 0.020, 0.025, 0.035, 0.040, 0.065, 0.070, 0.090, 0.110, 0.115, 0.130 Single Mode Free Space, SM Fiber, PM Fiber Broadband CW Fiber Coupled, Butterfly - Open Beam, Butterfly FC
Superlumiscent Laser Diodes LTC-OSE-1390 Superluminescent 1390 0.010, 0.019, 0.020, 0.025, 0.035, 0.038, 0.040, 0.070, 0.090, 0.100, 0.110, 0.115, 0.125, 0.130 Single Mode Free Space, SM Fiber, PM Fiber Broadband CW Fiber Coupled, Butterfly - Open Beam, Butterfly FC
Superlumiscent Laser Diodes LTC-OSE-1430 Superluminescent 1430 0.019, 0.020, 0.025, 0.035, 0.038, 0.040, 0.060, 0.065, 0.090, 0.110, 0.115, 0.125, 0.130 Single Mode Free Space, SM Fiber, PM Fiber Broadband CW Fiber Coupled, Butterfly - Open Beam, Butterfly FC
Superlumiscent Laser Diodes LTC-OSE-1480 Superluminescent 1480 0.012, 0.013, 0.018, 0.019, 0.020, 0.025, 0.032, 0.035, 0.038, 0.040, 0.045, 0.055, 0.060, 0.065, 0.070, 0.080, 0.100, 0.110, 0.115, 0.120, 0.130 Single Mode Free Space, SM Fiber, PM Fiber Broadband CW Fiber Coupled, Butterfly - Open Beam, Butterfly FC
Superlumiscent Laser Diodes LTC-OSE-1550 Superluminescent 1550 0.008, 0.012, 0.015, 0.018, 0.019, 0.020, 0.025, 0.030, 0.032, 0.035, 0.038, 0.040, 0.050, 0.055, 0.060, 0.080, 0.100, 0.110, 0.115, 0.120, 0.125 Single Mode Free Space, SM Fiber, PM Fiber Broadband CW Fiber Coupled, Butterfly - Open Beam, Butterfly FC
Superlumiscent Laser Diodes LTC-OSE-1615 Superluminescent 1615 0.006, 0.010, 0.012, 0.018, 0.020, 0.025, 0.030, 0.032, 0.035, 0.038, 0.040, 0.055, 0.080, 0.100, 0.120, 0.125, 0.130 Single Mode Free Space, SM Fiber, PM Fiber Broadband CW Fiber Coupled, Butterfly - Open Beam, Butterfly FC
Superlumiscent Laser Diodes LTC-OSE-1680 Superluminescent 1680 0.012, 0.013, 0.018, 0.025, 0.032, 0.035, 0.040, 0.055, 0.080, 0.100, 0.125 Single Mode Free Space, SM Fiber, PM Fiber Broadband CW Fiber Coupled, Butterfly - Open Beam, Butterfly FC
QL63F5SA QL63F5SA Single Emitter 637 0.010 Single Mode Free Space CW 5.6mm
R0633 Single Emitter, Volume Bragg Grating (VBG) 633 0.020, 0.050 Single Mode Free Space, PM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC
R0633 LD Module, Turn-Key System 633 0.010, 0.020, 0.030, 0.050 Single Mode Free Space, SM Fiber, PM Fiber Narrow CW D-Type Module, U-Type FC Module
R0638 Single Emitter, Volume Bragg Grating (VBG) 638 0.025, 0.060, 0.300 Single Mode, Multimode Free Space, MM Fiber, PM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC, Open Beam Stub Laser
R0638 LD Module, Turn-Key System 638 0.020, 0.025, 0.035, 0.060, 0.300 Single Mode, Multimode Free Space, MM Fiber, PM Fiber Narrow CW D-Type Module, U-Type FC Module
R0647 LD Module, Turn-Key System 647 0.150 Single Mode, Multimode Free Space, MM Fiber Narrow CW U-Type FC Module
R0660 LD Module, Turn-Key System 660 0.050 Single Mode, Multimode Free Space Narrow CW D-Type Module
R0680 Single Emitter, Volume Bragg Grating (VBG) 680 0.300 Single Mode, Multimode Free Space, MM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC
R0680 LD Module, Turn-Key System 680 0.300 Single Mode, Multimode Free Space, MM Fiber Narrow CW U-Type FC Module
R0780 Single Emitter, Volume Bragg Grating (VBG) 780 0.050, 0.100 Single Mode, Multimode Free Space, PM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC
R0780 LD Module, Turn-Key System 780 0.050, 0.100 Single Mode, Multimode Free Space, SM Fiber Narrow CW D-Type Module, U-Type FC Module
R0783 Single Emitter, Volume Bragg Grating (VBG) 783 0.050, 0.100 Single Mode, Multimode Free Space, SM Fiber, PM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC
R0783 LD Module, Turn-Key System 783 0.100 Single Mode, Multimode Free Space Narrow CW D-Type Module, U-Type FC Module
R0785 Single Emitter, Volume Bragg Grating (VBG) 785 0.050, 0.100, 0.200, 0.350, 0.600 Single Mode, Multimode Free Space, MM Fiber, PM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC
R0785 LD Module, Turn-Key System 785 0.050, 0.100, 0.175, 0.200, 0.250, 0.350, 0.500, 1.2 Single Mode, Multimode Free Space, MM Fiber, PM Fiber Narrow CW D-Type Module, U-Type FC Module
R0808 Single Emitter, Volume Bragg Grating (VBG) 808 0.050, 0.100, 0.350, 0.600 Single Mode, Multimode Free Space, MM Fiber, PM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC
R0808 LD Module, Turn-Key System 808 0.050, 0.100, 0.200, 0.350, 0.500, 1.2 Single Mode, Multimode Free Space, MM Fiber Narrow CW U-Type FC Module, H & L-Type Tethered, M-Type FC Turn-Key
R0830 Single Emitter, Volume Bragg Grating (VBG) 830 0.050, 0.100, 0.350, 0.600 Single Mode, Multimode Free Space, MM Fiber, PM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC
R0830 LD Module, Turn-Key System 830 0.050, 0.100, 0.150, 0.350, 0.500, 1.2 Single Mode, Multimode Free Space, MM Fiber Narrow CW D-Type Module, U-Type FC Module
R0976 Single Emitter, Volume Bragg Grating (VBG) 976 0.220, 0.500, 0.750, 4.0, 5.0 Single Mode, Multimode Free Space, MM Fiber Narrow CW Butterfly - Open Beam, Butterfly FC
R0976 LD Module, Turn-Key System 976 0.220, 0.500 Single Mode, Multimode Free Space, SM Fiber, PM Fiber Narrow CW U-Type FC Module
R1030 Single Emitter, Volume Bragg Grating (VBG) 1030 0.050, 0.100, 0.280, 0.450 Single Mode, Multimode Free Space, SM Fiber, PM Fiber Narrow CW Butterfly - Open Beam, Butterfly FC
R1030 LD Module, Turn-Key System 1030 0.100, 0.250 Single Mode, Multimode Free Space, SM Fiber, PM Fiber Narrow CW U-Type FC Module
R1053 Single Emitter, Volume Bragg Grating (VBG) 1053 0.050, 0.120, 0.150, 0.300, 0.500 Single Mode, Multimode Free Space, SM Fiber, PM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC
R1053 LD Module, Turn-Key System 1053 0.035, 0.120, 0.300 Single Mode, Multimode Free Space, SM Fiber, PM Fiber Narrow CW D-Type Module, U-Type FC Module
R1064 Single Emitter, Volume Bragg Grating (VBG) 1064 0.050, 0.150, 0.300, 0.350, 0.600 Single Mode, Multimode Free Space, MM Fiber, PM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC
R1064 LD Module, Turn-Key System 1064 0.050, 0.120, 0.200, 0.300, 0.500 Single Mode, Multimode Free Space, MM Fiber, PM Fiber Narrow CW D-Type Module, U-Type FC Module
R1064.X Single Emitter, Volume Bragg Grating (VBG) 1064 0.050, 0.120, 0.300 Single Mode Free Space, SM Fiber, PM Fiber Narrow CW Butterfly FC
R1Z0-BDL-Fiber-Coupled Direct Diode Laser RBDL-CW Turn-Key System 915, 976 1000.0, 2000.0, 3000.0 Multimode MM Fiber CW Fiber Coupled
DS3: Fiber-Coupled Turn-Key Direct Diode Laser System RDS3 Turn-Key System Multiple Wavelength Options Multiple Options Available Single Mode, Multimode MM Fiber, SM Fiber CW Fiber Coupled
REP1260-1300 Single Emitter, Distributed Feedback (DFB) 1260-1300 0.009, 0.012, 0.020, 0.022 Single Mode Free Space, SM Fiber, PM Fiber Narrow CW 5.6mm, TO-39, Butterfly FC
REP1320-1380 Single Emitter, Distributed Feedback (DFB) 1320-1380 0.006 Single Mode Free Space, SM Fiber, PM Fiber Narrow CW 5.6mm, TO-39, Butterfly FC
REP1380-1400 Single Emitter, Distributed Feedback (DFB) 1380-1400 0.008 Single Mode Free Space, SM Fiber, PM Fiber Narrow CW 5.6mm, TO-39, Butterfly FC
REP1500-1560 Single Emitter, Distributed Feedback (DFB) 1500-1560 0.005, 0.008, 0.016, 0.020, 0.022, 0.050 Single Mode Free Space, SM Fiber, PM Fiber Narrow CW 5.6mm, TO-39, Butterfly FC
REP1560-1600 Single Emitter, Distributed Feedback (DFB) 1560-1600 0.006, 0.020 Single Mode Free Space, SM Fiber, PM Fiber Narrow CW 5.6mm, TO-39, Butterfly FC
REP1635-1670 Single Emitter, Distributed Feedback (DFB) 1635-1670 0.006 Single Mode Free Space, SM Fiber, PM Fiber Narrow CW 5.6mm, TO-39, Butterfly FC
REP1678-1720 Single Emitter, Distributed Feedback (DFB) 1678-1720 0.005 Single Mode Free Space, SM Fiber, PM Fiber Narrow CW 5.6mm, TO-39, Butterfly FC
REP1720-1770 Single Emitter, Distributed Feedback (DFB) 1720-1770 0.005 Single Mode Free Space, SM Fiber, PM Fiber Narrow CW 5.6mm, TO-39, Butterfly FC
REP1850-1880 Single Emitter, Distributed Feedback (DFB) 1850-1880 0.003, 0.014 Single Mode Free Space, SM Fiber, PM Fiber Narrow CW 5.6mm, TO-39, Butterfly FC
REP1908-1970 Single Emitter, Distributed Feedback (DFB) 1908-1970 0.0015, 0.002 Single Mode Free Space, SM Fiber, PM Fiber Narrow CW 5.6mm, TO-39, Butterfly FC
REP1970-2053 Single Emitter, Distributed Feedback (DFB) 1970-2053 0.003, 0.014 Single Mode Free Space, SM Fiber, PM Fiber Narrow CW 5.6mm, TO-39, Butterfly FC
REP2300-2333 Single Emitter, Distributed Feedback (DFB) 2300-2333 0.005 Single Mode SM Fiber, PM Fiber CW TO-39, Butterfly FC
K Series RPK445M Multi-Emitter Laser Diodes 445 10.0, 15.0, 20.0, 50.0 Multimode MM Fiber CW Fiber Coupled
RPK445S Single Emitter 445 0.800, 3.0 Multimode MM Fiber CW 2-Pin FC
K520F03FN-0.010W: 520nm Fiber Coupled Laser Diode RPK520S Single Emitter 520 0.005 Multimode MM Fiber CW Coaxial
RPK635M Multi-Emitter Laser Diodes 635 5.0 Multimode MM Fiber CW Fiber Coupled
K635F03RN-0.400W: 635nm Fiber Coupled Laser Diode RPK635S Single Emitter 635 0.002, 0.020 Single Mode SM Fiber CW Coaxial
K785AFLFN-0.600W RPK785SS Single Emitter, Volume Bragg Grating (VBG) 785 0.600 Multimode MM Fiber Narrow CW Butterfly FC
RPK793M Multi-Emitter Laser Diodes 793 8.0, 12.0, 16.0, 30.0, 50.0, 80.0, 90.0, 140.0, 180.0 Multimode MM Fiber CW Fiber Coupled
RPK793S Single Emitter 793 4.0 Multimode MM Fiber CW 2-Pin FC
RPK808M Multi-Emitter Laser Diodes 808 15.0, 25.0, 30.0, 60.0, 150.0 Multimode MM Fiber CW Fiber Coupled
RPK808S Single Emitter 808 4.0, 8.0 Multimode MM Fiber CW Fiber Coupled
RPK830S Single Emitter 830 1.0 Multimode MM Fiber CW 2-Pin FC
K878BNXRN-30.00W: 878nm Fiber Coupled Diode Laser RPK878MS Multi-Emitter Laser Diodes, Volume Bragg Grating (VBG) 878 30.0, 65.0, 120.0 Multimode MM Fiber Narrow CW Fiber Coupled
K878BNXRN-30.00W: 878nm Fiber Coupled Diode Laser RPK888MS Multi-Emitter Laser Diodes, Volume Bragg Grating (VBG) 888 65.0, 120.0 Multimode MM Fiber Narrow CW Fiber Coupled
RPK915M Multi-Emitter Laser Diodes 915 30.0, 70.0, 160.0, 180.0, 300.0, 370.0 Multimode MM Fiber CW Fiber Coupled
Fiber Coupled Diode Laser RPK915S Single Emitter 915 12.0 Multimode MM Fiber CW 2-Pin FC
RPK940M Multi-Emitter Laser Diodes 940 30.0, 70.0, 150.0, 200.0 Multimode MM Fiber CW Fiber Coupled
K915FB2RN-12.00W: 915nm Fiber Coupled Laser Diode RPK940S Single Emitter 940 10.0, 11.0, 20.0 Multimode MM Fiber CW Fiber Coupled
RPK960S Single Emitter 960 9.0 Multimode MM Fiber CW 2-Pin FC
RPK976M Multi-Emitter Laser Diodes 976 15.0, 20.0, 30.0, 70.0, 150.0, 200.0, 330.0, 540.0 Multimode MM Fiber CW Fiber Coupled
RPK976MS Multi-Emitter Laser Diodes, Volume Bragg Grating (VBG) 976 18.0, 27.0, 60.0, 100.0, 140.0, 180.0, 400.0 Multimode MM Fiber Narrow CW Fiber Coupled
RPK976S Single Emitter 976 10.0 Multimode MM Fiber CW Fiber Coupled
K976A02RN-3.000W: 976nm Fiber Coupled Laser Diode RPK976SS Single Emitter, Volume Bragg Grating (VBG) 976 3.0, 9.0 Multimode MM Fiber Narrow CW 2-Pin FC
KA64HAMCA-10.00W: 1064nm Fiber Coupled Laser Diode RPKA64M Multi-Emitter Laser Diodes 1064 20.0 Multimode MM Fiber CW Fiber Coupled
RPKBDL-CW500-E330-5 Turn-Key System 445 500.0 Multimode MM Fiber CW Fiber Coupled
RPKDS3-LC 445nm Fiber Coupled Blue Diode Laser System Turn-Key System 445 120.0, 200.0, 250.0 Multimode MM Fiber CW Fiber Coupled
RPKMWM Multi Wavelength Multiple Wavelength Options 0.300, 0.600, 5.0, 6.0, 10.0, 15.0, 25.0 Multimode MM Fiber CW Fiber Coupled
RPM9-852-0100-S50 Single Emitter 852 0.070, 0.150 Single Mode Free Space CW 9mm, Butterfly - Open Beam
RPM9-915-0300-D5P Single Emitter 915 0.300 Single Mode Free Space CW 9mm
R1Z5-TG420 TG-420 Single Emitter 420 0.050 Single Mode Free Space CW 5.6mm
R1Z5-TG430 TG-425 Single Emitter 425 0.050 Single Mode Free Space CW 5.6mm
R1Z5-TG430 TG-430 Single Emitter 430 0.050 Single Mode Free Space CW 5.6mm
R1Z5-TG435 TG-435 Single Emitter 435 0.050 Single Mode Free Space CW 5.6mm
R1Z5-TG440 TG-440 Single Emitter 440 0.050 Single Mode Free Space CW 5.6mm
R1Z5-TG445 TG-445 Single Emitter 445 0.050 Single Mode Free Space CW 5.6mm
R1Z5-TG450 TG-450 Single Emitter 450 0.050 Single Mode Free Space CW 5.6mm
R1Z5-TG455 TG-455 Single Emitter 455 0.050 Single Mode Free Space CW 5.6mm
R1Z5-TG460 TG-460 Single Emitter 460 0.050 Single Mode Free Space CW 5.6mm
mirSense HHL UniMir 11.3um Distributed Feedback (DFB), Quantum Cascade, Tunable Lasers 11300 0.010 Single Mode Free Space Narrow CW HHL
mirSense HHL UniMir 13.4um Distributed Feedback (DFB), Quantum Cascade, Tunable Lasers 13400 0.005 Single Mode Free Space Narrow CW HHL
mirSense HHL UniMir 14.0um Distributed Feedback (DFB), Quantum Cascade, Tunable Lasers 14000 0.005 Single Mode Free Space Narrow CW HHL
mirSense HHL UniMir 14.9um Distributed Feedback (DFB), Quantum Cascade, Tunable Lasers 14900 0.005 Single Mode Free Space Narrow CW HHL
mirSense HHL UniMir 16.0um Distributed Feedback (DFB), Quantum Cascade, Tunable Lasers 16000 0.002 Single Mode Free Space Narrow CW HHL
R0Z9-Package-7060 VD-0808-CW VCSELs 808 0.300, 2.0, 4.0, 7.0, 10.0, 20.0, 100.0, 200.0 Single Mode Free Space CW 2016, 3535, 7060, T-mount
R0Z9-Package-2016 VD-0850-CW VCSELs 850 0.008, 0.200, 0.400, 0.700, 1.0, 2.0, 4.0, 8.0 Single Mode Free Space CW 2016, 3535, 7060, TO-18
VD-0940I-004W-1C-2A0: 940nm VCSEL Diode VD-0850I-004W-1C-5A4 VCSELs 850 4.0 Single Mode Free Space CW 3535
VD-0940I-004W-1C-2A0: 940nm VCSEL Diode VD-0850I-004W-1C-5A5 VCSELs 850 4.0 Single Mode Free Space CW 3535
VD-0940I-004W-1C-2A0: 940nm VCSEL Diode VD-0940-CW VCSELs 940 0.008, 0.020, 0.060, 0.070, 0.140, 0.150, 0.160, 0.200, 0.250, 0.500, 2.0, 4.0 Single Mode Free Space CW 2016, 3535, 7060, 5.6mm, TO-46
VD-0940I-004W-1C-2A0: 940nm VCSEL Diode VD-0940P-002W-1C-5A2 VCSELs 940 2.0 Single Mode Free Space CW 3535
VD-0940I-004W-1C-2A0: 940nm VCSEL Diode VD-0940P-002W-1C-5A3 VCSELs 940 2.0 Single Mode Free Space CW 3535
WSLB-980-012-H Multi-Emitter Laser Diodes 980 12.0 Multimode MM Fiber CW Fiber Coupled
WSLD-405-020m-1-PD WSLD-405-020m-1-PD Single Emitter 405 0.020 Single Mode Free Space CW 5.6mm
WSLD-445-4500m-k: 445nm Multimode Laser Diode WSLD-405-065m-1 Single Emitter 405 0.065 Multimode Free Space CW 5.6mm
WSLD-445-4500m-k: 445nm Multimode Laser Diode WSLD-405-200m-1 Single Emitter 405 0.200 Single Mode Free Space CW 5.6mm
WSLD-445-4500m-k: 445nm Multimode Laser Diode WSLD-445-050m-1 Single Emitter 445 0.050 Single Mode Free Space CW 5.6mm
WSLD-445-4500m-k Single Emitter 445 4.5 Multimode Free Space CW 9mm
WSLD-488-060m-1 Single Emitter 488 0.060 Single Mode Free Space CW 5.6mm
R1Z5-TG430 WSLD-520-050m-1 Single Emitter 520 0.050 Single Mode Free Space CW 3.8mm
WSLD-635-130m-1 WSLD-635-130m-1 Single Emitter 635 0.130 Single Mode Free Space CW 3.8mm
WSLD-445-4500m-k: 445nm Multimode Laser Diode WSLD-650-100m-1-PD Single Emitter 650 0.100 Single Mode Free Space CW 5.6mm
WSLD-445-4500m-k: 445nm Multimode Laser Diode WSLD-785-100m-1-PD Single Emitter 785 0.100 Single Mode Free Space CW 5.6mm
WSLD-808-003-C WSLD-808-003-C Single Emitter 808 3.0 Multimode Free Space CW C-Mount
WSLD-445-4500m-k: 445nm Multimode Laser Diode WSLD-808-500m-2-PD Single Emitter 808 0.500 Multimode Free Space CW 9mm
WSLD-860-003-C Single Emitter 860 3.0 Multimode Free Space CW C-Mount
WSLD-445-4500m-k: 445nm Multimode Laser Diode WSLD-980-001-2-PD Single Emitter 980 1.0 Multimode Free Space CW 5.6mm
WSLP-1550-003m-9-DFB WSLP-1430-002m-9-DFB Distributed Feedback (DFB) 1430 0.002 Single Mode SM Fiber Narrow CW Coaxial
WSLP-1550-003m-9-DFB WSLP-1550-003m-9-DFB Distributed Feedback (DFB) 1550 0.003 Single Mode SM Fiber Narrow CW Coaxial
WSLP-1550-002m-9-DFB-ISO WSLP-1550-010m-PM-DFB-ISO Distributed Feedback (DFB) 1550 0.010 Single Mode PM Fiber Narrow CW Coaxial
WSLP-445-001-M Single Emitter 445 1.0 Multimode MM Fiber CW Coaxial
WSLP-445-030m-4 Single Emitter 445 0.030 Multimode SM Fiber CW Coaxial
WSLP-520-050m-M WSLP-520-050m-M-B Single Emitter 520 0.050 Single Mode MM Fiber CW Coaxial
WSLP-520-050m-M WSLP-650-020m-M Single Emitter 650 0.020 Multimode MM Fiber CW Coaxial
R3Z0-WSLP-905-050m-M-PD: 905nm Multimode Fiber Coupled Laser Diode WSLP-905-050m-M-B-PD Single Emitter 905 0.050 Multimode MM Fiber CW Coaxial
R3Z0-WSLP-905-050m-M-PD: 905nm Multimode Fiber Coupled Laser Diode WSPP-IGA-80-105 Photodiodes MM Fiber CW Fiber Coupled

HL Series

TG420

The HL Series of laser diodes are available in a wide range of wavelengths from violet to red and infrared in support of a broad range of applications. These applications include display, medical, biosciences, industrial tools (sensor, leveler), machine vision, scanners, printers and a myriad of other applications being developed in the industry.

JDL Series

The JDL Series of unmounted laser diode bars are available in CW or QCW configurations in wavelength from 760nm – 1064nm. Various emitter configurations and cavity lengths are available offering up to 200W CW and 500W QCW output powers.

JOLD-Stacks Series

The JOLD-Stacks Series of high quality high power laser diode bar stacks. They are available with actively (microchannel) cooled or conductively cooled. And in wavelengths from 780nm – 1064nm.

JOLD-Open Heatsinks Series

The JOLD-Open Heatsinks Series are high quality high power laser diode bar products. They are available in a range of open heatsinks including the CS, CN, and LK package. And in wavelengths from 780nm – 1064nm.

JOLD-FC Series

The JOLD-FC Series of high quality high power fiber coupled laser diode bar products are offered in wavelengths from 780nm – 1064nm and 30W to 400W output power.

We offer standard wavelengths of 808 nm, 940 nm and 980 nm. The fiber core diameter of our diode lasers is 200 µm, 400 µm or 600 µm. On request, we will be happy to adapt the parameters to your individual requirements. You can also choose between pilot lasers, monitor diodes and integrated Peltier elements.

Because of their reliability and efficiency, our modules are successfully used as beam sources in areas such as solid-state laser pumps, material processing and medicine. They have a robust and compact design and have proven their worth in daily use.

LDX Series

The LDX Series of high power multimode single emitter laser diodes include wavelengths of 400nm – 1900nm. Available in a wide range of output powers and package types.

LTC-OSE Series

The LTC-OSE series from Luxmux, trade named BeST-SLED®, can be configured with up to 6 super luminescent diodes and driver circuitry, into a single 32 pin butterfly package. This reliable, cost-effective, rugged broadband light source produces overlapping spectral coverage from 1230nm to 1730nm, generating up to 19 spectral combinations, and average powers up to 50mW. The LCT-OSE series is suitable for direct integration into existing OEM products for Optical Coherence Tomography, Optical Sensing, White Light Interferometry and others.

R Series

The R series of wavelength stabilized single mode and multimode laser diodes offer narrow wavelength spectrum in wavelengths from 633nm thru 1064nm. Package options range from components as basic as a TO-56 or 14-pin BF packaged diodes, to OEM modules including electronics, to UL/CE and IEC certified turn-key systems.

RBDL Series

R1Z0-BDL-Fiber-Coupled Direct Diode LaserThe RBDL Series is a high power direct diode turn-key system available in wavelengths of 915nm or 976nm. This easy to integrate, OEM laser diode module provides up to 3kW of power and unprecedented brightness.

RPK Series

The RPK Series of multiple single emitter fiber coupled diode lasers are available in wavelengths from 405nm thru 1550nm with up to 300W output powers. These multi-emitter high power and high brightness diode lasers include options for aiming beam, photo detector, TEC, fiber detector, thermistor and a variety of package types.

REP Series

The REP series includes tunable single-frequency (DFB-like) diode lasers and Fabry-Perot laser diodes in wavelengths from 1270nm thru 2350nm for communications, sensing and measurement applications. They are enabling new volume markets through the mass deployment of disruptive technologies.

All single mode diode lasers exhibit superior linewidth properties across the entire wavelength range when compared to typical DFB lasers. Utilizing a proprietary discrete-mode (DM) technology ensures excellent side mode suppression ratio (SMSR), without the mode hops inherent to most distributed feedback (DFB) lasers.

The REP Series is specifically engineered for applications such as gas sensing, LIDAR, metrology, and optical communications. Multiple packaging options are available including the Fiber coupled 14-pin butterfly, TO39 (w/TEC), and TO56.

For a complete module incorporating the fiber coupled butterfly package with an integrated current driver and TEC controller, designed for ease of operation, it is the ideal platform for high stability gas detection or remote sensing.  See the DX1 Series.

TG Series

R1Z5-TG420

The TG Series of gallium nitride (GaN) semiconductor laser diodes emit in the blue spectral range, offering non-standard wavelengths from 420nm up to 460 nm with a typical output power of 50mW and an absolute maximum output power of 100mW. Assembled in a 5.6 mm (TO-56) packages the TG series is a suitable for a wide range of OEM applications that require blue/violet light.

QCL Series

mirSense Product Family

The QCL series is a high power pulsed Quantum Cascade Laser based on proprietary technology which incorporates high-powered diodes (typically watt-level) emitting in the main transmission bands of the atmosphere (4.0µm, 4.6µm, 4.8µm, 9.x µm). The ITAR free MirSense technology exhibits outstanding performance in terms of power and wall-plug efficiency. This high-performance QCL laser assembly takes full advantage of MirSense’s state of the art technologies.

VD Series

VD-0940I-004W-1C-2A0: 940nm VCSEL Diode

The VD Series of Vertical Cavity, Surface Emitting Laser (VCSEL) emitters, and arrays are available in a wide range of output powers in wavelengths of 850nm and 940nm.  Standard options include VCSEL, VCSEL w/ Diffusor, VCSEL & PD w/ Diffusor, and pulsed VCSELs.  These low-cost lasers are ideal for a wide range of consumer products.
