633nm Lasers

What are 633nm Lasers?

633nm Red Laser Diodes with Diode Pumped Solid State (DPSS) or Continuous Wave (CW) technology.

Green laser diodes are available with both single-mode and multi-mode beam profiles. They have either free space or fiber coupled outputs. The diode laser packages are ideal for OEM applications, and laser modules are available for either OEM or plug and play applications.

Filters Reset

Type

Wavelength Selection

Power Selection

Energy Selection

Pulse Width Selection

Mode

Output

Linewidth

Series

Manufacturer

Picture Part Number Type Wavelength (nm) Output power (W) Mode Output Linewidth Pulse energy (uJ) Pulse width Rep rate
633L-2XA: 633nm SLM Laser (VBG Diode; MATCHBOX 2) 633L-1XA LD Module 633 0.035, 0.060, 0.080, 0.090 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space
633L-2XA: 633nm SLM Laser (VBG Diode; MATCHBOX 2) 633L-2XA LD Module 633 0.035, 0.040, 0.070 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space Narrow
HL633: 633nm Laser Diode HL633 Single Emitter 633 0.100 Single-Mode Free Space
LBX-633 LD Module 633 0.100 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space
LBX-633S LD Module 633 0.040 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space Narrow
LGK 7608 HeNe Lasers 633 0.0015 Single-Mode Free Space
LGK 7610 HeNe Lasers 633 0.002 Single-Mode Free Space
LGK 7621 HeNe Lasers 633 0.005 Multimode Free Space
LGK 7627 HeNe Lasers 633 0.005, 0.010 Single-Mode, Multimode Free Space
LGK 7628 HeNe Lasers 633 0.005, 0.007 Single-Mode Free Space
LGK 7634 HeNe Lasers 633 0.002, 0.003 Single-Mode Free Space
LGK 7650 HeNe Lasers 633 0.0005, 0.001 Single-Mode Free Space
LGK 7653 HeNe Lasers 633 0.010 Single-Mode Free Space
LGK 7654 HeNe Lasers 633 0.010 Single-Mode Free Space
LGK 7655 HeNe Lasers 633 0.0006, 0.001 Single-Mode Free Space
LGK 7665 HeNe Lasers 633 0.015, 0.018, 0.020 Single-Mode Free Space
LGK 7672 HeNe Lasers 633 0.002 Single-Mode Free Space
LGR 7608 HeNe Lasers 633 0.0015 Single-Mode Free Space
LGR 7610 HeNe Lasers 633 0.002 Single-Mode Free Space
LGR 7621 HeNe Lasers 633 0.002, 0.005 Single-Mode, Multimode Free Space
LGR 7627 HeNe Lasers 633 0.005, 0.010 Single-Mode Free Space
LGR 7628 HeNe Lasers 633 0.005 Single-Mode Free Space
LGR 7634 HeNe Lasers 633 0.002 Single-Mode Free Space
LGR 7650 HeNe Lasers 633 0.005 Single-Mode Free Space
LGR 7655 HeNe Lasers 633 0.0006, 0.001 Single-Mode Free Space
LGR 7656 HeNe Lasers 633 0.0005 Single-Mode Free Space
LGR 7660 HeNe Lasers 633 0.001 Single-Mode Free Space
LGR 7695 HeNe Lasers 633 0.00075 Single-Mode Free Space
R Series R0633 LD Module, Single Emitter, VBG 633 0.025, 0.035, 0.050 Single-Mode PM Fiber, Free Space Narrow
RWLP-633M: 633nm MultiMode Laser Diode RWLP-633M Single Emitter 630, 633 0.300, 0.700, 1.0 Multimode MM Fiber
RWLP-633S: 633nm Single Mode Laser Diode RWLP-633S Single Emitter 633 0.030, 0.050 Single-Mode PM Fiber, SM Fiber

Matchbox Series

R1Z4-Matchbox Laser

The Matchbox series offers excellent performance and reliability in the “World’s Smallest” ultra-compact, all-in-one, integrated laser head. They can operate on a 5V power supply while maintaining low noise operation. The monolithic design of the Matchbox Series laser includes thermally stabilized optics in a hermetically sealed housing, ensuring reliable and maintenance-free operation. This series is available in wavelengths from 405 nm thru 1064nm, with options for collimated beam or fiber-coupled output, and single-mode and multimode versions.

HL Series

TG420

The HL Series offers versatile and high-quality laser diode products in a variety of wavelengths and high-power options, ideal for direct imaging, industrial, and bio/medical applications. These reliable, efficient, and compact diodes come in TO-Can packages, making them perfect for OEM integration. Additionally, they operate with TE mode oscillation and are RoHS compliant, ensuring safe use. Choose the HL Series for quality, reliability, and performance in laser diodes.

LaserBoxx Low Noise Series

The LaserBoxx Low Noise series of CW diode laser modules, with a variety of wavelengths from 375 to 785nm and output powers up to 350mW, offers highly customizable laser solutions for OEM and plug & play modules. With advanced features such as excellent beam quality, stability, and modulation capabilities, our lasers provide ultra-low noise and a wide range of options for SM, MM, and PM fiber coupling. Our dedicated control software, USB and RS232 interfaces, and external controller with power display make integration, operation, and remote diagnostics a breeze. Additionally, our rugged and compact design and wide variety of standard wavelengths ensure that our lasers can meet your specific needs.

LaserBoxx SLM Series

The LaserBoxx-SLM series are single longitudinal mode (SLM) CW diode laser modules available in green, yellow, red, and NIR wavelengths, delivering ultra-narrow linewidths, with excellent temperature stability and low noise current. Embedded firmware locks the laser on the same mode at each startup. This customizable, compact, self-contained laser module is available in turn-key or OEM versions and utilizes a proprietary alignment-free, monolithic resonator, and comes standard with a graphic user interface with remote diagnostics via USB, RS232, or direct I/O interface. With modulation capabilities and adjustable power options, the SLM Series is versatile and adaptable to a wide range of applications.

LGK Series

The LGK series of HeNe laser modules boast an excellent TEM00 beam, robust mechanical design, a long service life of up to 30,000 hours, and are available in 543nm, 594nm, and 632.8nm wavelengths, with output powers up to 20mW. Choose between standard and customized models, with options for single or multimode, random or linear polarization, Brewster window tubes, and fiber coupling. Designed for long life, low noise, and high stability, with many customization options, these HeNe lasers are perfect for applications including spectroscopy, interferometry, holography, medical, and more!

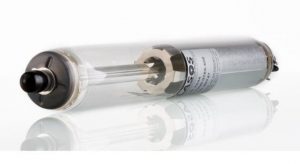

LGR Series

The LGR series of HeNe laser replacement tubes provide unparalleled performance for a wide range of applications. have a robust mechanical design, excellent beam quality, and a long service life of up to 30,000 hours. Standard and customized models are available in a large variety in the red, green, and yellow spectral ranges with output powers up to 20 mW. Options for singlemode or multimode, random or linear polarization, and Brewster window tubes for educational and scientific purposes.

R Series

R Series

The R series of wavelength stabilized singlemode and multimode laser diodes offer narrow linewidth output in wavelengths from 633nm thru 1064nm. This highly customizable series offers package options ranging from components as basic as a TO-56 or 14-pin BF packaged diodes, to OEM modules including electronics, to UL/CE and IEC certified turn-key systems. The R series is the perfect source for various markets, including chemical analysis, bio-medical, fiber laser, and scientific applications.

RWLP Series

R3Z0-WSLP-905-050m-M-PD: 905nm Multimode Fiber Coupled Laser Diode

The RWLP series offers an affordable and versatile solution for your laser application needs with single-mode and multimode options and wavelengths from 405nm thru the IR region. With customizable options, our team can work with you to solve any challenges you may face. Rigorously tested for long-term reliability, the RWLP series ensures consistent performance and high beam quality. Perfect for integration, this series supports multiple applications including biological and analytical instrumentation.
