4400

Laser Diode Driver

Key Features:

Current Ranges:

  • 10 Amp / 56 Volt
  • 15 Amp / 28 Volt
  • 20 Amp / 48 Volt
  • 30 Amp / 28 Volt
  • 40 Amp / 24 Volt
  • 60 Amp / 14 Volt
  • 80 Amp / 12 Volt
  • 100 Amp / 10 Volt

Low Noise

  • As Low as <5 mA

Auxiliary I/O

  • Two Temperature Sensors
  • Digital I/O
  • One Form-C Relay Contact



There are many configurations and options available. If you do not see exactly what you need below, please contact us!

Need Quantities? Have a question?

POPULAR CONFIGURATIONS:

Part Number
Part Description
Datasheet
Price
Lead Time
Quantity

4400 Laser Driver 4400-10-56-C

Laser Diode Driver, 10A, 56V w/ 1230 Cable

$5,239.00

Inquire

Get Quote
4400 Laser Driver 4400-15-28-C

Laser Diode Driver, 15A, 28V w/ 1230 Cable

$5,239.00

Inquire

Get Quote
4400 Laser Driver 4400-20-48-C

Laser Diode Driver, 20A, 48V w/ 1230 Cable

$6,139.00

Inquire

Get Quote
4400 Laser Driver 4400-30-28

Laser Diode Driver, 30A, 28V

$5,595.00

Inquire

Get Quote
4400 Laser Driver 4400-40-24

Laser Diode Driver, 40A, 24V

$5,895.00

Inquire

Get Quote
4400 Laser Driver 4400-60-14

Laser Diode Driver, 60A, 14V

$6,395.00

Inquire

Get Quote
4400 Laser Driver 4400-80-12

Laser Diode Driver, 80A, 12V

$6,695.00

Inquire

Get Quote
4400 Laser Driver 4400-100-10

Laser Diode Driver, 100A, 10V

$6,695.00

Inquire

Get Quote

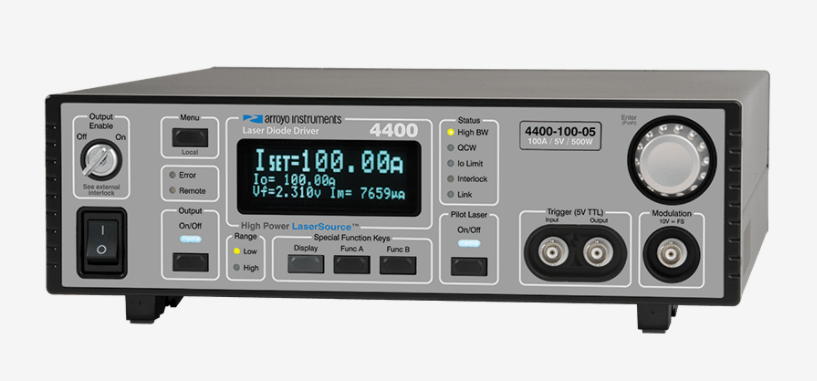

The 4400 Series LaserSource is a high-accuracy laser driver capable of supplying up to 100A for high-power laser and LED applications. This laser driver offers QCW operation, digital I/O, temperature monitoring, and industry-leading laser protection systems.



4400 FEATURES:

The 4400 Series LaserSource laser diode driver is designed for demanding, high-power laser applications. With up to 100 Amps of drive current and high voltage configurations, the 4400 can meet many high power laser requirements. Add in the QCW operation, digital I/O, and temperature monitoring, and you have a very capable instrument.

The LaserSource has all the features you would expect from a laser driver, such as safety interlock, ESD protection, and hardware limit circuits for current and voltage.

In addition, the LaserSource has unique features not found on competing products including optically isolated modulation and photodiode inputs, programmable PD bias, and a constant voltage control mode

PILOT LASER CONTROL
Constraint current or constant voltage operating modes

OVERLAPPING LASER PROTECTION
Including safety interlock, ESD protection, hardware limits for current & voltage, soft power-on, and intermittent contact safeguards.

QUASI-CONTINUOUS WAVE MODE
QCW mode provides low duty cycle, high current pulses to manage thermal loading. Pulse widths as narrow as 100 μs.

ANALOG MODULATION
Bandwidths up to 40 kHz.

MULTIPLE OPERATING MODES
Choose from:

  • Constant Current
  • Constant Power
  • Constant Voltage

SIMPLE USER INTERFACE
Easy to Read, High Contrast VFD Display with all messages and settings in plain English. View All 3 At Once:

  • Current Set Point
  • Photodiode Current
  • Laser Voltage
Current (A)

, , , , , , ,

Voltage

, , , , , ,

Duty

Version
