660nm red laser diodes and red laser modules are available with both single-mode and multi-mode beam profiles. They have either free space or fiber coupled outputs. The diode laser packages are ideal for OEM applications, and laser modules are available for either OEM or plug and play applications.
|Picture||Part Number||Type||Output power (W)||Mode||Output||Linewidth||Pulse energy (uJ)||Pulse width||Rep rate|
|660L-1XA||LD Module||0.060, 0.080, 0.090, 0.110||Single-Mode Lasers||Free Space, MM Fiber, SM Fiber, PM Fiber|
|HL6548FG||Single Emitter||0.1||Single-Mode Lasers||Free Space|
|HL660||Single Emitter||0.100, 0.110, 0.120, 0.130, 0.150, 0.210||Single-Mode Lasers||Free Space|
|LBX-660||LD Module||0.100||Single-Mode Lasers||Free Space, MM Fiber, SM Fiber, PM Fiber|
|LDX-XXXX-660||Single Emitter||0.350, 0.750, 1.0, 2.0||Multimode||Free Space, MM Fiber|
|R0660||LD Module, Single Emitter, Volume Bragg Grating (VBG) Laser Diodes||0.060||Single-Mode Lasers, Multimode||Free Space||Narrow|
|RWLD-660M||Single Emitter||1.0, 1.5||Multimode||Free Space|
|RWLP-660M||Single Emitter||0.030, 0.050, 0.080, 0.120, 0.300, 0.700, 0.800, 1.0||Multimode||MM Fiber|
|RWLP-660S||Single Emitter||0.003, 0.005, 0.010, 0.020, 0.030, 0.040, 0.050, 0.080, 0.100||Single-Mode Lasers||SM Fiber, PM Fiber|
The Matchbox series offers excellent performance and reliability in an ultra-compact “all-in-one” integrated laser head. They come standard with an integrated internal voltage up-conversion that allows using a 5V power supply while maintaining low noise operation. The monolithic design of the Matchbox Series laser includes thermally stabilized optics in a hermetically sealed housing, ensuring reliable and maintenance-free operation. All the Matchbox series modules include a 12-month warranty and are RoHS compliant. All of these features make them the ideal laser source for integration into commercial flow cytometers.

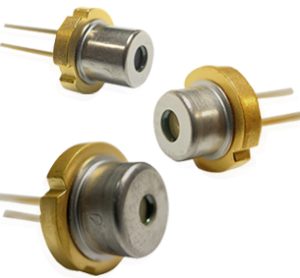

The HL Series of laser diodes are available in a wide range of wavelengths from violet to red and infrared in support of a broad range of applications. These applications include display, medical, biosciences, industrial tools (sensor, leveler), machine vision, scanners, printers and a myriad of other applications being developed in the industry.

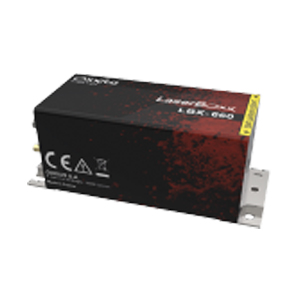

The LaserBoxx low noise Series is a CW diode laser module in a variety of diode wavelengths from 375 to 785nm, with output powers up to 350mW. This compact, self-contained laser module is available in turn-key or OEM versions and utilizes a proprietary alignment-free, monolithic resonator, and comes standard with a graphic user interface with remote diagnostics via USB, RS232, or direct I/O interface.
The LDX Series of high power multimode single emitter laser diodes include wavelengths of 400nm – 1900nm. Available in a wide range of output powers and package types.
The R series of wavelength stabilized single mode and multimode laser diodes offer narrow wavelength spectrum in wavelengths from 633nm thru 1064nm. Package options range from components as basic as a TO-56 or 14-pin BF packaged diodes, to OEM modules including electronics, to UL/CE and IEC certified turn-key systems.
The RWLD series of laser diodes are available in a wide range of wavelengths, power levels, and packages. The RWLD wavelength options span from 405nm to 1650nm, with output powers in the range of 10 mW to 300 mW, packaged in a TO-18 package with photodiode. Custom wavelengths, powers, and packages upon request.

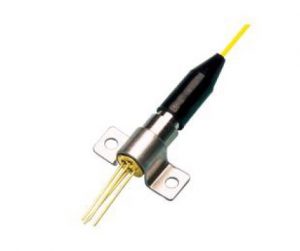

The RWLP series of fiber coupled laser diodes are variable in both multimode and single mode configurations, with wavelengths from 405nm thru the IR. The highly reliable RWLP series is suitable for a variety of applications such as biological and analytical instrumentation.
