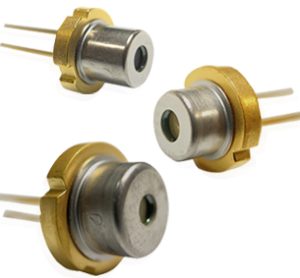

HL Series

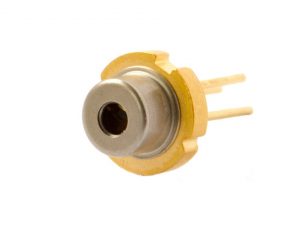

TG420

The HL Series of laser diodes are available in a wide range of wavelengths from violet to red and infrared in support of a broad range of applications. These applications include display, medical, biosciences, industrial tools (sensor, leveler), machine vision, scanners, printers and a myriad of other applications being developed in the industry.

Filters Reset

Type

Wavelength Selection

Power Selection

Mode

Output

Series

Picture Part Number Type Wavelength (nm) Output power (W) Mode Output Package
HL375 Single Emitter 375 0.200 Multimode Free Space 5.6mm
HL405 Single Emitter 405 0.300, 0.600, 1.0, 3.5 Single Mode, Multimode Free Space 5.6mm, 9mm
HL633 Single Emitter 633 0.100 Single Mode Free Space 5.6mm
HL637 Single Emitter 637 0.007, 0.120, 0.250, 0.450, 1.0, 1.2 Single Mode, Multimode Free Space 5.6mm, 9mm
HL638 Single Emitter 638 0.005, 0.007, 0.010, 0.015, 0.120, 0.170, 0.200, 0.700, 1.5, 2.2, 2.4 Single Mode, Multimode Free Space 3.8mm, 5.6mm, 9mm
HL639 Single Emitter 639 0.010, 0.012, 0.020, 0.025, 0.030, 0.200 Single Mode Free Space 5.6mm
HL640 Single Emitter 640 0.045 Single Mode Free Space 5.6mm
HL642 Single Emitter 642 0.065, 0.090, 0.150 Single Mode Free Space 5.6mm
HL649 Single Emitter 649 0.150 Single Mode Free Space 5.6mm
HL6548FG Single Emitter 660 0.100 Single Mode Free Space
HL658 Single Emitter 658 0.035, 0.085 Single Mode Free Space 5.6mm
HL659 Single Emitter 659 1.2 Multimode Free Space 9mm
HL660 Single Emitter 660 0.100, 0.110, 0.120, 0.130, 0.150, 0.210 Single Mode Free Space 5.6mm
HL670 Single Emitter 670 0.010, 0.015 Single Mode Free Space 5.6mm, 9mm
HL685 Single Emitter 685 0.055 Single Mode Free Space 5.6mm
HL63603TG HL690 Single Emitter 690 0.035 Single Mode Free Space 5.6mm
HL705 Single Emitter 705 0.050 Single Mode Free Space 5.6mm
HL730 Single Emitter 730 0.050 Single Mode Free Space 5.6mm
HL830 Single Emitter 830 0.050 Single Mode Free Space 5.6mm
HL852 Single Emitter 852 0.050 Single Mode Free Space 5.6mm
