6300

Combo Driver/Controller

Key Features:

Current/Voltage Ranges

  • 100 mA / 10 Volt
  • 500 mA / 10 Volt
  • 1 Amp / 10 Volt
  • 1 Amp / 18 Volt
  • 4 Amp / 4 Volt
  • 4 Amp / 15 Volt

Low Noise

  • As low as <1 µA

Superb Temperature Stability

  • ± 0.004 °C (over 1 hour)
  • ± 0.01 °C (over 24 hours)



There are many configurations and options available. If you do not see exactly what you need below, please contact us!

Need Quantities?  Use Get Quote to get volume pricing!

POPULAR CONFIGURATIONS:

Part Number
Part Description
Datasheet
Price
Lead Time
Quantity

6301   -   Combo Driver/Controller 6301-C

Combo Laser Diode/TEC Driver, 100 mA, 10V, 60 W TEC Power w/ 1220B & 1260B Cables

$2,835.00

2-4 weeks

Get Quote
6301   -   Combo Driver/Controller 6305-C

Combo Laser Diode/TEC Driver, 500 mA, 10V, 60 W TEC Power w/ 1220B & 1260B Cables

$2,835.00

2-4 weeks

Get Quote
6301   -   Combo Driver/Controller 6310-C

Combo Laser Diode/TEC Driver, 1A, 10V, 60 W TEC Power w/ 1220B & 1260B Cables

$2,835.00

2-4 weeks

Get Quote
6301   -   Combo Driver/Controller 6340-C

Combo Laser Diode/TEC Driver, 4A, 4V, 60 W TEC Power w/ 1220B & 1260B Cables

$3,135.00

2-4 weeks

Get Quote
6301   -   Combo Driver/Controller 6310-QCL

ComboSource, 1A QCL, 4V, 60 W TEC Power

$2,895.00

2-4 weeks

Get Quote
6301   -   Combo Driver/Controller 6340-QCL

ComboSource, 4A QCL, 4V, 60 W TEC Power

$3,295.00

2-4 weeks

Get Quote

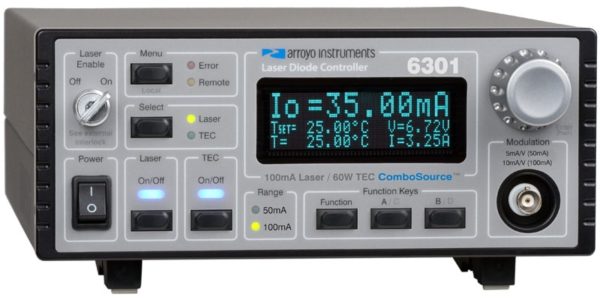

The 6300 Series ComboSource is a high-accuracy laser driver combined with a 60W temperature controller. With unique operational modes and safety features not found in other devices, this instrument is ideal for low and medium-power laser and LED applications.



6300 FEATURES:

The 6300 Series ComboSource Laser Diode Controller offers the best of both worlds: a high accuracy, low noise, dual-range laser driver combined with a powerful 60W precision temperature controller, coming together as our flagship product.

The ComboSource laser driver includes the standard safety suite: a safety interlock, ESD protection, and hardware limit circuits for current and voltage. Dual range allows this instrument to operate at half-scale for improved resolution. In addition, the ComboSource has unique features not found on competing products including optically isolated modulation and photodiode inputs, programmable PD bias, and a constant voltage control mode.

The ComboSource temperature controller supplies 60W of TEC control and supports all common sensor types (thermistor, RTD, AD590, and LM335), including a 4-wire RTD mode. With the same excellent stability and performance as our popular 5305 TECSource, the ComboSource supports a broad range of laser and temperature control applications.

DUAL RANGE LASER DRIVER
Operates at half-scale for improved resolution and lower noise.

OVERLAPPING LASER PROTECTION
Including safety interlock, ESD protection, hardware limits for current & voltage, soft power-on, and intermittent contact safeguards.

MULTIPLE OPERATING MODES
Choose from:

  • Constant Current
  • Constant Power
  • Constant Voltage

REMOTE VOLTAGE SENSING
Supports an extra pair of sensing wires to measure the operating voltage of your laser diode or LED.

AUTO-TUNE AND MANUAL PID SELECTION
One button auto-tunes your control loop, or choose from 8 factory gain settings, or select your own.

POWERFUL TEMPERATURE CONTROLLER
Supplies up to 60 Watts of TEC control and up to ± 0.004 ºC. Works with a thermistor, LM-335, AD-590, or an RTD.

HIGH CONTRAST VFD MULTI-VIEW DISPLAY
Easy to Read, High Contrast VFD Display with all messages and settings in plain English. View All 4 At Once:

  • Laser Current & Voltage
  • Actual & Temp Set Point
  • Photodiode Current
  • TEC Voltage & Current
Type

Current (A)

, , ,

Voltage

, , ,

Duty

Version
