Nanosecond Lasers

Nanosecond Lasers Overview

Nanosecond lasers, sometimes referred to as nanolasers, are the most common category of q-switched pulsed lasers used today.  Q-switching is the use of a high-speed shutter which is introduced into the optical cavity to temporarily increase the cavity losses until the gain materials metastable level is fully saturated.  Once the switch is opened, all of the light is emitted at one time.  For most laser gain materials, the depletion time is on the order of a few nanoseconds (10-9s), resulting in the generation of laser pulses.  Solid-state (DPSS) lasersflashlamp lasersfiber lasers, and microchip lasers can all be q-switched and therefore used to produce nanosecond pulse width lasers.   Because of the wide range of gain materials and technologies, nanosecond lasers are available in a vast wavelength range from the ultraviolet through the infrared region, pulse energies from nJ to J, and repetition rates varying from Hz to MHz.  The high peak power and short pulse widths of these lasers are ideal for a wide range of applications including LIBSlaser designation, and marking.

Filters Reset

Type

Wavelength Selection

Power Selection

Energy Selection

Pulse Width Selection

Rep Rate Selection

Series

Manufacturer

162 results found

Aero Series

Aero Laser by Bright SolutionsThe Aero Series is a high-energy DPSS laser that operates at less than 15 nanoseconds and with average power up to 200mJ at 1064nm and 100mJ at 532nm. All models come enclosed in an extremely compact and ruggedized single unit with a conductively cooled heatsink with a water-cooled option. It comes with available options for beam expanding and collimating optics. This new laser series is ideal for applications like LIBS, spectroscopy, and Atmospheric LIDAR.

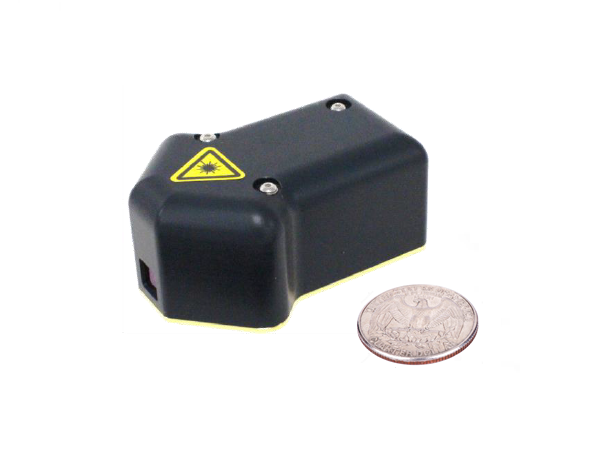

Airtrac Series

AIRTRAC-6M: Low SWaP High Energy Laser

The AIRTRAC series, from Areté’s Associates, is a ruggedized, high-shock, ultra-compact, actively q-switched, low-SWaP, DPSS laser, available with >90 mJ of pulse energy. Fully compliant NATO STANAG 3733 configurations for laser designation are available in a complete system weighing less than 1 lb. The athermal design of the AIRTRAC ensures high laser pulse energy, stable performance over the full temperature range with low beam divergence.

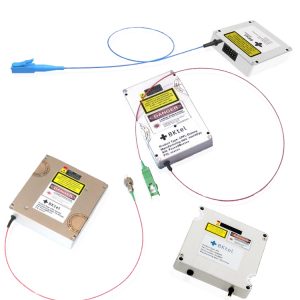

CPFL Series

CPFL-1.5a: 1.5µm OEM Fiber LaserThe CPFL series is a Telcom grade compact 1.5um pulsed laser series available with up to 1W of average power and nanosecond to sub-nanosecond pulses. This telecom grade, fiber lasers enables a variety of applications including long range LIDAR and other “eye-safe” laser operations. The CPFL Laser is flexible format available at various pulse widths, repetition rates and center wavelengths to meet a variety of application requirements

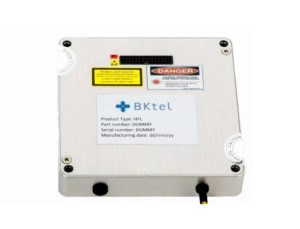

HFL Series

HFL: 1550nm High Power Pulsed Fiber Laser

HFL series is a high-energy, q-switched, wavelength stabilized, OEM fiber laser from Bktel, perfect for LiDAR and 3D scanning applications. This ultra-compact series offers high pulse repetition rates up to several MHz, 5W average power output (25W peak), up to 150µJ of pulse energy, pulse widths between 0.4 and 10ns, and delivers a perfect TEM00 output beam with fiber and collimating lens options.

Jenlas Fiber ns

Jenlas Fiber ns 105: 100W Nanosecond Fiber Laser

The Jenlas Fiber ns series of nanosecond pulsed fiber lasers at 1085nm are available with up to 105W, 190 to 250 nanoseconds pulse widths, and peak pulse powers of up to 8 kilowatts. for precise material processing and cutting applications.

MLRL

Pulsed Fiber Laser

The MLRL series is a high-energy, modulated, wavelength stabilized, OEM fiber laser, providing up to 2W of output power @ 1.5µm wavelength, delivered via FC/APC or SC/APC fiber connector. This ultra-compact, q-switched series offers repetition rates up to 500kHz, pulse widths between 50ns and 300ns, high-speed external, TTL, or LVDS triggering, and a perfect TEM00 beam output.

Nps Series

Nps-1064-10

The new, ultrafast Nps-1064-10 is a 1064nm laser, featuring 10mW average output power, < 7ps pulse width, and a 40MHz repetition rate. The transform-limited operation, with a spectral width of < 0.3nm, and remarkably accurate central wavelength (1064.3 +/- 0.1nm) make the Nps-1064-10 laser a suitable candidate for highly efficient amplification by Nd-doped DPSS amplifiers. Therefore, opening the way to nonlinear optics applications like OPO pumping, and narrowband Raman Spectroscopy.

Onda Series

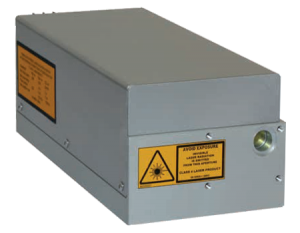

Onda 532nm: 532nm High Energy Laser

The Onda Series is a DPSS nanosecond OEM laser platform aimed at high-end applications requiring both excellent beam quality and high peak power in materials such as metals, glass, plastics, and various delicate and hard materials. Developed initially as a high-energy seeder for advanced MOPA laser systems, the Onda is now available as a standalone device operating at the wavelengths of 266, 355, 532 and 1064nm. The compactness and ease of use allow for superior operation flexibility and performance / cost ratio.

One Series

One-1030-100: 1030nm Miniature Q-Switched Laser

The One Series is a compact, passively q-switched laser operating at the fundamental wavelength of 1030nm. Available in a high energy configurations (up to 100uJ) as well as a high average power configurations (up to 3W). The One Series can be configured in a fixed operational rep rate configuration, or an externally triggerable configuration. The One series is utilized in a variety of applications spanning from material process to air-borne LiDAR.

OT Series

OT-25 (002/004): Er: Glass Laser Transmitters with Diode pumping.

The OT series of Erbium Glass lasers are ultra-compact, high energy q-switched, solid-state lasers that are well suited for rugged, field applications such as active night vision and rangefinding. These air-cooled lasers are available in both lamp-pumped and diode-pumped configurations, with passive and active Q-switching options. With over 10,000 units in the field, the OT series is a proven technology operating in some of the more challenging laser environments.

Q-TUNE Series

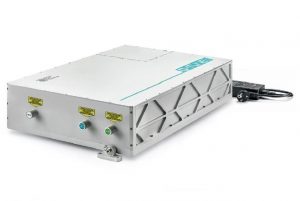

Q-TUNE-IR

The Q-TUNE series is a high energy, compact, tunable wavelength laser consisting of an Optical Parametric Oscillator (OPO) capable of producing a tunable wavelength range of 410-2300 nm with a linewidth narrower than 6 cm-1. Optional second harmonic generator extends the tuning range to 210-410 nm.
The combination of a pulse duration shorter than 5ns and an upper repetition rate of 100Hz, makes the Q-TUNE a perfect coherent light source for temporally resolved spectroscopy, metrology, photo-acoustic imaging and remote sensing applications.

Q-TUNE-IR

Q-TUNE-IR The Q-TUNE-IR uses an Optical Parametric Oscillator (OPO) to produce tunable wavelength in 1380 – 4500 nm range with a linewidth less than 10 cm-1, achieving > 6.5mJ of pulse energy @ 3500nm for the F-10 configuration (> 2mJ @ 3500nm for C-10) with a 10Hz repetition rate. A broadband version with linewidth up to 200 cm-1 is also available by request.  The Q-TUNE-IR requires little maintenance, with all laser electronics integrated into the housing, including an air-cooling system, eliminating the need for chillers, or large power supplies, all while providing a guaranteed pump diode lifetime greater than 2 giga-shots.

Q-SHIFT Series

Q-Shift SeriesThe Quantas-Q-SHIFT family of Q-switched DPSS lasers feature a built‑in nonlinear wavelength conversion stage, allowing the production of wavelengths that are not accessible with conventional solid-state laser sources, including 1163, 1177, 1300, 1317, 1551 and 1571nm. An optional harmonics generator is also available for for the Q-SHIFT, allowing generation of up to the 4th harmonic for each fundamental wavelength.

Q-Spark

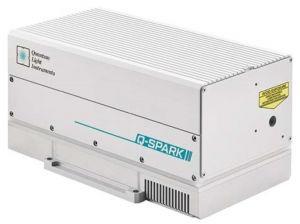

Quantas-Q-SPARK-266: High energy, compact, nanosecond, DPSS laser

The Q-SPARK series, from Quantum Light Instruments Ltd., features a short <1.5 ns pulse with pulse energies up to 10 mJ. Due to the short cavity design, pulse durations of <800ps are achievable with pulse energies up to 5mJ. The innovative water-free laser crystal end-pumping technology produces a Gaussian-like, low divergence, high peak power laser beam in compact, air-cooled package.

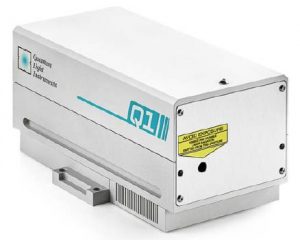

Q1 Series

Quantas-Q1-211: High energy, compact, nanosecond, DPSS laser

The Q1 series is a compact, energy-efficient, diode pumped, air-cooled, Q-switched laser available at 1064 and 1053nm with up to 45 mJ of pulse energy and rep rates up to 50Hz. The high peak powers and low divergence of the Q1 series enable efficient harmonic conversion through the 5th harmonic (213 or 211nm). The innovative laser design has resulted in a user-friendly, turnkey system that requires little maintenance.

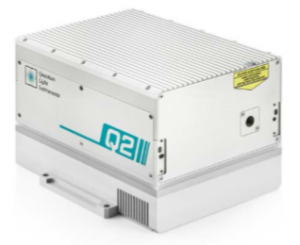

Q2 Series

Quantas Q2 QLI

The Q2 series is a versatile, diode pumped, air-cooled, Q-switched laser capable of achieving up to 80mJ of pulse energy with an operational rep rate up to 100Hz. Available at the fundamental wavelengths of 1064 and 1053nm, the innovative water-free laser crystal end-pumping technology produces Gaussian-like, low divergence laser beams with high peak powers, enabling efficient harmonics conversion through the 5th harmonic.

Q2HE Series

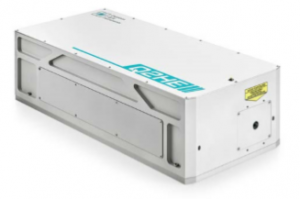

Quantas-Q2HE-211: High energy, compact, nanosecond, DPSS laser

The Q2HE series, from Quantum Light Instruments Ltd., features an innovative water-free laser crystal cooling technology that enables generation of high quality laser beams with up to 100 mJ pulse energy and/or up to 4 W of average output power. Featuring a pulse duration of less than 7 ns and a low beam divergence, the Q2HE is capable of achieving efficient fundamental wavelength conversion through the 5th harmonics of 213/211 nm.

Microchip Series

Bright Microlaser Microchip SB1 Laser

The Microchip Series, available in the FP3 and P4 packages from BrightMicroLaser, are ultra-compact, passively q-switched DPSS lasers that feature pulse durations from 350 ps to 3 ns, energy levels up to 100 uJ and repetition rates up to 100 kHz. In addition to the fundamental 1064 nm wavelength and its harmonics (532, 355 and 266 nm), we also deliver units emitting at 946 and 473 nm.

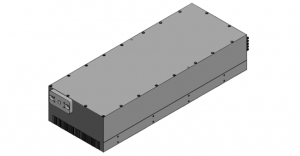

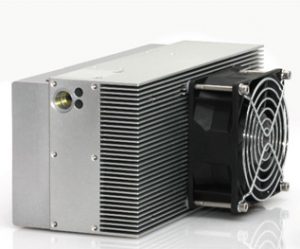

SOL Series

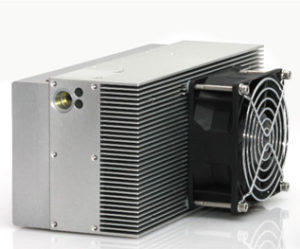

SOL-03-532: 532nm Nanosecond Laser

The SOL Series is the most compact Q-switched Diode Pumped Solid State laser available in the power range from 6W to 40W @ 1064nm. Sol versions @ 532nn are also available with the same footprint. These air-cooled DPSS lasers are offered in a rugged and lightweight Single Unit, designed to allow easy and reliable integration in micro-machining and marking applications. Compactness, insensitivity to environmental conditions and ease of handling guarantee superior operation flexibility and performance/cost ratio.

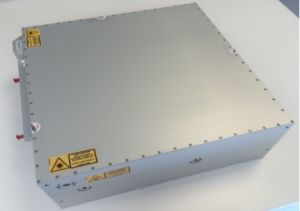

Vento Series

Vento-532-7: 532nm Picosecond DPSS Laser

The Vento Series of sub-ns DPSS active Q-Switched lasers produce pulses in the hundreds of ps range with average power up to 50 W @ 532 nm and up to 100 W @ 1064 nm. Ideal for micromachining, fine cutting and precision LIDAR, all the models are enclosed in an extremely compact and ruggedized single unit with both air-cooled and water-cooled options available.

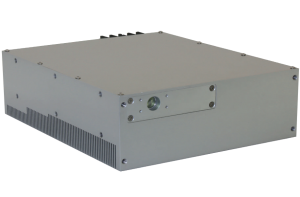

Wedge Series

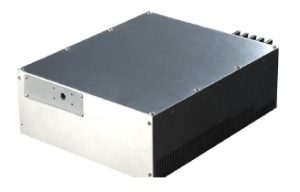

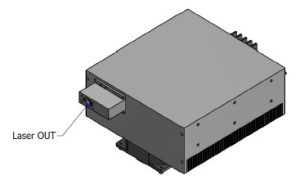

Wedge-XF-1064: 1064nm Picosecond Laser

The Wedge series of DPSS Lasers have been designed for OEM applications like micro machining of hard and soft materials, specialty marking, glass and crystals engraving, LIDAR, LIBS, Spectroscopy and medical diagnostics. High peak powers, with relatively low energy and heat generation, allows efficient ablation and non-linear interaction with most materials. The compact and lightweight package represents a great benefit in LIDAR and other aerospace applications, while short pulses give extremely precise time-of-flight measurements.
Second Harmonic (532 nm output) and wavelength conversion option widen the product application range.
