Laser Products

RPMC offers:

Diode Lasers • Laser Modules • Solid-State Lasers & Amplifiers

Fiber Lasers and Amplifiers • Custom Solid-State Lasers & Laser Diodes

With over 1500 products, we have categorized our lasers into the following groups:

RPMC Lasers blank

RPMC Lasers blank

Laser Diodes:

RPMC Lasers offers one of the broadest wavelength selections of Semiconductor Laser Diodes available, using indium gallium arsenide (InGaAs), gallium nitride (GaN) and other semiconductor materials.  On this page, we list all diode products, including fiber-coupled and free-space single emitters, arrays (bars), and stacks, wavelength stabilized & narrow linewidth (DFB & VBG), QCL, multi-wavelength, turn-key, tunable, and custom laser types.

Our narrow linewidth options utilize DFB (distributed feedback) and VBG (volume Bragg grating) technology.  Furthermore, we offer fiber-coupled options on most devices and complete turn-key systems if preferred.

Laser Diodes are available with wavelengths in the UV, violet, blue, green, red, NIR, SWIR, MWIR, and LWIR spectral regions, in a large range of output powers. Firstly, our single-mode products provide output powers in the mW range. Next, our multimode emitters and VCSELs produce powers in the Watts range. Finally, our diode bars, stacks and multi-emitter, fiber-coupled modules and systems provide powers in the multi KW range.

There are many different packages to choose from. For example, we offer chip on submount, B-mounts, C-mounts, Q-mounts, and various TO-Can and HHL packages, amongst others. Furthermore, if you do not see the package type needed, we offer many custom packages.

RPMC Lasers blank

CW Lasers:

CW Lasers (continuous-wave lasers) emit a continuous stream of laser light, unlike pulsed lasers. Pulsed lasers store energy and emit the stored, concentrated energy in periodic bursts or pulses. Indeed, RPMC Lasers offers a wide selection of Continuous-Wave (CW) Lasers and Diode Modules. For example: Laser Diode (LD) ModulesDPSS Lasers, HeNe and Argon-Ion Gas LasersFiber LasersLine ModulesMulti-Wavelength Combiners, and Custom Lasers.

CW Lasers and Modules are available in the UV, Violet, Blue, Green, Yellow, Orange, Red, NIR, SWIR, MWIR, and LWIR wavelength regimes. Available output powers range from 0.5mW up to 100W.

These single-mode and multimode CW offerings are available with either free-space or fiber-coupled output. Furthermore, along with standard output, narrow linewidth or broadband output options are also available. Finally, our laser package options range from simple laser diodes, to modules to full turn-key systems.

RPMC Lasers blank

Pulsed Lasers:

RPMC Lasers offers a wide selection of Pulsed Laser technologies (Types). For example, these types include Diode-Pumped Solid-State (DPSS) LasersFlash-lamp LasersUltrafast Lasers,  Fiber LasersMicrolasers/Microchip LasersTunable LasersMIL-Spec LasersMicromachining Lasers, and Custom Lasers.

Utilizing pulse generation techniques like mode-locking and active and passive Q-switching, these lasers produce high peak power or high energy pulses with a lower duty cycle. These lasers provide Nanosecond (ns), Picosecond (ps): >300 Picosecond & <300 Picosecond, and Femtosecond laser pulse widths.

Our pulsed products are available in many wavelengths in the UV, Violet, Blue, Green, Yellow, Red, NIR, SWIR, and MWIR regimes. Furthermore, our lasers provide average output powers from a few mW to 100W and pulse energies from nanojoules to 100’s of millijoules. Finally, these options provide pulse repetition rates from single-shot up to 20MHz.

RPMC Lasers blank

Laser Amplifiers:

Our Diode Pumped Solid State (DPSS) Laser Amplifiers and Fiber Laser Amplifiers are available in the IR wavelengths, at 1064nm, and the fiber Amplifiers are also available at 1550nm.  The DPSS Amplifiers can be operated in CW or with pulses as short as picoseconds.  All the Fiber Amplifiers are CW.  Output power varies depending on the model.

RPMC offers a variety of fiber & DPSS amplifiers. The DPSS Amplifiers are capable of CW or pulsed operation, with pulses as short as Picoseconds.  However, the Fiber Amplifiers provide only CW operation.  Output power varies depending on the model.

Our Diode-Pumped Solid-State (DPSS) Laser Amplifiers and Fiber Laser Amplifiers are available in the IR wavelengths, at 1030nm and 1064nm. The Fiber Amplifiers are also available at 1550nm, up to 2054nm.

Our fiber amplifiers provide up to 40W of output power. Furthermore, they offer numerous features, including low noise, compact package design, digital control, and SLM configurations with narrow linewidth.

Next, our DPSS Laser amplifiers are OEM type optical amplifier systems, used to boost the pulse energy or average output power for a variety of applications.

Finally, the ultra-compact, nearly monolithic, and flexible system design allows a selection of different power and energy levels based on highly reliable and long lifetime gain modules. Therefore, also allowing easy integration and cost-effective upgrading of laser application machines, scientific lasers or low power oscillators.

RPMC Lasers blank

Micromachining Systems:

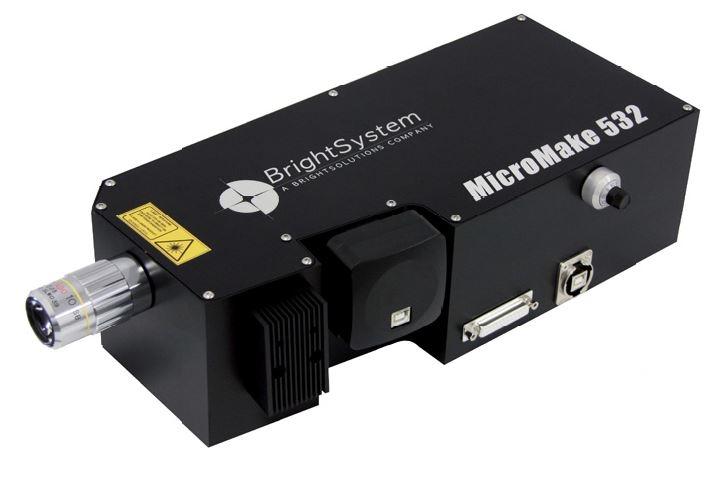

Our Micromachining Systems are an integrated and compact solution designed for high precision and resolution applications. It is currently available at 532nm. The system includes everything for direct laser micro-processing in a single monolithic element. Live microscope imaging of the sample is available during all process phases for alignment and immediate quality check. These systems are perfectly suited for a large variety of materials currently used in the fields of microelectronic circuits, display fabrication and correction, biomedical devices machining, and optical substrates micro-processing.

RPMC Lasers blank

Accessories:

We offer a wide selection of  laser accessories. For example, we have CW and Pulsed laser diode drivers (benchtop, OEM modules, and PC board), TEC controllersDriver/Controller CombosPockels cell driversHeatsinks/MountsFibersRaman ProbesThin Disk Gain MediaThin Disk Pump ModulesMirror Mounts.

– Electronics –

Our broad range of desktop laser diode drivers will meet your exact test needs, from 100 milliamps to 20 Amps.  They include unique features not found on competing products. For example, an optically isolated photodiode and modulation inputs, programmable PD bias, and both RS232 and USB computer interfaces. They also have laser diode protection circuits such as interlock, ESD protection, and hardware limits for current and voltage.

Our OEM driver boards are an attractively priced solution for your pulsed, QCW, and CW laser needs. The standard products below represent statements of capability.  Finally, most of our drivers for OEM production are customized to meet the requirements of the end user.

– Heatsinks –

Our Laser Diode Heatsinks and Mounts support many standard laser diode packages, including; Butterfly, DIL, C-mount, HHL (high heat load), TO-3, TO-5.6, TO-9, and other packages.  Using state of the art design tools, these heatsinks and mounts have been optimized into a highly efficient heat transfer testbed,  improving upon the heat transfer found in most other mounts.

Our heatsinks for laser diodes feature both passive and active Peltier cooling solutions.  In short, passively cooled units conduct the heat away from the laser and dissipates it into the ambient air, and actively cooled heatsinks utilizes a thermoelectric cooler (TEC) to cool the laser diode package.

– Raman Probe –

RPMC Lasers is proud to introduce an ultra-high throughput integrated Raman probe. This novel device includes an integrated wavelength stabilized laser source with Raman filter packs, beam shaping optics, and high-efficiency Raman spectra collection optics. The Raman probe interfaces with any fiber-coupled spectrometer to simplify operation and set-up.

The Integrated Raman Probe incorporates our wavelength stabilized hybrid external cavity laser (HECL) with a proprietary optical design to offer unmatched performance (typically 3x -5x over traditional Raman probes) at a reasonable price.

– Fibers –

Lastly, we have a large selection of multi mode fiber options in stock. For example, options include 0.14 and 0.22 NA, 62-800µm core diameter, length of 1 to 10m, and with or without stainless steel squarelock sheathing, depending on the product configuration. Finally, all options are silica/silica step index fiber and have SMA-905 connectors.  Call to verify availability.

– Thin Disk Gain Media –

Thin-disk lasers typically utilize ytterbium-doped yttrium aluminum garnet (Yb:YAG) crystal as the gain medium. Compared to neodymium-doped yttrium aluminum garnet (Nd:YAG) crystal, Yb:YAG displays several benefits. Firstly, it provides a shorter emission wavelength at around 1030 nm. Secondly, it has a lesser degree of quantum defect, which provides improved efficiency with regard to the conversion from pump photons to laser photons. Thirdly, Yb:YAG has a longer upper-state lifetime, which is beneficial for energy storage regarding Q-switching.

– Pump Modules –

The pump modules we offer are designed for fiber-coupled pump beam delivery. Furthermore, acceptable pump beam wavelengths include 940nm and 969nm. Our pump modules do not come with the Thin Disk Gain Media included. However, they are compatible with the TD12 or TD20 options of gain media, which can be found here.

– Mirror Mounts –

RPMC is happy to now offer Water-Cooled Mirror Mounts for high-power applications with stringent, long-term stability requirements.

  • Machined from Premium Stainless Steel
  • 25.7 mm Bore for Mounting 1″ Optics with 6.35 mm thickness
  • 51 mm Bore for Mounting 2″ Optics with 9.5 or 12.5 mm thickness
  • Hardened Stainless Steel Plate Contacts for Durability and Smooth Movement
  • M6 x 0.25 Fine Hex Adjusters (adjustment with 2 mm hex key)
  • Optional Vacuum Compatibility
