Lasers that designate 40W of output power can have either CW (continuous wave) or pulsed output. CW Lasers are always defined in average output power. Pulsed Lasers with an output power defined in Watts or Milliwatts usually define the laser’s average power, not the peak power of the laser.
|Picture||Part Number||Type||Wavelength (nm)||Output power (W)||Mode||Output||Linewidth||Pulse energy (uJ)||Pulse width||Rep rate|
|1um Fiber Amplifiers||Fiber Amplifiers||1030-1100||5.0, 10.0, 40.0||CW|
|2um CW/CW Modulated Fiber Lasers||CW Fiber Lasers||1760-2050||4.0, 40.0||Single-Mode||PM Fiber, SM Fiber|
|JDL-1060||Single Emitter, Array (Bar)||1060||10.0, 40.0, 60.0, 80.0, 120.0, 200.0, 250.0, 350.0||Multimode||Free Space|
|JDL-760||Array (Bar)||760||40.0||Multimode||Free Space|
|JDL-808||Single Emitter, Array (Bar)||808||6.0, 8.0, 10.0, 20.0, 40.0, 50.0, 60.0, 80.0, 92.0, 200.0, 300.0||Multimode||Free Space|
|JDL-915||Array (Bar)||915||40.0, 60.0, 80.0, 200.0||Multimode||Free Space|
|JOLD-Open-808-CW||Array (Bar)||808||40.0, 50.0, 60.0, 80.0||Multimode||Free Space|
|JOLD-Open-880-CW||Array (Bar)||880||40.0, 60.0, 80.0||Multimode||Free Space|
|JOLD-Open-915-CW||Array (Bar)||915||40.0, 60.0, 80.0, 275.0||Multimode||Free Space|
|JOLD-Open-938-CW||Array (Bar)||938||40.0, 60.0, 80.0, 100.0, 120.0, 200.0, 275.0||Multimode||Free Space|
|JOLD-Open-976-CW||Array (Bar)||976||40.0, 50.0, 60.0, 80.0, 100.0, 120.0, 160.0, 275.0||Multimode||Free Space|
|SOL-1064||Pulsed DPSS Lasers||1064||4.0, 6.0, 10.0, 20.0, 30.0, 40.0||300.0, 450.0, 900.0, 1500.0, 2000.0||5ns - 35ns, 7ns - 35ns, 10ns - 40ns, 10ns - 50ns, 15ns - 60ns||Single Shot to 100kHz|
|Vento-1064||Pulsed DPSS Lasers||1064||16.0, 25.0, 40.0||600.0, 1000.0, 1500.0||500ps - 1.5ns||50kHz to 120kHz, 80kHz to 200kHz|

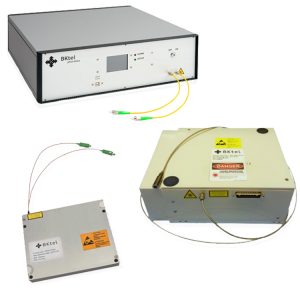

The FA series offers a variety of standard and custom fiber amplifiers. Available in both OEM and Turnkey formats, our 1, 1.5, and 2um fiber amplifiers are manufactured to Telcordia standards and can be customized to meet your application requirements. With output powers of up to >40dBM and options for linear or random polarization, narrow linewidth, low noise, and input and output monitoring, our fiber amplifiers are ideal solutions for applications such as optical transport, FTTH & CATV, RF video overlay, and pulsed amplification.
The FL CW/CW Modulated Series of CW fiber lasers is manufactured to Telcordia standards and is suitable for various applications with powers up to 100W at 1um, 30W at 1.5um, and 40W at 2um. Available in both OEM and Turnkey formats, this series offers a variety of standard and custom configurations. Available options and configurations include narrow linewidth, single frequency outputs, C and L-band broadband sources, PM fiber options, power tunability, and high-speed trig./mod.
The JDL series offers industry-leading high-power unmounted laser diode bars in the 760 nm – 1060 nm spectral region. Our unmounted laser bars provide a wide range of emitter configurations and cavity lengths, with operational modes up to 500 W. We offer low fill factor bars suitable for fiber coupling, high-power bars up to 300W for CW or hard-pulse DDL applications, and QCW bars up to 500W for QCW or long-pulse optical pumping and medical applications.
The JOLD-Open Heatsinks Series offers industry-leading, reliable, and cost-effective high-power free-space mounted diode lasers. Our proprietary heat sink and assembly technology, paired with our focus on advanced optical pumping and direct-diode-laser technology, results in diode lasers with unmatched performance. This series offers options from 792 nm up to 1035 nm, and average output powers up to 300 W.
The SOL series is the most compact, air-cooled, Q-switched DPSS nanosecond laser available in the power range from 4W to 40W @ 1064nm. With its excellent beam quality, high peak power, wavelength options (10W and 650µJ at 532nm / 4W @ 355nm), and wide range of add-ons, this series is ideal for the most demanding industrial and scientific applications. With a rugged, compact, lightweight, and easy-to-use single-unit design, the SOL laser is easy to integrate into any system, providing superior operational flexibility and performance/cost ratio.
The Vento series is a compact and ruggedized sub-nanosecond DPSS laser series designed for scientific and industrial applications such as precision LIDAR and materials processing. With pulse durations down to 500 ps and repetition rates up to 200 kHz, this laser series produces a high average power of up to 25 W @ 532 nm and up to 40 W @ 1064 nm. The Vento series has many options, from beam expanding and collimating optics to a low jitter option to extended operating temperature range, up to IP68 package, remote control cbox & software, and much more.
