- 60W / 5A / 12V
- 120W / 10A / 12V
- 192W / 8A / 24V
- Custom configurations
- RTD (2 or 4-wire)
Heat & Cool
- TEC Modules & Resistive Heaters
Remote Operation via PC
- USB / RS-232 Connections
There are many configurations and options available. If you do not see exactly what you need below, please contact us!
Need Quantities? Have a question?
TEC Controller, 192W, 8A, 24V w/ 1262B Cable
TEC Controller, 60 W, 5A, 12V w/ 1260B Cable
TEC Controller, 120 W, 10A, 12V w/ 1262B Cable

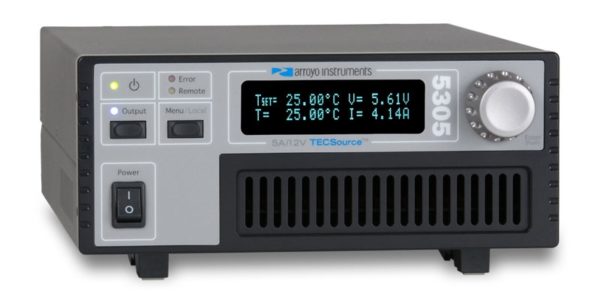

The 5300 Series TECSource provides precision temperature control with multiple sensor support, an integrated fan power supply, and up to 192 W of TEC power. This temperature controller powers both TEC and resistive heater modules and is flexible enough to meet the most demanding temperature control applications.
TECSource temperature controllers bring precision temperature control to your laser application. Every TECSource features ultra-stable performance and fully adjustable PID control. The 5300 Series TECSource adds multiple sensor support, an integrated fan power supply, and up to 192W of TEC power.
Each instrument also comes with a high contrast VFD display and standard computer interfaces in a space-saving design.
The 5300 offers ± 0.004ºC temperature stability over 1 hour, and only ± 0.01ºC fluctuation over 24 hours.
AUTO-TUNE AUTOMATIC PID CALCULATION
The 5300 series automatically calculates PID parameters for your mount.
FULLY ADJUSTABLE PID VALUES
Every TECSource has eight factory-set gain settings, along with the option to choose your own.
INTEGRATED FAN POWER SUPPLY
Provides 4.5 – 12 Volts DC to power a laser mount cooling fan.
SIMPLE USER INTERFACE
Easy to Read, High Contrast VFD Display with all messages and settings in plain English. View All 4 At Once:
- Temperature Set Point
- Actual Temperature
