1053nm NIR Laser Diodes with Diode Pumped Solid State (DPSS) or Continuous Wave (CW) technology.
Picture | Part Number | Type | Output power (W) | Mode | Output | Linewidth | Pulse energy (uJ) | Pulse width | Rep rate |
---|---|---|---|---|---|---|---|---|---|
|
Quantas-Q1-1053 | Pulsed DPSS Lasers | 0.100, 0.200, 0.350 | 10000.0, 20000.0, 35000.0 | 7ns, 8ns | 10Hz | |||
|
Quantas-Q2-1053 | Pulsed DPSS Lasers | 0.100, 0.150, 0.350, 0.600, 0.800 | 10000.0, 15000.0, 35000.0, 60000.0, 80000.0 | 5ns, 7ns, 8ns | 10Hz | |||
|
Quantas-Q2HE-1053 | Pulsed DPSS Lasers | 1.2, 2.0 | 40000.0, 100000.0, 120000.0 | 6ns | 10Hz, 20Hz, 50Hz | |||
|
R1053 | LD Module, Single Emitter, Volume Bragg Grating (VBG) | 0.050, 0.120, 0.150, 0.300, 0.500 | Single-Mode, Multimode | Free Space, PM Fiber | Narrow |

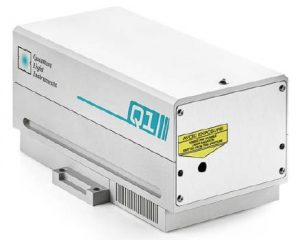

The Q1 series is a compact, energy-efficient, diode pumped, air-cooled, Q-switched laser available at 1064 and 1053nm with up to 45 mJ of pulse energy and rep rates up to 50Hz. The high peak powers and low divergence of the Q1 series enable efficient harmonic conversion through the 5th harmonic (213 or 211nm). The innovative design results in a user-friendly, turnkey system that requires little maintenance, and the laser’s variable pulse repetition rate and built-in sync pulse generator provide flexibility for triggering user equipment.
The Q2 series is a diode-pumped, fully air-cooled, Q-switched laser designed for a wide range of applications that require high peak power pulses. Its innovative water-free laser crystal end-pumping technology produces Gaussian-like, low divergence laser beams with high peak powers, allowing for efficient harmonics conversion through the 5th harmonic. This versatile platform can be configured in many ways, including up to 80mJ pulse energy at 10 Hz pulse repetition rate or up to 20mJ at 100 Hz. The laser can emit either 1053 nm or 1064 nm wavelength, and in the short cavity configuration, pulse duration can be reduced by 50% in comparison to standard configuration.
The Q2HE series is a high–energy, q-switched, diode-pumped solid-state (DPSS) laser series, available in either 1053nm or 1064nm fundamental wavelengths, with optional 2nd, 3rd, 4th, or 5th harmonic generation. This air-cooled series of lasers is designed for a wide range of applications that require high peak power pulses. Due to a short laser cavity, excellent thermal properties of the crystal, and an innovative water-free crystal cooling technology, the Q2HE series can deliver up to 120mJ of pulse energy and/or up to 4W average output power. This advanced laser design results in a compact, user-friendly turnkey system that requires little maintenance.
The R series of wavelength stabilized single–mode and multimode laser diodes offer narrow linewidth output in wavelengths from 633nm thru 1064nm. This highly customizable series offers package options ranging from components as basic as a TO-56 or 14-pin BF packaged diodes, to OEM modules including electronics, to UL/CE and IEC certified turn-key systems. The R series is the perfect source for various markets, including chemical analysis, bio-medical, fiber laser, and scientific applications.
