4200-DR

Laser Diode Driver

Key Features:

Current Ranges:

  • 50 mA / 100 mA
  • 250 mA / 500 mA
  • 1 Amp / 2 Amp
  • High Accuracy – Up to 0.025% of reading 0.025% of scale
  • Low Noise – As Low as <1 µA
  • Compliance Voltages – Up to 10 Volts available



There are many configurations and options available. If you do not see exactly what you need below, please contact us!

Need Quantities? Have a question?

POPULAR CONFIGURATIONS:

Part Number
Part Description
Datasheet
Price
Lead Time
Quantity

close up of the front face of a piece of electronic equipment Laser Diode Driver 4201-DR-C

Laser Diode Driver, 50mA/100 mA, 10V w/ 1220B Cable

$1,165.00

Inquire

Get Quote
close up of the front face of a piece of electronic equipment Laser Diode Driver 4205-DR-C

Laser Diode Driver, 250mA/500 mA, 10V w/ 1220B Cable

$1,165.00

Inquire

Get Quote
close up of the front face of a piece of electronic equipment Laser Diode Driver 4220-DR-C

Laser Diode Driver, 1000mA/2000mA, 5V w/ 1220B Cable

$1,265.00

Inquire

Get Quote

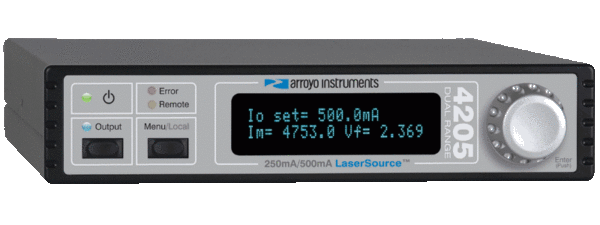

The 4200 Series LaserSource is a high-accuracy, dual-range laser driver for low-power laser and LED applications. This laser driver offers features typically found in only more expensive units, such as overlapping laser protection systems, high modulation rates, and programmable PD bias.



4200 FEATURES:

The 4200-DR Series LaserSource dual range laser diode driver is ideal for low power applications, such as butterfly and TO-can lasers, as well as many LED applications. The compact enclosure takes up little space and starting at only $995, the 4200-DR offers an excellent value.

Many of our customers have switched to the 4300 after years of using other products, and they have all made the same discovery: Why spend significantly more when you can get the same performance for a fraction of the price?

The LaserSource has all the features you would expect from a laser driver, such as safety interlock, ESD protection, and hardware limit circuits for current and voltage. Dual range allows this instrument to operate at half-scale for improved resolution.

DUAL RANGE LASER DRIVER
Operates at half-scale for improved resolution and lower noise.

OVERLAPPING LASER PROTECTION
Including safety interlock, ESD protection, hardware limits for current & voltage, soft power-on, and intermittent contact safeguards.

REMOTE VOLTAGE SENSING
Supports an extra pair of sensing wires to measure the operating voltage of your laser diode or LED.

PROGRAMMABLE PHOTODIODE BIAS VOLTAGE
Menu-selectable PD bias voltage, from 0 to -5 Volts.+P25

ANALOG MODULATION
Bandwidths up to 325 kHz.

MULTIPLE OPERATING MODES
Choose from:

  • Constant Current
  • Constant Power
  • Constant Voltage

SIMPLE USER INTERFACE
Easy to Read, High Contrast VFD Display with all messages and
settings in plain English. View All 3 At Once:

  • Current Set Point
  • Photodiode Current
  • Laser Voltage
Current (A)

, ,

Voltage

,

Duty

Version
