RDS3

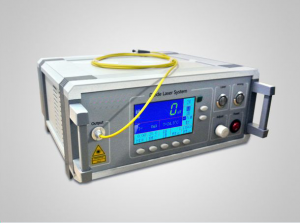

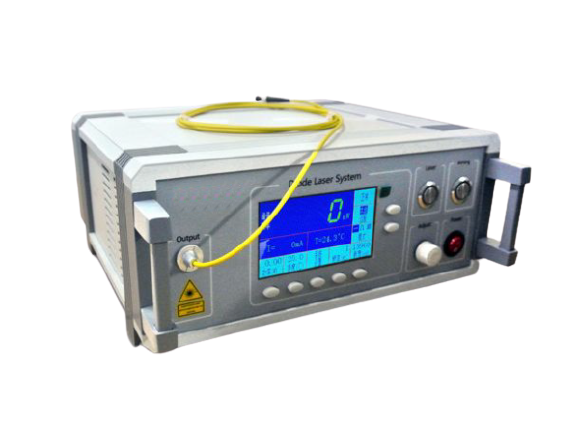

Fiber Coupled Diode Laser Turn-Key System
Key Features:
- Turn-key – Lab use – Plug-and-Play
- Easy to integrate – Convenient GUI – User-Friendly
- Up to 200W output power
- Select from many standard wavelengths
- Other wavelengths available upon request
- Air-cooled, Fiber-Coupled output up to 200W
- Fiber-coupled beam delivery
- Temperature control
- Red aiming beam (optional)
Options for aiming beam, photo detector, TEC, fiber detector, thermistor, fiber types & stabilization
There are many configurations and options available. If you do not see exactly what you need below, please contact us!
Need Quantities? Use Get Quote to get volume pricing!
POPULAR CONFIGURATIONS:
Picture |
Part Number |
Part Description |
Datasheet |
Price |
Lead Time |
Quantity |
|
|---|---|---|---|---|---|---|---|
|
RDS3-808-30.00W-40022-SM |
Fiber Coupled Diode Laser Turn-Key System, 808nm, 30W, 400um 0.22NA Fiber with SMA connector |
$3,700.00 |
In Stock |
Get Quote | ||
|
|
RDS3-808-100.00W-20022-SM |
Fiber Coupled Diode Laser Turn-Key System, 808nm, 100W, 200um 0.22NA Fiber with SMA connector |
$4,123.00 |
4-8 weeks |
Get Quote |
RDS3: Fiber-Coupled Turn-Key Direct Diode Laser System option for the RPK Series, suitable for material processing, medical therapeutics and pumping solid-state laser media. Delivering a huge selection of output powers from 2mW up to 200W, coupled with a 50µm, 105µm, 106.5µm, 135µm, 200µm, or 400µm core MM fiber, or SM fiber, the system makes it easy to develop new applications.
The Turn-Key Laser Diode System is available in the following wavelengths:
| • 405nm
• 445nm • 450nm |
• 520nm
• 635mn • 660nm |
• 680nm
• 690nm • 785nm |
• 793nm
• 808nm • 830nm |
• 878nm
• 915nm • 940nm |
• 960nm
• 976nm • 980nm |
• 1064nm |
Other wavelengths are available upon request. With control over the operating temperature of the diode laser, as well as current and pulse width, the system offers flexibility and an easy to use interface. The system can be controlled either by the front panel user interface or by a computer-controlled RS-232 interface. Most of the RPK series lasers work perfectly with this DS3 Turn-key system. Be sure to check out the lasers in this series to choose specific wavelength and power configurations that suit your needs, for use in the DS3 system.
| Type | |
|---|---|
| Wavelength (nm) | |
| Output power (W) | |
| Mode | |
| Output | |
| Duty | |
| Package |
R1Z0-Datasheet-Turnkey-Diode-Laser-System
