850nm IR laser diodes and blue laser modules are available with both single-mode and multi-mode beam profiles. They have either free space or fiber coupled outputs.
The diode laser packages are ideal for OEM applications, and laser modules are available for either OEM or plug and play applications.
|Picture||Part Number||Type||Output power (W)||Mode||Output||Linewidth||Pulse energy (uJ)||Pulse width||Rep rate|
|850L-1XA||LD Module||0.070, 0.110, 0.130||Single-Mode||PM Fiber, SM Fiber, MM Fiber, Free Space|
|RWLD-850M||Single Emitter||0.500, 0.800, 1.0, 3.0||Multimode||Free Space|
|RWLP-850M||Single Emitter||0.050, 0.150, 0.200||Multimode||MM Fiber|
|RWLP-850S||Single Emitter||0.002, 0.010, 0.020, 0.030, 0.050, 0.070||Single-Mode||PM Fiber, SM Fiber|
|VD-0850-CW||VCSELs||0.008, 0.200, 0.700, 2.0, 4.0, 6.0||Single-Mode||Free Space|

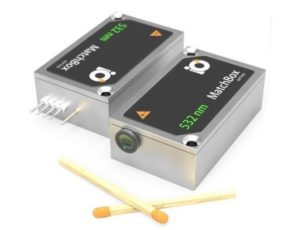

The Matchbox series offers excellent performance and reliability in the “World’s Smallest” ultra-compact, all-in-one, integrated laser head. They can operate on a 5V power supply while maintaining low noise operation. The monolithic design of the Matchbox Series laser includes thermally stabilized optics in a hermetically sealed housing, ensuring reliable and maintenance-free operation. This series is available in wavelengths from 405 nm thru 1064nm, with options for collimated beam or fiber-coupled output, and single-mode and multimode versions.
The RWLD series offers competitively priced laser diodes with high beam quality and a wide variety of products to support multiple applications. Available in a wide range of wavelengths, power levels, and packages. The RWLD wavelength options span from 405nm to 1650nm, with output powers in the range of 10 mW to 300 mW, packaged in a TO-18 package with photodiode. We also offer customized options, such as a customized wavelength, output power, or a special package to meet your specific needs.
The RWLP series offers an affordable and versatile solution for your laser application needs with single-mode and multimode options and wavelengths from 405nm thru the IR region. With customizable options, our team can work with you to solve any challenges you may face. Rigorously tested for long-term reliability, the RWLP series ensures consistent performance and high beam quality. Perfect for integration, this series supports multiple applications including biological and analytical instrumentation.
