Array (Bar)

Arrays Lasers Overview

In a bar, the individual emitting areas (emitters) lie side by side and, together with the non-emitting areas between the emitters, they form the so-called active layer. The number, the width, and the spacing of the emitters are dependent on the manufacturer. The relative value of the emitting areas in the active layer with respect to the bar width is called filling factor (FF). Typical filling factors are 30 – 90%. The center-to-center distance between two adjacent emitters is called emitter pitch. Z is the propagation axis of the laser radiation. The propagation axis Y is called fast axis (FA), the propagation axis X is termed slow axis (SA). This is connected with the beam angle (divergence) in the two planes, XZ and YZ.

Laser diodes bars and multimode laser diode stacks are available in unmounted laser diode bars, or mounted in conductively or actively cooled packages.

Multiple bars can be stacked in the horizontal or vertical direction to increase the output power.

We offer diode laser bars and stacks in wavelengths ranging from 635nm-1908nm in several free space and fiber coupled packages.

Contact us today to let one of our knowledgeable Product Managers assist you!

Filters Reset

Type

Wavelength Selection

Power Selection

Mode

Output

Series

Manufacturer

Picture Part Number Type Wavelength (nm) Output power (W) Mode Output Duty Package

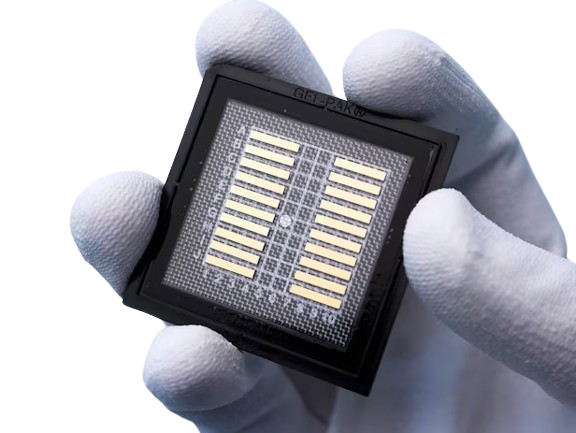

JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-20-19-1060-TE-80-2.0 Array (Bar) 1060 80.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-20-19-808-TE-50-1.5 Array (Bar) 808 50.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-20-19-808-TE-60-2.0 Array (Bar) 808 60.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-20-19-915-TE-60-1.5 Array (Bar) 915 60.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-20-19-915-TE-80-2.0 Array (Bar) 915 80.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-20-19-940-TE-60-1.5 Array (Bar) 940 60.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-20-19-940-TE-80-2.0 Array (Bar) 940 80.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-20-19-976-TE-60-1.5 Array (Bar) 976 60.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-20-19-976-TE-80-2.0 Array (Bar) 976 80.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-20-47-976-TE-80-2.0-LAR Array (Bar) 976 80.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-25-23-808-TM-92-2.0 Array (Bar) 808 92.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-30-19-1060-TE-40-1.0 Array (Bar) 1060 40.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-30-19-1060-TE-60-1.5 Array (Bar) 1060 60.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-30-19-760-TE-40-1.5 Array (Bar) 760 40.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-30-19-792-TE-60-2.0 Array (Bar) 792 60.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-30-19-808-TE-20-0.6 Array (Bar) 808 20.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-30-19-808-TE-40-1.0 Array (Bar) 808 40.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-30-19-808-TE-50-1.5 Array (Bar) 808 50.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-30-19-808-TE-60-2.0 Array (Bar) 808 60.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-30-19-915-TE-40-1.0 Array (Bar) 915 40.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-30-19-915-TE-80-2.0 Array (Bar) 915 80.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-30-19-940-TE-60-1.5 Array (Bar) 940 60.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-30-19-940-TE-80-2.0 Array (Bar) 940 80.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-30-19-976-TE-60-1.5 Array (Bar) 976 60.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-30-19-976-TE-80-2.0 Array (Bar) 976 80.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-23-1020-TE-120-2.0 Array (Bar) 1020 120.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-23-1020-TE-200-4.0 Array (Bar) 1020 200.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-23-1060-TE-120-2.0 Array (Bar) 1060 120.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-23-1060-TE-200-4.0 Array (Bar) 1060 200.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-23-905-TE-200-4.0 Array (Bar) 905 200.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-23-915-TE-200-4.0 Array (Bar) 915 200.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-23-940-TE-200-4.0 Array (Bar) 940 200.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-45-940-TE-200-4.0 Array (Bar) 940 200.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-47-1060-TE-250-1.5 Array (Bar) 1060 250.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-47-792-TE-80-2.0 Array (Bar) 792 80.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-47-808-TE-40-1.0 Array (Bar) 808 40.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-47-808-TE-60-1.5 Array (Bar) 808 60.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-47-808-TE-80-2.0 Array (Bar) 808 80.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-47-940-TE-120-2.0 Array (Bar) 940 120.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-47-940-TE-80-1.5 Array (Bar) 940 80.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-47-976-TE-120-2.0 Array (Bar) 976 120.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-50-47-976-TE-80-1.5 Array (Bar) 976 80.0 Multimode Free Space CW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-75-37-1060-TE-350-1.5 Array (Bar) 1060 350.0 Multimode Free Space QCW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-75-37-880-TE-500-1.5 Array (Bar) 880 500.0 Multimode Free Space QCW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-75-37-940-TE-300-1.5 Array (Bar) 940 300.0 Multimode Free Space QCW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-75-62-808-TE-200-1.0 Array (Bar) 808 200.0 Multimode Free Space QCW None
JDL-BAB-50-47-1060-TE-250-1.5: Unmounted Laser Diode Bar JDL-BAB-75-62-808-TE-300-1.5 Array (Bar) 808 300.0 Multimode Free Space QCW None
JOLD-100-CPNN-1L JOLD-100-CPNN-1L Array (Bar) 808, 940, 980 100.0 Multimode Free Space CW CS
JOLD-100-CPXF-2P-A Array (Bar) 915, 940, 980 100.0 Multimode MM Fiber CW Fiber Coupled
JOLD-100-CPXF-2P-W: Fiber Coupled Laser Diode JOLD-100-CPXF-2P-W Array (Bar) 808, 880, 915, 938, 976 100.0 Multimode MM Fiber CW Fiber Coupled
JOLD-100-CPXF-2P-W: Fiber Coupled Laser Diode JOLD-100-CPXF-2P-W Array (Bar) 808, 880, 915, 938, 976 100.0 Multimode MM Fiber CW Fiber Coupled
JOLD-100-FC-18-808-QCW: Fiber Coupled Laser Diode Bar JOLD-100-FC-18-808-QCW Array (Bar) 808, 940, 980 100.0 Multimode MM Fiber CW CS
JOLD-100-HS-2L-808: 2 Bar Horizontal Stack Laser Diode JOLD-100-HS-2L-808 Array (Bar) 808 100.0 Multimode MM Fiber CW Fiber Coupled
JOLD-100-QANN-1L Array (Bar) 808, 940 100.0 Multimode Free Space QCW MCC Stack
Diode Bar JOLD-100-QPNN-1L Array (Bar) 808, 940, 980 100.0 Multimode Free Space QCW CS
JOLD-120-CPNN-1L JOLD-120-CPNN-1L Array (Bar) 940, 980 120.0 Multimode Free Space CW CN
JOLD-120-QPXF-2P-iTEC: Fiber Coupled Laser Diode JOLD-120-QPXF-2P-iTEC Array (Bar) 808, 915, 938, 976 120.0 Multimode MM Fiber QCW Fiber Coupled
JOLD-120-QPXF-2P-W: Fiber Coupled Laser Diode JOLD-120-QPXF-2P-W Array (Bar) 808, 915, 938, 976 120.0 Multimode MM Fiber QCW Fiber Coupled
JOLD-140-CPXF-2P-W: Fiber Coupled Laser Diode JOLD-140-CPXF-2P-W Array (Bar) 915, 938, 976 140.0 Multimode MM Fiber CW Fiber Coupled
JOLD-160-CPNN-1L JOLD-160-CPNN-1L Array (Bar) 940, 980 160.0 Multimode Free Space CW CN
JOLD-180-CPFN-1L JOLD-180-CPFN-1L 1020 Array (Bar) 1020 180.0 Multimode Free Space CW CN
JOLD-20-FCM-14 Array (Bar) 1470 20.0 Multimode MM Fiber CW Fiber Coupled
JOLD-200-CPNN-1L: Laser Diode Bar JOLD-200-CPNN-1L Array (Bar) 938 200.0 Multimode Free Space CW CN
JOLD-225-QPFN-1L: QCW Diode Laser Bar w/ FAC JOLD-225-QPFN-1L Array (Bar) 808 210.0 Multimode Free Space QCW CS
JOLD-25-CPNN-1L Array (Bar) 1470 25.0 Multimode Free Space CW CN
JOLD-250-QPNN-1L: QCW Diode Laser Bar JOLD-250-QPNN-1L Array (Bar) 808 250.0 Multimode Free Space QCW CS
JOLD-270-QPFN-1L JOLD-270-QPFN-1L Array (Bar) 808 275.0 Multimode Free Space QCW CS, CN
R1Z6 JOLD-275-CPNN-1L LK Package JOLD-275-CPNN-1L Array (Bar) 915, 938, 976 275.0 Multimode Free Space CW, QCW LK Package
JOLD-30-CPXF-1L JOLD-30-CPXF-1L 808 Array (Bar) 808 30.0 Multimode MM Fiber CW Fiber Coupled
JOLD-30-FC-12: Fiber Coupled Laser Diode JOLD-30-FC-12 Array (Bar) 808, 880, 915, 938, 976 30.0 Multimode MM Fiber CW Fiber Coupled
JOLD-30-FC-14: Fiber Coupled Laser Diode JOLD-30-FC-14 Array (Bar) 808, 880, 915, 938, 976 30.0 Multimode MM Fiber CW Fiber Coupled
JOLD-30-FCM-12 Array (Bar) 808, 976 30.0 Multimode MM Fiber CW Fiber Coupled
JOLD-300-QPNN-1L JOLD-300-QPNN-1L Array (Bar) 808 300.0 Multimode Free Space QCW CS, CN
JOLD-32-CPBN-1L: Laser Diode Bar w/ FAC/SAC JOLD-32-CPBN-1L Array (Bar) 808, 880, 915, 938, 976 32.0 Multimode Free Space CW CS
JOLD-35-CPFN-1L: Laser Diode Bar w/ FAC JOLD-35-CPFN-1L Array (Bar) 808, 880, 915, 938, 976 35.0 Multimode Free Space CW CS
JOLD-35-CPNF-1L 975 Array (Bar) 975 35.0 Multimode Free Space CW CS
JOLD-40-CPNN-1L JOLD-40-CPNN-1L Array (Bar) 808, 880, 915, 938, 976 40.0 Multimode Free Space CW CS, CN
JOLD-45-CPXF-1L JOLD-45-CPXF-1L 940 Array (Bar) 940 45.0 Multimode MM Fiber CW Fiber Coupled
JOLD-45-CPXF-1L 880 JOLD-45-CPXF-1L Array (Bar) 808, 880, 915, 938, 976 45.0 Multimode MM Fiber CW Fiber Coupled
JOLD-50-CANN-1L: Bar on Actively cooled Submount JOLD-50-CANN-1L Array (Bar) 808, 980 50.0 Multimode Free Space CW MCC Stack
JOLD-50-CPBN-1L: Laser Diode Bar w/ FAC/SAC JOLD-50-CPBN-1L Array (Bar) 808, 880, 915, 938, 976 50.0 Multimode Free Space CW CS
JOLD-50-CPNN-1L 791 Array (Bar) 792 50.0 Multimode Free Space CW CS, CN
JOLD-55-CPFN-1L: Laser Diode Bar w/ FAC JOLD-55-CPFN-1L Array (Bar) 808, 880, 915, 938, 976 55.0 Multimode Free Space CW CS
JOLD-60-CANN-1L: Bar on Actively cooled Submount JOLD-60-CANN-1L Array (Bar) 940 60.0 Multimode Free Space CW MCC Stack
JOLD-60-CPNN-1L 891 Array (Bar) 891 60.0 Multimode Free Space CW CS, CN
JOLD-60-CPNN-1L JOLD-60-CPNN-1L Array (Bar) 808, 880, 915, 938, 976 60.0 Multimode Free Space CW CS, CN
R1Z6-JOLD-68-CPBN-1L: Laser Diode Bar w/ FAC/SAC JOLD-68-CPBN-1L Array (Bar) 808, 880, 915, 938, 976 68.0 Multimode Free Space CW CS
JOLD-70-CPFN-1L-808: 808nm Laser Diode Bar Package with FAC JOLD-70-CPFN-1L 808 Array (Bar) 808 70.0 Multimode Free Space CW CS
JOLD-70-QPXF-1L Array (Bar) 808, 938 70.0 Multimode MM Fiber QCW Fiber Coupled
JOLD-75-CPXF-1L JOLD-75-CPXF-1L Array (Bar) 976 75.0 Multimode MM Fiber CW Fiber Coupled
JOLD-75-CPXF-2P-W JOLD-75-CPXF-2P 0.6 W 808 Array (Bar) 808 75.0 Multimode MM Fiber CW Fiber Coupled
JOLD-75-CPXF-2P-iTEC Array (Bar) 808, 880, 915, 938, 976 75.0 Multimode MM Fiber CW Fiber Coupled
JOLD-75-CPXF-2P-W Array (Bar) 808, 880, 915, 938, 976 75.0 Multimode MM Fiber CW Fiber Coupled
JOLD-80-CANN-1L: Bar on Actively cooled Submount JOLD-80-CANN-1L Array (Bar) 808, 940, 980 80.0 Multimode Free Space CW MCC Stack
JOLD-80-CPNN-1L JOLD-80-CPNN-1L Array (Bar) 808, 880, 915, 938, 976 80.0 Multimode Free Space CW CS, CN
JOLD-90-CPFN-1L: Laser Diode Bar w/ FAC JOLD-90-CPFN-1L Array (Bar) 940, 980 90.0 Multimode Free Space CW CS
JOLD-90-QPFN-1L JOLD-90-QPFN-1L Array (Bar) 808, 880, 915, 938, 976 90.0 Multimode Free Space QCW CS, CN
LDX-4119-660 LDX-4119-660 Array (Bar) 660 10.0 Multimode Free Space CW CS
LDX-4119-670: Laser Diode Bar Package LDX-4119-670 Array (Bar) 670 10.0 Multimode Free Space CW CS
LDX-4119-680: Laser Diode Bar Package LDX-4119-680 Array (Bar) 680 12.0 Multimode Free Space CW CS
LDX-4119-690: Laser Diode Bar Package LDX-4119-690 Array (Bar) 690 12.0 Multimode Free Space CW CS
LDX-4219-730: Laser Diode Bar Package LDX-4219-730 Array (Bar) 730 20.0 Multimode Free Space CW CS
LDX-4219-760: Laser Diode Bar Package LDX-4219-760 Array (Bar) 760 20.0 Multimode Free Space CW CS
LDX-4224-750: Laser Diode Bar Package LDX-4224-750 Array (Bar) 750 20.0 Multimode Free Space CW CS
R1Z8-LDX-4319-795: Laser Diode Bar Package LDX-4319-795 Array (Bar) 795 30.0 Multimode Free Space CW CS
LDX-4419-1064: Laser Diode Bar Package LDX-4419-1064 Array (Bar) 1064 40.0 Multimode Free Space CW CS
LDX-4424-1064: Laser Diode Bar Package LDX-4424-1064 Array (Bar) 1064 40.0 Multimode Free Space CW CS

JDL Series

JDL-BAB-75-62-808-TE-200-1.0

The JDL Series of unmounted laser diode bars are available in CW or QCW configurations in wavelength from 760nm – 1064nm. Various emitter configurations and cavity lengths are available offering up to 200W CW and 500W QCW output powers.

JOLD-Open Heatsinks Series

The JOLD-Open Heatsinks Series are high quality high power laser diode bar products. They are available in a range of open heatsinks including the CS, CN, and LK package. And in wavelengths from 780nm – 1064nm.

JOLD-FC Series

JOLD-45-CPXF-1L

The JOLD-FC Series of high quality high power fiber coupled laser diode bar products are offered in wavelengths from 780nm – 1064nm and 30W to 400W output power.

JOLD-Stacks Series

JOLD-450-QAFN-5A: Laser Diode Stack w/ FAC

The JOLD-Stacks Series of high quality high power laser diode bar stacks. They are available with actively (microchannel) cooled or conductively cooled. And in wavelengths from 780nm – 1064nm.

LDX-Bar Series

R1Z8-LDX-4319-795: Laser Diode Bar Package

The LDX-Bar Series of multimode laser diode bars packaged on the industry standard CS package. Wavelengths in the red and IR are available and the output power range from 10W to 100W.
