- 420W / 15A / 28V
- 840W / 30A / 28V
- 960W / 20A / 56V
Inputs / Outputs
- 7 Sensor Inputs
- Two Digital Inputs and Outputs
- One Form-C Relay Contact
- One Analog Output
- RTD (2 or 4-wire)
There are many configurations and options available. If you do not see exactly what you need below, please contact us!
Need Quantities? Have a question?
TEC Controller, 420W, 15A, 28V w/ 1264 Cable
TEC Controller, 960W, 20A, 56V w/ 1264 Cable
TEC Controller, 840W, 30A, 28V w/ 1264 Cable

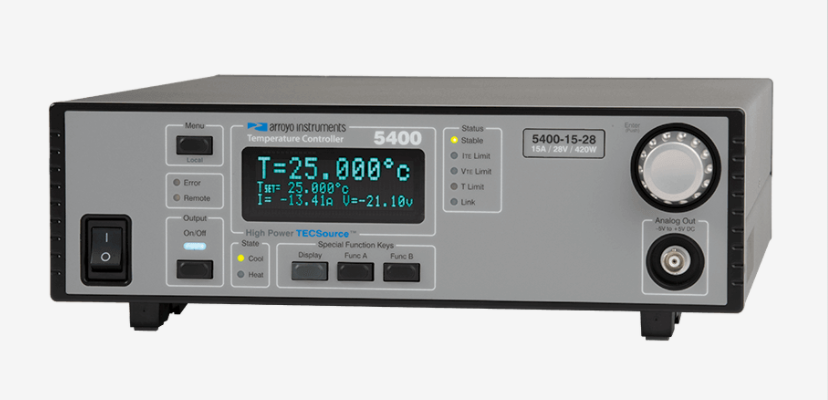

The 5400 Series TECSource provides high precision temperature control with up to 960 Watts of TEC power, supporting multiple simultaneous sensors, digital I/O, analog output monitor, and an integrated fan power supply. This temperature controller powers both TEC and resistive heater modules and is flexible to meet the most demanding temperature control applications.
The 5400 Series TECSource temperature controllers bring precision temperature control to your laser application. Every TECSource features ultra-stable performance and fully adjustable PID control.
Each instrument also comes with a high contrast VFD display and standard computer interfaces in a space-saving design
The 5400 offers ± 0.004ºC temperature stability over 1 hour, and only ± 0.01ºC fluctuation over 24 hours.
AUTO-TUNE AUTOMATIC PID CALCULATION
The 5400 series automatically calculates PID parameters for your mount.
FULLY ADJUSTABLE PID VALUES
Every TECSource has eight factory-set gain settings, along with the option to choose your own.
INTEGRATED FAN POWER SUPPLY
Provides 4 – 12 Volts DC to power a laser mount cooling fan.
SIMPLE USER INTERFACE
Easy to Read, High Contrast VFD Display with all messages and settings in plain English. View All 4 At Once:
- Temperature Set Point
- Actual Temperature
