1550nm Lasers emit laser light in the short-wave infrared (SWIR) or the near-infrared (NIR) range for the SLEDs. These SLEDs are grouped together around a center wavelength (1550nm).
These Distributed Feedback (DFB) Fiber-Coupled Laser Diodes provide up to 10mW (CW) output power. In addition these lasers have low noise output, and long-term reliability. These pigtailed laser module also come with polarization maintaining fibers.
|Picture||Part Number||Type||Wavelength (nm)||Output power (W)||Mode||Output||Linewidth|
|1550L-1XA||LD Module||1550||0.080, 0.120||Single-Mode Lasers||Free Space, SM Fiber, PM Fiber|
|LDX-XXXX-1550||Single Emitter||1550||0.800, 1.0, 1.5, 1.75, 2.5, 3.5, 5.0||Multimode||Free Space, MM Fiber|
|LTC-ISB-G1||LD Module, Superluminescent||1300, 1370, 1430, 1480, 1550, 1680, 1700||0.006, 0.008, 0.010, 0.012, 0.013, 0.015, 0.030||Single-Mode Lasers||Free Space, SM Fiber, PM Fiber||Broadband|
|LTC-ISB-G2||LD Module, Superluminescent||1300, 1340, 1390, 1430, 1480, 1550, 1615, 1680||0.010, 0.012, 0.018, 0.019, 0.020, 0.025, 0.032, 0.035, 0.040||Single-Mode Lasers||Free Space, SM Fiber, PM Fiber||Broadband|
|LTC-OSE-G1||Superluminescent||1300, 1340, 1390, 1430, 1480, 1550, 1615, 1680||0.006, 0.008, 0.010, 0.012, 0.013, 0.015, 0.030||Single-Mode Lasers||Free Space, SM Fiber, PM Fiber||Broadband|
|LTC-OSE-G2||Superluminescent||1300, 1340, 1390, 1430, 1480, 1550, 1615, 1680||0.010, 0.012, 0.018, 0.019, 0.020, 0.025, 0.032, 0.035, 0.040||Single-Mode Lasers||Free Space, SM Fiber, PM Fiber||Broadband|
|RWLD-1550M||Single Emitter||1550||2.5||Multimode||Free Space|
|RWLD-1550S||Single Emitter||1550||0.015, 0.020||Single-Mode Lasers||Free Space|
|RWLP-1550S||Single Emitter, Distributed Feedback DFB Lasers||1550||0.002, 0.005, 0.010||Single-Mode Lasers||SM Fiber, PM Fiber||Narrow|
The Matchbox series offers excellent performance and reliability in an ultra-compact “all-in-one” integrated laser head. They come standard with an integrated internal voltage up-conversion that allows using a 5V power supply while maintaining low noise operation. The monolithic design of the Matchbox Series laser includes thermally stabilized optics in a hermetically sealed housing, ensuring reliable and maintenance-free operation. All the Matchbox series modules include a 12-month warranty and are RoHS compliant. All of these features make them the ideal laser source for integration into commercial flow cytometers.
The LDX Series of high power multimode single emitter laser diodes include wavelengths of 400nm – 1900nm. Available in a wide range of output powers and package types.
The (Integrated Spectral Bench) product is a compact Superluminescent Diode (SLED) solution that employs Luxmux’s high-performance Optical Spectral Engine (OSE) module. The ISB is a broadband light source that operates in the near infrared range. It is a turn-key product that can easily be integrated into existing devices that require light power.
The LTC-OSE series from Luxmux, trade named BeST-SLED®, can be configured with up to 6 super luminescent diodes and driver circuitry, into a single 32 pin butterfly package. This reliable, cost-effective, rugged broadband light source produces overlapping spectral coverage from 1230nm to 1730nm, generating up to 19 spectral combinations, and average powers up to 50mW. The LCT-OSE series is suitable for direct integration into existing OEM products for Optical Coherence Tomography, Optical Sensing, White Light Interferometry and others.

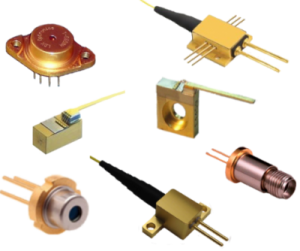

The RWLD series of laser diodes are available in a wide range of wavelengths, power levels, and packages. The RWLD wavelength options span from 405nm to 1650nm, with output powers in the range of 10 mW to 300 mW, packaged in a TO-18 package with photodiode. Custom wavelengths, powers, and packages upon request.
The RWLP series of fiber coupled laser diodes are variable in both multimode and single mode configurations, with wavelengths from 405nm thru the IR. The highly reliable RWLP series is suitable for a variety of applications such as biological and analytical instrumentation.
