R1030

Laser Diode, Stabilized, 1030nm

Key Features:

Free Space:

  • High Power Single Frequency Output
  • Narrow Spectral Linewidth
  • Stabilized Output Spectrum (< 0.007 nm/0C)
  • Gaussian TEM00 Spatial Mode
  • Circularized & Collimated Output Beam
  • Integral ESD Protection & Thermistor
  • Integral Laser Line Filter
  • SMSR 70 dB w/ laser line filter (40 dB without)

Fiber Coupled:

  • High Power Single Mode (single spatial & SLM) Output
  • Ultra-Narrow Spectral Bandwidth (< 100 kHz)
  • Stabilized Output Spectrum (< 0.007 nm/0C)
  • Excellent Beam Quality (M^2 < 1.1)



There are many configurations and options available. If you do not see exactly what you need below, please contact us!

Need Quantities? Have a question?

POPULAR CONFIGURATIONS:


Part Number
Part Description
Datasheet
Price
Lead Time

R1Z5-Image-14-Pin-Butterfly-Open-Beam R1030SB0450B

Single Mode Laser Diode, 1030nm, 450mW, 14-pin Butterfly Package, Open Beam



Inquire

Get Quote
R1Z5-Photo-14-Pin-Butterfly-Fiber-Coupled R1030SB0050P-IS

Single Mode Laser Diode, 1030nm, 50mW, 14-pin Butterfly Package, Fiber Coupled(No Connector) w/ Isolator



Inquire

Get Quote
R1Z5-Photo-14-Pin-Butterfly-Fiber-Coupled R1030SB0050PA-IS

Single Mode Laser Diode, 1030nm, 50mW, 14-pin Butterfly Package, Fiber Coupled w/ FC/APC Connector w/ Isolator



Inquire

Get Quote
R1Z5-Photo-14-Pin-Butterfly-Fiber-Coupled R1030SB0100P

Single Mode Laser Diode, 1030nm, 100mW, 14-pin Butterfly Package, Fiber Coupled(No Connector)



Inquire

Get Quote
R1Z5-Photo-14-Pin-Butterfly-Fiber-Coupled R1030SB0100PA

Single Mode Laser Diode, 976nm, 100mW, 14-pin Butterfly Package, Fiber Coupled w/ SMA Connector, No TEC



Inquire

Get Quote
R1Z5-Photo-14-Pin-Butterfly-Fiber-Coupled R1030SB0280P

Single Mode Laser Diode, 1030nm, 280mW, 14-pin Butterfly Package, Fiber Coupled(No Connector)



Inquire

Get Quote
R1Z5-Photo-14-Pin-Butterfly-Fiber-Coupled R1030SB0280PA

Single Mode Laser Diode, 1030nm, 280mW, 14-pin Butterfly Package, Fiber Coupled w/ FC/APC Connector



Inquire

Get Quote

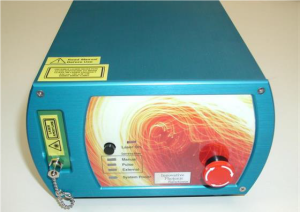

RPMC-L-Type-Module R1030SL0050PA-IS-USB

Single Mode L-Type Module, 1030nm, 50mW, FC/APC Connector w/ Isolator



Inquire

Get Quote
R1Z5-Image-U-Type-Module-Fiber-Coupled R1030SU0050PA-IS-USB

Single Mode U-Type Module, 1030nm, 50mW, FC/APC Connector w/ Isolator



Inquire

Get Quote
R1Z5-Image-U-Type-Module R1030SU0100PA-USB

Single Mode U-Type Module, 1030nm, 100mW, FC/APC Connector



Inquire

Get Quote
R1Z5-Image-U-Type-Module R1030SU0280PA-USB

Single Mode U-Type Module, 1030nm, 280mW, FC/APC Connector



Inquire

Get Quote

The R series of wavelength-stabilized single-mode and multimode laser diodes offer narrow linewidth output in wavelengths from 633nm thru 1064nm, with output powers up to 5 W. This highly customizable series offers package options ranging from components as basic as a TO-56 or 14-pin BF packaged diodes to OEM modules, including electronics, to UL/CE and IEC-certified turn-key systems. The R series is the perfect source for various markets, including chemical analysis, bio-medical, fiber laser, and scientific applications.

Benefits:

  • Product and technology capabilities and applications:
    • Our products and technology have enabled the wide-spread use of these compact narrow-linewidth sources for chemical analysis, bio-medical, fiber laser, and scientific markets
    • This series specializes in the integration of semiconductor lasers, high-reliability micro-optic packaging, precision control electronics, and digital control for these applications.
  • Features and benefits of the HECL technology:
    • With IPS’s HECL technology, single-spatial mode lasers spectral bandwidth reduces to a single-frequency, single longitudinal mode that has an extremely narrow linewidth
    • The R-Series offers side mode suppression ratios that provide extremely high signal to noise ratio and exhibit highly stable wavelength versus temperature characteristics which eliminates the need for complex control circuitry
  • Customization options and additional offerings:
    • The R-Series is highly customizable from free-spaced and fiber-coupled units designed for integration to full turnkey systems
    • In addition, IPS offers high-throughput Raman probes for both single and dual laser sources. These probes can be configured for different wavelengths, cut-on wavenumbers, input and output fiber core diameters, and spectrometers.

The R1030 is a set of 1030nm wavelength stabilized diode lasers with a wide range of configuration options. Our proprietary wavelength stabilized lasers feature stable (≈ 1% power stability), high output powers with ultra-narrow spectral bandwidths, and a diffraction-limited output beam. Designed to replace expensive DFB, DBR, fiber, and external cavity lasers, our single-mode spectrum stabilized lasers offer superior wavelength stability over time, temperature (0.007 nm/0C), and vibration, and are manufactured to meet the most demanding wavelength requirements.

The TO-56 & 14-Pin Butterfly packaged, base product lines come standard with a circularized and collimated open output beam, internal thermistor, and ESD protection, while the 14-Pin Butterfly package can also be fiber-coupled (expect ≈ 50% power loss from base values with fiber-coupling). Utilizing a hybrid external-cavity laser design, based on volume Bragg grating (VGB) technology, we ensure extremely narrowband (≈ 100kHz) output, with a precisely defined center wavelength and a very low sensitivity to temperature changes. Lasing wavelength can be accurately specified and repeatedly manufactured to within +/-0.1 nm upon request. The R1030 also provides an excellent side mode suppression ratio (SMSR) typically between 35-40 dB (70 dB typical with integral laser line filter), and a polarization extinction ratio greater than 17 dB.

If you have any questions or need more information, please contact us.

Wavelength (nm)

Output power (W)

, , ,

Mode

,

Output

,

Linewidth

Coherence length

How can we help you?

Talk to one of our experienced product managers today!

Contact us

CW Lasers FAQs
How do I align my optical system?

How do I align my optical system?

Laser alignment can be a challenging task, but aligning a laser beam doesn’t have to be as complicated as it might seem with the right optical alignment tools and proper laser alignment techniques. Multiple optical alignment techniques have been developed over the years, utilized by technicians and engineers to simplify the alignment process. With the development of these universal laser beam alignment methods, along with some laser alignment tips and tricks, you don’t need to be a laser expert to perform your alignments with relative ease, ensuring your laser beam path is right where you want it to be and your beam is on target every time. Read our article, titled “Laser Alignment: HeNe Lasers, Methods, and Helpful Tips” to get the knowledge and advice you need for proper optical beam path alignment utilizing HeNe Lasers. Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!

Should I choose multimode or single-mode for Raman spectroscopy?
Should I choose multimode or single-mode for Raman spectroscopy?

On the surface, this seems like a simple question since Raman is a nonlinear optical effect and therefore the tighter the beam can be focused the higher the conversion efficiency.  Seemingly a single-mode laser would be preferable, but in practice there are other factors that can complicate the situation. The first question you should ask yourself when considering which type of laser to choose is whether you are doing microscopy or bulk sampling.  If the answer to that question is microscopy, then you immediately should go with a single mode laser.  Since the goal of any microscopy system is to produce the highest resolution image possible, the number one consideration should be how tightly can the laser beam be focused down. However, there are several other considerations when choosing between multimode and single-mode. Learn which is best for you in this article: “Multimode vs Single-Mode Lasers for Raman Spectroscopy.” Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!

What is a CW Laser?
What is a CW Laser?

A CW or continuous-wave laser is any laser with a continuous flow of pump energy. It emits a constant stream of radiation, as opposed to a q-switched or mode-locked pulsed laser with a pulsed output beam. A laser is typically defined as having a pulse width greater than 250 ms. The first CW laser was a helium-neon (HeNe) gas laser, developed in 1960, which you can read more about in this blog “HeNe Lasers: Bright Past, Brighter Future.” If you want to read more about the types of CW Lasers we offer, check out the Overview of CW Lasers section on our Lasers 101 Page!

What is the best laser for optical surface flatness testing?
What is the best laser for optical surface flatness testing?

It is essential that the laser exhibit a high level of spectral stability, ensuring that any changes in the interference pattern are caused by features in the sample and not originating from the laser beam. In addition to spectral stability, high beam pointing stability ensures consistent measurements by mitigating any beam position drift concerning the position of the sample. Lasers with longer coherence lengths, and subsequently narrower linewidths, play an important role in determining the resolution of the measurement, as well as consideration of the wavelength used. Exhibiting both single longitudinal mode and single spatial mode has excellent benefits. To get more details on preferred laser sources for interferometry in this article: “Stable, Narrow Linewidth, CW DPSS Lasers for Precision Interferometry.” Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!

What type of laser do I need for confocal microscopy?
What type of laser do I need for confocal microscopy?

The short answer is: You have some flexibility, but the laser source should be PM fiber-coupled and have a low noise, TEM00 beam mode. The excitation bandwidth of the fluorophores used must overlap with the laser wavelength, as various fluorophores need different wavelengths. So, you may require multiple lasers, which means you’ve got a beam combining alignment challenge to tackle. One way to avoid this is through the convenience of Multi-Wavelength Beam Combiners.

If you want to learn more on the subject of confocal fluorescence microscopy, ideal laser sources, and the benefits of beam combiners, check out this white paper: “Multi-Wavelength Laser Sources for Multi-Color Fluorescence Microscopy.” Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!

What type of laser is best for Doppler LIDAR?

What type of laser is best for Doppler LIDAR?

Various LIDAR signal methods for measuring velocity have one critical requirement in common, the need for precise control over laser frequency. While a wide variety of single-frequency lasers have been used in Doppler LIDAR research, the industry as a whole has adopted single-frequency fiber lasers as the ideal light source. Fiber lasers have several advantages over traditional DPSS lasers, all of which derive from the geometry of the fiber optic itself, namely the innate ability to have an extremely long single-mode optical cavity. This geometry allows for the production of either extremely high-power, single-mode lasers producing unprecedented brightness, or extremely narrow band lasers, with near perfect single-frequency output. If you want to learn more about Doppler LIDAR, the critical considerations involved, and ideal laser sources, check out this whitepaper: “Single-Frequency Fiber Lasers for Doppler LIDAR.” Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!

What’s the difference between single transverse mode & single longitudinal mode?

What’s the difference between single transverse mode & single longitudinal mode?

Within the laser community, one of the most overused and often miscommunicated terms is the phrase “single mode.”  This is because a laser beam when traveling through air takes up a three-dimensional volume in space similar to that of a cylinder; and just as with a cylinder, a laser beam can be divided into independent coordinates each with their own mode structure.  For a cylinder we would call these the length and the cross-section, but as shown in the figure below for a laser beam, we define these as the transverse electromagnetic (TEM) plane and the longitudinal axis.   Both sets of modes are fundamental to the laser beam’s properties, since the TEM modes determine the spatial distribution of the laser beams intensity, and the longitudinal modes determine the spectral properties of the laser.  As a result, when a laser is described as being “single-mode” first you need to make sure that you truly understand which mode is being referred to.  Meaning that you must know if the laser is single transverse mode, single longitudinal mode, or both. Get all the information you need in this article: “What is Single Longitudinal Mode?” Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!

Component FAQs
Can I operate multiple laser diodes from the same power supply?

Can I operate multiple laser diodes from the same power supply?

The same power supply can drive multiple laser diodes if they are connected in series, but they must never be connected in parallel. When two diodes are connected in series, they will function properly as long as the compliance voltage is large enough to cover the voltage drop across each diode. For example, suppose you are trying to power two diode lasers, each with an operating voltage of 1.9 V, and connect the two in series. In that case, the pulsed or CW laser driver must have a total voltage capacity greater than 3.8 V. This configuration works because diodes share the same current when connected in series. In contrast, when two diodes are connected in parallel, the current is no longer shared between the two diodes. Get more details on the topic in this article: “Can I Operate Multiple Laser Diodes From the Same Power Supply?” Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!

Can laser diodes emit green, blue, or UV light?

Can laser diodes emit green, blue, or UV light?

The output wavelength of a semiconductor laser is based on the difference in energy between the valance and conduction bands of the material (bandgap energy). Since the energy of a photon is inversely proportional to its wavelength, this means that a larger bandgap energy will result in a shorter emission wavelength. Due to the relatively wide bandgap energy of 3.4 eV, gallium nitride (GaN) is ideal for the production of semiconductor optoelectronic devices, producing blue wavelength light without the need for nonlinear crystal harmonic generation. Since the mid-’90s, GaN substrates have been the common material utilized for blue LEDs. In recent years, GaN based laser technology has provided blue, green and UV laser diodes, now available in wavelengths from 375 nm to 521 nm, with output powers exceeding 100 watts. Read our article, titled “Gallium Nitride (GaN) Laser Diodes: Green, Blue, and UV Wavelengths” to learn more about GaN Based Laser Diodes, available through RPMC. Get more information from our Lasers 101, Blogs, Whitepapers, and FAQs pages in our Knowledge Center!

How long will a laser diode last?
How long will a laser diode last?

Honestly, it depends on several factors, and there is no simple chart to cover everything. Typical diode lifetimes are in the range of 25,000 to 50,000 hours. Though, there are lifetime ratings outside this range, depending on the configuration. Furthermore, there are a wide range of degradation sources that contribute to a shorter lifespan of laser diodes. These degradation sources include dislocations that affect the inner region, metal diffusion and alloy reactions that affect the electrode, solder instability (reaction and migration) that affect the bonding parts, separation of metals in the heatsink bond, and defects in buried heterostructure devices. Read more about diode lifetime and contributing factors in this article: “Understanding Laser Diode Lifetime.” Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!

What factors affect the lifetime of laser diodes?
What factors affect the lifetime of laser diodes?

There are a great many factors that can increase or decrease the lifetime of a laser diode. One of the main considerations is thermal management. Mounting or heatsinking of the package is of tremendous importance because operating temperature strongly influences lifetime and performance. Other factors to consider include electrostatic discharge (ESD), voltage and current spikes, back reflections, flammable materials, noxious substances, outgassing materials (even thermal compounds), electrical connections, soldering method and fumes, and environmental considerations including ambient temperature, and contamination from humidity and dust. Read more about these critical considerations and contributing factors in this article: “How to Improve Laser Diode Lifetime: Advice and Precautions on Mounting.” Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!

What is a laser diode?
What is a laser diode?

A Laser Diode or semiconductor laser is the simplest form of Solid-State Laser. Laser diodes are commonly referred to as edge emitting laser diodes because the laser light is emitted from the edge of the substrate. The light emitting region of the laser diode is commonly called the emitter. The emitter size and the number of emitters determine output power and beam quality of a laser diode. Electrically speaking, a laser diode is a PIN diode. The intrinsic (I) region is the active region of the laser diode. The N and P regions provide the active region with the carriers (electrons and holes). Initially, research on laser diodes was carried out using P-N diodes. However, all modern laser diodes utilize the double-hetero-structure implementation. This design confines the carriers and photons, allowing a maximization of recombination and light generation. If you want to start reading more about laser diodes, try this whitepaper “How to Improve Laser Diode Lifetime.” If you want to read more about the Laser Diode Types we offer, check out the Overview of Laser Diodes section on our Lasers 101 Page!

What is the difference between laser diodes and VCSELs?
What is the difference between laser diodes and VCSELs?

Laser Diodes and VCSELs are semiconductor lasers,  the simplest form of Solid State Lasers.  Laser diodes are commonly referred to as edge emitting laser diodes because the laser light is emitted from the edge of the substrate. The light emitting region of the laser diode is commonly called the emitter.  The emitter size and the quantity of emitters determine output power and beam quality of a laser diode. These Fabry Perot Diode Lasers with a single emission region (Emitter) are typically called laser diode chips, while a linear array of emitters is called laser diode bars. Laser diode bars typically use multimode emitters, the number of emitters per substrate can vary from 5 emitters to 100 emitters. VCSELs (Vertical Cavity Surface Emitting Laser) emit light perpendicular to the mounting surface as opposed to parallel like edge emitting laser diodes.  VCSELs offer a uniform spatial illumination in a circular illumination pattern with low speckle. If you want to read more about lasers in general, and help narrowing down the selection to find the right laser for you, check out our Knowledge Center for our Blogs, Whitepapers, and FAQ pages, as well as our Lasers 101 Page!VCSEL

What’s the difference between single transverse mode & single longitudinal mode?

What’s the difference between single transverse mode & single longitudinal mode?

Within the laser community, one of the most overused and often miscommunicated terms is the phrase “single mode.”  This is because a laser beam when traveling through air takes up a three-dimensional volume in space similar to that of a cylinder; and just as with a cylinder, a laser beam can be divided into independent coordinates each with their own mode structure.  For a cylinder we would call these the length and the cross-section, but as shown in the figure below for a laser beam, we define these as the transverse electromagnetic (TEM) plane and the longitudinal axis.   Both sets of modes are fundamental to the laser beam’s properties, since the TEM modes determine the spatial distribution of the laser beams intensity, and the longitudinal modes determine the spectral properties of the laser.  As a result, when a laser is described as being “single-mode” first you need to make sure that you truly understand which mode is being referred to.  Meaning that you must know if the laser is single transverse mode, single longitudinal mode, or both. Get all the information you need in this article: “What is Single Longitudinal Mode?” Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!
