638nm Red Laser Diodes with Diode Pumped Solid State (DPSS) or Continuous Wave (CW) technology.
|Picture||Part Number||Type||Output power (W)||Mode||Output||Linewidth||Pulse energy (uJ)||Pulse width||Rep rate|
|638L-1XA||LD Module||0.060, 0.080, 0.100, 0.120, 0.170, 0.500, 0.600||Single-Mode Lasers||Free Space, MM Fiber, SM Fiber, PM Fiber|
|638L-2XA||LD Module||0.060, 0.080, 0.100||Single-Mode Lasers||Free Space, MM Fiber, SM Fiber, PM Fiber||Narrow|
|638L-3XA||LD Module||0.500, 0.600||Multimode||Free Space, MM Fiber|
|638L-4XA||LD Module||0.300, 0.500||Multimode||Free Space, MM Fiber||Narrow|
|HL638||Single Emitter||0.005, 0.007, 0.010, 0.015, 0.120, 0.170, 0.200, 0.700, 1.5, 2.2, 2.4||Single-Mode Lasers, Multimode||Free Space|
|LBX-638-HPE||LD Module||1.1||Multimode||Free Space, MM Fiber|
|LBX-638||LD Module||0.100, 0.150, 0.180||Single-Mode Lasers||Free Space, MM Fiber, SM Fiber, PM Fiber|
|R0638||LD Module, Single Emitter, Volume Bragg Grating (VBG) Laser Diodes||0.025, 0.060, 0.300||Single-Mode Lasers, Multimode||Free Space, MM Fiber, PM Fiber||Narrow|
The Matchbox series offers excellent performance and reliability in an ultra-compact “all-in-one” integrated laser head. They come standard with an integrated internal voltage up-conversion that allows using a 5V power supply while maintaining low noise operation. The monolithic design of the Matchbox Series laser includes thermally stabilized optics in a hermetically sealed housing, ensuring reliable and maintenance-free operation. All the Matchbox series modules include a 12-month warranty and are RoHS compliant. All of these features make them the ideal laser source for integration into commercial flow cytometers.
The HL Series of laser diodes are available in a wide range of wavelengths from violet to red and infrared in support of a broad range of applications. These applications include display, medical, biosciences, industrial tools (sensor, leveler), machine vision, scanners, printers and a myriad of other applications being developed in the industry.

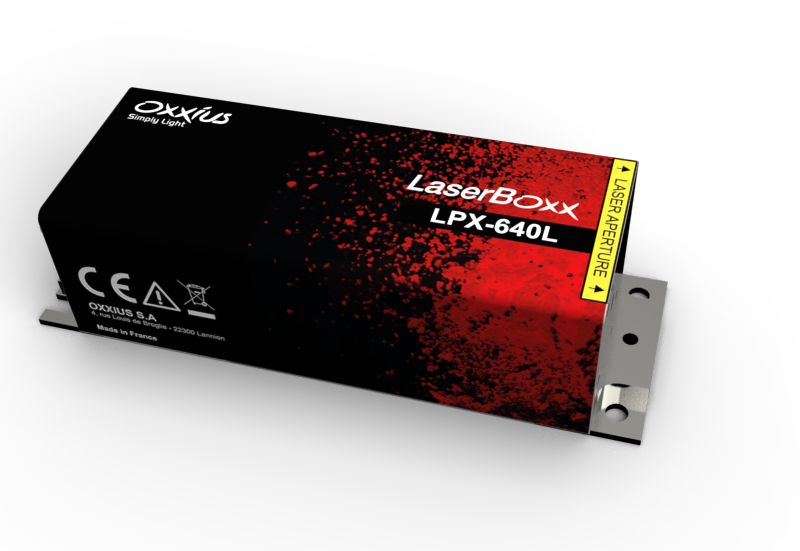

The LaserBoxx HPE series is a high power laser diode module offering excellent performance and reliability in a compact driver integrated laser head (Industry-standard compact package). It comes in free space multimode elliptical beam or with removable MM fiber coupling.

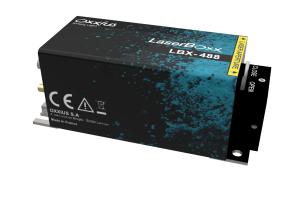

The LaserBoxx low noise Series is a CW diode laser module in a variety of diode wavelengths from 375 to 785nm, with output powers up to 350mW. This compact, self-contained laser module is available in turn-key or OEM versions and utilizes a proprietary alignment-free, monolithic resonator, and comes standard with a graphic user interface with remote diagnostics via USB, RS232, or direct I/O interface.
The R series of wavelength stabilized single mode and multimode laser diodes offer narrow wavelength spectrum in wavelengths from 633nm thru 1064nm. Package options range from components as basic as a TO-56 or 14-pin BF packaged diodes, to OEM modules including electronics, to UL/CE and IEC certified turn-key systems.
