MM Fiber Overview

Multi-mode fiber has a fairly large core diameter that enables multiple light modes to be propagated and limits the maximum length of a transmission link because of modal dispersion.  Multimode Fiber Coupled laser diodes and lasers that are available in Pulsed or CW operation.

These fiber coupled lasers have a variety of output powers and a broad range of wavelengths. For the pulsed lasers, they have pulse widths in femtosecond to nanosecond depending on the application’s needs.

Filters Reset

Type

Wavelength Selection

Output

Mode

Linewidth

Series

Manufacturer

Picture Part Number Type Wavelength (nm) Output power (W) Mode Output Linewidth Duty Package
1030L-1XB: 1030nm Laser (DPSS; MATCHBOX 2) 1030L-1XB CW DPSS Lasers 1030 0.300, 0.400, 0.500 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
1030L-2XB: 1030nm Laser (SLM DPSS; MATCHBOX 2) 1030L-2XB CW DPSS Lasers 1030 0.200, 0.280, 0.400 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
1064L-2XB: 1064nm Laser (SLM DPSS; MATCHBOX 2) 1064L-1XB CW DPSS Lasers 1064 0.300, 0.400, 0.500 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
1064L-2XB: 1064nm Laser (SLM DPSS; MATCHBOX 2) 1064L-2XB CW DPSS Lasers 1064 0.200, 0.280, 0.400 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
1123L-1XB: 1123nm Laser (DPSS; MATCHBOX 2) 1123L-1XB CW DPSS Lasers 1123 0.100, 0.160, 0.200 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
1319L-1XB: 1319nm Laser (DPSS; MATCHBOX 2) 1319L-1XB CW DPSS Lasers 1319 0.100, 0.160, 0.200 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
405L-1XA: 405nm Laser (Diode; MATCHBOX 2) 405L-1XA LD Module 405 0.100, 0.150, 0.180 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
IO Matchbox 405nm Laser 405L-2XA LD Module 405 0.015, 0.030, 0.040 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
450L-3XA: 450nm Laser (HP MM Diode; MATCHBOX 2) 450L-1XA LD Module 450 0.035, 0.050, 0.060 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
450L-3XA: 450nm Laser (HP MM Diode; MATCHBOX 2) 450L-3XA LD Module 450 0.300, 0.400 Multimode Free Space, MM Fiber
488L-1XA: 488nm Laser (Diode; MATCHBOX 2) 488L-1XA LD Module 488 0.020, 0.030, 0.040 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
488L-2XA: 488nm SLM Laser (VBG Diode; MATCHBOX 2) 488L-2XA LD Module 488 0.010, 0.015, 0.030 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
IO Matchbox 505nm Laser 505L-1XA LD Module 505 0.030 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
515L-1XA: 515nm Laser (Diode; MATCHBOX 2) 515L-1XA LD Module 515 0.025, 0.030, 0.040, 0.060 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
515L-2XA: 515nm SLM Laser (VBG Diode; MATCHBOX 2) 515L-2XA LD Module 515 0.010, 0.030, 0.040 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
520L-1XA: 520nm Laser (Diode; MATCHBOX 2) 520L-1XA LD Module 520 0.040, 0.070, 0.080 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
520L-2XA: 520nm SLM Laser (VBG Diode; MATCHBOX 2) 520L-2XA LD Module 520 0.025, 0.035 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
532L-1XB: 532nm Laser (DPSS; MATCHBOX 2) 532L-1XB CW DPSS Lasers 532 0.100, 0.160, 0.200 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
532L-2XB: 532nm Laser (SLM DPSS; MATCHBOX 2) 532L-2XB CW DPSS Lasers 532 0.025, 0.040, 0.050 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
532L-3XB: 532nm Laser (HP DPSS; MATCHBOX 2) 532L-3XB CW DPSS Lasers 532 0.350, 0.500 Multimode Free Space, MM Fiber
532L-4XB: 532nm Laser (HP DPSS; MATCHBOX 2) 532L-4XB CW DPSS Lasers 532 0.350, 0.500 Multimode Free Space, SM Fiber, PM Fiber, MM Fiber, SMA Port Narrow
633L-2XA: 633nm SLM Laser (VBG Diode; MATCHBOX 2) 633L-1XA LD Module 633 0.035, 0.040, 0.070 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
633L-2XA: 633nm SLM Laser (VBG Diode; MATCHBOX 2) 633L-2XA LD Module 633 0.035, 0.040, 0.070 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
638L-1XA: 638nm Laser (Diode; MATCHBOX 2) 638L-1XA LD Module 638 0.100, 0.120, 0.180 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
638L-2XA: 638nm SLM Laser (VBG Diode; MATCHBOX 2) 638L-2XA LD Module 638 0.060, 0.080, 0.100 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
638L-1XA: 638nm Laser (Diode; MATCHBOX 2) 638L-3XA LD Module 638 0.500, 0.600 Multimode Free Space, MM Fiber
638L-2XA: 638nm SLM Laser (VBG Diode; MATCHBOX 2) 638L-4XA LD Module 638 0.300, 0.500 Multimode Free Space, MM Fiber Narrow
660L-1XA: 660nm Laser (Diode; MATCHBOX 2) 660L-1XA LD Module 660 0.045, 0.090, 0.110 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
783L-2XA: 783nm SLM Laser (VBG Diode; MATCHBOX 2) 783L-2XA LD Module 783 0.070, 0.090, 0.130 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
785L-1XA: 785nm Laser (Diode; MATCHBOX 2) 785L-1XA LD Module 785 0.100, 0.130, 0.150, 0.180 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
785L-2XA: 785nm SLM Laser (VBG Diode; MATCHBOX 2) 785L-2XA LD Module 785 0.080, 0.100, 0.130 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
785L-3XA: 785nm Laser (HP Diode; MATCHBOX 2) 785L-3XA LD Module 785 0.100, 0.130, 0.150, 0.180 Multimode Free Space, MM Fiber
785L-4XA: 785nm Laser (HP VBG Diode; MATCHBOX 2) 785L-4XA LD Module 785 0.450, 0.500 Multimode Free Space, MM Fiber Narrow
IO Matchbox 808nm Laser 808L-1XA LD Module 808 0.120 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
785L-3XA: 785nm Laser (HP Diode; MATCHBOX 2) 808L-3XA LD Module 808 1.6, 3.0 Multimode Free Space, MM Fiber
830L-1XA: 830nm Laser (Diode; MATCHBOX 2) 830L-1XA LD Module 830 0.050, 0.090, 0.130 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
830L-2XA: 830nm SLM Laser (VBG Diode; MATCHBOX 2) 830L-2XA LD Module 830 0.050, 0.070, 0.080 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
785L-3XA: 785nm Laser (HP Diode; MATCHBOX 2) 830L-3XA LD Module 808 1.0 Multimode MM Fiber
830L-4XA: 830nm Laser (HP VBG Diode; MATCHBOX 2) 830L-4XA LD Module 830 0.350 Multimode MM Fiber, SMA Port Narrow
850L-1XA: 850nm Laser (Diode; MATCHBOX 2) 850L-1XA LD Module 850 0.060, 0.110, 0.130 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
915L-1XA: 915nm Laser (Diode; MATCHBOX 2) 915L-1XA LD Module 915 0.080, 0.140, 0.200 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
975L-1XA: 975nm Laser (Diode; MATCHBOX 2) 975L-1XA LD Module 975 0.080, 0.120, 0.200 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
R1Z0-BDL-Fiber-Coupled Direct Diode Laser BDL-CW Turn-Key System 915, 976 1000.0, 2000.0, 3000.0 Multimode MM Fiber CW Fiber Coupled
BDL130-808-F4-F Multi-Emitter 808 130.0 Multimode MM Fiber CW Fiber Coupled
DS3: Fiber-Coupled Turn-Key Direct Diode Laser System DS3 Turn-Key System Multiple Wavelength Options Multiple Options Available Single Mode, Multimode SM Fiber, MM Fiber CW Fiber Coupled
FL-FCSE08-7-808-200 Single Emitter 808 7.0 Multimode MM Fiber CW Fiber Coupled
JenLas-D2-X-Series-Thin-Disk-DPSS-Laser-Green-532nm JenLas D2.X CW DPSS Lasers 532 0.060, 2.0, 3.0, 5.0, 8.0 Multimode Free Space, MM Fiber
JOLD-100-FC-18-808-QCW Array (Bar) 808 100.0 Multimode MM Fiber CW CS
JOLD-100-HS-2L-808 Array (Bar) 808 100.0 Multimode MM Fiber CW Fiber Coupled
JOLD-30-CPXF-1L 808 Array (Bar) 808 30.0 Multimode MM Fiber CW Fiber Coupled
JOLD-45-CPXF-1L 940 Array (Bar) 940 45.0 Multimode MM Fiber CW Fiber Coupled
JOLD-75-CPXF-2P 0.6 W 808 Array (Bar) 808 75.0 Multimode MM Fiber CW Fiber Coupled
JOLD-FC-1470 Array (Bar) 1470 20.0 Multimode MM Fiber CW Fiber Coupled
JOLD-FC-808 Array (Bar) 808 30.0, 45.0, 70.0, 75.0, 100.0, 120.0, 140.0, 210.0, 250.0, 400.0 Multimode MM Fiber CW, QCW Fiber Coupled
JOLD-FC-880 Array (Bar) 880 30.0, 45.0, 75.0, 100.0 Multimode MM Fiber CW Fiber Coupled
JOLD-FC-915 Array (Bar) 915 30.0, 45.0, 75.0, 100.0, 120.0, 140.0, 210.0, 250.0, 400.0 Multimode MM Fiber CW, QCW Fiber Coupled
JOLD-FC-940 Array (Bar) 940 30.0, 45.0, 70.0, 75.0, 100.0, 120.0, 140.0, 210.0, 250.0, 400.0 Multimode MM Fiber CW, QCW Fiber Coupled
JOLD-FC-976 Array (Bar) 976 30.0, 45.0, 75.0, 100.0, 120.0, 140.0, 210.0, 250.0, 400.0 Multimode MM Fiber CW, QCW Fiber Coupled
K Series K445M Multi-Emitter 445 15.0, 20.0, 50.0 Multimode MM Fiber CW Fiber Coupled
K445S Single Emitter 445 0.800, 3.0, 10.0 Multimode MM Fiber CW 2-Pin FC
K520F03FN-0.010W: 520nm Fiber Coupled Laser Diode K520S Single Emitter 520 0.005 Multimode MM Fiber CW Coaxial
K635M Multi-Emitter 635 1.8, 5.0 Multimode MM Fiber CW Fiber Coupled
K635F03RN-0.400W: 635nm Fiber Coupled Laser Diode K635S Single Emitter 635 0.020 Multimode MM Fiber CW Coaxial
K785AFLFN-0.600W K785SS Volume Bragg Grating (VBG) 785 0.600 Multimode MM Fiber Narrow CW Butterfly FC
K793D02RN-4.000WN0N-10522F20ESM Single Emitter 793 4.0 Multimode MM Fiber CW 2-Pin FC
K793DN0RN-30.00WN0N-10522F20ENA Multi-Emitter 793 30.0 Multimode MM Fiber CW Fiber Coupled
K793M Multi-Emitter 793 8.0, 12.0, 16.0, 30.0, 50.0, 80.0, 140.0 Multimode MM Fiber CW Fiber Coupled
K793S Single Emitter 793 4.0 Multimode MM Fiber CW 2-Pin FC
K808DN1RN-60.00WN1N-10522F10ENA Single Emitter 808 4.0, 8.0 Multimode MM Fiber CW Fiber Coupled
K808M Multi-Emitter 808 10.0, 15.0, 25.0, 30.0, 40.0, 60.0, 150.0 Multimode MM Fiber CW Fiber Coupled
K808S Single Emitter 808 4.0, 8.0 Multimode MM Fiber CW Fiber Coupled
K830S Single Emitter 830 2.0 Multimode MM Fiber CW 2-Pin FC
K878BNXRN-30.00W: 878nm Fiber Coupled Diode Laser K878MS Multi-Emitter, Volume Bragg Grating (VBG) 878 30.0, 65.0, 120.0 Multimode MM Fiber Narrow CW Fiber Coupled
K878BNXRN-30.00W: 878nm Fiber Coupled Diode Laser K888MS Multi-Emitter, Volume Bragg Grating (VBG) 888 65.0, 120.0 Multimode MM Fiber Narrow CW Fiber Coupled
K915FA0RN-35.00W K915FA3RN-30.00WN0N-10522I10ESM Multi-Emitter 915 30.0 Multimode MM Fiber CW 2-Pin FC
K915M Multi-Emitter 915 30.0, 35.0, 70.0, 160.0, 180.0, 200.0, 250.0 Multimode MM Fiber CW Fiber Coupled
Fiber Coupled Diode Laser K915S Single Emitter 915 10.0, 12.0 Multimode MM Fiber CW 2-Pin FC
K940E02RN-11.00WN0N-10522E12ENA Single Emitter 940 11.0 Multimode MM Fiber CW 2-Pin FC
K940EA2HN-20.00WN0N-10522F10ESM Single Emitter 940 20.0 Multimode MM Fiber CW 2-Pin FC
K940EB2RN-10.00WN0N-10522F10ESM Single Emitter 940 11.0 Multimode MM Fiber CW 2-Pin FC
K940M Multi-Emitter 940 20.0, 30.0, 70.0, 150.0, 200.0 Multimode MM Fiber CW Fiber Coupled
K940S Single Emitter 940 10.0, 11.0, 20.0 Multimode MM Fiber CW Fiber Coupled
K960FB2RN-9.000WN0N-10522N10ESM Single Emitter 960 11.0 Multimode MM Fiber CW 2-Pin FC
K976A02RN-9.000W: 976nm Fiber Coupled Laser Diode K976A02RN-3.000WN0N-10522B10ENA Single Emitter 976 3.0 Multimode MM Fiber Narrow CW 2-Pin FC
K976A02RN-9.000W: 976nm Fiber Coupled Laser Diode K976A02RN-9.000WN0N-10522B10ENA Single Emitter 976 9.0 Multimode MM Fiber Narrow CW 2-Pin FC
K976A02RN-9.000W: 976nm Fiber Coupled Laser Diode K976AB2RN-9.000WN0N-10522F10ESM Single Emitter 976 9.0 Multimode MM Fiber Narrow CW 2-Pin FC
Fiber Coupled Diode Laser K976DA2RN-20.00WN0N-10522F20ESM Multi-Emitter 976 20.0 Multimode MM Fiber CW Fiber Coupled
K976DA3RN-30.00W: 976nm Fiber Coupled Laser Diode K976DA3RN-30.00WN0N-10522F20ESM Multi-Emitter 976 30.0 Multimode MM Fiber CW Fiber Coupled
Fiber Coupled Diode Laser K976DB2RN-10.00WN0N-10522A10ESM Multi-Emitter 976 20.0 Multimode MM Fiber CW Fiber Coupled
K976M Multi-Emitter 976 10.0, 15.0, 20.0, 30.0, 70.0, 200.0, 330.0 Multimode MM Fiber CW Fiber Coupled
K976MS Multi-Emitter, Volume Bragg Grating (VBG) 976 18.0, 27.0, 60.0, 100.0, 140.0, 180.0, 300.0, 400.0 Multimode MM Fiber Narrow CW Fiber Coupled
K976S Multi-Emitter 976 18.0, 27.0, 60.0, 100.0, 140.0, 180.0, 300.0, 400.0 Multimode MM Fiber Narrow CW Fiber Coupled
K976A02RN-3.000W: 976nm Fiber Coupled Laser Diode K976SS Single Emitter 976 10.0 Multimode MM Fiber Narrow CW 2-Pin FC
KA64HAMCA-10.00W: 1064nm Fiber Coupled Laser Diode KA64M Single Emitter 1064 10.0, 15.0, 20.0 Multimode MM Fiber CW Fiber Coupled
KMWM Multi Wavelength Multiple Wavelength Options 0.300, 0.600, 5.0, 6.0, 10.0, 15.0, 25.0 Multimode MM Fiber CW Fiber Coupled
R2Z3-L4Cc Combiner L4Cc Combiner Combiners Multiple Wavelength Options 0.100 Single Mode, Multimode Free Space, SM Fiber, PM Fiber, MM Fiber
L6Cc Combiner L6Cc Combiner Combiners Multiple Wavelength Options 0.100 Single Mode, Multimode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-1064 LBX-1064 LD Module 1064 0.200 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-375-HPE LD Module 375 0.200, 0.400 Multimode Free Space, MM Fiber
LBX-375 LD Module 375 0.070 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-395 LD Module 375 0.120 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-405-HPE LD Module 405 0.900, 1.2 Multimode Free Space, MM Fiber
LBX-405 LD Module 405 0.050, 0.100, 0.180, 0.300 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-415 LD Module 415 0.120 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-445 LD Module 445 0.100, 0.500 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-450-HPE LD Module 450 0.650, 1.2 Multimode Free Space, MM Fiber
LBX-450 LD Module 450 0.070 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-458 LD Module 457.9 0.070 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-473-HPE LD Module 473 1.0 Multimode Free Space, MM Fiber
LBX-473-100-CSB LBX-473 LD Module 473 0.100, 0.300 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-488-HPE LD Module 488 1.0 Multimode Free Space, MM Fiber
LBX-488 LBX-488 LD Module 488 0.040, 0.050, 0.060, 0.100, 0.150, 0.200, 0.300 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-505-70-CSB: 505nm Laser Diode Module LBX-505 LD Module 505 0.070 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-520-CSB LBX-515 LD Module 515 0.150 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-520-800-HPE LD Module 520 0.800 Multimode Free Space, MM Fiber
LBX-520-40-CSB LBX-522 LD Module 522 0.070 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-633 LBX-633 LD Module 633 0.100 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-633S LBX-633S LD Module 633 0.040 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
LBX-638-HPE LD Module 638 1.1 Multimode Free Space, MM Fiber
LBX-638 LBX-638 LD Module 638 0.100, 0.150, 0.180 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber

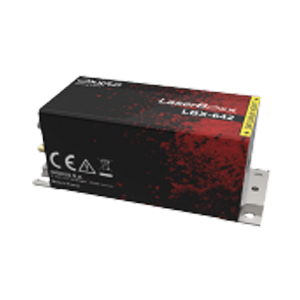

LBX-642 LBX-642 LD Module 642 0.130 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-647 LD Module 647 0.140 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX 660 csb LBX-660 LD Module 660 0.100 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-730 LBX-730 LD Module 730 0.040 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX-750-HPE LD Module 750 1.2 Multimode Free Space, MM Fiber
LBX-785-HPE LD Module 785 0.800 Multimode Free Space, MM Fiber
LBX 785 LBX-785 LD Module 785 0.100, 0.250, 0.350 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LBX 785 LBX-785S LD Module 785 0.150, 0.500 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
R2Z3-Photo-LBX-830-HPE LBX-830-1200-HPE-OE LD Module 830 1.2 Multimode Free Space, MM Fiber
R2Z3-Photo-LBX-830-HPE LBX-830-HPE LD Module 830 1.2 Multimode Free Space, MM Fiber
LBX-830S LD Module 830 0.100 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
LBX-940-HPE LD Module 940 0.800 Multimode Free Space, MM Fiber
LBX 980 LBX-980 LD Module 980 0.200 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LCX-1064S CW DPSS Lasers 1064 0.100, 0.200, 0.300, 0.400, 0.500 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
LCX-532 CW DPSS Lasers 532 0.050, 0.100, 0.200, 0.300 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LCX-532S LCX-532S CW DPSS Lasers 532 0.050, 0.100, 0.200, 0.300 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
LCX-553 CW DPSS Lasers 553 0.050, 0.100, 0.150, 0.200 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LCX-553S CW DPSS Lasers 553 0.050, 0.100 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
LCX-561 CW DPSS Lasers 561 0.050, 0.100, 0.150, 0.200, 0.300 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LCX-561S CW DPSS Lasers 561 0.100, 0.150, 0.200 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
2-pin LDX-3415-808-FCP Single Emitter 808 4.0 Multimode Free Space, MM Fiber CW 2-Pin FC
LDX-XXXX-1030 Single Emitter 1030 3.0, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-1064 Single Emitter 1064 1.5, 3.0, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-1120 Single Emitter 1120 2.0, 3.5, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 9-pin HHL
LDX-XXXX-1210 Single Emitter 1210 1.5, 2.0 Multimode Free Space, MM Fiber CW C-Mount, B-Mount, TO-3 no TEC, HHL
LDX-XXXX-1280 Single Emitter 1280 3.5, 5.0, 7.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-1370 Single Emitter 1370 3.5, 5.0 Multimode Free Space, MM Fiber CW C-Mount, B-Mount, TO-3 no TEC, HHL
LDX-XXXX-1470 Single Emitter 1470 3.5, 5.0, 7.0 Multimode Free Space, MM Fiber CW C-Mount, B-Mount, TO-3 no TEC, HHL
LDX-XXXX-1550 Single Emitter 1550 0.800, 1.0, 1.5, 1.75, 2.5, 3.5, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 9-pin HHL
LDX-XXXX-1620 Single Emitter 1620 1.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, HHL
LDX-XXXX-1640 Single Emitter 1640 1.2 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, TO-3 no TEC, HHL
LDX-XXXX-1675 Single Emitter 1675 2.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, TO-3 no TEC, HHL, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-1850 Single Emitter 1850 1.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-445 Single Emitter 445 3.5 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-520 Single Emitter 520 1.0 Multimode Free Space, MM Fiber CW TO-3 no TEC, HHL
LDX-XXXX-622 Single Emitter 622 0.150 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-627 Single Emitter 627 0.250, 0.350 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-630 Single Emitter 630 0.250, 0.400 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-635 Single Emitter 635 0.300, 0.400, 0.600, 1.2 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-645 Single Emitter 645 0.300, 0.400 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-650 Single Emitter 650 1.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-660 Single Emitter 660 0.350, 0.750, 1.0, 2.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-665 Single Emitter 665 0.350, 0.750, 1.0, 2.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-680 Single Emitter 680 0.400, 0.800, 1.2, 2.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-685 Single Emitter 685 0.400, 0.800, 1.2, 2.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-690 Single Emitter 690 0.400, 0.750, 1.1 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-735 Single Emitter 735 1.0, 1.75, 2.0, 4.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-750 Single Emitter 750 1.0, 2.0, 3.0, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-760 Single Emitter 760 1.0, 2.0, 3.0, 6.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-780 Single Emitter 780 1.2, 2.5, 3.5, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-785 Single Emitter 785 3.5, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-792 Single Emitter 792 1.2, 2.5, 3.5 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-797 Single Emitter 797 3.0, 4.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-808 Single Emitter 808 1.2, 2.0, 3.0, 4.0, 6.0, 10.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-825 Single Emitter 825 4.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-830 Single Emitter 830 1.6 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-860 Single Emitter 860 1.0, 1.5, 2.0, 3.0, 4.0, 5.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-885 Single Emitter 885 2.5, 6.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-900 Single Emitter 900 2.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-915 Single Emitter 915 3.0, 6.0, 10.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-940 Single Emitter 940 3.0, 5.0, 6.0, 16.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-960 Single Emitter 960 10.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, TO-3 no TEC, HHL, 2-Pin FC, 8-pin HHL, 9-pin HHL
LDX-XXXX-980 Single Emitter 980 1.5, 4.0, 5.0, 6.0, 10.0 Multimode Free Space, MM Fiber CW Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, TO-3-TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
LPX-640 LPX-532 CW DPSS Lasers 532 0.500 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LPX-640 LPX-532S CW DPSS Lasers 532 0.500 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
LPX-553 CW DPSS Lasers 553 0.200 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LPX-553S CW DPSS Lasers 553 0.200 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
LPX-561 CW DPSS Lasers 561 0.300 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LPX-561S CW DPSS Lasers 561 0.300 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
LPX-640 CW DPSS Lasers 640 0.300, 0.500 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber
LSX LSX-785S LD Module 785 0.150 Single Mode Free Space, SM Fiber, PM Fiber, MM Fiber Narrow
MatchBox Combiner MatchBox Combiner Combiners Multiple Wavelength Options 0.050, 0.100 Single Mode, Multimode Free Space, SM Fiber, PM Fiber, MM Fiber
R0638 Single Emitter, Volume Bragg Grating (VBG) 638 0.025, 0.060, 0.300 Single Mode, Multimode Free Space, PM Fiber, MM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC, Open Beam Stub Laser
R0638 LD Module, Turn-Key System 638 0.020, 0.025, 0.035, 0.060, 0.300 Single Mode, Multimode Free Space, PM Fiber, MM Fiber Narrow CW D-Type Module, U-Type FC Module
R0647 LD Module, Turn-Key System 647 0.150 Single Mode, Multimode Free Space, MM Fiber Narrow CW U-Type FC Module
R0680 Single Emitter, Volume Bragg Grating (VBG) 680 0.300 Single Mode, Multimode Free Space, MM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC
R0680 LD Module, Turn-Key System 680 0.300 Single Mode, Multimode Free Space, MM Fiber Narrow CW U-Type FC Module
R0785 Single Emitter, Volume Bragg Grating (VBG) 785 0.050, 0.100, 0.200, 0.350, 0.600 Single Mode, Multimode Free Space, PM Fiber, MM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC
R0785 LD Module, Turn-Key System 785 0.050, 0.100, 0.175, 0.200, 0.250, 0.350, 0.500, 1.2 Single Mode, Multimode Free Space, PM Fiber, MM Fiber Narrow CW D-Type Module, U-Type FC Module
R0808 Single Emitter, Volume Bragg Grating (VBG) 808 0.050, 0.100, 0.350, 0.600 Single Mode, Multimode Free Space, PM Fiber, MM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC
R0808 LD Module, Turn-Key System 808 0.350, 0.500, 0.600, 1.2, 2.4, 3.6, 4.8, 6.0 Single Mode, Multimode Free Space, MM Fiber Narrow CW Butterfly - Open Beam, Butterfly FC, U-Type FC Module, H & L-Type Tethered, M-Type FC Turn-Key
R0830 Single Emitter, Volume Bragg Grating (VBG) 830 0.050, 0.100, 0.350, 0.600 Single Mode, Multimode Free Space, PM Fiber, MM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC
R0830 LD Module, Turn-Key System 830 0.050, 0.100, 0.150, 0.350, 0.500, 1.2, 1.4 Single Mode, Multimode Free Space, MM Fiber Narrow CW D-Type Module, U-Type FC Module
R0976 Single Emitter, Volume Bragg Grating (VBG) 976 0.220, 0.500, 0.750, 4.0, 5.0 Single Mode, Multimode Free Space, MM Fiber Narrow CW Butterfly - Open Beam, Butterfly FC
R1064 Single Emitter, Volume Bragg Grating (VBG) 1064 0.050, 0.150, 0.300, 0.350, 0.600 Single Mode, Multimode Free Space, PM Fiber, MM Fiber Narrow CW 5.6mm, Butterfly - Open Beam, Butterfly FC
R1064 LD Module, Turn-Key System 1064 0.050, 0.120, 0.200, 0.300, 0.500 Single Mode, Multimode Free Space, PM Fiber, MM Fiber Narrow CW D-Type Module, U-Type FC Module
RML2240 LD Module Multiple Wavelength Options 1.5 Single Mode, Multimode SM Fiber, MM Fiber
WSLP-445-001-M Single Emitter 445 1.0 Multimode MM Fiber CW Coaxial
WSLP-520-050m-M WSLP-520-050m-M-B Single Emitter 520 0.050 Single Mode MM Fiber CW Coaxial
WSLP-520-050m-M WSLP-650-020m-M Single Emitter 650 0.020 Multimode MM Fiber CW Coaxial
WSLP-808-100m-M-PD WSLP-808-100m-M-PD Single Emitter 808 0.100 Multimode MM Fiber
R3Z0-WSLP-905-050m-M-PD: 905nm Multimode Fiber Coupled Laser Diode WSLP-905-050m-M-B-PD Single Emitter 905 0.050 Multimode MM Fiber CW Coaxial

Matchbox Series

R1Z4-Matchbox Laser

The Matchbox series of compact laser diode and DPSS laser modules are available in wavelengths from 405nm thru 1064nm. Options include collimated beam or fiber coupled output, and single mode and multimode versions.

BDL Series

BFL-CW1000: 1080nm Single mode Fiber LaserThe BDL Series is a high power direct diode turn-key system available in wavelengths of 915nm or 976nm. This easy to integrate, OEM laser diode module provides up to 3kW of power and unprecedented brightness.

K Series

The K Series of multiple single emitter fiber coupled diode lasers are available in wavelengths from 405nm thru 1550nm with up to 300W output powers. These multi-emitter high power and high brightness diode lasers include options for aiming beam, photo detector, TEC, fiber detector, thermistor and a variety of package types.

JenLas D2

The JenLas D2 series of CW disk lasers with a wavelength of 532nm are available with up to 8W output power. These Nd:YVO4 or Yb:KYW solid state lasers are ideal for industrial micro material processing and medical treatments

JOLD-FC Series

The JOLD-FC Series of high quality high power fiber coupled laser diode bar products are offered in wavelengths from 780nm – 1064nm and 30W to 400W output power.

We offer standard wavelengths of 808 nm, 940 nm and 980 nm. The fiber core diameter of our diode lasers is 200 µm, 400 µm or 600 µm. On request, we will be happy to adapt the parameters to your individual requirements. You can also choose between pilot lasers, monitor diodes and integrated Peltier elements.

Because of their reliability and efficiency, our modules are successfully used as beam sources in areas such as solid-state laser pumps, material processing and medicine. They have a robust and compact design and have proven their worth in daily use.

JOLD-Stacks Series

The JOLD-Stacks Series of high quality high power laser diode bar stacks. They are available with actively (microchannel) cooled or conductively cooled. And in wavelengths from 780nm – 1064nm.

LXCc Series

R2Z3-L4Cc Combiner

The LXCc series is the most compact and flexible all-in-one multicolor laser combiner, with up to 7 laser lines, and up to 500mW output power per line. The turnkey or OEM versions allow a large choice of lasers from 375nm up to 1064nm. The extension module provides the ultimate level of flexibility with up to 4 optical fiber outputs, integrated fast switching output ports for FRAP, or adjustable split power for light-sheet microscopy.

LaserBoxx Low Noise Series

The LaserBoxx low noise Series is a CW diode laser module in a variety of diode wavelengths from 375 to 785nm, with output powers up to 350mW. This compact, self-contained laser module is available in turn-key or OEM versions and utilizes a proprietary alignment-free, monolithic resonator, and comes standard with a graphic user interface with remote diagnostics via USB, RS232, or direct I/O interface.

LaserBoxx HPE Series

The LaserBoxx HPE series is a high power laser diode module offering excellent performance and reliability in a compact driver integrated laser head (Industry-standard compact package). It comes in free space multimode elliptical beam or with removable MM fiber coupling.

LaserBoxx SLM Series

The LaserBoxx-SLM Series is a single longitudinal mode (SLM) CW diode laser module available in wavelengths at 633nm, 785nm, and 830nm delivering ultra-narrow linewidths thanks to its excellent temperature stability and low noise current. The Oxxius proprietary, embedded firmware locks the laser on the same mode at each startup. This compact, self-contained laser module is available in turn-key or OEM versions and utilizes a proprietary alignment-free, monolithic resonator, and comes standard with a graphic user interface with remote diagnostics via USB, RS232, or direct I/O interface.

LDX Series

The LDX Series of high power multimode single emitter laser diodes include wavelengths of 400nm – 1900nm. Available in a wide range of output powers and package types.

R Series

The R series of wavelength stabilized single mode and multimode laser diodes offer narrow wavelength spectrum in wavelengths from 633nm thru 1064nm. Package options range from components as basic as a TO-56 or 14-pin BF packaged diodes, to OEM modules including electronics, to UL/CE and IEC certified turn-key systems.

RML Series

The RML series of laser diode modules are available with single mode fiber outputs with a set wavelength from 405nm – 2500nm. The compact RML series is available with up to 80mW of output power in a package measuring 15mm in diameter and 40mm in length (without connector) . As an option these modules are offered with a potentiometer for power adjustment, external TTL modulation up to 1MHz and analog modulation up to 100kHz.

WSLP Series

R3Z0-WSLP-905-050m-M-PD: 905nm Multimode Fiber Coupled Laser Diode

The WSLP series of fiber coupled laser diodes are variable in both multimode and single mode configurations, with wavelengths from 405nm thru the IR. The highly reliable WSLP series is suitable for a variety of applications such as biological and analytical instrumentation.
