HeNe Lasers – Helium-Neon Lasers – Tubes & Modules
What is a He-Ne Laser:
A HeNe laser (also helium-neon laser or he-ne laser) is a type of continuously operating, or continuous-wave (CW) gas laser that uses a mixture of helium and neon gases as the active medium, most commonly emitting light at 632.8 nanometers (red).
A gas laser light source produces a laser beam by applying a high voltage electrical discharge through a gas (e.g., CO2, Helium-Neon, or Argon-Ion). The gas laser was the first continuous operation laser and the first laser to operate by converting electrical energy to a laser light output.
The gain medium of a HeNe gas laser is a 10:1 gas mixture of helium and neon, pressurized within a glass tube. Applying a DC current to electrodes on opposite ends of the HeNe tube excites helium gas atoms into metastable states. Thus, when excited, helium atoms can efficiently transfer energy to neon atoms with quite similar excitation energies leading to population inversion. Due to the multiple energy levels of neon gas atoms, multiple laser transitions (helium neon laser’s emitted wavelengths) are possible, providing green HeNe lasers, yellow HeNe lasers, red HeNe lasers, and even IR HeNe lasers.

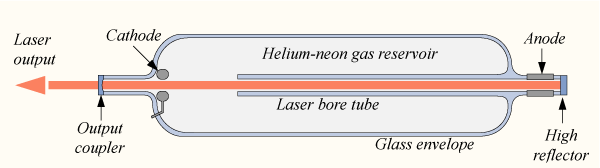

He Ne Laser Diagram
Our He Ne Laser Products:
LASOS brings many years of experience and expertise to the design and manufacturing of sophisticated laser systems, with company roots and in-house laser manufacturing dating back to 1966. LASOS’ industry proven HeNe laser sources cover a wide range of applications requiring 543nm, 594nm, and 638.2nm wavelengths. With the closed chain of development, design and manufacturing LASOS is able to adapt to customer’s requirements and deliver solutions that cater specifically to your application requirements.
There are many types of gas lasers. We currently offer a selection of Helium-Neon (HeNe / He-Ne) laser tubes and modules. These gas lasers feature a robust mechanical design, excellent beam quality, and a variety of configurations. Furthermore, HeNe laser wavelengths are available in the Green, Yellow, and Red spectral ranges, with output powers ranging from 2mW up to 20mW.
The stabilized HeNe lasers we offerboast an excellent TEM00 beam, robust mechanical design, and a long service life of up to 30,000 hours. 543 nm, 594 nm, and 632.8 nm (633 nm) wavelengths are available, with output power levels from 0.5 mW to 20 mW.
Standard and customized models are available with a host of options including single-mode or multimode, random or linear polarization, Brewster window tubes, fiber-coupling, and frequency stability.
We also offer HeNe laser power supplies. All models can be provided with either a laboratory HeNe power supply, or one of three OEM power supply versions.
Deeper Dive into HeNe Lasers
He Ne Laser Applications:
These HeNe lasers boast long life, low noise, and high-stability, with many customization options. Because of these features, HeNe lasers are perfect for alignment,Raman spectroscopy, Fabry Perot interferometry, holography, gas sensing, digital imaging, medical and biophotonics applications, other he ne laser experiments, and more!
Laser Beam Alignment:
Laser alignment can be a challenging task, but aligning a laser beam doesn’t have to be as complicated as it might seem with the right optical alignment tools and proper laser alignment techniques. Multiple optical alignment techniques have been developed over the years, utilized by technicians and engineers to simplify the alignment process. With the development of these universal laser beam alignment methods, along with some laser alignment tips and tricks, you don’t need to be a laser expert to perform your alignments with relative ease, ensuring your laser beam path is right where you want it to be and your beam is on target every time.
This will not be a comprehensive, step by step laser alignment tutorial for every situation. However this blog will cover a few of these tips and methods, focusing on the benefits of utilizing time-tested, high-quality HeNe lasers to assist in the alignment process. If you are looking for a very in-depth optical alignment tutorial, or have a particularly unique or complicated laser alignment challenge, you may consider looking into a more focused laser alignment training service.
Why is Polarization Switching Unsuitable for Interferometry?
A common problem for HeNe laser customers is the issue of polarization switching, which is the sudden change of the polarization of different modes, especially in shorter tubes, which can be particularly detrimental when operating frequency stabilized HeNe laser tubes. This phenomenon is sometimes referred to as ‘mode hopping.’ However, this is not accurate.
While somewhat similar to polarization switching, mode hopping involves (mostly in single-frequency lasers) the laser’s operation on a single resonator mode, which suddenly switches to another mode, causing the optical power to switch over to this new mode. Polarization switching shares this feature of erratic output power. However, with this phenomenon, the output power fluctuations are due to the swapping of the two perpendicularly polarized modes’ polarization states rather than the swapping from one particular mode to another.
There have been many discussions around whether or not diodes will replace HeNe lasers. However, while this may be plausible for certain applications, the superior beam quality, long service lifetime, low noise, high stability, long coherence length and competitive helium neon laser cost ensures a solid foothold in applications where enhanced performance and excellent beam quality is critical.
Advantages of HeNe Lasers
High Coherence Length: This is very typical to most gas lasers. In case of HeNe, the coherence length varies from 20 cm (for multiple longitudinal modes) to more than 100 m. It all depends on cavity parameters and mirrors and etalons used in the design.
Stable Central Wavelength: The typical emission wavelength of HeNe lasers is about 632.816 nm in air. Very stable oscillation frequency of <1 MHz (<0.001 pm @633 nm) drift is characteristic just to the most sophisticated HeNe lasers, having extra stabilization measures. The central wavelength of non-stabilized lasers can drift in the range of 1 pm, which is still fairly good, comparing to other laser types.
High Spectral Purity: HeNe lasing medium features several emission peaks, however it is relatively easy to force the laser to oscillate in just one of the emission bands. Once it is done, no spontaneous emission or emission from other bands is detectable.
Good Beam Quality and Alignment: The longer is the gas tube, the easier it is to get good Gaussian beam profile, good beam quality and very good angular and spatial alignment with respect to the laser housing.
Low-Cost: Deep traditions of HeNe laser manufacturing and its wide spread in such applications as first barcode scanners and CD players has been driving the cost down and now a laser of 2-3 mW output power costs typically less than 1000 EUR. This is cheap, considering nice and useful characteristics described above.
Drawbacks of HeNe Lasers
Short Life-Time: Helium atoms are very important for reducing the lasing threshold of the complete laser. But these atoms are small and tend to diffuse through the walls of the glass tube. Diffusion of He atoms is the main reason of short lifetime of HeNe lasers, which is often in the range of 1000 to 10000 hours, and that is less than 1 year of 24/7 operation. This is considered the main drawback of HeNe lasers in industrial applications.
Long Warm-Up Time: Manufacturers specify typical warm-up time of 10 minutes. This might not be a big issue in some applications requiring continuous operation, however in situations where the laser has to be frequently turned on and off, this is a big drawback, which typically means that one has to install mechanical shutters, which open up for laser exposure, i.e. the laser must run continuously, which further decreases life time.
Low Output Power: Most powerful HeNe lasers emit 35 to 50 mW of output power. This is low comparing with a 100 mW to 200 mW TEM00 output from some semiconductor lasers. Evenfrequency stabilized 633 nm lasersemit 70 mW to 100 mW of narrow-linewidth power.
Very Bulky: A 35 mW output power HeNe laser is about 1 meter long. It is not cost effective anymore to buy it, nor to store or transport it. Such big but not very powerful lasers are typically used in scientific labs or in some sophisticated holography applications.
High Voltage: HeNe lasers often use voltages above 1500 V. Such high voltages create certain risks for people and equipment around.
The first HeNe laser was developed in 1960 at Bell Labs by Ali Javan, in conjunction with William Bennet Jr. and Donald Herriott. Along the way, the team encountered many issues and setbacks, from melting a laser tube to destroying mirror coatings.
Late one snowy day in December, 1960, after many failed tests and disappointments, the team discussed their predicament. As the discussion progressed, Herriott continued tweaking the mirror alignment, when suddenly…. it happened! Javan looked over at the oscilloscope as Herriott was making his adjustments, and to his great delight, saw the signal displayed that they were waiting for. They had finally dialed in the tube alignment for a stable output, emitting in the infrared (IR) region at 1153nm. It was the first gas laser and the first laser with CW output.
However, a laser emitting IR radiation didn’t have much demand at the time, and the research continued, seeking a laser configuration emitting radiation in the visible spectrum. In early 1962, a mere eighteen months later, the tried-and-true 632.8nm HeNe laser was developed. Read the full article here.
