SHIPS TODAY
5240
Temperature Controller
Key Features:
Power Range
- 28W / 4A / 7V
Works With
- Thermistors
Heat & Cool
- TEC Modules & Resistive Heaters
Save Space
- Compact Enclosure
Remote Operation via PC
- USB Connection
There are many configurations and options available. If you do not see exactly what you need below, please contact us!
Need Quantities? Have a question?
POPULAR CONFIGURATIONS:
Picture |
Part Number |
Part Description |
Datasheet |
Price |
Lead Time |
Quantity |
|
|---|---|---|---|---|---|---|---|
|
5240-C |
TEC Controller, 28 W, 4A, 7V w/ 1260B Cable |
|
$1,165.00 |
Inquire |
Get Quote |

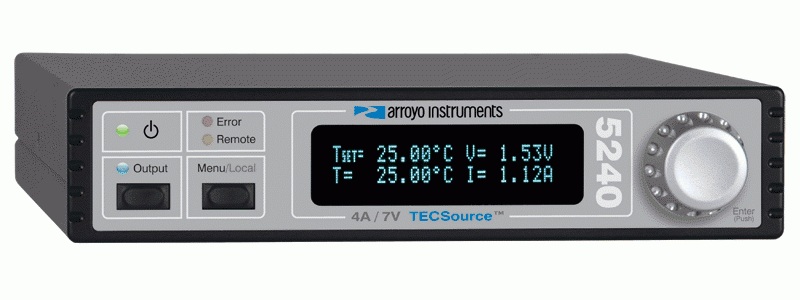

The 5240 Series TECSource supplies precision temperature control with thermistor sensor support and 28W of TEC power. This temperature controller fits in a compact enclosure, powers both TEC and resistive heater modules, and is flexible enough to meet the demands of your temperature control applications.
5240 FEATURES:
TECSource temperature controllers bring precision temperature control to your laser application. Every TECSource features ultra-stable performance and fully adjustable PID control. The 5240 Series TECSource delivers compact enclosure, an integrated fan power supply, and 28W of TEC power.
Each instrument also comes with a high contrast VFD display and standard computer interfaces in a space-saving design.
EXCELLENT STABILITY
The 5240 offers ± 0.004ºC temperature stability over 1 hour, and only ± 0.01ºC fluctuation over 24 hours.
AUTO-TUNE AUTOMATIC PID CALCULATION
The 5240 series automatically calculates PID parameters for your mount.
FULLY ADJUSTABLE PID VALUES
Every TECSource has eight factory-set gain settings, along with the option to choose your own.
INTEGRATED FAN POWER SUPPLY
Provides 4.5 – 8.5 Volts DC to power a laser mount cooling fan.
SIMPLE USER INTERFACE
Easy to Read, High Contrast VFD Display with all messages and settings in plain English. View All 4 At Once:
- Temperature Set Point
- Actual Temperature
- Current
- Voltage
