980nm IR laser diodes are available with both single-mode and multi-mode beam profiles, and with either free space or fiber coupled outputs. These packages are ideal for OEM applications, and 980nm laser modules are available for either OEM or plug and play applications.
|Picture||Part Number||Type||Output power (W)||Mode||Output||Linewidth||Pulse energy (uJ)||Pulse width||Rep rate|
|JOLD-Stack-980-CW-FAC||Laser Diode Stack||440.0, 660.0, 880.0||Multimode||Free Space|
|JOLD-Stack-980-CW-FAC/SAC||Laser Diode Stack||200.0, 300.0, 400.0, 500.0, 600.0||Multimode||Free Space|
|JOLD-Stack-980-CW||Laser Diode Stack||480.0, 720.0, 960.0, 1200.0, 1440.0||Multimode||Free Space|
|LBX-980||LD Module||0.200||Single-Mode||PM Fiber, SM Fiber, MM Fiber, Free Space|
|LDX-XXXX-980||Single Emitter||1.5, 4.0, 5.0, 6.0, 10.0||Multimode||MM Fiber, Free Space|
|RWLD-980M||Single Emitter||1.0, 3.0, 4.0, 10.0, 12.0, 15.0||Multimode||Free Space|
|RWLD-980S||Single Emitter||0.050||Single-Mode||Free Space|
|RWLP-980M||Single Emitter||0.100, 0.150, 2.0, 10.0, 20.0, 30.0, 55.0||Multimode||MM Fiber|
|RWLP-980S||Single Emitter||0.005, 0.010, 0.015||Single-Mode||PM Fiber, SM Fiber|
The JOLD–Stacks Series offers a highly modular approach for power scaling well into the kW-range through vertical stacking of individual sub-mounts within multi-laser-bar packages. Our optimized beam quality (BPP) is achieved through our unique approach of reducing the pitch of neighboring stacks without compromising cooling capacity. Our proven hard-solder technology and strictly monitored production processes ensure tried & tested reliability under even the harshest environmental conditions. The series also features microchannel-cooled packages for CW-operation, actively cooled with deionized (DI) water.

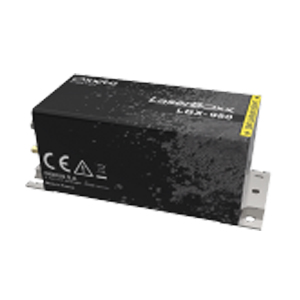

The LaserBoxx Low Noise series of CW diode laser modules, with a variety of wavelengths from 375 to 785nm and output powers up to 350mW, offers highly customizable laser solutions for OEM and plug & play modules. With advanced features such as excellent beam quality, stability, and modulation capabilities, our lasers provide ultra-low noise and a wide range of options for SM, MM, and PM fiber coupling. Our dedicated control software, USB and RS232 interfaces, and external controller with power display make integration, operation, and remote diagnostics a breeze. Additionally, our rugged and compact design and wide variety of standard wavelengths ensure that our lasers can meet your specific needs.
The LDX Series of made-in-the-US, high-power, multimode laser diodes provide wavelengths from 400nm – 1900nm, a wide range of output powers and package types, as well as completely customized solutions. We have been offering these high-quality laser diodes for over 25 years. The performance, reliability, and lifetimes are time tested, and if for some reason there is an issue, we will make it right.
The RWLD series offers competitively priced laser diodes with high beam quality and a wide variety of products to support multiple applications. Available in a wide range of wavelengths, power levels, and packages. The RWLD wavelength options span from 405nm to 1650nm, with output powers in the range of 10 mW to 300 mW, packaged in a TO-18 package with photodiode. We also offer customized options, such as a customized wavelength, output power, or a special package to meet your specific needs.
The RWLP series offers an affordable and versatile solution for your laser application needs with single-mode and multimode options and wavelengths from 405nm thru the IR region. With customizable options, our team can work with you to solve any challenges you may face. Rigorously tested for long-term reliability, the RWLP series ensures consistent performance and high beam quality. Perfect for integration, this series supports multiple applications including biological and analytical instrumentation.
