1030nm IR Laser Diodes with Diode Pumped Solid State (DPSS) or Continuous Wave (CW) technology.
|Picture||Part Number||Type||Output power (W)||Mode||Output||Linewidth||Pulse energy (uJ)||Pulse width||Rep rate|
|1030L-1XB||CW DPSS Lasers||0.300, 0.400, 0.500||Single-Mode Lasers, Multimode||Free Space, MM Fiber, SM Fiber, PM Fiber, SMA Port|
|1030L-2XB||CW DPSS Lasers||0.200, 0.280, 0.400||Single-Mode Lasers, Multimode||Free Space, MM Fiber, SM Fiber, PM Fiber||Narrow|
|Antares||Pulsed DPSS Lasers, Pulsed Fiber Lasers, Ultrafast Lasers||10.0, 20.0, 30.0||0.125, 0.250, 0.375, 0.500||10ps||80MHz|
|Diadem IR||Pulsed DPSS Lasers, Ultrafast Lasers||10.0, 20.0, 30.0||10.0, 20.0, 30.0, 40.0||400fs, 10ps||Single shot to 2MHz|
|LDX-XXXX-1030||Single Emitter||3.0, 5.0||Multimode||Free Space, MM Fiber|
|neoYb||DPSS Amplifiers||100.0||50.0, 500.0||700fs, CW|
|One-1030||Pulsed DPSS Lasers||1.0, 3.0||100.0||5ns - 20ns||30kHz, Single shot to 10kHz|
|R1030||LD Module, Single Emitter, Volume Bragg Grating (VBG) Laser Diodes||0.100, 0.280, 0.450||Single-Mode Lasers, Multimode||Free Space, SM Fiber, PM Fiber||Narrow|
|TD-XX-7X||Thin Disk Gain Media|
|TDM 1.1||Thin Disk Pump Modules|
|TDM 3.0||Thin Disk Pump Modules|
|VaryDisk E150||Pulsed DPSS Lasers||150.0||150000.0||2ps - 1ns||1kHz to 10kHz|
The Matchbox series offers excellent performance and reliability in an ultra-compact “all-in-one” integrated laser head. They come standard with an integrated internal voltage up-conversion that allows using a 5V power supply while maintaining low noise operation. The monolithic design of the Matchbox Series laser includes thermally stabilized optics in a hermetically sealed housing, ensuring reliable and maintenance-free operation. All the Matchbox series modules include a 12-month warranty and are RoHS compliant. All of these features make them the ideal laser source for integration into commercial flow cytometers.
ANTARES is a picosecond, quasi-continuous wave laser with a high repetition rate up to 80 MHz and a narrow linewidth, in a very compact and robust format. This laser series offers average powers of 1 to 40W at 1030 nm or 1064 nm (upon request) and can be doubled or tripled in the harmonics to answer even the most challenging industrial and scientific applications. ANTARES is ideally suited for applications such as CARS and spectroscopy applications.
DIADEM Series is a compact, air-cooled, high energy ultrafast laser for advanced micro-machining applications that require short femtosecond pulse widths. The Diadem is available with up to 40µJ of pulse energy, 30W of average power, and operation up to 1MHz (standard), with pulses below <400 fs and an M² < 1.2. This laser has been specifically designed for demanding medical implantable device and electronics manufacturing as well as high peak power optogenetics applications.
The LDX Series of high power multimode single emitter laser diodes include wavelengths of 400nm – 1900nm. Available in a wide range of output powers and package types.

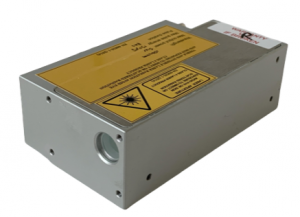

The One Series is a compact, passively q-switched laser operating at the fundamental wavelength of 1030nm. Available in a high energy configurations (up to 100uJ) as well as a high average power configurations (up to 3W). The One Series can be configured in a fixed operational rep rate configuration, or an externally triggerable configuration. The One series is utilized in a variety of applications spanning from material process to air-borne LiDAR.
The R series of wavelength stabilized single mode and multimode laser diodes offer narrow wavelength spectrum in wavelengths from 633nm thru 1064nm. Package options range from components as basic as a TO-56 or 14-pin BF packaged diodes, to OEM modules including electronics, to UL/CE and IEC certified turn-key systems.
The VaryDisk Series platform is a high energy, multi-milli-Joule laser system for laboratory investigations or industrial use. This is a thin disk regenerative amplifier for amplification of femtosecond, picosecond or nanosecond pulses with amplification factors in the order of 10⁶. The output specifications can be chosen according to our customers needs, mainly by choice of the seed laser (multiple seed lasers are possible) and various options available. The base configuration typically provides up to 150 W average power @ 1030 nm, 15 – 150 mJ pulse energy with 1 ns pulse width (compressible to < 2 ps), and a repetition rate range from 1 kHz to 10 kHz.
