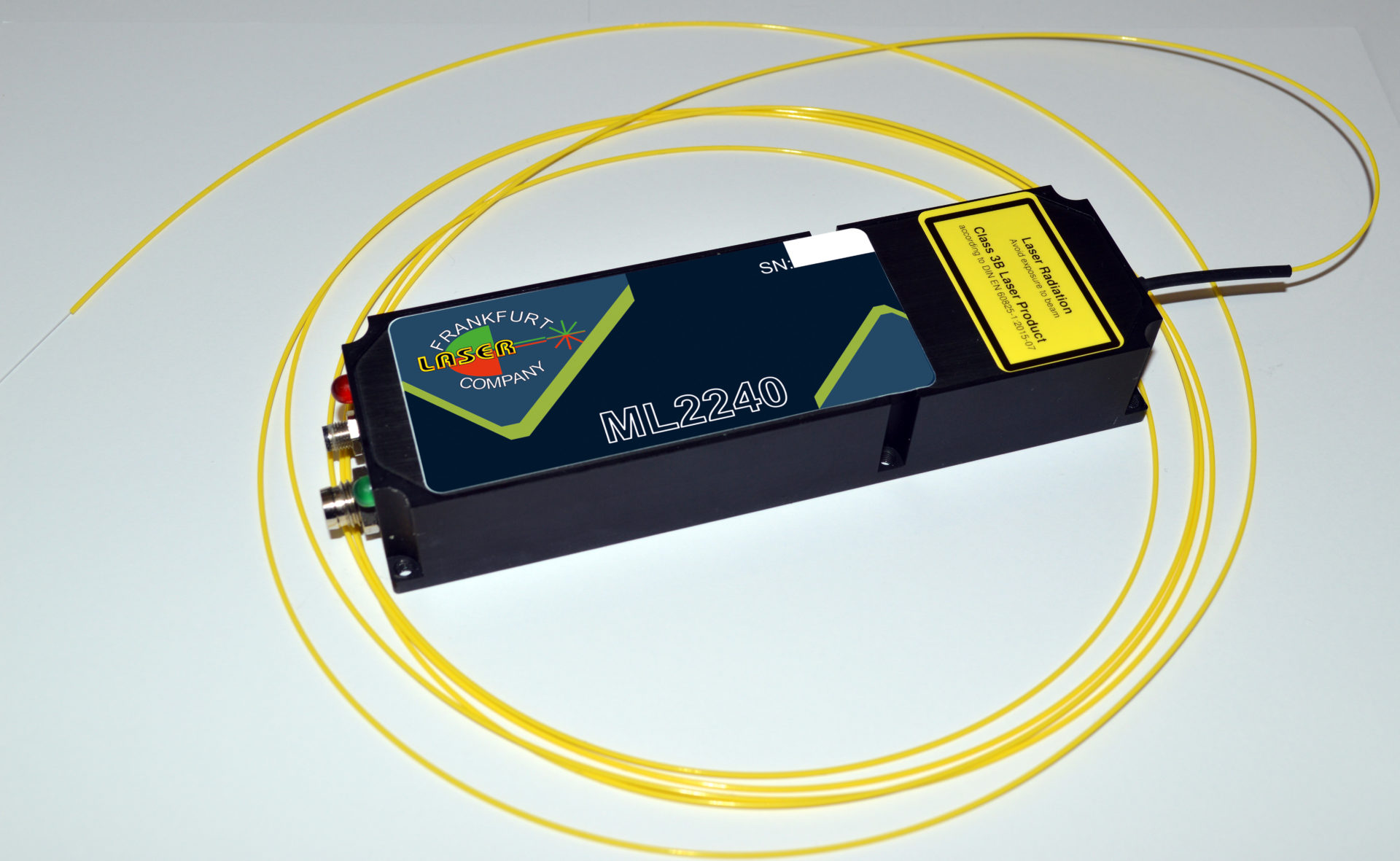

RML2240

Laser Diode Module, High Power, 405-1060nm, Temperature Stabilized

Key Features:

  • Multiple Wavelength Options From 405nm to 1060nm
  • Up To 1.5W
  • Compact

The ML2240-Series are laser diode modules with high power fiber output. The wavelength range is from 405nm to 1060nm. The power out of the fiber can be up to 1.5W. The operating temperature range is from -10°C to +50°C. With dimensions of 133.5mm x 40mm x 22mm (LxWxH) they are very compact. As an option these modules are offered with a potentiometer for power adjustment, external TTL modulation up to 1MHz and analog modulation up to 100kHz.

Type

Wavelength (nm)

Output power (W)

Mode

,

Output

,
