Matchbox Series

R1Z4-Matchbox Laser

The Matchbox series offers excellent performance and reliability in the “World’s Smallest” ultra-compact, all-in-one, integrated laser head. They can operate on a 5V power supply while maintaining low noise operation. The monolithic design of the Matchbox Series laser includes thermally stabilized optics in a hermetically sealed housing, ensuring reliable and maintenance-free operation. This series is available in wavelengths from 405 nm thru 1064nm, with options for collimated beam or fiber-coupled output, and single-mode and multimode versions.

Filters Reset

Type

Wavelength Selection

Power Selection

Mode

Output

Linewidth

Picture Part Number Type Wavelength (nm) Output power (W) Mode Output Linewidth
1030L-1XB: 1030nm Laser (DPSS; MATCHBOX 2) 1030L-1XB CW DPSS Lasers 1030 0.350, 0.400, 0.500 Single-Mode, Multimode PM Fiber, SM Fiber, MM Fiber, SMA Port, Free Space
1030L-1XB: 1030nm Laser (DPSS; MATCHBOX 2) 1030L-2XB CW DPSS Lasers 1030 0.200, 0.300, 0.400 Single-Mode, Multimode PM Fiber, SM Fiber, MM Fiber, Free Space Narrow
ultra-compact matchbox sized dpss laser module 1064L-1XB CW DPSS Lasers 1064 0.025, 0.300, 0.400, 0.500 Single-Mode, Multimode PM Fiber, SM Fiber, MM Fiber, SMA Port, Free Space
ultra-compact matchbox sized dpss laser module 1064L-2XB CW DPSS Lasers 1064 0.200, 0.300, 0.400 Single-Mode, Multimode PM Fiber, SM Fiber, MM Fiber, Free Space Narrow
1123L-1XB CW DPSS Lasers 1123 0.100, 0.160, 0.200 Single-Mode, Multimode PM Fiber, SM Fiber, MM Fiber, Free Space
1310L-1XA LD Module 1310 0.180 Single-Mode, Multimode PM Fiber, Free Space

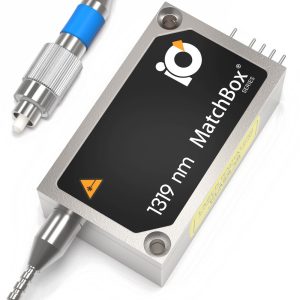

1319L-1XB: 1319nm Laser (DPSS; MATCHBOX 2) 1319L-1XB CW DPSS Lasers 1319 0.100, 0.160, 0.200 Single-Mode, Multimode PM Fiber, SM Fiber, MM Fiber, Free Space

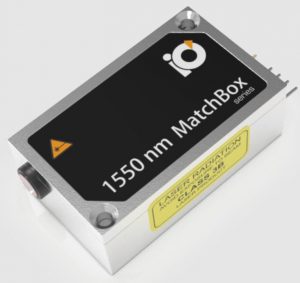

1550L-1XA LD Module 1550 0.250, 0.300 Single-Mode PM Fiber, SM Fiber, Free Space

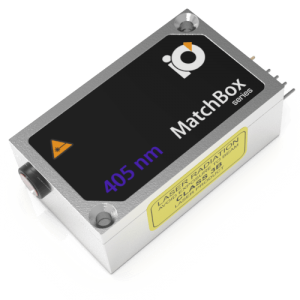

405L-1XA: 405nm Laser (Diode; MATCHBOX 2) 405L-1XA LD Module 405 0.100, 0.150, 0.180 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space

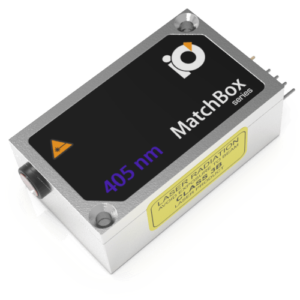

IO Matchbox 405nm Laser 405L-2XA LD Module 405 0.020, 0.040, 0.050 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space Narrow
450L-3XA: 450nm Laser (HP MM Diode; MATCHBOX 2) 450L-1XA LD Module 450 0.035, 0.050, 0.060 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space
450L-3XA: 450nm Laser (HP MM Diode; MATCHBOX 2) 450L-3XA LD Module 450 0.300, 0.400 Multimode MM Fiber, Free Space
488L-1XA: 488nm Laser (Diode; MATCHBOX 2) 488L-1XA LD Module 488 0.020, 0.030, 0.040 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space
488L-2XA: 488nm SLM Laser (VBG Diode; MATCHBOX 2) 488L-2XA LD Module 488 0.010, 0.015, 0.030 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space Narrow

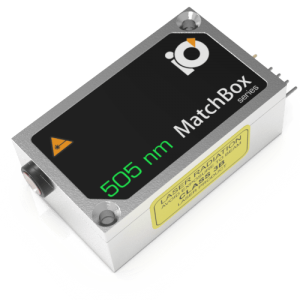

505L-1XA LD Module 505 0.030, 0.060 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space
520L-1XA: 520nm Laser (Diode; MATCHBOX 2) 520L-1XA LD Module 520 0.050, 0.080, 0.090, 0.100 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space
520L-2XA: 520nm SLM Laser (VBG Diode; MATCHBOX 2) 520L-2XA LD Module 520 0.025, 0.035, 0.040 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space Narrow
532L-1XB: 532nm Laser (DPSS; MATCHBOX 2) 532L-1XB CW DPSS Lasers 532 0.100, 0.150, 0.160, 0.200 Single-Mode, Multimode PM Fiber, SM Fiber, MM Fiber, SMA Port, Free Space
532L-2XB: 532nm Laser (SLM DPSS; MATCHBOX 2) 532L-2XB CW DPSS Lasers 532 0.025, 0.040, 0.050 Single-Mode, Multimode PM Fiber, SM Fiber, MM Fiber, SMA Port, Free Space Narrow
532L-4XB: 532nm Laser (HP DPSS; MATCHBOX 2) 532L-4XB CW DPSS Lasers 532 0.050, 0.080, 0.100 Single-Mode, Multimode PM Fiber, SM Fiber, MM Fiber, SMA Port, Free Space Narrow
532L-4XB: 532nm Laser (HP DPSS; MATCHBOX 2) 532L-6XB CW DPSS Lasers 532 0.100, 0.200 Single-Mode, Multimode PM Fiber, SM Fiber, MM Fiber, SMA Port, Free Space Narrow
633L-2XA: 633nm SLM Laser (VBG Diode; MATCHBOX 2) 633L-1XA LD Module 633 0.035, 0.060, 0.080, 0.090 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space
633L-2XA: 633nm SLM Laser (VBG Diode; MATCHBOX 2) 633L-2XA LD Module 633 0.035, 0.040, 0.070 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space Narrow
638L-1XA: 638nm Laser (Diode; MATCHBOX 2) 638L-1XA LD Module 638 0.100, 0.120, 0.170 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space
638L-2XA: 638nm SLM Laser (VBG Diode; MATCHBOX 2) 638L-2XA LD Module 638 0.060, 0.080, 0.100 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space Narrow
638L-1XA: 638nm Laser (Diode; MATCHBOX 2) 638L-3XA LD Module 638 0.500, 0.600 Multimode MM Fiber, Free Space
638L-2XA: 638nm SLM Laser (VBG Diode; MATCHBOX 2) 638L-4XA LD Module 638 0.300, 0.500 Multimode MM Fiber, Free Space Narrow
660L-1XA: 660nm Laser (Diode; MATCHBOX 2) 660L-1XA LD Module 660 0.060, 0.080, 0.090, 0.110 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space
783L-2XA: 783nm SLM Laser (VBG Diode; MATCHBOX 2) 783L-2XA LD Module 783 0.070, 0.080, 0.110 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space Narrow
785L-1XA: 785nm Laser (Diode; MATCHBOX 2) 785L-1XA LD Module 785 0.120, 0.150, 0.170 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space
785L-2XA: 785nm SLM Laser (VBG Diode; MATCHBOX 2) 785L-2XA LD Module 785 0.080, 0.100, 0.130 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space Narrow
785L-3XA: 785nm Laser (HP Diode; MATCHBOX 2) 785L-3XA LD Module 785 1.0 Multimode MM Fiber, Free Space
785L-4XA: 785nm Laser (HP VBG Diode; MATCHBOX 2) 785L-4XA LD Module 785 0.500, 0.700, 0.800 Multimode MM Fiber, Free Space Narrow
ultra-compact, matchbook sized/shaped laser diode module 808L-1XA LD Module 808 0.055, 0.090, 0.110 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space
ultra-compact, matchbook sized/shaped laser diode module 808L-3XA LD Module 808 1.6, 3.0 Multimode MM Fiber, Free Space
830L-1XA: 830nm Laser (Diode; MATCHBOX 2) 830L-1XA LD Module 830 0.070, 0.090, 0.130 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space
830L-2XA: 830nm SLM Laser (VBG Diode; MATCHBOX 2) 830L-2XA LD Module 830 0.050, 0.070, 0.080 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space Narrow
830L-1XA: 830nm Laser (Diode; MATCHBOX 2) 830L-3XA LD Module 808 1.0 Multimode MM Fiber
850L-1XA: 850nm Laser (Diode; MATCHBOX 2) 850L-1XA LD Module 850 0.070, 0.110, 0.130 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space
915L-1XA: 915nm Laser (Diode; MATCHBOX 2) 915L-1XA LD Module 915 0.080, 0.140, 0.170 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space
975L-1XA: 975nm Laser (Diode; MATCHBOX 2) 975L-1XA LD Module 975 0.100, 0.140, 0.170 Single-Mode PM Fiber, SM Fiber, MM Fiber, Free Space
a silver colored matchbox shaped & sized multi-wavelength laser beam combiner box MatchBox Combiner Combiners Multiple Wavelength Options 0.050, 0.100 Single-Mode, Multimode PM Fiber, SM Fiber, MM Fiber, Free Space
