Laser Diode Module, SLM, 633nm
- Up to 40mW at 633nm
- Single Longitudinal mode
- TEM00 Beam
- Coherence length > 50 m
- Low profile laser head (32 mm)
- Tailored beam diameter capability (0.6 up to 1.4 mm)
- Proprietary SLM locking routine
- Beam pointing ≤ 5µm/°C
- SM/PM/MM fiber coupling options
- Industry standard footprint
There are many configurations and options available. If you do not see exactly what you need below, please contact us!
Need Quantities? Use Get Quote to get volume pricing!

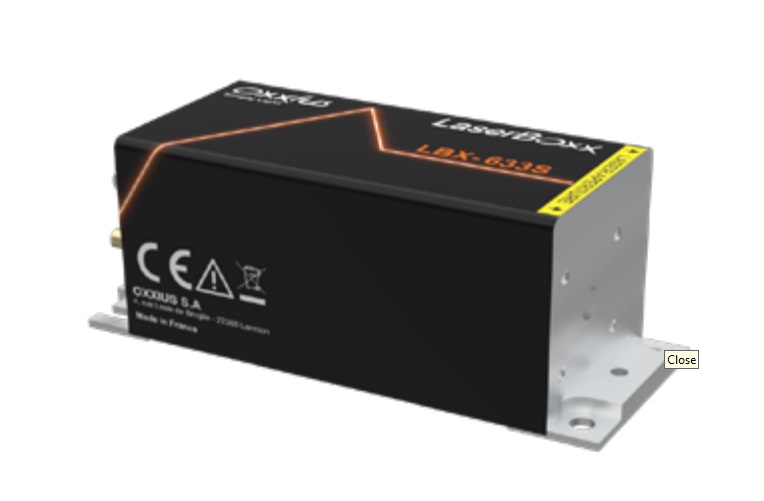

The LBX-633S is part of the LaserBoxx SLM series of single longitudinal mode, TEM00 laser modules available in a range of wavelengths from 532nm through 1064nm, offering excellent performance and reliability in a compact fully integrated laser module.
The LCX lasers are self-contained DPSS laser modules that utilize Oxxius’ proprietary alignment-free monolithic resonator. The elements in the cavity are assembled into a single ultra-low-loss optical subsystem using a proprietary crystal bonding technique. This provides an extremely stable, <0.2% rms, TEM00 output beam with outstanding pointing stability.
The LBX-S and LSX-S are stabilized laser diode modules deliver ultra-narrow linewidth thanks to their excellent temperature stability and low noise current, and Oxxius’s proprietary mode locking firmware.
The LaserBoxx series is designed with an industry-standard footprint and comes standard with a user-friendly graphical user interface featuring remote diagnostics via USB, RS232, or a direct I/O interface.
Available in either an OEM and plug and play configuration, the LaserBoxx series is a versatile platform and an excellent solution for both OEM and research-based applications.
