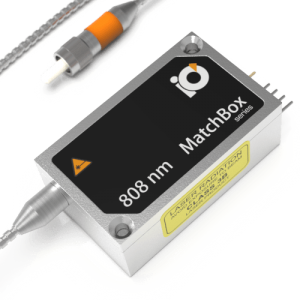

808L-1XA

Laser Diode Module, Single Mode, 808nm

Key Features:

  • 808nm
  • Multiple Fiber Coupled Options
  • Ultra-compact All-in-one Design
  • Thermally stabilized optics
  • Monolithic Design
  • Hermetically Sealed
  • Automatic Power Control
  • +5VDC Input Voltage



There are many configurations and options available. If you do not see exactly what you need below, please contact us!

POPULAR CONFIGURATIONS:

Part Number
Part Description
Datasheet
Price
Lead Time
Quantity
0808L-11A-NI-NT-NF

Laser Diode Module, 808nm, 110mW, Free Space



3-4 weeks

Get Quote
0808L-13A-NI-PT-NF

Laser Diode Module, 808nm, , Single Mode Fiber w/ FC/APC connector



3-4 weeks

Get Quote
0808L-14A-NI-PT-NF

Laser Diode Module, 808nm, , Multimode Fiber w/ FC/APC connector



3-4 weeks

Get Quote
0808L-15A-NI-PT-NF

Laser Diode Module, 808nm, , Polarization Maintaining w/ FC/APC connector



3-4 weeks

Get Quote
0808L-16A-NI-PT-NF

Laser Diode Module, 808nm, , SMA w/ FC/APC connector



3-4 weeks

Get Quote

The 808L-1XA is an 808 nm low noise laser diode module from RPMC. The Matchbox series includes single mode laser diode modules offering excellent performance and reliability in an ultra-compact “all-in-one” driver integrated laser head.  The 808L-1XA comes standard with internal voltage up-conversion that allows using a 5V power supply while maintaining low noise operation. The monolithic design of the Matchbox Series laser diode modules includes thermally stabilized optics in a hermetically sealed housing ensuring reliable and maintenance-free operation.  All the Matchbox series modules include a 12-month warranty and are RoHS compliant.

The 808L-11A is the free space version, other versions are available depending on the variable X in Part number. Here are the free space and fiber coupled output types available for the 808L-1XA:  (“X” defines the output type of the module)

Type

Wavelength (nm)

Output power (W)

Mode

Output

, , ,
