LaserBoxx HPE Series
The LaserBoxx HPE Series is a highly versatile and customizable laser diode module series that offers superior performance and reliability in a compact, driver-integrated laser head. With a wide range of wavelengths from the UV to the NIR, this series provides high-power output, removable MM fiber coupling options & dedicated control software with USB and RS232 interfaces, as well as an external controller with power display, ensuring easy integration and precise power and modulation control.
| Picture | Part Number | Type | Wavelength (nm) | Output power (W) | Mode | Output |
|---|---|---|---|---|---|---|
|
LXX-In-Stock | LD Module, CW DPSS Lasers | 375, 532, 830 | 0.050, 0.070, 0.100, 1.2 | Single-Mode, Multimode | Free Space |
|
LXX-IR-HPE | LD Module, Collimated Beam, Fiber-Coupled, Customizable | 750, 785, 830, 940 | 0.800, 1.0 | Multimode | MM Fiber, Free Space |
|
|

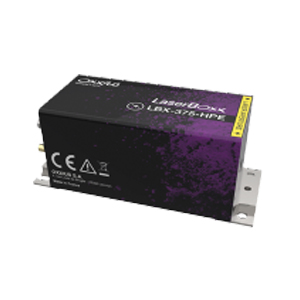

LXX-UV-HPE | LD Module, Collimated Beam, Fiber-Coupled, Customizable | 375 | 0.200, 0.400 | Multimode | MM Fiber, Free Space |
|

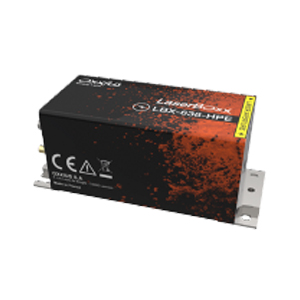

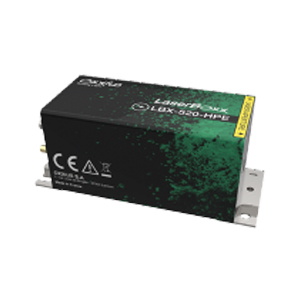

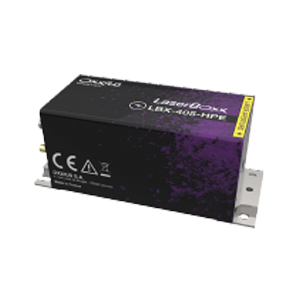

LXX-VIS-HPE | LD Module, Collimated Beam, Fiber-Coupled, Customizable | 405, 450, 473, 488, 520, 638, 750 | 0.800, 1.0, 1.2 | Multimode | MM Fiber, Free Space |
