505L-1XA

Laser Diode Module, Single Mode, 505nm

Key Features:

  • 505nm
  • Multiple Fiber Coupled Options
  • Ultra-compact All-in-one Design
  • Thermally stabilized optics
  • Monolithic Design
  • Hermetically Sealed
  • Automatic Power Control
  • +5VDC Input Voltage



There are many configurations and options available. If you do not see exactly what you need below, please contact us!

POPULAR CONFIGURATIONS:

Part Number
Part Description
Datasheet
1
10
Lead Time
Quantity

IO Matchbox 505nm Laser 0505L-15A-NI-ST-NF

Laser Diode Module, 505nm, 60mW, Polarization maintaining fiber w/ SMA connector

$2,850.00

10-14 weeks

Get Quote
IO Matchbox 505nm Laser 0505L-15A-NI-PT-NF

Laser Diode Module, 505nm, 60mW, Polarization maintaining fiber w/ FC/PC connector

$2,850.00

10-14 weeks

Get Quote
IO Matchbox 505nm Laser 0505L-15A-NI-AT-NF

Laser Diode Module, 505nm, 60mW, Polarization maintaining fiber w/ FC/APC connector

$2,850.00

10-14 weeks

Get Quote
IO Matchbox 505nm Laser 0505L-13A-NI-ST-NF

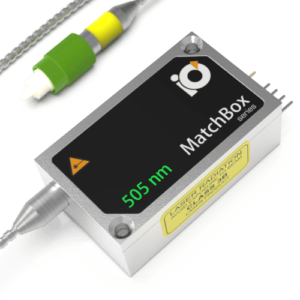

Laser Diode Module, 505nm, 60mW, Single Mode fiber w/ SMA connector

$2,600.00

10-14 weeks

Get Quote
IO Matchbox 505nm Laser 0505L-13A-NI-PT-NF

Laser Diode Module, 505nm, 60mW, Single Mode Fiber w/ FC/PC connector

$2,600.00

10-14 weeks

Get Quote
IO Matchbox 505nm Laser 0505L-13A-NI-AT-NF

Laser Diode Module, 505nm, 60mW, Single Mode Fiber w/ FC/APC connector

$2,600.00

10-14 weeks

Get Quote
0505L-11A-NI-NT-NF

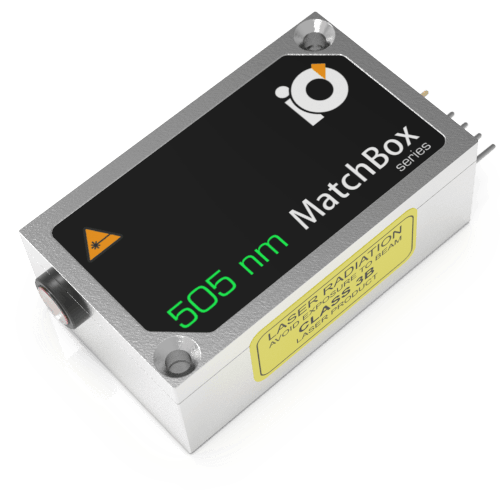

Laser Diode Module, 505nm, 60mW, Free Space

$2,225.00 $1,800.00

10-14 weeks

Get Quote

The Matchbox series of laser diode modules offer excellent performance and reliability in an ultra-compact “all-in-one” driver integrated laser head. The 505L-1XA CW version is a 505nm low noise diode laser with up to 60mW output power. This green laser module comes standard with internal voltage up-conversion that allows a 5V power supply while maintaining low noise operation. The monolithic design of these laser diode modules features thermally stabilized optics in a hermetically sealed housing, ensuring reliable and maintenance-free operation. All the Matchbox series modules have a 12-month warranty and are RoHS compliant.

These continuous wavelength laser modules have many configurations and provide elite performance in a compact package. This laser is available with a free-space output. Other options include a break-out box, heatsinks, shutters, and power supplies. The key advantages for these modules include providing top-quality power electronics in the same housing while obtaining excellent output power and performance/price ratio.

These modules offer excellent beam quality and accuracy, user-friendly software with multiple parameter monitoring, low power consumption, high cooling capacity, rugged housing, and more. If you would like more information or want to request a more customizable laser, don’t hesitate to contact one of our product managers:

The MatchBox combiner offers up to four different wavelengths in a single housing if multiple wavelengths are needed. The following link will lead to the MatchBox Combiner Page for more information on the wavelength combiner options.

Type

Wavelength (nm)

Output power (W)

Mode

Output

, , ,
