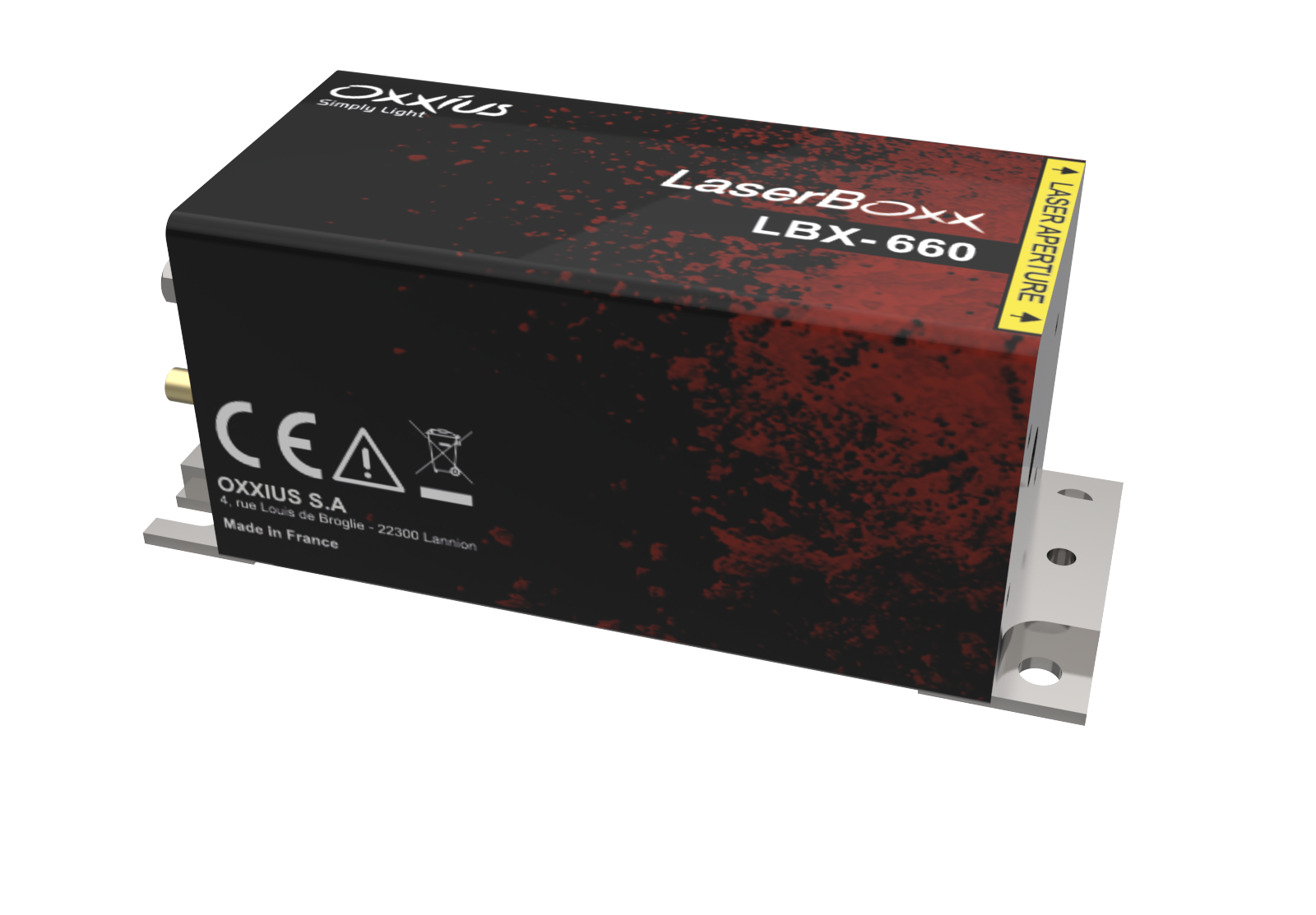

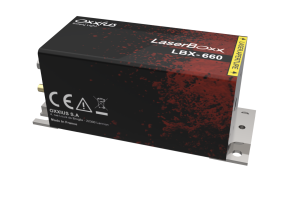

Laser Diode Module, Low Noise, 660nm
- Up to 100mW at 660nm
- Low profile laser head (32 mm)
- Tailored beam diameter capability (0.6 up to 1.4 mm)
- Fast TTL and analog modulation
There are many configurations and options available. If you do not see exactly what you need below, please contact us!
Need Quantities? Use Get Quote to get volume pricing!
The LBX-660 laser diode module is part of the LaserBoxx low noise series of CW DPSS laser and laser diode modules available at a variety of wavelengths from 375nm through 980nm.
The LBX lasers are a fully integrated laser diode solution that provides an extremely stable, <0.2% rms, TEM00 output beam with outstanding pointing stability, and fast modulation capabilities.
The LCX/LPX lasers are self-contained modules that utilize Oxxius’ proprietary alignment-free monolithic resonator. The elements in the cavity are assembled into a single ultra-low-loss optical subsystem using a proprietary crystal bonding technique.
The LaserBoxx series is designed with an industry-standard footprint and comes standard with a user-friendly graphical user interface featuring remote diagnostics via USB, RS232, or a direct I/O interface.
Available in either an OEM and plug and play configuration, the LaserBoxx series is a versatile platform and an excellent solution for both OEM and research-based applications.
