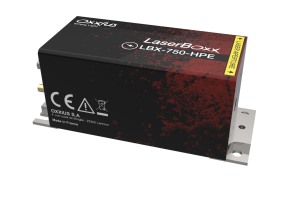

LBX-750-1200-HPE: 750nm HP Laser Diode Module

Get Quote Ask Engineer

Specifications

Overview:

750nm High Power MM Laser Module.

The LaserBoxx HPE series is a high power laser diode module offering excellent performance and reliability in a compact driver integrated laser head. It comes in free space multimode elliptical beam or with removable MM fiber coupling.

    • Laser head with integrated drivers
    • High Output Power
    • MM Elliptical Collimated beam
    • Multimode fiber coupling options
    • External Analog modulation
    • USB and RS232 computer interface
    • Plug and Play version includes Remote ControlBoxx with power display (CDRH)
    • Industry standard package – 100 x 40 x 40mm
OEM Version

Features include:
• Compact Industry Standard Laser head w/ Integrated drivers
• 5V to 12V DC Power Supply to operate
• 10 °C to 50 °C (baseplate) Operating Temperature
• USB, RS-232, dedicated I/O interface
• Intended for system integration

Plug and Play Version

Features include:
• Compact Industry Standard Laser head w/ Integrated drivers
• CDRH compliant ControlBoxx
• 100-240V Power Supply
• 10 °C to 50 °C (baseplate) Operating Temperature
• USB, RS-232, dedicated I/O interface
• Intended for academic users and Lab use.
• Heatsink provided for LCX, Optional for LBX



Datasheets:

Oxxius-LBX-HPE.pdf
