915L-1XA: 915nm Laser (Diode; MATCHBOX 2)

Get Quote Ask Engineer

Specifications

Overview of 915L-1XA: 915nm Low Noise Laser

The 915L-1XA is a 915 nm low noise diode laser from Integrated Optics. The IO Matchbox series includes single mode laser diode modules offering excellent performance and reliability in an ultra-compact “all-in-one” driver integrated laser head.  The 915L-1XA comes standard with internal voltage up-conversion that allows using a 5V power supply while maintaining low noise operation. The monolithic design of the Matchbox Series laser diode modules includes thermally stabilized optics in a hermetically sealed housing ensuring reliable and maintenance-free operation.  All the Matchbox series modules include a 12-month warranty and are RoHS compliant.

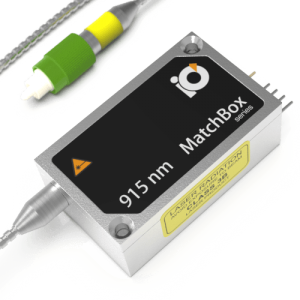

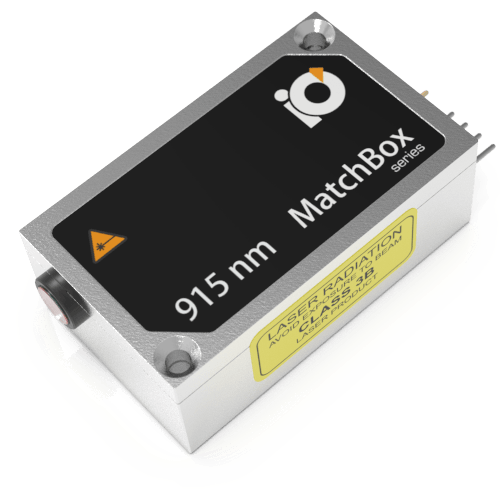

The 915L-11A is the free space version, other versions are available depending on the variable X in Part number. Here are the free space and fiber coupled output types available for the 915L-1XA:  (“X” defines the output type of the module)

915L-1XA Application

  • Laser Diffraction Particle Analysis
  • Confocal Microscopy
  • Food Sorting
  • Flow Cytometry



915L-1XA Options:

Diode Laser Essential Accessory Bundle

  • AM-H8: Compact Fan Cooler For MatchBoxⓇ
  • AM-P7: 18W USB power supply, QC3.0
  • AM-C8: USB Break-out-Box for Single Wavelength MatchBoxⓇ
  • USB-C cable for power
  • USB-micro cable for data



SLM and High Power Diode Laser Essential Accessory Bundle

  • AM-H3: Fan Cooler for MatchBox®
  • AM-P8: 60W USB power supply, PD
  • AM-C8: USB Break-out-Box for Single Wavelength MatchBoxⓇ
  • USB-C cable for power
  • USB-micro cable for data



Forced Air Heat Sink

  • Convenient fastening for MatchBox® lasers in various orientations;
  • Thermal resistance <0.5 C/W;
  • At least 3 ways of mounting the assembly on an optical table;
  • Variable speed fan ensures minimal vibrations at low thermal load.
  • Beam height – 48 mm



USB Break-out-Box for Single-Wavelength MatchBoxⓇ

  • USB-micro for data communication
  • USB-C for QC3.0 or PD (power delivery) power supply
  • Interlock
  • TTL modulation or FAN control (depending on a laser)
  • LED indicator for ‘Laser armed’ status
  • Pins for fan based heatsinks (AM-H3, AM-H8)



RS232 Break-out-Box for Single-Wavelength MatchBox®

  • RS232 control
  • USB-C power port (PD – Power Delivery)
  • Interlock
  • TTL signal connector
  • Fan control
  • LED indicator for ‘Laser armed’ status
  • Pins for fan based heatsinks (AM-H3, AM-H8)



Quick Link to all Integrated Optics Laser Products
