Near Infrared (NIR) Lasers & Diodes - Overview

Part Number	Type	Wavelength (nm)	Output Power (W)	Mode	Output	Narrow Linewidth
1030L-1XB	LD Module	1030	0.300, 0.400, 0.500	Single Mode	Free Space, SM Fiber, PM Fiber, MM Fiber	No
1030L-2XB	CW DPSS Lasers	1030	0.200, 0.280, 0.400	Single Mode	Free Space, SM Fiber, PM Fiber, MM Fiber	Yes
1064L-1XB	CW DPSS Lasers	1064	0.300, 0.400, 0.500	Single Mode	Free Space, SM Fiber, PM Fiber, MM Fiber	No
1064L-2XB	CW DPSS Lasers	1064	0.200, 0.280, 0.400	Single Mode	Free Space, SM Fiber, PM Fiber, MM Fiber	Yes
1123L-1XB	LD Module	1120	0.100, 0.160, 0.200	Single Mode	Free Space, SM Fiber, PM Fiber, MM Fiber	No
1319L-1XB	LD Module	1330	0.100, 0.160, 0.200	Single Mode	Free Space, SM Fiber, PM Fiber, MM Fiber	No
783L-2XA	LD Module	783	0.070, 0.090, 0.130	Single Mode	Free Space, SM Fiber, PM Fiber, MM Fiber	Yes
785L-1XA	LD Module	785	0.100, 0.130, 0.150, 0.180	Single Mode	Free Space, SM Fiber, PM Fiber, MM Fiber	No
785L-2XA	LD Module	785	0.080, 0.100, 0.130	Single Mode	Free Space, SM Fiber, PM Fiber, MM Fiber	Yes
785L-3XA	LD Module	785	0.100, 0.130, 0.150, 0.180	Single Mode	Free Space, SM Fiber, PM Fiber, MM Fiber	No

Matchbox Series

R1Z4-Matchbox Laser

The Matchbox series of compact laser diode and DPSS laser modules are available in wavelengths from 405nm thru 1064nm. Options include collimated beam or fiber coupled output, and single mode and multimode versions.

Aero Series

The Aero Series is a high-energy DPSS laser that operates at less than 15 nanoseconds and with average power up to 200mJ at 1064nm and 100mJ at 532nm. All models come enclosed in an extremely compact and ruggedized single unit with a conductively cooled heatsink with a water-cooled option. It comes with available options for beam expanding and collimating optics. This new laser series is ideal for applications like LIBS, spectroscopy, and Atmospheric LIDAR.

Airtrac Series

AIRTRAC-6M: Low SWaP High Energy Laser

The AIRTRAC series, from Areté’s Associates, is a ruggedized, high-shock, ultra-compact, actively q-switched, low-SWaP, DPSS laser, available with >90 mJ of pulse energy. Fully compliant NATO STANAG 3733 configurations for laser designation are available in a complete system weighing less than 1 lb. The athermal design of the AIRTRAC ensures high laser pulse energy, stable performance over the full temperature range with low beam divergence.

Alcor Series

Alcor

ALCOR is the most advanced femtosecond fiber laser emitting at 920 nm or 1064 nm specifically designed for multiphoton microscopy instrumentation and industrial OEM integration, working with 24/7 operations, in an ultra-compact, robust and air-cooled format. Featuring the Alcor 920 4W, with the highest average power commercially available, as well as the XSight and FLeXSight external modules, allowing for fine and fast gating and power control, and GDD precompensation.

Altair Series

Altair: Femtosecond Laser

The ALTAIR is an ideal solution for biophotonics applications such as multiphoton microscopy where deep excitation of red-shifted indicators such as RCaMP, dtTomato, and MCherry is required. Providing <160fs pulses, average power up to 20W and peak power up to 1.5MW at 1µm, the ALTAIR is the preferred solution for both OEM and researchers in the microscopy and lifesciences fields. The fiber-based design ensures robust and reliable 24/7 operation while providing supreme pulse quality from a user friendly, ultra compact air-cooled package.

Antares Series

Antares

ANTARES is a picosecond, quasi-continuous wave laser with a high repetition rate up to 80 MHz and a narrow linewidth, in a very compact and robust format. This laser series offers average powers of 1 to 40W at 1030 nm or 1064 nm (upon request) and can be doubled or tripled in the harmonics to answer even the most challenging industrial and scientific applications. ANTARES is ideally suited for applications such as CARS and spectroscopy applications.

BDL Series

BFL-CW1000: 1080nm Single mode Fiber Laser The BDL Series is a high power direct diode turn-key system available in wavelengths of 915nm or 976nm. This easy to integrate, OEM laser diode module provides up to 3kW of power and unprecedented brightness.

Diadem Series

Diadem Series by Spark Lasers

DIADEM Series is a compact, air-cooled, high energy ultrafast laser for advanced micro-machining applications that require short femtosecond pulse widths. The Diadem is available with up to 40µJ of pulse energy, 30W of average power, and operation up to 1MHz (standard), with pulses below <400 fs and an M² < 1.2. This laser has been specifically designed for demanding medical implantable device and electronics manufacturing as well as high peak power optogenetics applications.

K Series

K445FTRFN-20.00W: 445nm Fiber Coupled Laser Diode

The K Series of multiple single emitter fiber coupled diode lasers are available in wavelengths from 405nm thru 1550nm with up to 300W output powers. These multi-emitter high power and high brightness diode lasers include options for aiming beam, photo detector, TEC, fiber detector, thermistor and a variety of package types.

EP Series

EP2108-DM-B: 2108nm DM Laser Diode 1950-2150nm

The EP series is a tunable single-frequency diode laser available in wavelengths from 1270nm thru 2300nm. Utilizing Eblana’s proprietary discrete-mode (DM) technology ensures excellent side mode suppression ratio (SMSR), without the mode hops inherent to most distributed feedback (DFB) lasers.

DX1 Series

The DX1 series is a tunable single-frequency diode laser in a compact turnkey laser system available in wavelengths from 1270nm thru 2300nm. Utilizing Eblana’s proprietary discrete-mode (DM) technology ensures excellent side mode suppression ratio (SMSR), without the mode hops inherent to most distributed feedback (DFB) lasers.

HFL Series

HFL: 1550nm High Power Pulsed Fiber Laser

HFL series is a high-energy, q-switched, wavelength stabilized, OEM fiber laser from Bktel, perfect for LiDAR and 3D scanning applications. This ultra-compact series offers high pulse repetition rates up to several MHz, 5W average power output (25W peak), up to 150µJ of pulse energy, pulse widths between 0.4 and 10ns, and delivers a perfect TEM00 output beam with fiber and collimating lens options.

HL Series

TG420

The HL Series of laser diodes are available in a wide range of wavelengths from violet to red and infrared in support of a broad range of applications. These applications include display, medical, biosciences, industrial tools (sensor, leveler), machine vision, scanners, printers and a myriad of other applications being developed in the industry.

JDL Series

JDL-BAB-75-62-808-TE-200-1.0

The JDL Series of unmounted laser diode bars are available in CW or QCW configurations in wavelength from 760nm – 1064nm. Various emitter configurations and cavity lengths are available offering up to 200W CW and 500W QCW output powers.

Jenlas Fiber ns

Jenlas Fiber ns 105: 100W Nanosecond Fiber Laser

The Jenlas Fiber ns series of nanosecond pulsed fiber lasers at 1085nm are available with up to 105W, 190 to 250 nanoseconds pulse widths, and peak pulse powers of up to 8 kilowatts. for precise material processing and cutting applications.

JOLD-Open Heatsinks Series

The JOLD-Open Heatsinks Series are high quality high power laser diode bar products. They are available in a range of open heatsinks including the CS, CN, and LK package. And in wavelengths from 780nm – 1064nm.

JOLD-FC Series

JOLD-45-CPXF-1L

The JOLD-FC Series of high quality high power fiber coupled laser diode bar products are offered in wavelengths from 780nm – 1064nm and 30W to 400W output power.

JOLD-Stacks Series

JOLD-450-QAFN-5A: Laser Diode Stack w/ FAC

The JOLD-Stacks Series of high quality high power laser diode bar stacks. They are available with actively (microchannel) cooled or conductively cooled. And in wavelengths from 780nm – 1064nm.

K Stabilized Series

K878BN0RN-65.00W

The K Stabilized Series of wavelength stabilized fiber coupled diode lasers are available in wavelengths from 793nm thru 976nm with up to 300W output powers. These multi-emitter high power and high brightness diode lasers include options for aiming beam, photo detector, TEC, fiber detector, thermistor and a variety of package types.

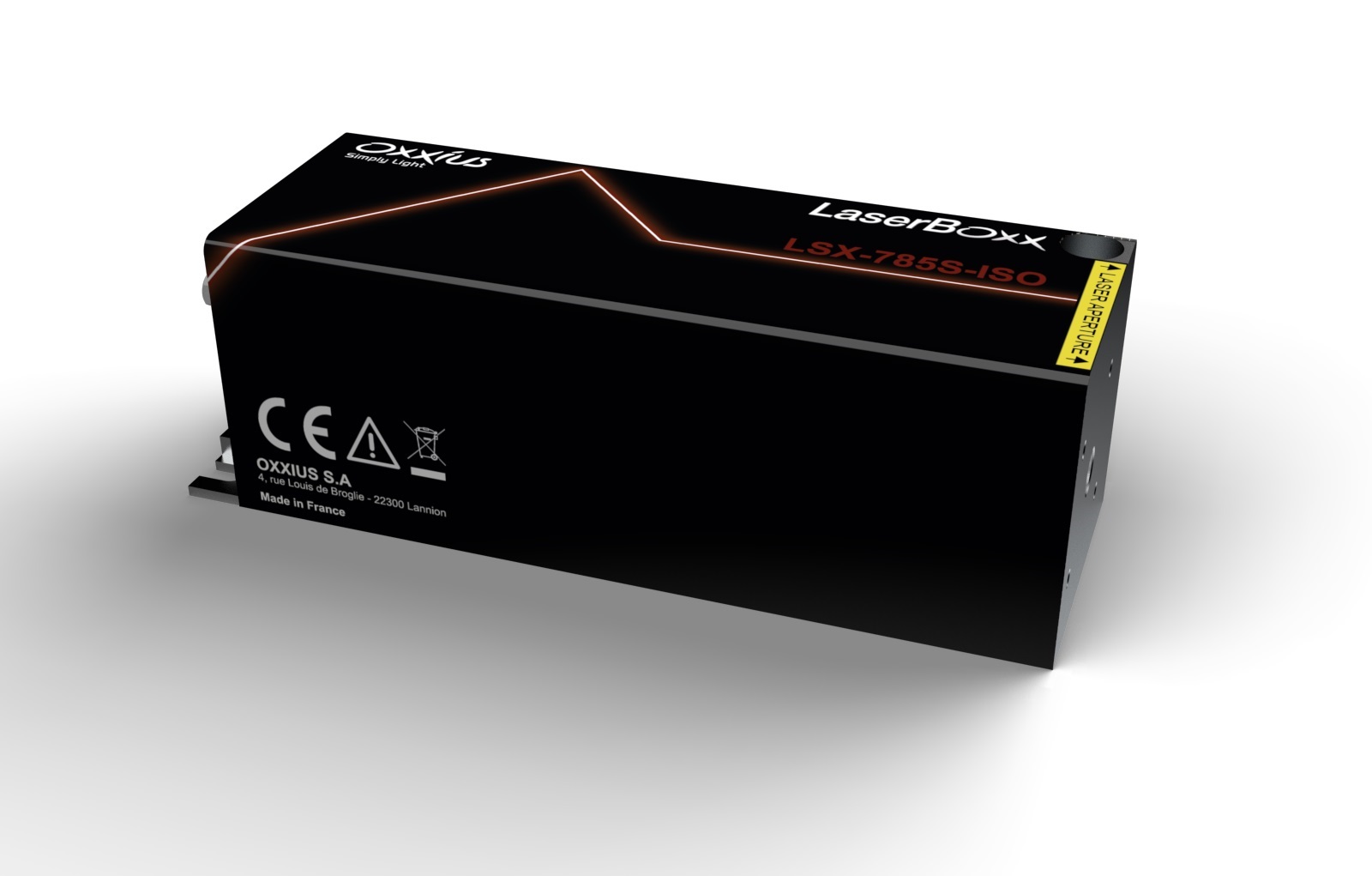

LaserBoxx Low Noise Series

The LaserBoxx low noise Series is a CW diode laser module in a variety of diode wavelengths from 375 to 785nm, with output powers up to 350mW. This compact, self-contained laser module is available in turn-key or OEM versions and utilizes a proprietary alignment-free, monolithic resonator, and comes standard with a graphic user interface with remote diagnostics via USB, RS232, or direct I/O interface.

LaserBoxx HPE Series

The LaserBoxx HPE series is a high power laser diode module offering excellent performance and reliability in a compact driver integrated laser head (Industry-standard compact package). It comes in free space multimode elliptical beam or with removable MM fiber coupling.

LaserBoxx SLM Series

The LaserBoxx-SLM Series is a single longitudinal mode (SLM) CW diode laser module available in wavelengths at 633nm, 785nm, and 830nm delivering ultra-narrow linewidths thanks to its excellent temperature stability and low noise current. The Oxxius proprietary, embedded firmware locks the laser on the same mode at each startup. This compact, self-contained laser module is available in turn-key or OEM versions and utilizes a proprietary alignment-free, monolithic resonator, and comes standard with a graphic user interface with remote diagnostics via USB, RS232, or direct I/O interface.

LDX Series

R1Z8-LDX-3215-735: 735nm Multimode Laser Diode

The LDX Series of high power multimode single emitter laser diodes include wavelengths of 400nm – 1900nm. Available in a wide range of output powers and package types.

LDX-Bar Series

R1Z8-LDX-4319-795: Laser Diode Bar Package

The LDX-Bar Series of multimode laser diode bars packaged on the industry standard CS package. Wavelengths in the red and IR are available and the output power range from 10W to 100W.

LTC-ISB2 Series

R1Z9-LTC-ISB2

The LTC-ISB2 (Integrated Spectral Bench) series from Luxmux, is a broadband multi-wavelength light source that combines up to 6 light sources into a single spectrum product. The system provides individual control of the light sources through a digitally controlled interface. The ISB is a highly integrated solution offering exceptional operational control in a fully self-contained module. Custom, powerful and compact, the ISB is well positioned for integration into a variety of sensing and measurement applications.

LTC-OSE Series

R1Z6-LTC-OSE-1265-1605: BeST-SLED 1300nm 1340nm 1390nm 1430nm 1480nm 1550nm

The LTC-OSE series from Luxmux, trade named BeST-SLED®, can be configured with up to 6 super luminescent diodes and driver circuitry, into a single 32 pin butterfly package. This reliable, cost-effective, rugged broadband light source produces overlapping spectral coverage from 1230nm to 1730nm, generating up to 19 spectral combinations, and average powers up to 50mW. The LCT-OSE series is suitable for direct integration into existing OEM products for Optical Coherence Tomography, Optical Sensing, White Light Interferometry and others.

MFL Series

MFL-1.5: 1.5 CW Fiber Laser

The MFL series is a high-power, continuous-wave (CW) fiber laser, providing up to 20W of output power @ 1.5µm, 40W @ 2µm, or 60W @ 1µm, from a single-mode fiber. This series offers power tunability ranging from 10%-100%, is available with standard or polarization-maintaining fiber with FC/APC fiber or an optional collimating lens, produces a perfect TEM00 beam, and offers high-speed triggering and modulation.

Nps Series

Nps-1064-10

The new, ultrafast Nps-1064-10 is a 1064nm laser, featuring 10mW average output power, < 7ps pulse width, and a 40MHz repetition rate. The transform-limited operation, with a spectral width of < 0.3nm, and remarkably accurate central wavelength (1064.3 +/- 0.1nm) make the Nps-1064-10 laser a suitable candidate for highly efficient amplification by Nd-doped DPSS amplifiers. Therefore, opening the way to nonlinear optics applications like OPO pumping, and narrowband Raman Spectroscopy.

Onda Series

Onda 532nm: 532nm High Energy Laser

The Onda Series is a DPSS nanosecond OEM laser platform aimed at high-end applications requiring both excellent beam quality and high peak power in materials such as metals, glass, plastics, and various delicate and hard materials. Developed initially as a high-energy seeder for advanced MOPA laser systems, the Onda is now available as a standalone device operating at the wavelengths of 266, 355, 532 and 1064nm. The compactness and ease of use allow for superior operation flexibility and performance / cost ratio.

One Series

One-1030-100: 1030nm Miniature Q-Switched Laser

The One Series is a compact, passively q-switched laser operating at the fundamental wavelength of 1030nm. Available in a high energy configurations (up to 100uJ) as well as a high average power configurations (up to 3W). The One Series can be configured in a fixed operational rep rate configuration, or an externally triggerable configuration. The One series is utilized in a variety of applications spanning from material process to air-borne LiDAR.

Q-TUNE Series

Q-TUNE-IR

The Q-TUNE series is a high energy, compact, tunable wavelength laser consisting of an Optical Parametric Oscillator (OPO) capable of producing a tunable wavelength range of 410-2300 nm with a linewidth narrower than 6 cm-1. Optional second harmonic generator extends the tuning range to 210-410 nm.
The combination of a pulse duration shorter than 5ns and an upper repetition rate of 100Hz, makes the Q-TUNE a perfect coherent light source for temporally resolved spectroscopy, metrology, photo-acoustic imaging and remote sensing applications.

Q-TUNE-IR

The Q-TUNE-IR uses an Optical Parametric Oscillator (OPO) to produce tunable wavelength in 1380 – 4500 nm range with a linewidth less than 10 cm-1, achieving > 6.5mJ of pulse energy @ 3500nm for the F-10 configuration (> 2mJ @ 3500nm for C-10) with a 10Hz repetition rate. A broadband version with linewidth up to 200 cm-1 is also available by request. The Q-TUNE-IR requires little maintenance, with all laser electronics integrated into the housing, including an air-cooling system, eliminating the need for chillers, or large power supplies, all while providing a guaranteed pump diode lifetime greater than 2 giga-shots.

Q-SHIFT Series

Q-Shift Series The Quantas-Q-SHIFT family of Q-switched DPSS lasers feature a built‑in nonlinear wavelength conversion stage, allowing the production of wavelengths that are not accessible with conventional solid-state laser sources, including 1163, 1177, 1300, 1317, 1551 and 1571nm. An optional harmonics generator is also available for for the Q-SHIFT, allowing generation of up to the 4th harmonic for each fundamental wavelength.

Q-Spark

Quantas-Q-SPARK-266: High energy, compact, nanosecond, DPSS laser

The Q-SPARK series, from Quantum Light Instruments Ltd., features a short <1.5 ns pulse with pulse energies up to 10 mJ. Due to the short cavity design, pulse durations of <800ps are achievable with pulse energies up to 5mJ. The innovative water-free laser crystal end-pumping technology produces a Gaussian-like, low divergence, high peak power laser beam in compact, air-cooled package.

Q1 Series

Quantas-Q1-211: High energy, compact, nanosecond, DPSS laser

The Q1 series is a compact, energy-efficient, diode pumped, air-cooled, Q-switched laser available at 1064 and 1053nm with up to 45 mJ of pulse energy and rep rates up to 50Hz. The high peak powers and low divergence of the Q1 series enable efficient harmonic conversion through the 5th harmonic (213 or 211nm). The innovative laser design has resulted in a user-friendly, turnkey system that requires little maintenance.

Q2 Series

Quantas Q2 QLI

The Q2 series is a versatile, diode pumped, air-cooled, Q-switched laser capable of achieving up to 80mJ of pulse energy with an operational rep rate up to 100Hz. Available at the fundamental wavelengths of 1064 and 1053nm, the innovative water-free laser crystal end-pumping technology produces Gaussian-like, low divergence laser beams with high peak powers, enabling efficient harmonics conversion through the 5th harmonic.

Q2HE Series

Quantas-Q2HE-211: High energy, compact, nanosecond, DPSS laser

The Q2HE series, from Quantum Light Instruments Ltd., features an innovative water-free laser crystal cooling technology that enables generation of high quality laser beams with up to 100 mJ pulse energy and/or up to 4 W of average output power. Featuring a pulse duration of less than 7 ns and a low beam divergence, the Q2HE is capable of achieving efficient fundamental wavelength conversion through the 5th harmonics of 213/211 nm.

R Series

The R series of wavelength stabilized single mode and multimode laser diodes offer narrow wavelength spectrum in wavelengths from 633nm thru 1064nm. Package options range from components as basic as a TO-56 or 14-pin BF packaged diodes, to OEM modules including electronics, to UL/CE and IEC certified turn-key systems.

RHAML Series

The RHAML series of diode laser modules deliver a uniform, stable output beam that crucual for machine vision applcations, especially in 3D vision systems. The compact, RHAML series is a reliable light source that incoroporates a fucusing lens that can be easily adjusted by the user. Additionally, the RHAML series is fully IP67 compliant, making it an ideal solution for use in harsh environmental conditions and production/industrial facilities.

RML Series

The RML series of laser diode modules are available with single mode fiber outputs with a set wavelength from 405nm – 2500nm. The compact RML series is available with up to 80mW of output power in a package measuring 15mm in diameter and 40mm in length (without connector) . As an option these modules are offered with a potentiometer for power adjustment, external TTL modulation up to 1MHz and analog modulation up to 100kHz.

SM Series

The SM Series of high power single mode laser diodes in wavelengths of 795nm – 1064nm, are available in a wide range of output powers up to 450mW and package types ranging from chip on submount to fiber coupled butterfly package.

Microchip Series

Bright Microlaser Microchip SB1 Laser

The Microchip Series, available in the FP3 and P4 packages from BrightMicroLaser, are ultra-compact, passively q-switched DPSS lasers that feature pulse durations from 350 ps to 3 ns, energy levels up to 100 uJ and repetition rates up to 100 kHz. In addition to the fundamental 1064 nm wavelength and its harmonics (532, 355 and 266 nm), we also deliver units emitting at 946 and 473 nm.

Sirius Series

Sirius-532: Picosecond DPSS lasers

SIRIUS is a very compact, high energy hybrid ultrafast laser for advanced micro-machining applications and supercontinuum pumping, offering over 120µJ and > 5 W, with pulses below 10 ps from single shot to 1MHz and an M² of < 1.2. This laser series specifically designed to allow for ergonomic and user-friendly operation. SIRIUS is ideally suited for selective ablation, electronics, and photonic applications.

SOL Series

SOL-03-532: 532nm Nanosecond Laser

The SOL Series is the most compact Q-switched Diode Pumped Solid State laser available in the power range from 6W to 40W @ 1064nm. Sol versions @ 532nn are also available with the same footprint. These air-cooled DPSS lasers are offered in a rugged and lightweight Single Unit, designed to allow easy and reliable integration in micro-machining and marking applications. Compactness, insensitivity to environmental conditions and ease of handling guarantee superior operation flexibility and performance/cost ratio.

Unik Series

UnikLaser Solo-780.24 QT

The Unik series of CW single-frequency lasers, featuring the Solo and Duetto configurations, are available at a variety of wavelengths with high average powers, making them well suited for a variety of highly specialized scientific and industrial applications. BRaMMS Technology® enables superior performance, high output powers, and outstanding beam properties in an overall compact footprint. The Unik Lasers Solo and Duetto series are utilized in a range of applications including holography, metrology, spectroscopy, and quantum technology.

THFL Series

THPOA-2: 2 µm Band, Ultra High Power Optical Amplifier

The THFL series is a high-power, continuous-wave (CW) fiber laser, providing up to 30W of output power @ 1550nm, 40W @ 2µm, or 100W @ 1064nm, from a single-mode fiber. This series offers power tunability ranging from 10%-100%, is available with standard or polarization-maintaining fiber with FC/APC fiber or an optional collimating lens, produces a perfect TEM00 beam, and offers high-speed triggering and modulation.

VD Series

VD-0940I-004W-1C-2A0: 940nm VCSEL Diode

The VD Series of Vertical Cavity, Surface Emitting Laser (VCSEL) emitters, and arrays are available in a wide range of output powers in wavelengths of 850nm and 940nm. Standard options include VCSEL, VCSEL w/ Diffusor, VCSEL & PD w/ Diffusor, and pulsed VCSELs. These low-cost lasers are ideal for a wide range of consumer products.

Vento Series

Vento-532-7: 532nm Picosecond DPSS Laser

The Vento Series of sub-ns DPSS active Q-Switched lasers produce pulses in the hundreds of ps range with average power up to 50 W @ 532 nm and up to 100 W @ 1064 nm. Ideal for micromachining, fine cutting and precision LIDAR, all the models are enclosed in an extremely compact and ruggedized single unit with both air-cooled and water-cooled options available.

Wedge Series

Wedge-XF-1064: 1064nm Picosecond Laser

The Wedge series of DPSS Lasers have been designed for OEM applications like micro machining of hard and soft materials, specialty marking, glass and crystals engraving, LIDAR, LIBS, Spectroscopy and medical diagnostics. High peak powers, with relatively low energy and heat generation, allows efficient ablation and non-linear interaction with most materials. The compact and lightweight package represents a great benefit in LIDAR and other aerospace applications, while short pulses give extremely precise time-of-flight measurements.
Second Harmonic (532 nm output) and wavelength conversion option widen the product application range.

WSLD Series

WSLD-980-001-2-PD

The WSLD series of laser diodes, from WaveSpectrum, are available in a wide range of wavelengths, power levels, and packages. The WSLD wavelength options span from 405nm to 1920nm, with output powers in the range of 20mW to several watts, packaged in standard C, E, and H-Mount packages, as well as a variety of TO-can options.

WSLP Series

R3Z0-WSLP-905-050m-M-PD: 905nm Multimode Fiber Coupled Laser Diode

The WSLP series of fiber coupled laser diodes are variable in both multimode and single mode configurations, with wavelengths from 405nm thru the IR. The highly reliable WSLP series is suitable for a variety of applications such as biological and analytical instrumentation.
