neoVAN

DPSS Amplifier, CW to ps Pulsed, 1064 nm, 5 W to 100 W, up to 5 mJ

Key Features:

  • Wavelength: 1064nm
  • Output Power: 5 – 100W
  • Pulse Energy: Up to 5mJ
  • Mode of Operation: CW to ps pulses
  • Beam Quality: TEM00 / M2 < 1.3
  • Amplification Factor: Up to 40dB
  • Easy and compact energy or power boosting – amplify your current system for new capabilities
  • Highly flexible and scalable amplifier units – modular platform enables many application possibilities
  • Proven long-term stability and industrial reliability – robust, stable, long lifetime for peace of mind



There are many configurations and options available. If you do not see exactly what you need below, please contact us!

Need Quantities?  Use Get Quote to get volume pricing!

POPULAR CONFIGURATIONS:


Part Number
Part Description
Datasheet
Price
Lead Time

neoVAN - DPSS Amplifier neoVAN

Solid-State Optical Amplifier, 1064nm, 5-100 W, 5mJ, CW to ps pulses, up to 40dB Amplification Factor



10-14 weeks

Get Quote

The neoVAN series is an OEM, solid state optical amplifier system used to boost the pulse energy or average output powers of laser sources for a variety of applications.  The flexible system design allows a selection of different power and energy levels based on highly reliable,  long lifetime gain modules.  The ultra-compact and nearly monolithic modules allow easy integration and cost-effective upgrading of laser application machines, scientific lasers or low power oscillators.  Whether it be high peak power, short pulse picosecond lasers for micromachining applications or single frequency radiation for gravitational wave detection, the neoVAN amplifier modules will provide a boost to your application. While the fiber-coupled, high gain module allows direct amplification of mode-locked oscillators, gain switched or narrow linewidth diodes, the standard free-space modules scale microchip lasers either into high average power or high energy levels.

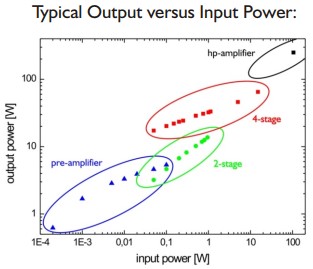

neoVAN Output vs Input Power

Type

Wavelength (nm)

Output power (W)

Input power

Polarization
