Microchip Lasers

Microchip Lasers Overview

Microchip lasers are a specific subset of q-switched DPSS lasers where a passive q-switch is monolithically bonded to the laser crystal.  These passive q-switches, which are typically semiconductor saturable absorber mirrors (SESAM), act as both the q-switch and the output coupler allowing for extremely small optical cavities.  The compact and alignment-free nature of microchip lasers allows them to be made utilizing telecom production techniques which allow for compact ruggedized packaging at a relatively low cost.  As a result, microchip lasers are ideal for integration into range finding, scribing, and marking systems.  Additionally, through the use of second, third, and fourth harmonic generation they can emit wavelengths from the ultraviolet through the infrared. OEM fiber laser packages and modules are available.

Filters Reset

Type

Wavelength Selection

Power Selection

Energy Selection

Pulse Width Selection

Rep Rate Selection

Series

Manufacturer

Picture Part Number Type Wavelength (nm) Output power (W) Pulse energy (uJ) Pulse width Rep rate Q-switch type
Bright Microlaser Microchip SB1 Laser SB1-1064-15-15 Microchip Lasers 1064 0.225 15.0 1.3ns 15kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-1064-2-100 Microchip Lasers 1064 0.200 2.0 400ps 100kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-1064-2-55 Microchip Lasers 1064 0.110 2.0 470ps 55kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-1064-20-10 Microchip Lasers 1064 0.200 20.0 1.3ns 10kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-1064-30-5 Microchip Lasers 1064 0.150 30.0 1.3ns 5kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-1064-40-1 Microchip Lasers 1064 0.040 40.0 1.3ns 1kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-1064-60-0.2 Microchip Lasers 1064 0.060 60.0 1.3ns 200Hz Passive
Bright Microlaser Microchip SB1 Laser SB1-1064-80-0.1 Microchip Lasers 1064 0.080 80.0 1.3ns 100Hz Passive
Bright Microlaser Microchip SB1 Laser SB1-236.5-0-2.5 Microchip Lasers 236.5 0.001 0.250 2ns 5kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-236.5-0.2-5 Microchip Lasers 236.5 0.001 0.200 1.3ns 5kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-236.5-2-0.5 Microchip Lasers 236.5 0.001 2.0 1.3ns 500Hz Passive
Bright Microlaser Microchip SB1 Laser SB1-266-0.5-10 Microchip Lasers 266 0.001 0.500 1.3ns 1kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-266-1-5 Microchip Lasers 266 0.0005 1.0 1.3ns 1kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-266-2-1 Microchip Lasers 266 0.0005 2.0 1.3ns 1kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-473-1-10 Microchip Lasers 473 0.010 1.0 2ns 10kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-473-3-5 Microchip Lasers 473 0.015 3.0 2.5ns 5kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-473-9-0.1 Microchip Lasers 473 0.009 9.0 2ns 100Hz Passive
Bright Microlaser Microchip SB1 Laser SB1-532-0.3-100 Microchip Lasers 532 0.030 0.300 400ps 100kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-532-0.3-55 Microchip Lasers 532 0.017 0.300 470ps 55kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-532-10-10 Microchip Lasers 532 0.100 10.0 1.3ns 10kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-532-15-5 Microchip Lasers 532 0.075 15.0 1.3ns 5kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-532-20-1 Microchip Lasers 532 0.020 20.0 1.3ns 1kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-532-30-0.2 Microchip Lasers 532 0.030 30.0 1.3ns 200Hz Passive
Bright Microlaser Microchip SB1 Laser SB1-532-40-0.01 Microchip Lasers 532 0.040 40.0 1.3ns 100Hz Passive
Bright Microlaser Microchip SB1 Laser SB1-532-7-15 Microchip Lasers 532 0.105 7.0 1.3ns 15kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-946-12-5 Microchip Lasers 946 0.060 12.0 2ns 5kHz Passive
Bright Microlaser Microchip SB1 Laser SB1-946-35-0.1 Microchip Lasers 946 0.004 35.0 2ns 100Hz Passive
Bright Microlaser Microchip SB1 Laser SB1-946-7-10 Microchip Lasers 946 0.105 7.0 2ns 10kHz Passive

Microchip Series

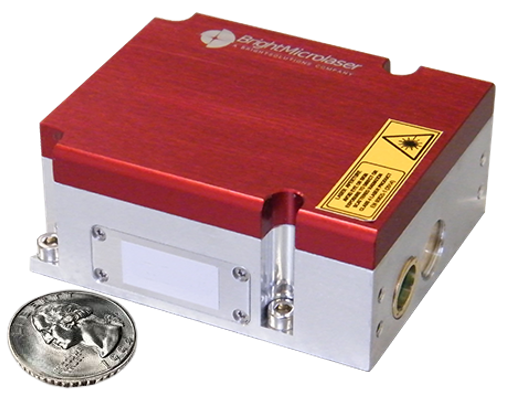

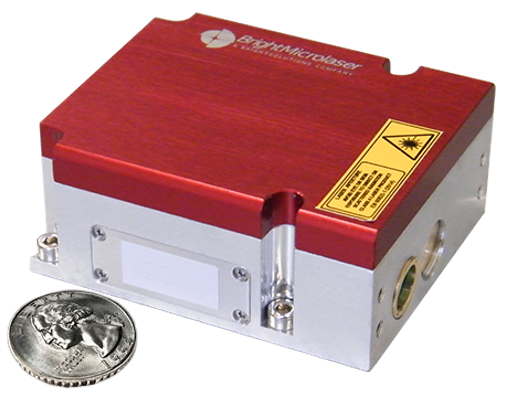

Bright Microlaser Microchip SB1 Laser

The Microchip Series, available in the FP3 and P4 packages from BrightMicroLaser, are ultra-compact, passively q-switched DPSS lasers that feature pulse durations from 350 ps to 3 ns, energy levels up to 100 uJ and repetition rates up to 100 kHz. In addition to the fundamental 1064 nm wavelength and its harmonics (532, 355 and 266 nm), we also deliver units emitting at 946 and 473 nm.
