Onda

DPSS Laser, ns pulsed, 266-1064nm, up to 800µJ, up to 100kHz

Key Features:

Industrial laser solution
Balance of size, cost & performance
High peak powers
Compact air-cooled single unit

There are many different package types, wavelengths, output powers, and options to choose from. Get help selecting the right configuration for you!

Datasheet

POPULAR CONFIGURATIONS:

Part Number	Part Description
Onda 1064nm 15W	High Energy Laser, 1064nm, 800uJ, 2ns, 10 to 100 kHz, compact	Get Quote
Onda 532nm Plus 10W	High Energy Laser, 532nm, 800uJ, 3ns, 10 to 100 kHz, compact	Get Quote
Onda 532nm 5W	High Energy Laser, 532nm 400uJ, 3ns, 10 to 100 kHz, compact	Get Quote
Onda 355nm - 2 kHz	High Energy Laser, 355nm 150uJ, Compact, SS to 2kHz	Get Quote
Onda 266nm	High Energy Laser, 266nm, 2ns, up to 1W, Compact, optimized at a specific firm set rep. rate in the range 10 to 50 kHz	Get Quote
Onda 266nm-1kHz	High Energy Laser, 266nm 80uJ, 2ns, Compact, Single Shot to 1 kHz	Get Quote

SHOW MORE OPTIONS SHOW LESS OPTIONS

Overview:
Specifications:
Datasheets/Downloads:
Applications:
Videos:

The Onda series is a DPSS nanosecond OEM industrial laser solution, designed for high-end applications requiring excellent beam quality and high peak power in metals, glass, plastics, and various delicate and hard materials. This compact, air-cooled, and easy-to-use single unit laser series allows for straightforward integration, is available in wavelengths of 266, 355, 532, and 1064nm, and provides a superior performance to cost ratio. The Onda series’ internal optical layout and accurate temperature management enable high output energies without compromising the lifetime of the THG and FHG stages. Many optional add-ons and customization options.

We’re experts in selecting the right laser for your application!

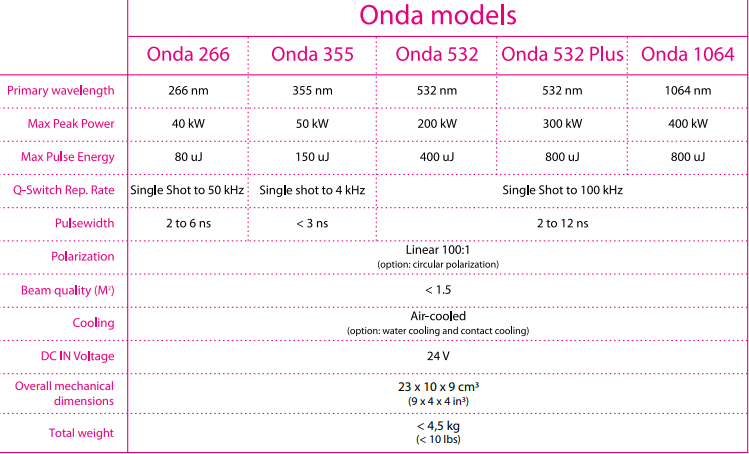

Onda DPSS Laser Platform Examples:

Customization options are available. Let us know what you need!

Let us help choose the right configuration for you!

Benefits:

Designed for industrial use:
For high-end applications requiring excellent beam quality & high peak power for metal, glass, plastics, delicate & hard materials.
Compact, air-cooled DPSS nanosecond laser:
Compact OEM design is easily integrated into existing systems with efficient air cooling.
Rugged, lightweight single unit design:
Ensures durability and reliability in industrial and scientific applications, reducing downtime and maintenance costs.
Highly reliable, stable performance:
Permanently aligned monolithic design provides high-quality, reliable optical performance & consistent output power.

High peak power and excellent beam quality:
Provides precise and powerful laser output, enabling high-quality and accurate results in a wide range of applications.
Optional beam expanding and collimation optics:
Help shape and direct the laser beam, ensuring maximum energy is delivered to the target.
Optional remote-control box and software interface:
Allows for operation, monitoring, and support along with a user-friendly GUI.
Many more optional add-ons & completely customizable:
From a red aiming beam to water cooling, beam expanding, monitoring photodiode, and beyond. Let us know what you need!

Options Available

Beam expanding and collimating optics
Fiber Coupling
Red aiming beam
Extended operating temperature range

Don’t hesitate to ask us anything!

Back to all Bright Solutions products

Wavelength (nm)	266, 355, 532, 1064
Description	DPSS Laser, ns pulsed, 266-1064nm, up to 800µJ, up to 100kHz
Type	Pulsed DPSS Lasers, Adjustable Rep Rate, High Peak Power, Customizable
