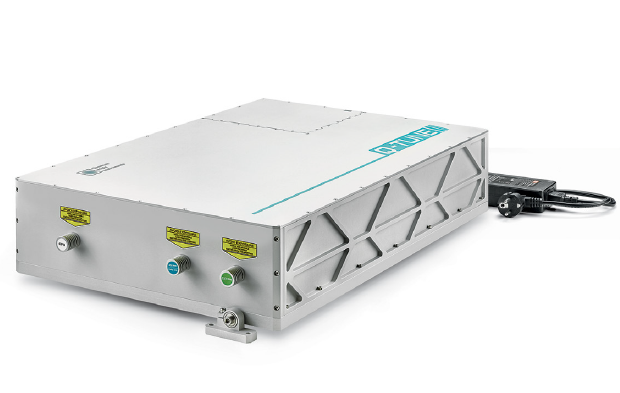

Q-TUNE-IR

DPSS Laser, ns Pulsed, 1380 nm to 4500 nm, up to 6.5 mJ, 3 ns to 4ns

Key Features:

  • Hands-free, automated tuning from 1380 to 4500 nm
  • Microprocessor controlled – self-optimization/self-calibration
  • Up to 6.5mJ pulse energy @ 3500nm @ 10Hz
  • Turnkey performance & User-friendly web interface
  • Water-free – Air-cooled pump laser design
  • Seamless laser and Optical Parametric Oscillator (OPO) integration
  • >2 G shot pump diode lifetime
  • <10 cm-¹ linewidth (≈200 cm-¹ available upon request)
  • API for integration with user devices
  • Internal or external triggering modes
  • Separate output ports for access to pump laser wavelengths
  • Low power consumption – from 50 to 100 W depending on model



There are many configurations and options available. If you do not see exactly what you need below, please contact us!

Need Quantities? Have a question?

Get Answers

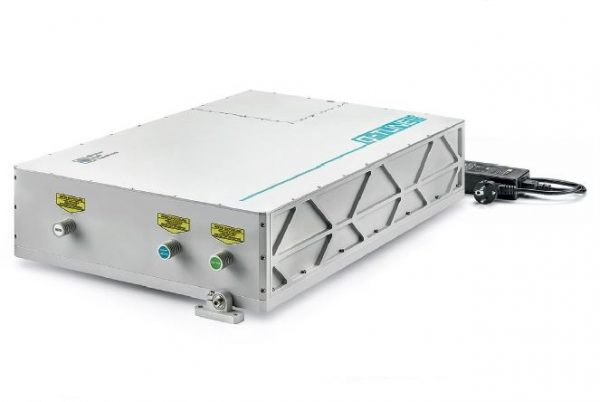

Q-TUNE tunable DPSS laser

The Q-TUNE-IR series is the perfect high peak power, coherent, DPSS light source for researchers working with infrared spectroscopy applications. This series uses an Optical Parametric Oscillator (OPO) to produce tunable wavelength in the 1380 – 4500 nm range with a linewidth less than 10 cm-1, achieving > 6.5mJ of pulse energy @ 3500nm for the F-10 configuration (> 2mJ @ 3500nm for C-10) with a 10Hz repetition rate. The Q-TUNE-IR requires little maintenance, with all laser electronics integrated into the housing, including an air-cooling system, eliminating the need for chillers or large power supplies, all while providing a guaranteed pump diode lifetime greater than 2 giga-shots.

Benefits:

  • Hands-free, automated tuning 1380-4500 nm:
    • Easily tune the laser to desired wavelengths without manual adjustments, saving time and effort.
  • Microprocessor controlled – self-optimization/self-calibration:
    • Precise and stable control leads to reliable and accurate experimental results or industrial processes, with minimized maintenance needs.
  • Up to 6.5mJ pulse energy @ 3500nm @ 10Hz:
    • High energy output at a specific wavelength and repetition rate enables various applications, including material processing and scientific research.
  • Water-free – Air-cooled pump laser design:
    • Cost-effective solution with simplified setup and maintenance, eliminating the need for water cooling.
  • Seamless laser and OPO integration:
    • Flexibility and versatility with easy integration to OPOs, providing access to a wide range of wavelengths.
  • <10 cm-¹ linewidth (≈200 cm-¹ available upon request):
    • Narrow linewidth provides higher spectral resolution for scientific research, spectroscopy, and other applications.
  • API for integration with user devices:
    • Customize experimental setups and perform complex experiments or industrial processes with remote control integration.
  • Internal/external triggering modes:
    • Synchronize the laser with other devices or equipment for precise timing and control.
  • Separate output ports for pump laser wavelengths:
    • Access to pump laser wavelengths enables a wider range of applications.
  • Low power consumption – from 50 to 100 W:
    • Energy-efficient solution reduces operating costs and environmental impact.
  • Optional extensions available:
    • Customize the laser system with optional extensions for more specialized applications and experiments.

Overall, our laser system offers customers a highly versatile and reliable solution for a wide range of scientific and industrial applications. With features such as automated tuning, microprocessor control, and high-energy output, our laser system can provide customers with the flexibility and precision they need for their application. Additionally, the narrow linewidth, low power consumption, and optional extensions further enhance the capabilities and cost-effectiveness of our laser system, making it an ideal choice for customers who demand the best performance and value for their investment.

If you have any questions or need more information, please contact us.

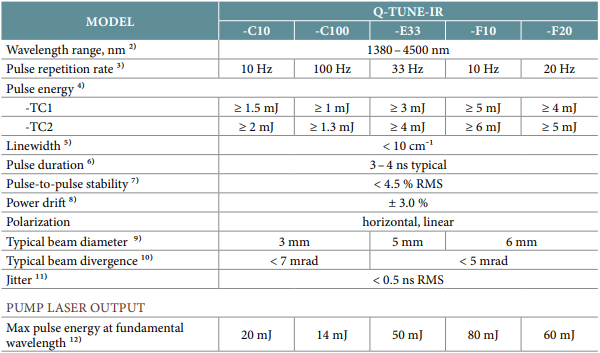

Wavelength (nm)

Output power (W)

,

Pulse energy (uJ)

,

Pulse width

Rep rate

,

Q-switch type
