SMX-SM

Laser Diode, Single mode, 1310-1670nm, up to 800mW

Key Features:

Wavelength: 1310nm to 1670nm
Output Power: Up to 50W
High efficiency
Thermally stable
High output power and dynamic range
Standard low-cost packaging
Custom design capability
SOA/DFB configurations

There are many different package types, wavelengths, output powers, and options to choose from. Get help selecting the right configuration for you!

POPULAR CONFIGURATIONS:

Part Number	Part Description
TO9-140	Singlemode Laser Diode, 1650nm, 240mW, 5µm emitter, 9mm package, No Cap	Get Quote
TO9-108	Singlemode Laser Diode, 1640nm, 250mW, 4µm emitter, 9mm package, No Cap	Get Quote
14BF-125	Singlemode Laser Diode, 1310nm, 275mW (500mW QCW), Singlemode Fiber Coupled 14-pin Butterfly package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor, TEC	Get Quote
TO9-176	Singlemode Laser Diode, 1655nm, 325mW (400mW QCW), 5µm emitter, 9mm package, No Cap	Get Quote
TO9-174	Singlemode Laser Diode, 1650nm, 350mW (500mW QCW), 5µm emitter, 9mm package, No Cap	Get Quote
TO9-170	Singlemode Laser Diode, 1625nm, 250mW (700mW QCW), 4µm emitter, 9mm package, No Cap	Get Quote
TO9F-111	Singlemode Laser Diode, 1310nm, 200mW (650mW QCW), Fiber Coupled 9mm package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor	Get Quote
C-131	Singlemode Laser Diode, 1650nm, 450mW (1050mW QCW), 5µm emitter, C-mount package	Get Quote
C-123	Singlemode Laser Diode, 1625nm, 400mW (900mW QCW), 4µm emitter, C-mount package	Get Quote
B-146	Singlemode Laser Diode, 1625nm, 400mW (900mW QCW), 4µm emitter, B-mount package	Get Quote
B-163	Singlemode Laser Diode, 1320nm, 800mW, 4µm emitter, B-mount package	Get Quote
B-124	Singlemode Laser Diode, 1660nm, 450mW (1050mW QCW), 5µm emitter, B-mount package	Get Quote
TO9F-106	Singlemode Laser Diode, 1660nm, 100mW (300mW QCW), Fiber Coupled 9mm package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor	Get Quote
TO9F-105	Singlemode Laser Diode, 1640nm, 100mW (300mW QCW), Fiber Coupled 9mm package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor	Get Quote
14BF-110	Singlemode Laser Diode, 1625nm, 160mW (495mW QCW), Singlemode Fiber Coupled 14-pin Butterfly package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor, TEC	Get Quote
14BF-106	Singlemode Laser Diode, 1655nm, 175mW (495mW QCW), Singlemode Fiber Coupled 14-pin Butterfly package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor, TEC	Get Quote
C-155	Singlemode Laser Diode, 1320nm, 800mW (1500mW QCW), 4µm emitter, C-mount package	Get Quote
TO9-248	Singlemode Laser Diode, 1310nm, 400mW, 4µm emitter, 9mm package, No Cap	Get Quote
C-121	Singlemode Laser Diode, 1555nm, 600mW (1800mW QCW), 4µm emitter, C-mount package	Get Quote
B-115	Singlemode Laser Diode, 1555nm, 600mW (1800mW QCW), 4µm emitter, B-mount package	Get Quote
TO9F-104	Singlemode Laser Diode, 1565nm, 140mW (550mW QCW), Fiber Coupled 9mm package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor	Get Quote
14BF-102	Singlemode Laser Diode, 1550nm, 225mW (500mW QCW), Singlemode Fiber Coupled 14-pin Butterfly package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor, TEC	Get Quote
14BF-105	Singlemode Laser Diode, 1550nm, 200mW (675mW QCW), Singlemode Fiber Coupled 14-pin Butterfly package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor, TEC	Get Quote

SHOW MORE OPTIONS SHOW LESS OPTIONS

Overview:
Specifications:
Applications:
Videos:

The SMX-SM is an American-made, high-power, thermally stable, cost-effective single-mode laser diode. It is available at wavelengths from 1310nm to 1670nm making it perfect for medical, military, aerospace, LIDAR, free-space communications, and more! With a patented EPI structure, low-cost packaging, DFB & SOA configurations, ISO-certified supply chain with full lifecycle traceability, focus on ease of integration and custom design capabilities, this laser diode family is an excellent choice for reliable, high-power InP devices. We deliver the highest available power at infrared wavelengths, and when necessary, we will further optimize the design of our lasers to meet our customers’ specific optical and electrical performance needs. We have several standard packages and configurations available, as well as customization options. If you do not see exactly what you are looking for, let us know! We may have a standard product that suits your needs. However, we have many options to tailor a solution that fits your specifications. Diodes, bars, and packages are tested to meet customer and market performance demands.

Product Range:

Free-Space Package Types:

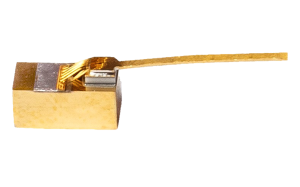

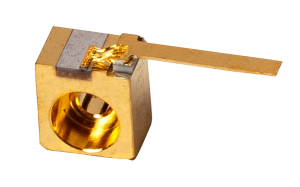

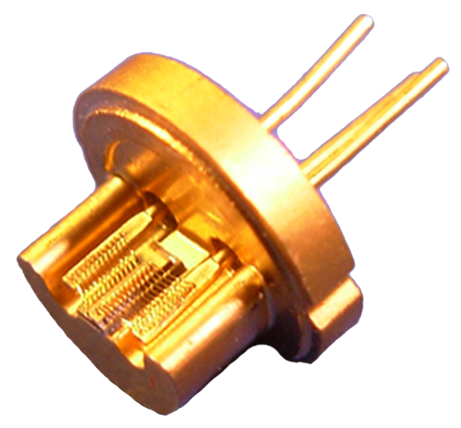

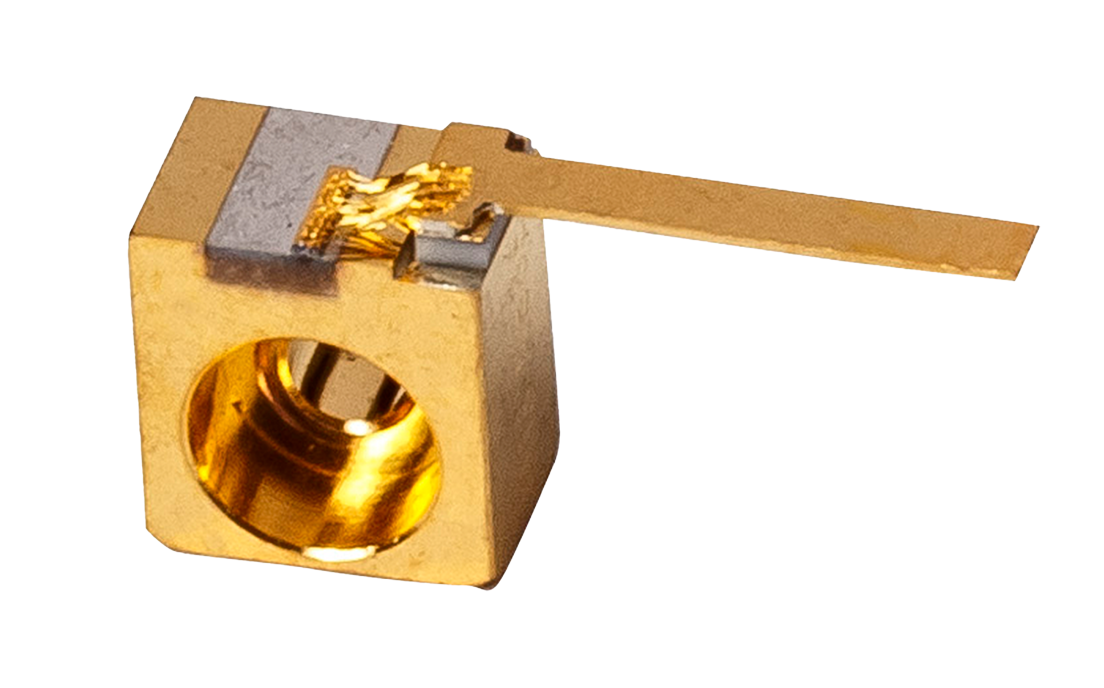

B-Mount Package	C-Mount Package	9mm TO-9 Package

Free-Space Options:

Optional attachments:

Optical Isolator
Internal TEC
Thermistor
SOA/RSOA

Lensing Options

Best Collimation FAC Lens
Squared Beam FAC Lens

Fiber-Coupled Package Types:

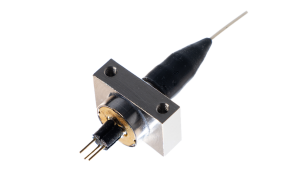

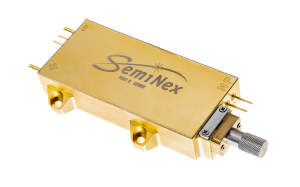

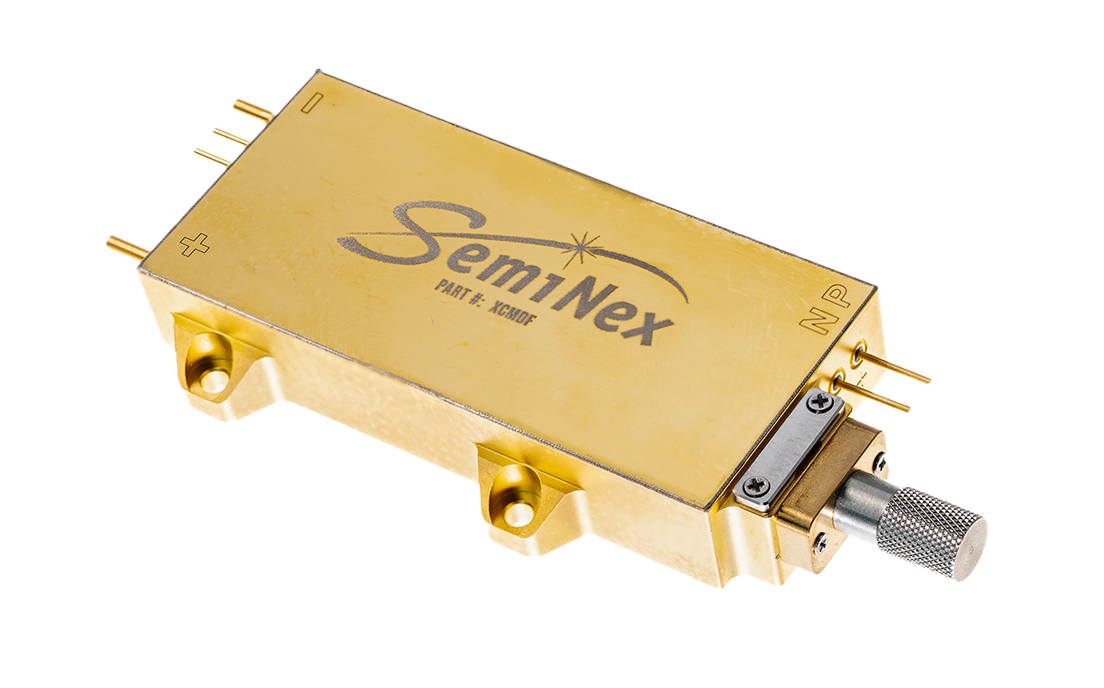

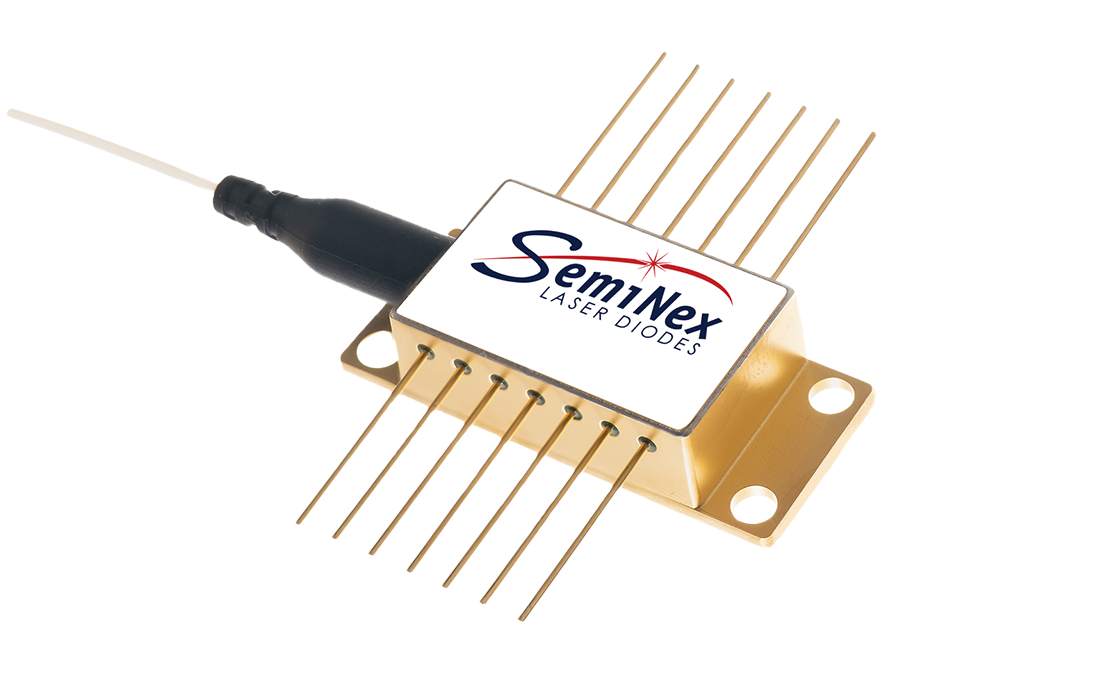

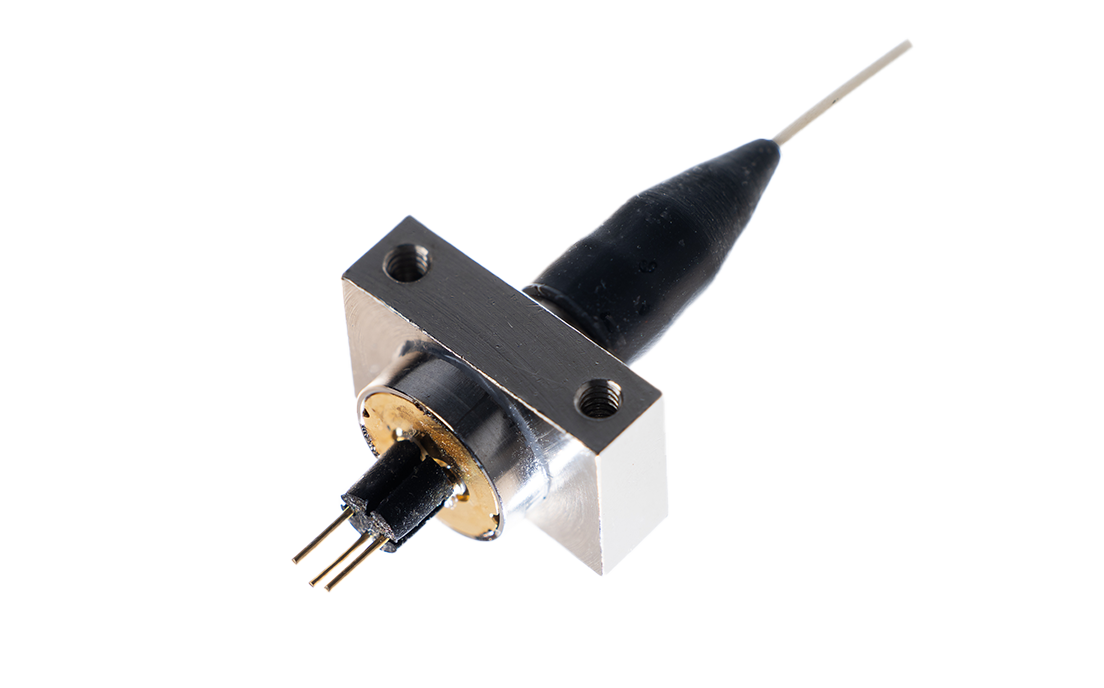

14-Pin Butterfly	9mm Fiber-Coupled Package	XCM Module

Fiber-Coupled Options:

Optional attachments:

Optical Isolator
Internal TEC
Thermistor
Aiming Beam
SOA/RSOA

Connector Options

FC/PC Connector
FC/APC Connector
SMA Connector

Fiber Options

SM Fiber
PM Fiber

Benefits:

Cost-Effective: standard, low-cost packaging, ideal for high-volume professional and consumer needs
High Performance: high output power, high dynamic range, and high efficiency get you the performance you need while conserving energy and extending lifetimes
Thermal Stability: excellent performance over temperature range and heat resistance for consistent and reliable operation with the highest powers, even in industrial and automotive applications
“Eye-Safe” Wavelengths: SWIR wavelengths beyond 1400nm are considered retina-safe, as they transmit well through air and glass, but are readily absorbed by water (cornea)
Patented EPI Structure: High-power with single and triple-junction at elevated temperatures, ensuring consistent performance and reliability
Technology Integration: Low-cost packages for optical, mechanical, and electrical components, simplifying assembly, reducing costs, and enhancing reliability
Qualified Supply Chain: Rapid scaling for timely volume production, with full lifecycle traceability and ISO certification at every level of the supply chain
Custom Design Capability: Tailored solutions, built to your specifications, when a standard solution may not suffice. Tell us what you need!

If you have any questions or need more information, please contact us.

Wavelength (nm)	1310, 1470, 1550, 1625, 1640, 1650, 1660
Description	Laser Diode, Single mode, 1310-1670nm, up to 800mW
Type	Single Emitter, "Eye Safe", Fiber-Coupled, Made in the USA
