Reviewed and approved by: Nick Kuenning and Mitch Spearrin, Department of Mechanical and Aerospace Engineering, University of California, Los Angeles (UCLA), Los Angeles, CA, 90095, USA and Michael Meyer, RPMC Lasers.
Prepared by: Adrien Dequaire, mirSense, and Gene Bonacum, RPMC Lasers. Released by A. Dequaire on November 5th 2024
Advancing Combustion Research w/ OH Radical Sensors & QCLs
Building the next generation of carbonless combustion devices requires detailed knowledge of the underlying thermochemical processes powering them. The Spearrin Lab at UCLA is focused on developing optical sensors to probe the fundamental physics within these high-temperature and pressure environments. A key species which participates in all hydrogen-containing combustion is the hydroxyl (OH) radical, and Nick Kuenning, a fifth-year PhD student under Professor Mitchell Spearrin, is developing a simple and robust way to measure OH in a combustion environment. The Spearrin Lab is using a 19µm wavelength laser supplied by the American vendor RPMC Lasers and its French manufacturer mirSense, enabling this novel technique and opening many new sensing opportunities for combustion researchers.
Collaboration & Innovation at UCLA: Advancing Optical Diagnostics for Clean Energy & Combustion

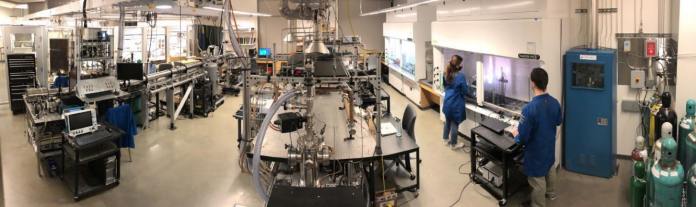

Originally from Los Angeles, Nick did both his undergraduate and master’s degree at UCLA and is currently working to finish his PhD thesis in the coming year. What he likes about UCLA is the wealth of knowledge and resources within the school. With over 4,000 students in the engineering school, no matter what problem he has there is always someone nearby who can help. Intra-school collaboration is an extremely valuable resource aiding the scientific work of the lab. The Spearrin Lab is a diagnostics group inside the engineering school, meaning the group’s research spans from fundamental science, like probing individual molecular absorbance transitions inside a shock tube, all the way up to building and testing their own rocket engines. This unique ability to straddle both fundamental and applied science is linked to Prof. Spearrin’s many different interests, and today the lab has projects in aerospace, clean energy, planetary science, and fire science. For example, the lab has also worked on designing a spectrometer to measure water on the moon and is collaborating with firefighters to reduce their exposure to toxic species.
Challenges in Combustion Research: OH Radical Detection w/ UV, Mid-Infrared & Far-Infrared Sensors
Accurate OH measurements are a growing need in combustion research, but existing sensor architectures are challenging to make economic, compact, and robust. The need for robust OH sensors is amplified in the global effort to decarbonize combustion. Many species, such as CO and CO2, have robust, high-speed laser absorption sensors targeting their fundamental vibrational bands in the mid-infrared; however, certain species like OH do not have a favorable vibrational spectrum, complicating sensing in the mid-infrared. Sensors targeting OH have been developed in the near- to mid-infrared, but the weak transitions require complex measurement techniques which are prone to biases in the harsh environments of combustion devices. UV sensors at 310nm wavelength have been successfully used to obtain fast and sensitive measurements, but UV light sources are difficult to rapidly tune, leading to the possibility of measurement biases in harsh environments. Additionally, they typically require much higher powers which can result in increased cost and size when compared to semiconductor lasers available in the infrared. Importantly, the fact that UV sources generate high-energy short wavelength light creates safety issues that complicate usability.
Breakthrough in OH Sensing: Rotational Spectroscopy Using Far-Infrared QCL Technology
The key finding of the Spearrin Lab is that the rotational spectra of many hydrides is stronger than their mid-infrared vibrational spectra and that these rotational spectra can be accessed with emerging far-infrared semiconductor lasers. Now it is possible to sense OH with an extremely compact light source targeting rotational absorption transitions of comparable strength to those in the UV. The Spearrin Lab used a 19µm compact QCL to measure OH at high temperatures and elevated pressures and published their results this year in the prestigious “Proceedings of the Combustion Institute” 1. The primary advantage of these semiconductor sources is the ability to rapidly tune the wavelength of the light at microsecond rates. By rapidly tuning the laser, the shape of an absorption transition is measured, rather than just the magnitude, enabling correction for the mechanical vibrations and interfering species common in combustion environments. The long wavelength also has inherent safety advantages that allows for ease of use in many applications.

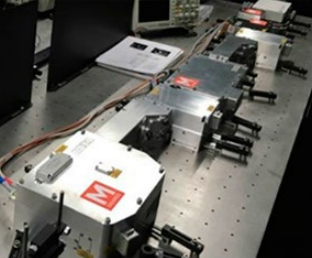

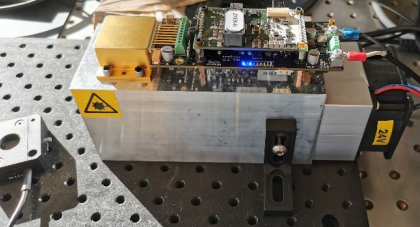

The volume of a UV light source is at least two orders of magnitude higher than the volume of a QCL light source. Left is a typical setup for a 310nm UV light source from M:Squared (A huge table-top instrument with several optical components like a pump laser) and right is a HHL-packaged QCL with its driver and air-cooling fan. The HHL package is the size of a matchbox.
Future of Combustion Sensing: Improving OH Radical Detection w/ Quantum Cascade Lasers
Now that the sensor has been demonstrated, Nick will be focused on increasing the temporal resolution of the OH sensor from 10’s of microseconds to the 1 microsecond attainable with mid-infrared QCLs, further improving OH sensing capabilities in high-temperature combustion environments. Additionally, Nick will begin measuring the rotational spectra of many more species, further demonstrating the advantages of the far-infrared domain for sensitive gas sensing. After his PhD, Nick plans to continue working with the Spearrin Lab as a research engineer developing laser-based optical diagnostics.
RPMC Lasers is the leading OEM laser supplier in the US, focused on providing diode lasers, CW and pulsed lasers, laser amplifiers, and laser accessories to the industrial, medical, life science, and defense markets. Our technical staff has a vast understanding of lasers, the laser industry, and hands-on experience, making them a valuable resource in selecting the best laser for an application, whether a standard laser or a custom solution. Contact Us with the button below or email us at [email protected]!
Have questions?
1 Nicholas M. Kuenning, Nicolas Q. Minesi, Brett A. Honaker, R. Mitchell Spearrin, THz rotational absorption spectroscopy of the hydroxyl radical at high temperatures using a quantum-cascade laser, Proceedings of the Combustion Institute, Volume 40, Issues 1–4, 2024, 105480, ISSN 1540-7489, https://doi.org/10.1016/j.proci.2024.105480.
