MB-IR-SM

Laser Module, Single mode, Infrared, 785-1310nm, up to 300mW

Key Features:

  • Multiple Fiber Coupling Options
  • Ultra-compact All-in-one Design
  • Thermally Stabilized Optics
  • Monolithic Design
  • Hermetically Sealed
  • Automatic Power Control
  • CW Operation with Modulation

There are many different package types, wavelengths, output powers, and options to choose from. Get help selecting the right configuration for you!



POPULAR CONFIGURATIONS:

Part Number
Part Description
Datasheet

R1Z4-Image-785nm 0785L-1XA-XX-XX-XX

Laser Diode Module, 785nm, Up to 170mW

Get Quote
R1Z4-Image-808nm 0808L-1XA-XX-XX-XX

Laser Diode Module, 808nm, Up to 110mW

Get Quote

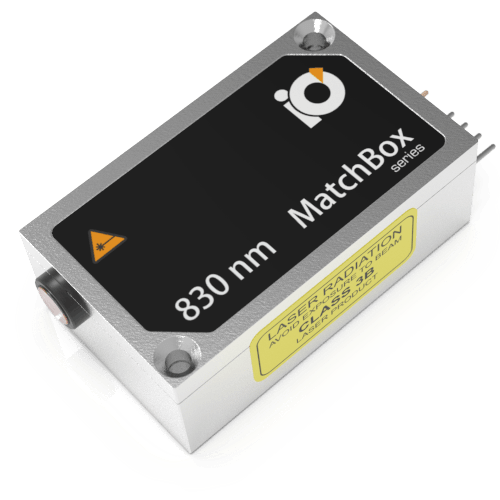

R1Z4-Image-830nm 0830L-1XA-XX-XX-XX

Laser Diode Module, 830nm, Up to 130mW

Get Quote
R1Z4-Image-850nm 0850L-1XA-XX-XX-XX

Laser Diode Module, 850nm, Up to 130mW

Get Quote
R1Z4-Image-915nm 0915L-1XA-XX-XX-XX

Laser Diode Module, 915nm, Up to 170mW

Get Quote
R1Z4-Image-980nm 0975L-1XA-XX-XX-XX

Laser Diode Module, 975nm, Up to 170mW

Get Quote
R1Z4-Image-1030nm 1030L-1XB-XX-XX-XX

DPSS Module, 1030nm, Up to 500mW

Get Quote

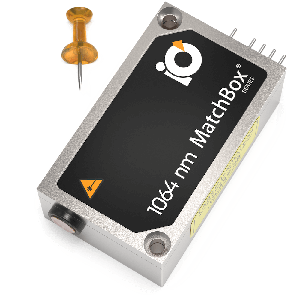

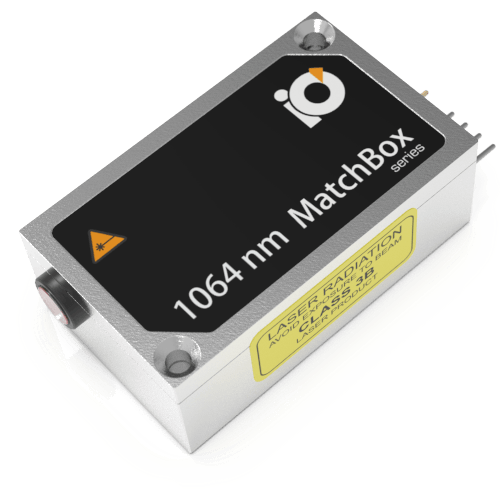

R1Z4-Image-1064nm 1064L-1XB-XX-XX-XX

DPSS Module, 1064nm, Up to 500mW

Get Quote
R1Z4-Image-1123nm 1123L-1XB-XX-XX-XX

DPSS Module, 1123nm, Up to 200mW

Get Quote
R1Z4-Image-1310nm 1310L-1XA-XX-XX-XX

Laser Diode Module, 1310nm, Up to 180mW

Get Quote
R1Z4-Image-1319nm 1319L-1XB-XX-XX-XX

DPSS Module, 1319nm, Up to 200mW

Get Quote

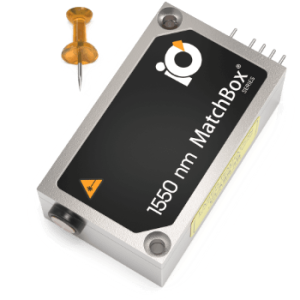

R1Z4-Image-1550nm 1550L-1XA-XX-XX-XX

Laser Diode Module, 1550nm, Up to 300mW

Get Quote

The MB-IR-SM offers excellent performance and reliability in the “World’s Smallest” ultra-compact, all-in-one, integrated laser head. The monolithic design of these laser modules includes thermally stabilized optics in a hermetically sealed housing, ensuring reliable and maintenance-free operation. They can operate on a 5V power supply while maintaining their low-noise operation with either a collimated beam or fiber-coupled output. Designed for OEM integrators and adored by scientists, these modules offer excellent beam quality and accuracy, user-friendly software with multiple parameter monitoring, low power consumption, high cooling capacity, rugged housing, and more. All of these features make them the ideal laser source for integration into commercial flow cytometers and other Life Science applications.

If your exact needs are not in our popular configurations, define your ideal laser module and let us find the best solution!

Product Range:

Wavelength Selection:

Standard wavelength options with custom options available upon request!

785nm 808nm 850nm 915nm 1030nm 1064nm

Output Power Selection:

Output powers may vary based on wavelength and output type.

50mW 100mW 150mW 200mW 300mW 400mW

Output Types:

Free-Space No fiber, the output is a collimated beam
SM Fiber Standard single mode fiber with a 50um, 105um, or 200um fiber core diameter
PM Fiber A polarization-maintaining fiber maintains the linear polarization of light as it travels through the fiber
FBG SM Fiber Fiber Bragg grating single mode fiber that reflects particular wavelengths of light and transmits all others
FBG PM Fiber Fiber Bragg grating polarization-maintaining fiber that reflects particular wavelengths of light and transmits all others while maintaining its polarization

Other Options:

Fiber Termination Options

  • No termination
  • FC/PC connector
  • FC/APC connector
  • SMA connector
  • Collimator

Optical Isolator Options
(Free-space only)

  • No isolator
  • Isolator without retarder
  • Isolator with retarder

Optical Filter Options

  • No filter
  • Clean-up filter
  • Long-pass filter
  • Short-pass filter
  • Pump filter

Benefits:

  • Cost-effective with smart power electronics:
    • We prioritize the balance between price and performance by installing smart power electronics, ensuring our products deliver the best value for your investment.
  • Customizable and high-performance in a compact package:
    • Our laser products can be configured to meet your specific needs and deliver exceptional performance in a miniature size, allowing for seamless integration into your system.
  • Excellent beam quality and accuracy:
    • High-quality beam properties and high pointing stability are crucial for applications requiring accurate and consistent laser performance
  • Beam delivery options:
    • From free-space to fiber-coupled to SMA port, get the beam output that fits with your application and setup.
  • Ultra-Compact – Ideal for integration:
    • Our laser products are designed for easy integration into your system, saving you time and money on installation. The ultra-compact design is perfect for lightweight, portable, handheld devices.
  • Dedicated break-out-box for easy setup:
    • Our dedicated break-out box provides PD-type power supply support, fan control, interlock, and inputs for modulation, making it easy to set up and use our products.
  • Maintenance-free operation:
    • Our hermetically sealed housing with stabilized optics ensures maintenance-free operation, providing peace of mind and reducing downtime for your system.
  • Quality assurance and compliance:
    • All of our products come with a 12-month warranty and are RoHS compliant, ensuring that you receive high-quality, reliable products.
