LiDAR Lasers

What is LIDAR?

LIDAR laser sources are the key component within LIDAR Systems. LIDAR, which is an acronym for light detection and ranging, is the optical analog to traditional radar (radio detection and ranging).  Because optical frequencies are much higher than their radio wave counterparts, lasers allow for much higher bandwidth signals and therefore much higher resolution detection.

Just as radar is a highly diverse field using a variety of radio wave sources, LIDAR lasers also come in a vast range as well.  The primary driver between which type of laser source you will need for your application is whether or not you are measuring moving targets or not.

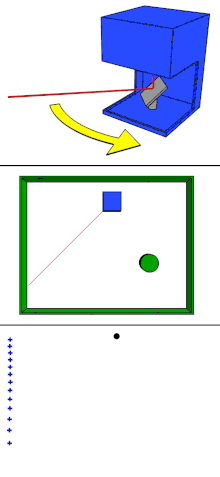

LIDAR in action GIF

For stationary targets, where distance is the only thing being measured, short-pulsed lasers are used to measure the roundtrip time-of-flight of each pulse and therefore calculate the distance to the target.  But, if a target is moving and you need to measure its speed, single frequency lasers are required in order to accurately measure the Doppler shift and calculate the object’s speed.

So, there are different laser sources with different specifications that are more suited for these various applications. On this page, you will find a list of all of the laser sources we offer for LIDAR systems, ranging from passively q-switched microchip lasers to single-frequency fiber lasers.

LIDAR Based Applications

LIDAR-based applications come in many different forms. Typically, these applications are determined by the effective object detection range, how accurately the LIDAR identifies and classifies objects (resolution), and how well the LIDAR can see something in the presence of bright objects, like reflective signs or the sun (reflectance confusion). Some commonly categorized LIDAR applications include:

  • Topographic LIDAR
  • Bathymetric LIDAR (Bathymetry)
  • Doppler LIDAR
  • Automotive LIDAR
  • 3D Scanning
  • 3D Mapping

Many Industries Take Advantage of LIDAR and 3D Scanning Applications:

  • Agriculture: LIDAR is used to map terrains, or to tell farmers where they should be distributing their costly fertilizers
  • Automotive: LIDAR is used for obstacle detection and avoidance
  • Biology & Conservation: LIDAR is used to monitor forest canopy heights or deforestation
  • Atmospheric Remote Sensing & Metrology: LIDAR is used to measure winds, study clouds, or aerosols
  • Military: LIDAR for autonomous vehicle guidance and for identifying possible targets
  • Mining: LIDAR is used to map excavated areas to determine volume removal
  • Surveying: LIDAR is used for mapping building and surrounding areas for future development

Filters Reset

Type

Wavelength Selection

Power Selection

Energy Selection

Pulse Width Selection

Rep Rate Selection

Series

Picture Part Number Type Wavelength (nm) Output power (W) Pulse energy (uJ) Pulse width Rep rate
cgoa cgoa 3 goa hpoa 1.5um Fiber Amplifiers Fiber Amplifiers 1529-1605 0.0001, 0.00025, 0.001, 0.0016, 0.500, 1.0, 2.0, 5.0, 10.0 CW
cpfl 1.5a 1.5at 1.5t cpfl2 hfl 1.5um Pulsed Fiber Lasers Pulsed Fiber Lasers 1540-1560 0.150, 1.0, 5.0 5.0, 25.0, 80.0 400ps, 50ns 5kHz, 1MHz, 2MHz
Fiber Amplifiers - HPOA - THPOA - UHPOA 1um Fiber Amplifiers Fiber Amplifiers 1030-1100 5.0, 10.0, 40.0 CW
Pulsed Fiber Laser 1um Pulsed Fiber Lasers Pulsed Fiber Lasers 1030-1100 5.0 150.0 400ps, 50ns 10kHz, 100kHz, 1MHz
thpoa2 uhpoa2p 2um Fiber Amplifiers Fiber Amplifiers 1750-2054 10.0 CW
Aero-1064 Pulsed DPSS Lasers 1064 5.0, 10.0 50000.0, 100000.0, 200000.0 20ns Single Shot to 50Hz, Single Shot to 100Hz
Aero-266 Pulsed DPSS Lasers 266 0.600 6000.0, 12000.0 20ns Single Shot to 50Hz, Single Shot to 100Hz
Aero-355 Pulsed DPSS Lasers 355, 355/532/1064 1.0 10000.0, 20000.0 20ns Single Shot to 50Hz, Single Shot to 100Hz
Aero-532 Pulsed DPSS Lasers 532, 532/1064 2.0, 6.0 20000.0, 40000.0 20ns Single Shot to 50Hz, Single Shot to 100Hz
R0Z2-Image-Compact-Efficient-UV-Laser CEUV Series Pulsed DPSS Lasers 266, 355, 532, 1064 5.0, 10.0, 20.0 500.0, 1000.0, 2000.0 3ns 10kHz to 1MHz
Q-Shift Series Quantas-Q-SHIFT-1163 Pulsed DPSS Lasers 1163 0.500, 0.800, 1.0 5000.0, 10000.0, 20000.0, 30000.0, 40000.0, 50000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-1177 Pulsed DPSS Lasers 1177 0.500, 0.800, 1.0 5000.0, 10000.0, 20000.0, 30000.0, 40000.0, 50000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-1300 Pulsed DPSS Lasers 1300 0.300, 0.480, 0.600 3000.0, 6000.0, 12000.0, 18000.0, 24000.0, 30000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-1317 Pulsed DPSS Lasers 1317 0.300, 0.480, 0.600 3000.0, 6000.0, 12000.0, 18000.0, 24000.0, 30000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-1551 Pulsed DPSS Lasers 1551 0.400, 0.640, 0.800 4000.0, 8000.0, 16000.0, 24000.0, 32000.0, 40000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-1571 Pulsed DPSS Lasers 1571 0.400, 0.640, 0.800 4000.0, 8000.0, 16000.0, 24000.0, 32000.0, 40000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-291 Pulsed DPSS Lasers 291 0.075, 0.120, 0.150 750.0, 1500.0, 3000.0, 4500.0, 6000.0, 7500.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-294 Pulsed DPSS Lasers 294 0.075, 0.120, 0.150 750.0, 1500.0, 3000.0, 4500.0, 6000.0, 7500.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-325 Pulsed DPSS Lasers 325 0.045, 0.072, 0.090 450.0, 900.0, 1800.0, 2700.0, 3600.0, 4500.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-329 Pulsed DPSS Lasers 329 0.045, 0.072, 0.090 450.0, 900.0, 1800.0, 2700.0, 3600.0, 4500.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-388 Pulsed DPSS Lasers 388 0.125, 0.200, 0.250 1250.0, 2500.0, 5000.0, 7500.0, 10000.0, 12500.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-388 Pulsed DPSS Lasers 388 0.060, 0.096, 0.120 600.0, 1200.0, 2400.0, 3600.0, 4800.0, 6000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-392 Pulsed DPSS Lasers 392 0.125, 0.200, 0.250 1250.0, 2500.0, 5000.0, 7500.0, 10000.0, 12500.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-393 Pulsed DPSS Lasers 393 0.060, 0.096, 0.120 600.0, 1200.0, 2400.0, 3600.0, 4800.0, 6000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-433 Pulsed DPSS Lasers 433 0.075, 0.120, 0.150 750.0, 1500.0, 3000.0, 4500.0, 6000.0, 7500.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-439 Pulsed DPSS Lasers 439 0.075, 0.120, 0.150 750.0, 1500.0, 3000.0, 4500.0, 6000.0, 7500.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-517 Pulsed DPSS Lasers 517 0.100, 0.160, 0.200 1000.0, 2000.0, 4000.0, 6000.0, 8000.0, 10000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-524 Pulsed DPSS Lasers 524 0.100, 0.160, 0.200 1000.0, 2000.0, 4000.0, 6000.0, 8000.0, 10000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-581.5 Pulsed DPSS Lasers 581.5 0.250, 0.400, 0.495, 0.500 2500.0, 5000.0, 10000.0, 15000.0, 20000.0, 25000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-588.5 Pulsed DPSS Lasers 588.5 0.250, 0.400, 0.495, 0.500 2500.0, 5000.0, 10000.0, 15000.0, 20000.0, 25000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-650 Pulsed DPSS Lasers 650 0.150, 0.240, 0.300 1500.0, 3000.0, 6000.0, 9000.0, 12000.0, 15000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-658.5 Pulsed DPSS Lasers 658.5 0.150, 0.240, 0.300 1500.0, 3000.0, 6000.0, 9000.0, 12000.0, 15000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-775.5 Pulsed DPSS Lasers 775.5 0.200, 0.320, 0.400 2000.0, 4000.0, 8000.0, 12000.0, 16000.0, 20000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-785.5 Pulsed DPSS Lasers 785.5 0.200, 0.320, 0.400 2000.0, 4000.0, 8000.0, 12000.0, 16000.0, 20000.0 2ns - 5ns 10Hz, 20Hz, 33Hz, 50Hz, 100Hz
Q-Shift Series Quantas-Q-SHIFT-WXXXX Pulsed DPSS Lasers Multiple Wavelength Options Varies Varies 2ns - 5ns 100Hz
Quantas-Q2-1053: High energy, compact, nanosecond, DPSS laser Quantas-Q2-1053 Pulsed DPSS Lasers 1053 0.080, 0.100, 0.150, 0.200, 0.300, 0.350, 0.400, 0.500, 0.600, 0.800, 1.0, 1.3, 2.0 8000.0, 10000.0, 15000.0, 20000.0, 30000.0, 35000.0, 40000.0, 50000.0, 60000.0, 65000.0, 70000.0, 80000.0 5ns, 6ns, 7ns, 8ns 10Hz, 20Hz, 33.3Hz, 50Hz
Quantas-Q2-1064: High Energy, Compact, Nanosecond, DPSS Laser Quantas-Q2-1064 Pulsed DPSS Lasers 1064 0.080, 0.100, 0.150, 0.200, 0.300, 0.350, 0.400, 0.500, 0.600, 0.700, 0.800, 1.0, 1.2, 1.3, 2.0 2500.0, 5000.0, 8000.0, 10000.0, 15000.0, 20000.0, 30000.0, 35000.0, 40000.0, 60000.0 5ns, 6ns, 7ns, 8ns, 10ns 10Hz, 20Hz, 33.3Hz, 50Hz, 100Hz, 200Hz
Quantas-Q2-527: High energy, compact, nanosecond, DPSS laser Quantas-Q2-527 Pulsed DPSS Lasers 527 0.350, 0.800, 1.0, 2.0 500.0, 5000.0, 15000.0, 25000.0, 30000.0, 35000.0, 40000.0 5ns, 6ns, 7ns, 8ns 10Hz, 20Hz, 33.3Hz, 50Hz
Quantas Q2 QLI Quantas-Q2-532 Pulsed DPSS Lasers 532 0.500, 0.750, 0.800, 1.0, 2.0 500.0, 5000.0, 25000.0, 30000.0, 35000.0, 40000.0 5ns, 6ns, 7ns, 8ns, 10ns 10Hz, 20Hz, 33.3Hz, 50Hz, 100Hz, 200Hz
Quantas-Q2HE-527: High energy, compact, nanosecond, DPSS laser Quantas-Q2HE-527 Pulsed DPSS Lasers 527 0.600, 1.0 20000.0, 50000.0, 60000.0 6ns 10Hz, 20Hz, 50Hz
Quantas-Q2HE-532: High energy, compact, nanosecond, DPSS laser Quantas-Q2HE-532 Pulsed DPSS Lasers 532 0.500, 0.800, 1.0, 1.75, 2.0 20000.0, 35000.0, 40000.0, 50000.0 6ns 10Hz, 20Hz, 50Hz, 100Hz
Quantas-Q2HE: High energy, compact, nanosecond, DPSS laser Quantas-Q2HE-XXX-XXXX Pulsed DPSS Lasers Multiple Wavelength Options Varies Varies Varies 100Hz
Bright Microlaser Microchip SB1 Laser SB1-1064 Pulsed DPSS Lasers, Microchip Lasers 1064 0.008, 0.012, 0.040, 0.110, 0.150, 0.200, 0.225, 0.400 2.0, 15.0, 20.0, 30.0, 40.0, 60.0, 80.0 400ps, 1.3ns 100Hz, 200Hz, 1kHz, 5kHz, 10kHz, 15kHz, 55kHz, 100kHz
Bright Microlaser Microchip SB1 Laser SB1-532 Pulsed DPSS Lasers, Microchip Lasers 532 0.004, 0.006, 0.010, 0.017, 0.020, 0.030, 0.040, 0.075, 0.100 0.300, 7.0, 10.0, 15.0, 20.0, 30.0, 40.0 400ps, 1.3ns 10Hz, 100Hz, 200Hz, 1kHz, 5kHz, 10kHz, 15kHz, 55kHz, 100kHz
Vento-1064 Pulsed DPSS Lasers 1064 16.0, 25.0, 40.0 600.0, 1000.0, 1500.0 500ps - 1.5ns 50kHz to 120kHz, 80kHz to 200kHz
Vento-532 Pulsed DPSS Lasers 532 8.0, 15.0, 20.0 300.0, 550.0, 750.0 500ps - 1.2ns 50kHz to 120kHz, 80kHz to 200kHz

FA Series

fa 1.5um 1um 2umRPMC offers a variety of standard and custom fiber amplifiers . Available in both OEM and Turnkey formats, our 1um, 1.5um and 2um fiber amplifiers are manufactured to Telcordia standards and can be modified to meet your applications requirements. With output powers of up to >40dBM, and options such as linear or random polarization, narrow linewidth, low noise, and input and output monitoring, our fiber amplifiers are ideal solutions for applications such as optical transport, FTTH & CATV, RF video overlay, and pulsed amplification. Customized configurations are available upon request.

FL-P Series

1um 1.5um Pulsed Fiber LasersRPMC offers a variety of standard and custom pulsed fiber laser options. Available in both OEM and Turnkey formats, our 1um, 1.5um and 2um fiber lasers are manufactured to Telcordia standards and can be modified to meet your applications requirements. With available average powers up to 10W at 1um and 1.5um, peak powers up to 25kW, pulse widths in the range of 200ps to 100ns, and available options such as pulse monitoring, internal and external triggering, TTL or LVDS input signals, extended operating temperature range, and a robust design, our pulse series of fiber lasers are suitable for a wide range of applications. Customized configurations are available upon request.

Aero Series

Aero Laser by Bright SolutionsThe Aero Series is a high-energy DPSS laser that operates at less than 15 nanoseconds and with average power up to 200mJ at 1064nm and 100mJ at 532nm. All models come enclosed in an extremely compact and ruggedized single unit with a conductively cooled heatsink with a water-cooled option. It comes with available options for beam expanding and collimating optics. This new laser series is ideal for applications like LIBS, spectroscopy, and Atmospheric LIDAR.

CEUV Series

R0Z2-Image-Compact-Efficient-UV-LaserAreté has developed a commercial series of compact and efficient DPSS laser sources, capable of operating over a wide range of pulsing conditions (duty-cycle and PRF), in a low SWaP package, with average power up to ≈5W @ 266nm, 10W @ 355nm or 532nm, 20W @ 1064nm, suitable for airborne applications. The design has been tested in brassboard hardware and a prototype is being developed.

Q-SHIFT Series

Q-Shift SeriesThe Quantas-Q-SHIFT series is a family of Q-switched DPSS lasers featuring a built‑in nonlinear wavelength conversion stage, allowing the production of wavelengths that are not accessible with conventional solid-state laser sources, including 1163, 1177, 1300, 1317, 1551 and 1571nm. An optional harmonics generator is also available for for the Q-SHIFT, allowing generation of up to the 4th harmonic for each fundamental wavelength.

Q2 Series

Quantas Q2 QLI

The Q2 series is a versatile, diode pumped, air-cooled, Q-switched laser capable of achieving up to 80mJ of pulse energy with an operational rep rate up to 100Hz. Available at the fundamental wavelengths of 1064 and 1053nm, the innovative water-free laser crystal end-pumping technology produces Gaussian-like, low divergence laser beams with high peak powers, enabling efficient harmonics conversion through the 5th harmonic.

Q2HE Series

Quantas-Q2HE-211: High energy, compact, nanosecond, DPSS laser

The Q2HE series, from Quantum Light Instruments Ltd., features an innovative water-free laser crystal cooling technology that enables generation of high quality laser beams with up to 100 mJ pulse energy and/or up to 4 W of average output power. Featuring a pulse duration of less than 7 ns and a low beam divergence, the Q2HE is capable of achieving efficient fundamental wavelength conversion through the 5th harmonics of 213/211 nm.

Microchip Series

Bright Microlaser Microchip SB1 Laser

The Microchip Series, from BrightMicroLaser, are ultra-compact, passively q-switched, single longitudinal mode (SLM), narrow linewidth, DPSS lasers that feature pulse durations from 400 ps to 2 ns, energy levels up to 80 uJ and repetition rates up to 100 kHz. In addition to the fundamental 1064 nm wavelength and its harmonics (532, 355 and 266 nm), we also deliver units emitting at 946 and 473 nm.

Vento Series

Vento-532-7: 532nm Picosecond DPSS Laser

The Vento Series of sub-ns DPSS active Q-Switched lasers produce pulses in the hundreds of ps range with average power up to 50 W @ 532 nm and up to 100 W @ 1064 nm. Ideal for micromachining, fine cutting and precision LIDAR, all the models are enclosed in an extremely compact and ruggedized single unit with both air-cooled and water-cooled options available.
