RPK-IR-STAB
Laser Diode, Wavelength Stabilized, Fiber-coupled, Infrared, 760-1400nm, up to 430W
Key Features:
- Fiber Coupled laser diodes in your choice of package/fiber.
- Narrow Linewidth laser diodes emit light in a very narrow spectral bandwidth.
- Infrared wavelengths from 760nm to 1400nm.
- Stabilized laser diodes maintain accurate and narrow spectral widths.
There are many different package types, wavelengths, output powers, and options to choose from. Get help selecting the right configuration for you!
POPULAR CONFIGURATIONS:
Picture |
Part Number |
Part Description |
Datasheet |
|
---|---|---|---|---|

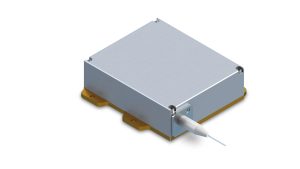

RPK969S-N1-140.0W-10522-SM |
Stabilized Fiber Coupled Laser Diode, Pigtailed, 940 +/-5nm, 140W, Back-reflection protected, N1 Package, 2m long 105um, 0.22NA fiber with SMA connector |
Get Quote | ||

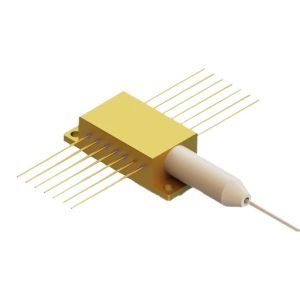

RPK785S-FL-0.600W-10522-FC |
Stabilized Fiber Coupled Laser Diode, Pigtailed, 785 +/-0.5nm, Wavelength Stabilized, 0.6W, 14-Pin Butterfly Package w/ Thermistor, TEC, PD, 1m long 105um, 0.22NA fiber with FC connector |
Get Quote | ||
RPK830S-FL-0.600W-10522-FC |
Fiber Coupled Laser Diode, Stabilized, Pigtailed, 830 +/-0.5nm, Wavelength Stabilized, 0.6W, 14-Pin Butterfly Package w/ Thermistor, TEC, PD, 1m long 105um, 0.22NA fiber with FC connector |
Get Quote | ||

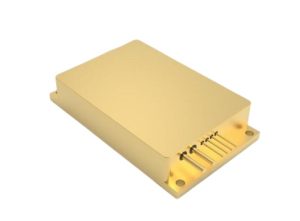

RPK878S-A5-90.00W-20022-SM |
Stabilized Fiber Coupled Laser Diode, Pigtailed, 878 +/-1nm, Wavelength Stabilized, 90W, Back-reflection protected, A5 Package, 1.5m long 200um, 0.22NA fiber with SMA connector |
Get Quote | ||
RPK878S-L9-120.0W-20022-HP |
Stabilized Fiber Coupled Laser Diode, Pigtailed, 878 +/-1nm, Wavelength Stabilized, 120W, Back-reflection protected, L9 Package, 2m long 200um, 0.22NA fiber with HP-SMA connector |
Get Quote | ||

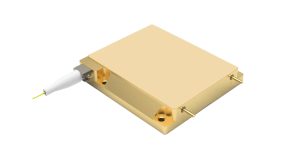

RPK878S-L9-170.0W-20022-HP |
Stabilized Fiber Coupled Laser Diode, Pigtailed, 878 +/-1nm, Wavelength Stabilized, 170W, Back-reflection protected, L9 Package, 2m long 200um, 0.22NA fiber with HP-SMA connector |
Get Quote | ||
RPK888S-L9-120.0W-20022-HP |
Stabilized Fiber Coupled Laser Diode, Pigtailed, 888 +/-1nm, Wavelength Stabilized, 120W, Back-reflection protected, L9 Package, 2m long 200um, 0.22NA fiber with HP-SMA connector |
Get Quote | ||
RPK888S-L9-170.0W-20022-HP |
Stabilized Fiber Coupled Laser Diode, Pigtailed, 888 +/-1nm, Wavelength Stabilized, 170W, Back-reflection protected, L9 Package, 2m long 200um, 0.22NA fiber with HP-SMA connector |
Get Quote | ||

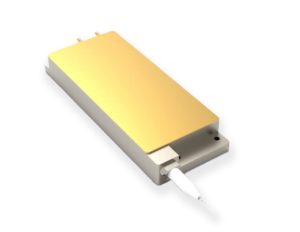

RPK976S-A0-260.0W-13522-FF |
Stabilized Fiber Coupled Laser Diode, Pigtailed, 976 +/-1nm, Wavelength Stabilized, 260W, Back-reflection protected, A0 Package, 2m long 135um, 0.22NA fiber, FC-ferrule |
Get Quote | ||

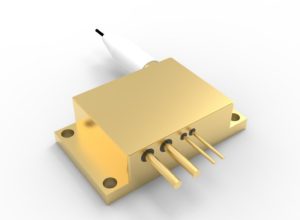

RPK976S-AH-18.00W-10522-FF |
Stabilized Fiber Coupled Laser Diode, Pigtailed, 976 +/-0.5nm, Wavelength Stabilized, 18W, Back-reflection protected, AH Package, 2m long 105um, 0.22NA fiber, FC-ferrule |
Get Quote | ||

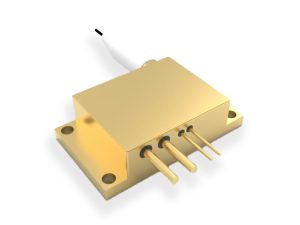

RPK976S-AH-27.00W-10522-FF |
Stabilized Fiber Coupled Laser Diode, Pigtailed, 976 +/-0.5nm, Wavelength Stabilized, 27W, Back-reflection protected, AH Package, 2m long 105um, 0.22NA fiber, FC-ferrule |
Get Quote | ||

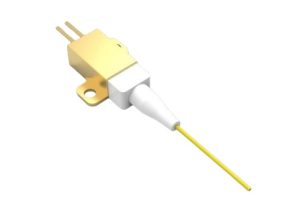

RPK976S-B2-3.000W-10522-FF |
Stabilized Fiber Coupled Laser Diode, Pigtailed, 976 +/-0.5nm, Wavelength Stabilized, 3W, Back-reflection protected, B2 Package, 2m long 105um, 0.22NA fiber, FC-ferrule |
Get Quote | ||

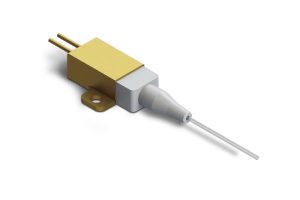

RPK976S-B2-9.000W-10522-FF |
Stabilized Fiber Coupled Laser Diode, Pigtailed, 976 +/-0.5nm, Wavelength Stabilized, 9W, Back-reflection protected, B2 Package, 2m long 105um, 0.22NA fiber, FC-ferrule |
Get Quote | ||

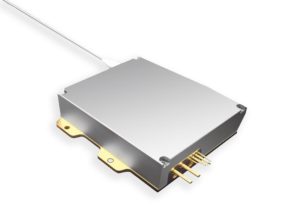

RPK976S-N1-140.0W-10522-FF |
Stabilized Fiber Coupled Laser Diode, Pigtailed, 976 +/-1nm, Wavelength Stabilized, 140W, Back-reflection protected, N1 Package, 2m long 105um, 0.22NA fiber, FC-ferrule |
Get Quote | ||

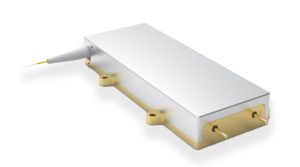

RPK976S-NZ-430.0W-20022-FF |
Stabilized Fiber Coupled Laser Diode, Pigtailed, 976 +/-1nm, Wavelength Stabilized, 430W, Back-reflection protected, NZ Package, 2m long 200um, 0.22NA fiber, FC-ferrule |
Get Quote | ||

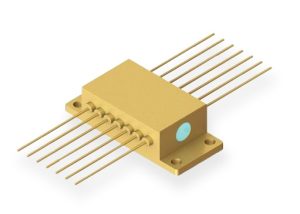

RPK785S-FS-0.600W |
Windowed Stabilized Laser Diode, 785 +/-0.5nm, Wavelength Stabilized, 0.6W, 14-Pin Butterfly Package, Free Space |
Get Quote | ||

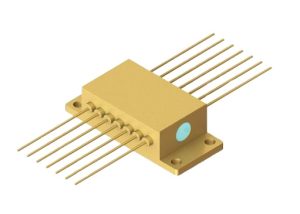

RPK830-FS-0.600W |
Windowed Laser Diode, Stabilized, 785 +/-0.5nm, Wavelength Stabilized, 0.6W, 14-Pin Butterfly Package, Free Space |
Get Quote | ||
RPK878S-NL-65.00W-20022-SM |
Stabilized Fiber Coupled Laser Diode, Pigtailed, 878 /-1nm, Wavelength Stabilized, 65W, Back-reflection protected, NL Package, 1.5m long 200um, 0.22NA fiber with SMA connector |
Get Quote |
The RPK-IR-STAB from RPMC Lasers is a high-power fiber-coupled laser diode suitable for a wide range of applications. These infrared laser diodes can be tailored for your specific needs with wavelengths from 760nm to 1400nm, and output powers up to 400W, in either a module or turn-key package. Our specialized fiber-coupling techniques ensure high efficiency, stability, and superior beam quality, while rigorous inspections and burn-in procedures guarantee each product’s reliability, stability, and long lifetime. The Turn-key option allows for control over the operating temperature, current, and pulse width, with a flexible and easy-to-use interface. Highly customizable packages allow RPMC Lasers to meet our customers’ specific needs, providing high-quality products at reasonable prices.
If your exact needs are not in our popular configurations, define your ideal laser diode and let us find the best solution!
Product Range:
Wavelength Range:
Infrared light is invisible to the human eye and covers the wavelengths of 760nm to 1400nm. Stabilized laser diodes are locked to a specific wavelength and provide a narrow linewidth. Standard Infrared wavelength options with custom wavelengths available to better fulfill your needs.
785 +/- 1nm | 808 +/- 1nm | 830 +/- 1nm | 878 +/- 1nm |
888+/-1nm | 940 +/- 1nm | 976 +/- 1nm | 1064 +/- 1nm |
Output Power Range:
These devices are available with single emitters or multiple emitters for higher output power. Output power depends on the wavelength and the number of emitters.
20W | 60W | 90W | 120W |
170W | 260W | 350W | 400W |
Fiber Core Diameter:
In general, smaller fiber core diameter provides higher brightness and larger fiber diameters offer higher output powers. The standard fiber core size is 105um.
105um | 135um | 200um |
Output Options:
Options include attached fiber (Pigtailed), detachable fiber, and windowed devices.
Pigtailed | The fiber is permanently attached to the device | Minimizes losses in the fiber coupling |
Detachable | The fiber can be detached from the device | Allows more flexibility in replacing a damaged fiber |
Windowed | No fiber, just a collimated beam output | For when fiber delivery is not needed. |
Connector Types:
The standard fiber connector options for MM laser diodes are SMA, FC, and none.
SMA Connector | Industry-standard connector type with minimal connector interface and a screw-type coupling mechanism. |
FC Connector | Industry-standard connector type with tighter tolerances minimizing misalignments. |
Package Types:
These laser diodes are packaged as either a module or a turn-key system. Modules are better for integrating into a custom system while the turn-key systems allow for better control over the lasers.
Module – Standard | Turn-key – DS3 |
This laser diode module is designed for easy integration, high stability, superior beam quality, and a long lifetime. | This turn-key system allows for control over the operating temperature, current, and pulse width, with an easy-to-use interface. |
Other Options:
Depending on the package and the number of electrical connections available, some packages offer more options than others.
Thermoelectric Cooler (TEC) | Provides more control of the laser diode temperature |
Photodiode | Monitors the light energy for more accurate data. |
Thermistor | Monitors the laser diode temperature |
Back Reflection Protected | Reduces potential damage to the laser diode from back reflections |
Aiming Beam | Sends a beam of either red or green light to help IR lasers with alignment. |
*Not all packages, output powers, and options are available with every wavelength
*Some products may require a minimum order
Benefits:
- Specialized fiber-coupling techniques result in high efficiency, stability, and superior beam quality.
- More precise and accurate results in material processing, medical therapeutics, and solid-state laser media pumping.
- Narrow linewidth output for precision solid-state laser pumping for example.
- Stringent inspecting and burn-in procedures guarantee reliability, stability, and long product lifetime.
- Highly efficient, stable, and long diode lifetime for increased confidence and trust in product performance and longevity.
- Cost-effective solution with minimal maintenance requirements and reduced downtime.
- Complete turn-key option – Easy to use DS3 air-cooled laser diode system option for the RPK Series diode lasers.
- Easy and hassle-free integration for various applications saves you time, money, and headaches.
- Highly customizable, tailored solutions with different packages to meet customers’ unique needs.
If you have any questions or need more information, please contact us.
Wavelength (nm) | |
---|---|
Description | Laser Diode, Wavelength Stabilized, Fiber-coupled, Infrared, 760-1400nm, up to 430W |
Type | Multi-Emitter, VBG, Narrow Linewidth, Single Longitudinal Mode (SLM), Fiber-Coupled |
