SOL

DPSS Laser, ns pulsed, 355-1064nm, up to 60W, up to 200kHz

Key Features:

  • Industrial laser solution
  • Most compact pulsed DPSS laser up to 40 W @ 1064
  • Single shot to 200 kHz PRR
  • CW or pulsed operation
  • Compact air-cooled single unit

There are many different package types, wavelengths, output powers, and options to choose from. Get help selecting the right configuration for you!



POPULAR CONFIGURATIONS:

Part Number
Part Description
Datasheet

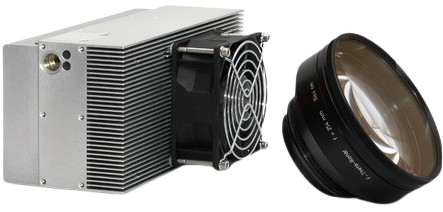

compact OEM DPSS laser housing, gray with cooling fins, mounted fan, and seperate F-theta lens SOL 40W-1064nm

Compact Nanosecond Laser, 1064nm, 40W, 10 to 100kHz

Get Quote
compact OEM DPSS laser housing, gray with cooling fins, mounted fan, and seperate F-theta lens SOL 30W-1064nm

Compact Nanosecond Laser, 1064nm, 30W, 10 to 100kHz

Get Quote
compact OEM DPSS laser housing, gray with cooling fins, mounted fan, and seperate F-theta lens SOL 20W-1064nm

Compact Nanosecond Laser, 1064nm, 20W, 10 to 100kHz

Get Quote
compact OEM DPSS laser housing, gray with cooling fins, mounted fan, and seperate F-theta lens SOL 10W-1064nm

Compact Nanosecond Laser, 1064nm, 10W, 10 to 100kHz

Get Quote
compact OEM DPSS laser housing, gray with cooling fins, mounted fan, and seperate F-theta lens SOL 6W-1064nm

Compact Nanosecond Laser, 1064nm, 6W, 10 to 100kHz

Get Quote
compact OEM DPSS laser housing, gray with cooling fins, mounted fan, and seperate F-theta lens SOL 10W-532nm

Compact Nanosecond Laser, 532nm, 10W, SS to 100kHz

Get Quote
compact OEM DPSS laser housing, gray with cooling fins, mounted fan, and seperate F-theta lens SOL 5W-532nm

Compact Nanosecond Laser, 532nm, 5W, SS to 100kHz

Get Quote
compact OEM DPSS laser housing, gray with cooling fins, mounted fan, and seperate F-theta lens SOL 3W-532nm

Compact Nanosecond Laser, 532nm, 3W, SS to 100kHz

Get Quote
compact OEM DPSS laser housing, gray with cooling fins, mounted fan, and seperate F-theta lens SOL 4W-355nm

Compact nanosecond laser, 355nm, 4W, 30 to 100kHz

Get Quote

The SOL series is the most compact, air-cooled, Q-switched DPSS nanosecond industrial laser solution available with output power up to 40W @ 1064nm, designed for thin film removal, marking, and PCB repair applications. With its excellent beam quality, high peak power, wavelength options (1064, 532 & 355 nm), PRR from single shot up to 200 kHz, optional CW configuration, customization options, and a wide range of add-ons, this series is an excellent solution for OEM integrators, application specialists, and researchers. With attractive pricing (especially volume pricing) and a rugged, compact, lightweight, and easy-to-use single-unit design, the SOL laser is easy to integrate into any system, providing superior operational flexibility and performance/cost ratio.

We’re experts in selecting the right laser for your application!

Sol DPSS Laser Platform Examples:

Customization options are available. Let us know what you need!

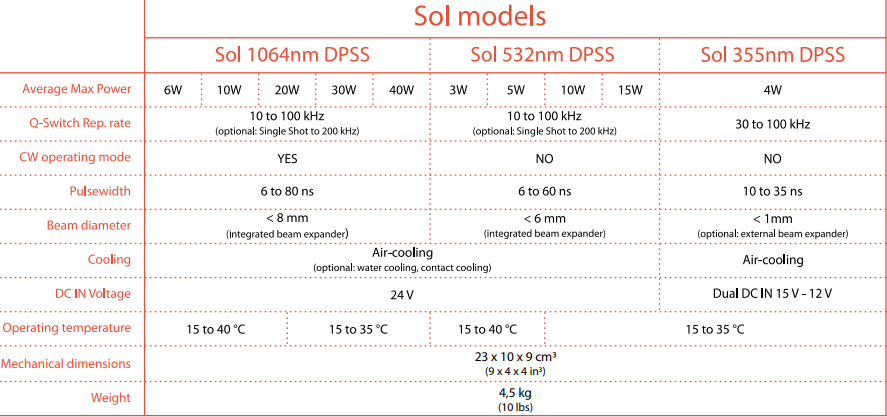

simple text table displaying configuration options for a DPSS laser



Let us help choose the right configuration for you!

Benefits:

  • Designed for industrial use:
    Powerful, compact, flexible, CW/pulsed DPSS laser for material processing applications in various environments.
  • Most compact, air-cooled DPSS nanosecond laser up to 40 W:
    The most compact q-switched DPSS laser up to 40 W @ 1064 nm, easily integrated with compact & efficient air cooling.
  • Rugged, lightweight single unit design:
    Ensures durability and reliability in industrial and scientific applications, reducing downtime and maintenance costs.
  • Highly reliable with 1000s of successfully fielded units:
    Permanently aligned, with high-quality optical performance and consistent output power for stable, reliable performance.

  • High peak power and excellent beam quality:
    Provides precise and powerful laser output, enabling high-quality and accurate results in a wide range of applications.
  • Optional beam expanding and collimation optics:
    Help shape and direct the laser beam, ensuring maximum energy is delivered to the target.
  • Optional remote-control box and software interface:
    Allows for operation, monitoring, and support along with a user-friendly GUI.
  • Many more optional add-ons & completely customizable:
    From a red aiming beam to water cooling, beam expanding, monitoring photodiode, and beyond. Let us know what you need!

Options Available

  • Beam expanding and collimating optics
  • Fiber Coupling
  • Red aiming beam
  • Extended operating temperature range

  • Extended frequency range
  • Pulse width modulation
  • Low jitter option
  • Circular Polarization

  • Air or water cooling
  • Monitoring photodiode
  • Remote control box & software interface
  • AC-DC power supply
