RPK-IR-MM

Laser Diode, Multimode, Fiber-coupled, 793nm-1940nm, up to 300W

Key Features:

  • Fiber Coupled laser diodes in your choice of package.
  • NIR & SWIR wavelengths from 760nm to 1940nm.
  • Multimode outputs allow for higher output powers, efficiency, and versatility.

There are many different package types, wavelengths, output powers, and options to choose from. Get help selecting the right configuration for you!



POPULAR CONFIGURATIONS:

Part Number
Part Description
Datasheet

R1Z0-Image-RPK793-L9-130.0W-10522-FF RPK793-L9-130.0W-10522-FF

Fiber Coupled Laser Diode, Pigtailed, 793 +/-3nm, 130W, Back-reflection protected, L9 Package, 2m long 135um, 0.22NA fiber, FC-ferrule

Get Quote

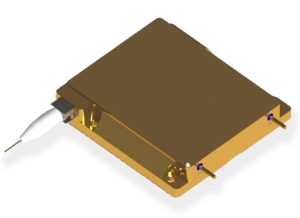

R1Z0-Image-RPK793-L9-160.0W-13522-FF RPK793-L9-160.0W-13522-FF

Fiber Coupled Laser Diode, Pigtailed, 793 +/-3nm, 160W, Back-reflection protected, L9 Package, 2m long 105um, 0.22NA fiber, FC-ferrule

Get Quote

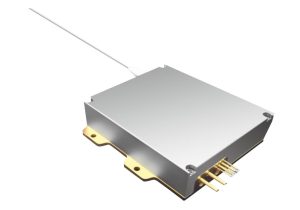

R1Z0-Image-RPK793-L9-160.0W-20022-FF RPK793-L9-160.0W-20022-FF

Fiber Coupled Laser Diode, Pigtailed, 793 +/-3nm, 160W, Back-reflection protected, L9 Package, 2m long 200um, 0.22NA fiber, FC-ferrule

Get Quote

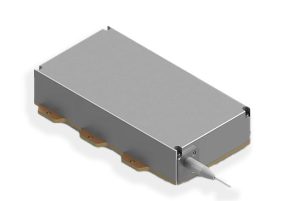

R1Z0-Image-RPK793-N2-260.0W-20022-FF RPK793-N2-260.0W-20022-FF

Fiber Coupled Laser Diode, Pigtailed, 793 +/-3nm, 260W, Back-reflection protected, N2 Package, 2m long 200um, 0.22NA fiber, FC-ferrule

Get Quote

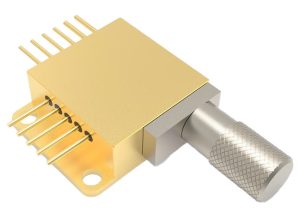

R1Z0-Image-RPK808-11-4.000W-20022-SM RPK808-11-4.000W-20022-SM

Fiber Coupled Laser Diode, Detachable, 808 +/-10nm, 8W, 14-Pin Package w/ Aiming Beam, Thermistor, PD, Designed for 200um, 0.22NA fiber with SMA Connector. Fiber not included

Get Quote

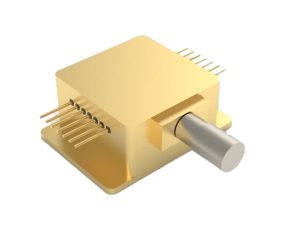

R1Z0-Image-RPK808-14CC-8.000W-40022-SM RPK808-14CC-8.000W-40022-SM

Fiber Coupled Laser Diode, Detachable, 808 +/-10nm, 8W, 14-Pin Package w/ Aiming Beam, Thermistor, TEC, PD, Designed for 400um, 0.22NA fiber with SMA Connector. Fiber not included

Get Quote

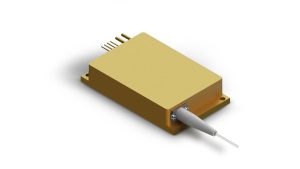

R1Z0-Image-RPK808-A5-70.00W-10522-SM RPK808-A5-70.00W-10522-SM

Fiber Coupled Laser Diode, Pigtailed, 808 +/-3nm, 70W, Back-reflection protected, A5 Package, 1m long 105um, 0.22NA fiber with SMA Connector

Get Quote

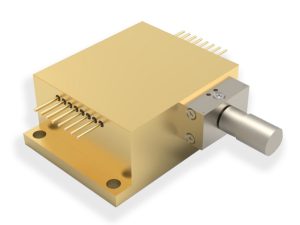

R1Z0-Image-RPK808-AM-30.00W-40022-SM RPK808-AM-30.00W-40022-SM

Fiber Coupled Laser Diode, Detachable, 808 +/-10nm, 30W, AM Package w/ Aiming Beam, Thermistor, PD, Designed for 400um, 0.22NA fiber with SMA Connector. Fiber not included

Get Quote

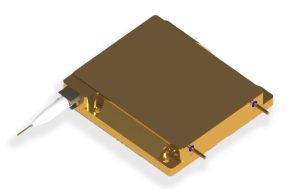

R1Z0-Image-RPK808-L9-150.00W-20022-SM RPK808-L9-150.00W-20022-SM

Fiber Coupled Laser Diode, Pigtailed, 808 +/-3nm, 150W, Back-reflection protected, L9 Package, 2m long 200um, 0.22NA fiber with SMA Connector

Get Quote

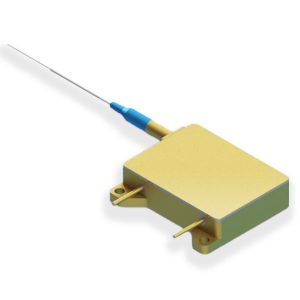

R1Z0-Image-RPK808-NL-50.00W-40022-SM RPK808-NL-50.00W-40022-SM

Fiber Coupled Laser Diode, Pigtailed, 808 +/-3nm, 50W, Back-reflection protected, NL Package, 1m long 400um, 0.22NA fiber with SMA Connector

Get Quote

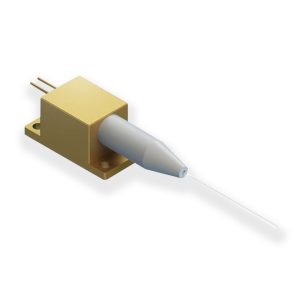

R1Z0-Image-RPK830-02-2.000W-05014-ST RPK830-02-2.000W-05014-ST

Fiber Coupled Laser Diode, Pigtailed, 830 +/-10nm, 2W, 2-Pin package, 0.5m long, 50um, 0.14NA fiber with ST Connector

Get Quote
R1Z0-Image-RPK793 AH-22.00W-10522-FF RPK793 AH-22.00W-10522-FF

Fiber Coupled Laser Diode, Pigtailed, 793 +/-3nm, 22W, Back-reflection protected, AH Package, 2m long 105um, 0.22NA fiber, FC-ferrule

Get Quote
R1Z0-Image-RPK793-A5-50.00W-10522-FF RPK793-A5-50.00W-10522-FF

Fiber Coupled Laser Diode, Pigtailed, 793 +/-3nm, 50W, Back-reflection protected, A5 Package, 2m long 105um, 0.22NA fiber, FC-ferrule

Get Quote

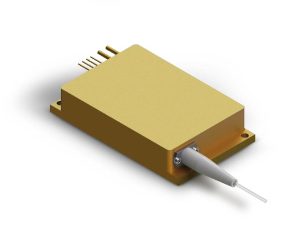

R1Z0-Image-RPK793-A5-80.00W-20022-FF RPK793-A5-80.00W-20022-FF

Fiber Coupled Laser Diode, Pigtailed, 793 +/-3nm, 80W, Back-reflection protected, A5 Package, 2m long 105um, 0.22NA fiber, FC-ferrule

Get Quote

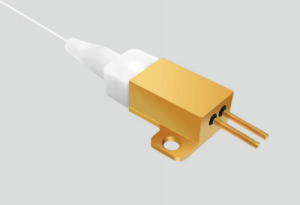

R1Z0-Image-RPK793-B2-8.000W-10522-FF RPK793-B2-8.000W-10522-FF

Fiber Coupled Laser Diode, Pigtailed, 793 +/-3nm, 8W, Back-reflection protected, B2 Package, 2m long 105um, 0.22NA fiber, FC-ferrule

Get Quote

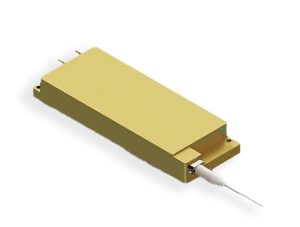

R1Z0-Image-RPK915-A0-250.0W-13522-D RPK915-A0-250.0W-13522-FF

Fiber Coupled Laser Diode, Pigtailed, 915 +/-10nm, 250W, Back-reflection protected, A0 Package, 2m long 135um, 0.22NA fiber, FC-ferrule

Get Quote

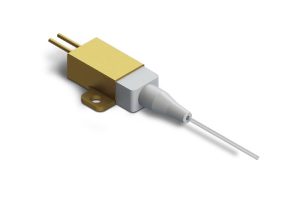

R1Z0-Image-RPK915-B2-12.00W-10522-NA RPK915-B2-12.00W-10522-NA

Fiber Coupled Laser Diode, Pigtailed, 915 +/-10nm, 12W, Back-reflection protected, B2 Package, 1m long 105um, 0.22NA fiber (No Connector)

Get Quote

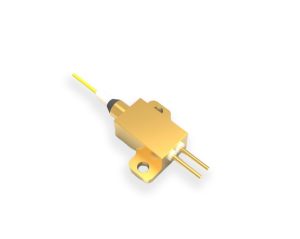

R1Z0-Image-RPK940-B3-10.00W-10522-NA RPK940-B3-10.00W-10522-NA

Fiber Coupled Laser Diode, Pigtailed, 940 +/-5nm, 10W, B3 Package, 0.8m long 105um, 0.22NA fiber (No Connector)

Get Quote
R1Z0-Image-RPK940EN1RN-200.0W EN V2408 RPK940-N1-200.0W-13522-SM

Fiber Coupled Laser Diode, Pigtailed, 940 +/-5nm, 200W, Back-reflection protected, N1 Package, 2m long 135um, 0.22NA fiber with SMA connector

Get Quote

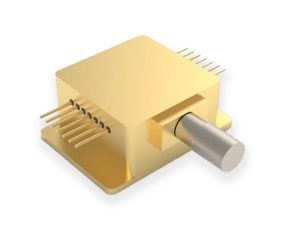

R1Z0-Image-RPK976-02-10.00W-10522-FF RPK976-02-10.00W-10522-FF

Fiber Coupled Laser Diode, Pigtailed, 976 +/-3nm, 10W, Back-reflection protected, 2-pin Package, 2m long, 105um, 0.22NA fiber, FC-ferrule

Get Quote
R1Z0-Image-RPK976DAHRN-30.00W RPK976-AH-30.00W-10522-FF

Fiber Coupled Laser Diode, Pigtailed, 976 +/-3nm, 30W, Back-reflection protected, AH Package, 2m long, 105um, 0.22NA fiber, FC-ferrule

Get Quote
R1Z0-Image-980nm 10W Multi-Function Detachable Diode Laser—14pins RPK980-14-10.00W-40022-SM

Fiber Coupled Laser Diode, Detachable, 980 +/-10nm, 10W, 14-Pin Package w/ Aiming Beam, Thermistor, TEC, PD, Designed for 400um, 0.22NA fiber with SMA Connector

Get Quote

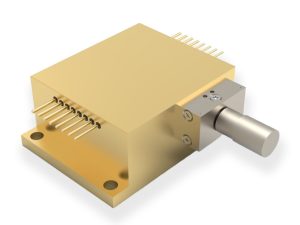

R1Z0-Image-RPK980-AM-30.00W-20022-SM RPK980-AM-30.00W-20022-SM

Fiber Coupled Laser Diode, Detachable, 980 +/-10nm, 30W, AM Package w/ Aiming Beam, Thermistor, PD, Designed for 400um, 0.22NA fiber with SMA Connector

Get Quote

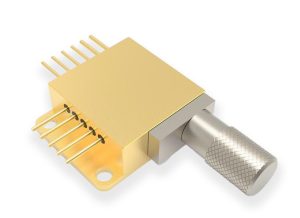

R1Z0-Image-RPKA64-11-10.00W-20022-SM RPKA64-11-10.00W-20022-SM

Fiber Coupled Laser Diode, Detachable, 1064 +/-20nm, 10W, 11-Pin Package w/ Aiming Beam, Thermistor, PD, Designed for 200um, 0.22NA fiber with SMA Connector

Get Quote

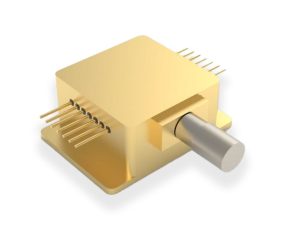

R1Z0-Image-RPKA64-14-10.00W-20022-SM RPKA64-14-10.00W-20022-SM

Fiber Coupled Laser Diode, Detachable, 1064 +/-20nm, 10W, 14-Pin Package w/ Aiming Beam, Thermistor, PD, Designed for 200um, 0.22NA fiber with SMA Connector

Get Quote
R1Z0_K915M- 915nm Fiber Coupled LD RPKE70-25-2.400W-10522-FF

Fiber Coupled Laser Diode, Pigtailed, 1470 +/-20nm, 2.4W, A5 Package, 2m long, 105um, 0.22NA fiber, FC-ferrule

Get Quote

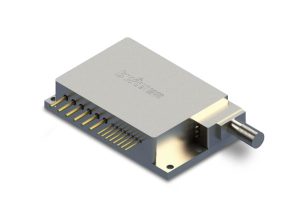

R1Z0-Image-RPKE70-A5-15.00W-20022-SM RPKE70-A5-15.00W-20022-SM

Fiber Coupled Laser Diode, Detachable, 1470 +/-10nm, 15W, A5 Package w/ Aiming Beam, Thermistor, PD, Designed for 200um, 0.22NA fiber with SMA Connector

Get Quote

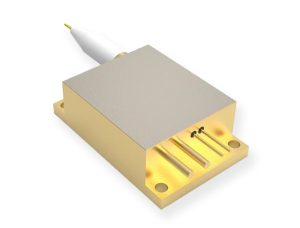

R1Z0-Image-RPKE70-AE-7.000W-10522-FF RPKE70-AE-7.000W-10522-FF

Fiber Coupled Laser Diode, Pigtailed, 1470 +/-20nm, 7W, AE Package, 2m long, 105um, 0.22NA fiber, FC-ferrule

Get Quote
R1Z0-Image-RPKJ40-A5-6.000W-40022-SM RPKJ40-A5-6.000W-40022-SM

Fiber Coupled Laser Diode, Detachable, 1940 +/-10nm, 6W, A5 Package w/ Aiming Beam, Thermistor, PD, Designed for 400um, 0.22NA fiber with SMA Connector

Get Quote

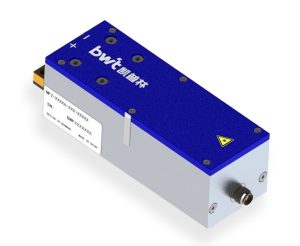

R1Z0-Image-RPMF2-1470H-15W-40022 RPMF2-1470H-15W-40022-HP

Fiber Coupled Laser Diode, Pigtailed, 1470 +/-20nm, 15W, MF2 Package w/ Aiming Beam, Thermistor, PD, Designed for 400um, 0.22NA fiber with HP-SMA Connector

Get Quote
R1Z0-Image-2-Pin-Package RPK830-02-1.000W-05014-ST

Fiber Coupled Laser Diode, Pigtailed, 830 /-10nm, 1W, 2-Pin package, 0.5m long, 50um, 0.14NA fiber with ST Connector

Get Quote

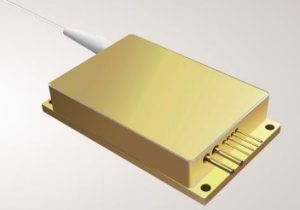

R1Z0-Image-A5-Package RPK915-A5-70.00W-10522-SM

Fiber Coupled Laser Diode, Pigtailed, 915 /-10nm, 70W, Back-reflection protected, A5 Package, 2m long 105um, 0.22NA fiber with SMA Connector

Get Quote
R1Z0-Image-2-Pin-Package RPK808-B2-8.000W-20022-SM

Fiber Coupled Laser Diode, Pigtailed, 808 /-3nm, 8W, B2 Package, 1m long 200um, 0.22NA fiber with SMA connector

Get Quote

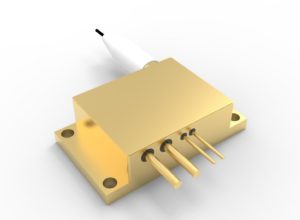

R1Z0-Image-AH-Package RPK940-AH-30.00W-10522-NA

Fiber Coupled Laser Diode, Pigtailed , 940 /-10nm, 30W, Back-reflection protected, AH Package, 1m long 105um, 0.22NA fiber (No Connector)

Get Quote

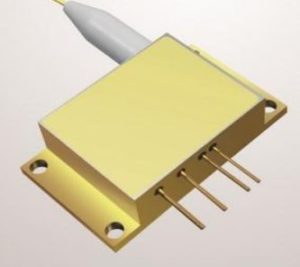

808nm 25W Fiber Coupled Diode Laser RPK808-AH-25.00W-40022-SM

Fiber Coupled Laser Diode, Pigtailed, 808 /-3nm, 25W, Back-reflection protected, AH Package w/ Thermistor, 1.5m long 400um, 0.22NA fiber with SMA Connector

Get Quote

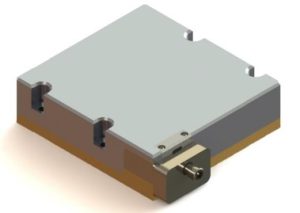

R1Z0-Image-PA-Package RPK976-PA-200.0W-40022-SM

Fiber Coupled Laser Diode, Pigtailed , 976 /-10nm, 200W, PA Package, Designed for 400um, 0.22NA fiber with SMA Connector

Get Quote

The RPK-IR-MM from RPMC Lasers is a high-power fiber-coupled laser diode suitable for a wide range of applications. These Infrared-light laser diodes can be tailored for your specific needs with wavelengths from 760nm to 1400nm, and output powers up to 300W, in either a module or turn-key package. Our specialized fiber-coupling techniques ensure high efficiency, stability, and superior beam quality, while rigorous inspections and burn-in procedures guarantee each product’s reliability, stability, and long lifetime. The Turn-key option allows for control over the operating temperature, current, and pulse width, with a flexible and easy-to-use interface. Highly customizable packages allow RPMC Lasers to meet our customers’ specific needs, providing high-quality products at reasonable prices.

If your exact needs are not in our popular configurations, define your ideal laser diode and let us find the best solution!

Product Range:

Wavelength Range:

Infrared light is invisible to the human eye and covers the wavelengths of 760nm to 1400nm. Standard Infrared wavelength options with custom wavelengths available to better fulfill your needs.

785nm 808nm 830nm 915nm
940nm 976nm 1064nm 1310nm

Output Power Range:

These devices are available with single emitters or multiple emitters for higher output power.  Output power depends on the wavelength and the number of emitters.

10W 30W 70W 100W
150W 200W 250W 300W

Fiber Core Diameter:

In general, smaller fiber core diameter provides higher brightness and larger fiber diameters offer higher output powers. The standard fiber core size is 105um.

50um 105um 200um 400um 600um

Output Options:

Options include attached fiber (Pigtailed), detachable fiber, and windowed devices.

Pigtailed The fiber is permanently attached to the device Minimizes losses in the fiber coupling
Detachable The fiber can be detached from the device Allows more flexibility in replacing a damaged fiber
Windowed No fiber, just a collimated beam output For when fiber delivery is not needed.

Connector Types:

The standard fiber connector options for MM laser diodes are SMA, FC, and none.

SMA Connector Industry-standard connector type with minimal connector interface and a screw-type coupling mechanism.
FC Connector Industry-standard connector type with tighter tolerances minimizing misalignments.

Package Types:

These laser diodes are packaged as either a module or a turn-key system. Modules are better for integrating into a custom system while the turn-key systems allow for better control over the lasers.

Module – Standard Turn-key – DS3
rackmount turnkey diode fiber laser system
This laser diode module is designed for easy integration, high stability, superior beam quality, and a long lifetime. This turn-key system allows for control over the operating temperature, current, and pulse width, with an easy-to-use interface.


Other Options:

Depending on the package and the number of electrical connections available, some packages offer more options than others.

Thermoelectric Cooler (TEC) Provides more control of the laser diode temperature
Photodiode Monitors the light energy for more accurate data.
Thermistor Monitors the laser diode temperature
Back Reflection Protected Reduces potential damage to the laser diode from back reflections
Aiming Beam Sends a beam of either red or green light to help IR lasers with alignment.

*Not all packages, output powers, and options are available with every wavelength

*Some products may require a minimum order

Benefits:

  • Specialized fiber-coupling techniques result in high efficiency, stability, and superior beam quality.
  • More precise and accurate results in material processing, medical therapeutics, and solid-state laser media pumping.
  • Stringent inspecting and burn-in procedures guarantee reliability, stability, and long product lifetime.
  • Highly efficient, stable, and long diode lifetime for increased confidence and trust in product performance and longevity.
  • Cost-effective solution with minimal maintenance requirements and reduced downtime.
  • Complete turn-key option – Easy to use DS3 air-cooled laser diode system option for the RPK Series diode lasers.
  • Easy and hassle-free integration for various applications saves you time, money, and headaches.
  • Highly customizable, tailored solutions with different packages to meet customers’ unique needs.
