Quantas-Q2

DPSS Laser, ns pulsed, 211-1064nm, up to 80mJ, up to 200Hz

Key Features:

  • 1064 or 1053 nm – Up to 5th harmonic
  • Remote monitoring, control & diagnostics
  • Air-cooled (water-free)
  • Little to no maintenance
  • Turnkey performance & user-friendly web interface
  • <9 kg incl. heatsink, controller & AC/DC adapter
  • >2 G-shot pump diode lifetime
  • Many options, configurable & customizable

Get help selecting the right configuration for you!

If you do not see exactly what you need, please contact us!

The Q2 series is a diode-pumped, air-cooled, Q-switched laser emitting at 1064 or 1053nm, designed for a wide range of applications that require high peak power pulses. The water-free end-pumping technology produces high peak powers and low divergence, enabling efficient harmonics conversion through the 5th harmonic (213 or 211nm). This versatile platform can be configured in many ways, including up to 80mJ pulse energy at 10 Hz pulse repetition rate or up to 20mJ at 100 Hz. In the short cavity configuration, pulse duration can be reduced by 50% compared to the standard configuration.

We’re experts in selecting the right laser for your application!

Benefits:

  • High-performance laser beam for efficient harmonics conversion, resulting in cost savings and improved productivity.
  • Versatile configurations to meet specific customer needs, increasing flexibility and reducing the need for additional equipment.
  • High peak power pulses with short pulse duration, enabling precise and accurate applications, resulting in increased accuracy and efficiency.
  • Two fundamental wavelengths available to suit different applications, providing customers with more options and versatility.
  • Short cavity configuration for faster pulse duration, improving performance and efficiency.
  • Thermo-electric cooler-based temperature control system reduces maintenance costs and eliminates risks associated with water cooling, resulting in cost savings and increased safety.
  • Compact and user-friendly turnkey system for easy maintenance, reduced downtime and footprint.
  • Integrated laser electronics and lightweight controller box for reduced equipment and simplified use.
  • Built-in sync pulse generator for easy triggering of user equipment, improving accuracy and reducing errors.
  • Remote monitoring and control via built-in Ethernet interface for remote support and diagnostics, providing convenience, flexibility, and time savings.

Don’t hesitate to ask us anything!

The Q2 series is a versatile and powerful diode-pumped, air-cooled, Q-switched laser that is configurable to meet a wide range of application requirements. Its innovative water-free laser crystal end-pumping technology produces Gaussian-like, low divergence laser beams with high peak powers, enabling efficient harmonics conversion through the 5th harmonic. The short cavity configuration reduces pulse duration by 50%, and the thermo-electric cooler-based temperature control system eliminates risks associated with water cooling and reduces maintenance costs. The Q2 series is a compact, user-friendly turnkey system that requires little maintenance and is easy to control via its built-in Ethernet interface. Optional attachments and auxiliary equipment are available to extend its functionality even further.

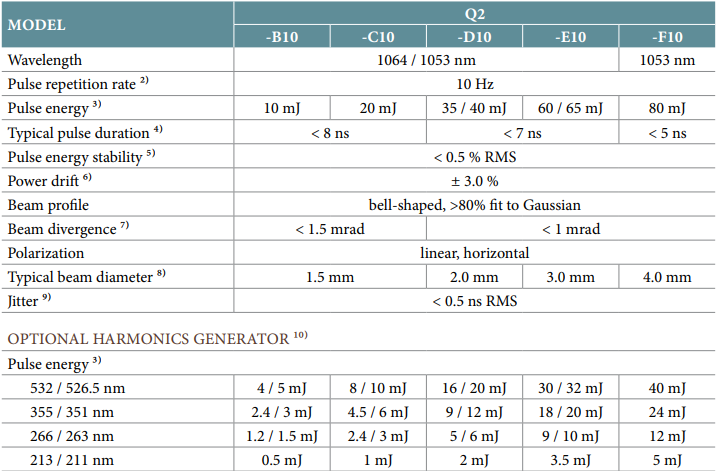

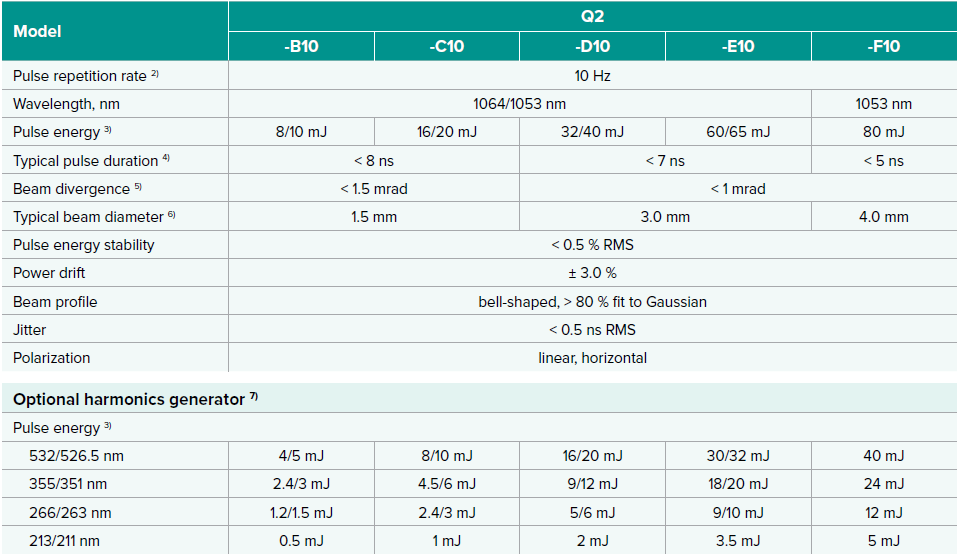

Q2 10 Hz Configuration Table:

text table of specifications for the q2-10 Hz dpss laser

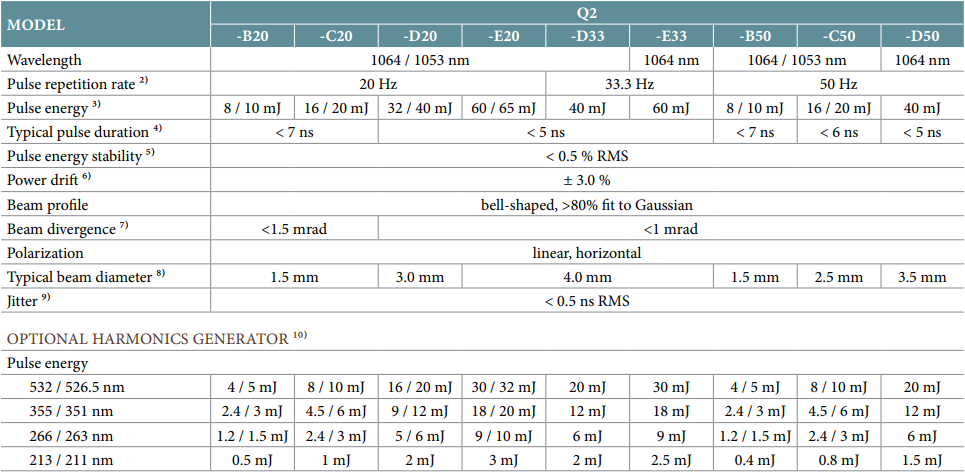

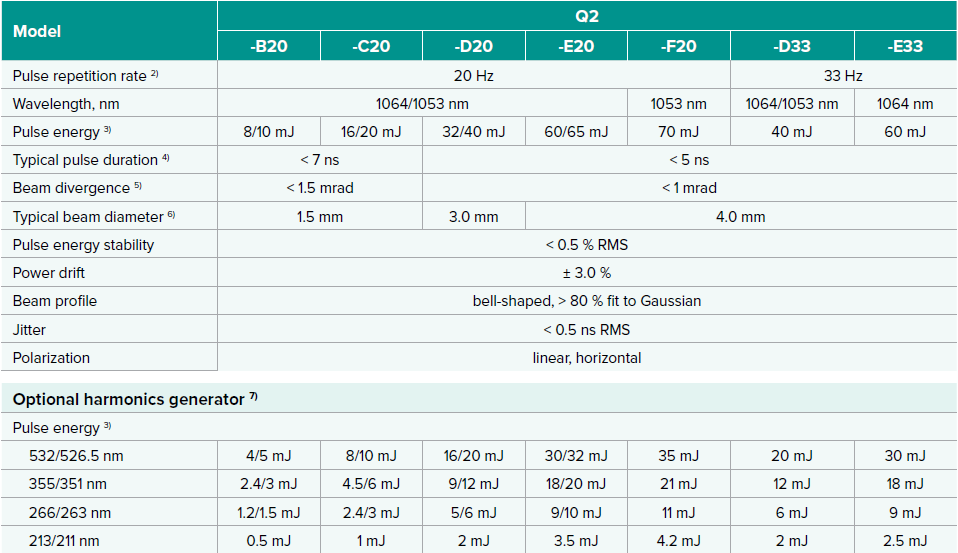

Q2 20 / 33.3 / 50 Hz Configuration Table:

text table of specifications for the q2-20/33.3/50 Hz dpss laser

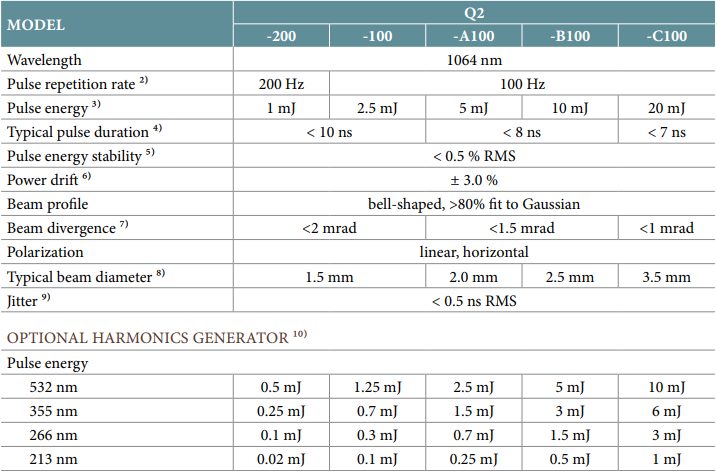

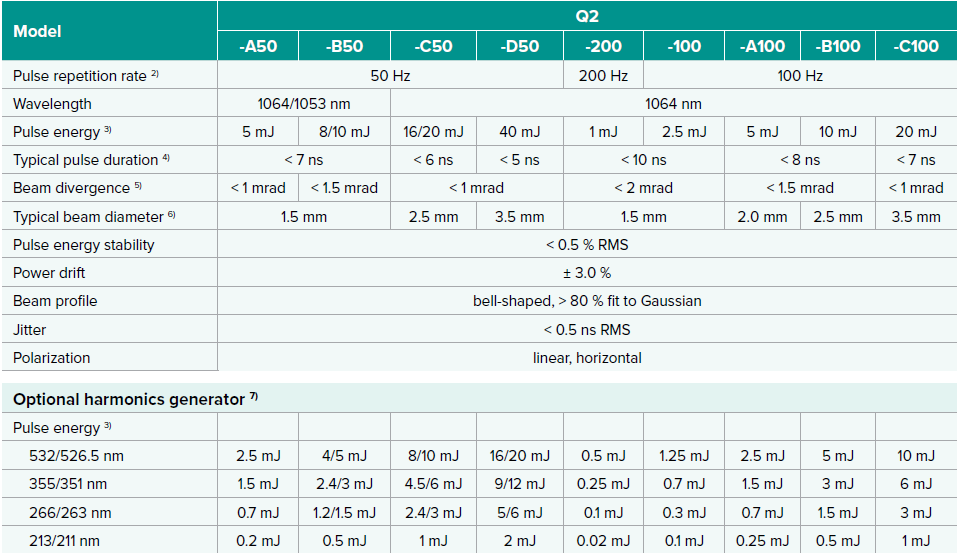

Q2 100 / 200 Hz Configuration Table:

text table of specifications for the q2-100/200 Hz dpss laser
