1.5um NLW CW Fiber Lasers
Fiber Laser, NLW, CW, 1530-1564nm, Up to 1W
- Narrow Linewidth: 10kHz
- Low Relative Intensity Noice (RIN)
- High Powers: up to 100W
- Low Wavelength Drift: 0.1pm/°C
- Conductively Cooled
- Low Power Consumption
- Highly Stable
There are many configurations and options available. If you do not see exactly what you need below, please contact us!
Need Quantities? Have a question?

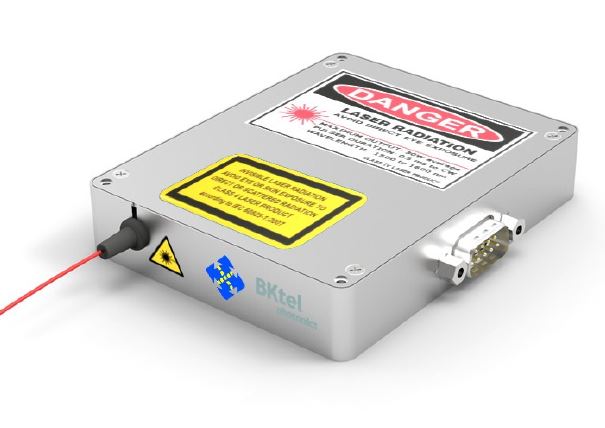

LRL Series – The narrow linewidth LRL 1.5um fiber laser series produces a narrow linewidth, highly coherent emission, and a very low Relative Intensity Noise (RIN), enabling long-range coherent LIDAR detection. Our fiber lasers are manufactured to Telcordia standards and can be modified to meet your applications requirements. Often, with laser based applications, the technical requirements for the laser are defined by the integration requirements, including but not limited to, environment, size, weight, and power. The highly flexible platform of the these fiber lasers allows users the opportunity to configure the laser to best suite their application needs. These 1.5um Narrow LW Fiber Lasers are available in a robust modular package with either random or polarization-maintaining (PM) fiber options. With a wavelength drift in the low sub-picometers and a laser linewidth of <10kHz, the LRL series is ideal for wind measurement, pollution detection, coherent detection, and Dial-LiDAR applications. The LRL series is a 1550nm, high-power, continuous-wave (CW) fiber laser, providing up to 1W of output power from a single-mode fiber. This series offers power tunability ranging from 10%-100%, is available with standard or polarization-maintaining fiber with FC/APC fiber or an optional collimating lens, produces a perfect TEM00 beam, and offers high-speed triggering and modulation.
The FL CW/CW Modulated Series of CW fiber lasers is manufactured to Telcordia standards and is suitable for various applications with powers up to 100W at 1um, 30W at 1.5um, and 40W at 2um. Available in both OEM and Turnkey formats, this series offers a variety of standard and custom configurations. Available options and configurations include narrow linewidth, single frequency outputs, C and L-band broadband sources, PM fiber options, power tunability, and high-speed trig./mod.
- Performance and efficiency:
- Compact fiber laser sources perfectly suited for LIDAR applications
- High-quality output and reliability, you can be confident in their performance in even the most demanding situations.
- Continuous improvement in optical performance, efficiency, and reliability of our fiber laser sources
- You can be sure that you are getting the latest and greatest technology available.
- Built to the highest standards, ensuring that you get the quality and performance you need for your applications.
- Provide great stability and low power usage, making them ideal for a wide range of applications
- Whether you need a laser for industrial, scientific, or medical purposes, we have a solution that will work for you.
- Available in both conductive and air-cooled options, giving you flexibility in how you use and integrate them into your systems.
- Can be integrated into your existing systems as an OEM component, or we can provide a turnkey system that is ready to use out of the box.
- Wide range of options and configurations for our fiber lasers, allowing you to customize your solution to meet your specific needs
- Whether you need a particular output wavelength, polarization, or modulation scheme, we can work with you to create a custom solution.
- Narrow linewidth, single-frequency output, C- and L-band broadband sources, PM fiber options, power tunability, and high-speed triggering and modulation
If you don’t see the exact configuration you need in our standard product line, we can work with you to create a custom solution that meets your specific requirements. Our team of experts can help you design and develop a fiber laser that is tailored to your needs.
If you have any questions or need more information, please contact us.
