SMX-MM

Laser Diode, Multimode, 1310-1940nm, up to 75W

Key Features:

  • Wavelength: 1310nm to 1940nm
  • Output Power: Up to 75W
  • High efficiency
  • Thermally stable with dynamic range
  • Standard low-cost packaging
  • Custom design capability

There are many different package types, wavelengths, output powers, and options to choose from. Get help selecting the right configuration for you!



POPULAR CONFIGURATIONS:

Part Number
Part Description
Datasheet

brass colored to-9 laser diode package, circular with 3 electrical pins TO9-265-181

Triple Junction Laser Diode, 1550nm, 35W
QCW, 95µm emitter, TO-9 package with cap
and FAC, Best Collimation

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-267-161

Triple Junction Laser Diode, 1550nm, 75W QCW, 350um emitter, TO-9 package with cap

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-182

Laser Diode, 1460nm, 1.8W (14W QCW), 95µm emitter, 9mm package, No Cap

Get Quote
brass colored laser diode b-mount, rectangular block B-165

Laser Diode, 1940nm, 1.1W, 150µm emitter, B-mount package

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-183

Laser Diode, 1580nm, 1.6W, 95um emitter, TO-9 package, no cap

Get Quote
gold colored square plate with diode chips and electrical connectors COC-271

Laser Diode, 1940nm, 1.1W, 150µm emitter, Chip on Carrier

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-181

Laser Diode, 1445nm, 1.8W (16W QCW), 95µm emitter, 9mm package, No Cap

Get Quote
brass colored laser diode c-mount, square with circular through hole C-156

Laser Diode, 1940nm, 1.1W, 150µm emitter, C-mount package

Get Quote
brass colored laser diode b-mount, rectangular block B-104

Laser Diode, 1450nm, 5W (15W QCW), 95µm emitter, B-mount package

Get Quote

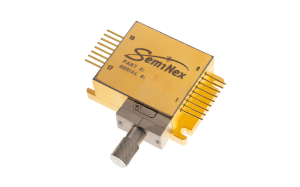

brass colored 4CM laser diode package with electrical pins, output optical fiber and white top label 4CM-111

Laser Diode, 1310nm, 21W, Fiber Coupled 8-pin 4 Chip Module package, 400µm, 0.22NA, 1m long fiber w/ SMA connector, PD, Thermistor, Aiming beam

Get Quote
brass colored laser diode b-mount, rectangular block B-106

Laser Diode, 1470nm, 5W (15000mW QCW), 95µm emitter, B-mount package

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-149-115

Laser Diode, 1550nm, 30W QCW, 350um emitter, TO-9 package with cap and FAC, <5mrad

Get Quote
brass colored 4PN laser diode package with electrical pins, output optical fiber and white top label 4PN-116

Laser Diode, 1320nm, 4.5W (14100mW QCW), Fiber Coupled 4-pin Module package, 105µm, 0.22NA or 0.15NA, 1m long fiber w/ SMA connector, PD

Get Quote
brass colored laser diode b-mount, rectangular block B-122

Laser Diode, 1470nm, 7W (21000mW QCW), 180µm emitter, B-mount package

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-267

Triple Junction Laser Diode, 1550nm, 75W QCW, 95µm emitter, 9mm package, No Cap

Get Quote

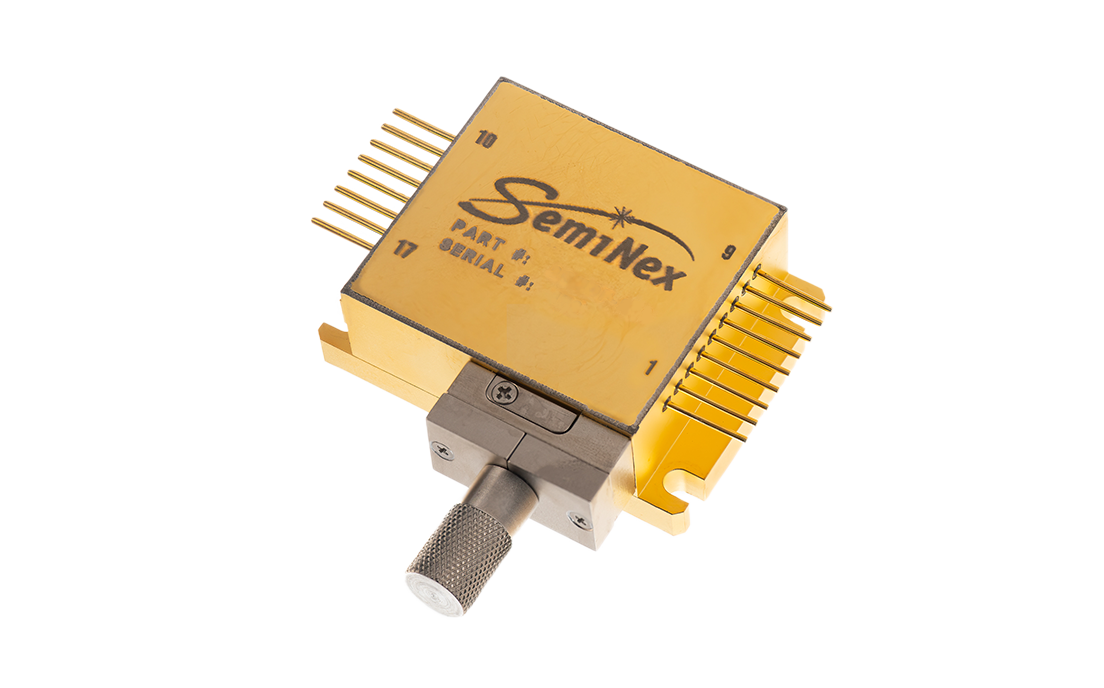

brass colored laser diode housing with electrical pins, fiber optic cable with connector and white label 2CM-103

Laser Diode, 1460nm, 6.5W, Fiber Coupled 8-pin 2 Chip Module package, 105µm, 0.22NA, 1m long fiber w/ SMA connector, Thermistor, Aiming beam

Get Quote
brass colored 4PN laser diode package with electrical pins, output optical fiber and white top label 4PN-117

Laser Diode, 1375nm, 4.3W (14100mW QCW), Fiber Coupled 4-pin Module package, 105µm, 0.22NA or 0.15NA, 1m long fiber w/ SMA connector, PD

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-266

Triple Junction Laser Diode, 1550nm, 52W QCW, 95µm emitter, 9mm package, No Cap

Get Quote
brass colored laser diode c-mount, square with circular through hole C-132

Laser Diode, 1650nm, 3.5W (9.6W QCW), 95µm emitter, C-mount package

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-121

Laser Diode, 1465nm, 1.8W, 95µm emitter, TO-9 package

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-265

Triple Junction Laser Diode, 1550nm, 35W QCW, 95µm emitter, 9mm package, No Cap

Get Quote
brass colored laser diode housing with electrical pins, fiber optic cable with connector and white label 2CM-105

Laser Diode, 1470nm, 8W, Fiber Coupled 8-pin 2 Chip Module package, 200µm, 0.22NA, 1m long fiber w/ SMA connector, Thermistor, Aiming beam

Get Quote
brass colored laser diode b-mount, rectangular block B-103

Laser Diode, 1310nm, 5.7W (18600mW QCW), 95µm emitter, B-mount package

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-264

Triple Junction Laser Diode, 1550nm, 15W QCW, 95µm emitter, 9mm package, No Cap

Get Quote

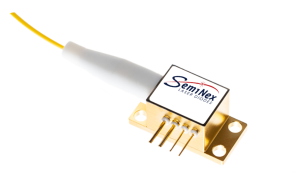

brass colored 4PN laser diode package with electrical pins, output optical fiber and white top label 4PN-134

Laser Diode, 1470nm, 5W, Fiber Coupled 4-pin package, 200µm, 0.22NA, 1.5m long fiber w/ SMA connector, Thermistor

Get Quote
brass colored laser diode b-mount, rectangular block B-123

Laser Diode, 1350nm, 5.6W (18600mW QCW), 95µm emitter, B-mount package

Get Quote

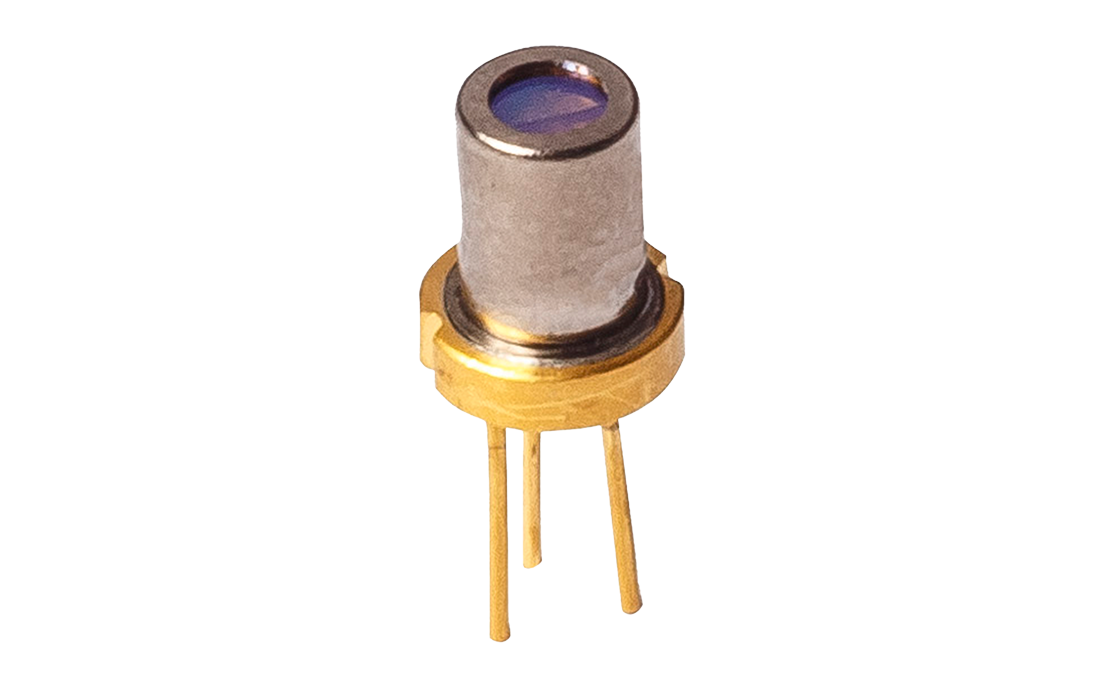

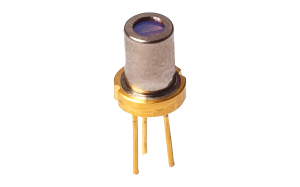

brass colored to-56 laser diode package, circular with 3 electrical pins and a tall silver cap with optical window TO56x-267

Triple Junction Laser Diode, 1550nm, 75W QCW, 350µm emitter, 5.6mm package, With Cap – With Lens

Get Quote
brass colored 4CM laser diode package with electrical pins, output optical fiber and white top label 4CM-104

Laser Diode, 1485nm, 18W, Fiber Coupled 8-pin 4 Chip Module package, 400µm, 0.22NA, 1.5m long fiber w/ SMA connector, Thermistor, PD, Aiming beam

Get Quote
brass colored to-56 laser diode package, circular with 3 electrical pins and a tall silver cap with optical window TO56x-266

Triple Junction Laser Diode, 1550nm, 52W QCW, 180µm emitter, 5.6mm package, With Cap – With lens

Get Quote
brass colored laser diode b-mount, rectangular block B-134

Laser Diode, 1650nm, 3.2W (9.6W QCW), 95µm emitter, B-mount package

Get Quote
brass colored laser diode c-mount, square with circular through hole C-124

Laser Diode, 1380nm, 5.6W (15000mW QCW), 95µm emitter, C-mount package

Get Quote
brass colored laser diode c-mount, square with circular through hole C-105

Laser Diode, 1488nm, 7W (21W QCW), 180µm emitter, C-mount package

Get Quote
brass colored to-56 laser diode package, circular with 3 electrical pins and a tall silver cap with optical window TO56x-265

Triple Junction Laser Diode, 1550nm, 35W QCW, 95µm emitter, 5.6mm package, With Cap – With lens

Get Quote
brass colored laser diode c-mount, square with circular through hole C-130

Laser Diode, 1325nm, 5.7W (15000mW QCW), 95µm emitter, C-mount package

Get Quote
brass colored 4PN laser diode package with electrical pins, output optical fiber and white top label 4PN-101

Laser Diode, 1460nm, 4W (11400mW QCW), Fiber Coupled 4-pin Module package, 105µm, 0.22NA or 0.15NA, 1m long fiber w/ SMA connector, PD

Get Quote
brass colored to-56 laser diode package, circular with 3 electrical pins and a tall silver cap with optical window TO56x-264

Triple Junction Laser Diode, 1550nm, 21W QCW, 50µm emitter, 5.6mm package, With Cap – With Lens

Get Quote
brass colored laser diode c-mount, square with circular through hole C-128

Laser Diode, 1460nm, 5W (15W QCW), 95µm emitter, C-mount package

Get Quote

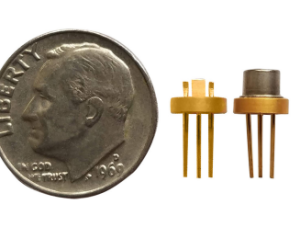

brass colored mini to-56 laser diode package, circular with 3 electrical pins and silver cap with optical, one with no cap, US Dime for size TO56m-302

Triple Junction Laser Diode, 1550nm, 8W QCW, 95µm emitter, 5.6mm package, With Cap -Mini

Get Quote
brass colored laser diode c-mount, square with circular through hole C-106

Laser Diode, 1480nm, 5W, 95µm emitter, C-mount package

Get Quote
brass colored mini to-56 laser diode package, circular with 3 electrical pins and silver cap with optical, one with no cap, US Dime for size TO56m-300

Triple Junction Laser Diode, 1550nm, 20W QCW, 180µm emitter, 5.6mm package, With Cap -Mini

Get Quote
brass colored 4PN laser diode package with electrical pins, output optical fiber and white top label 4PN-104

Laser Diode, 1480nm, 3.8W, Fiber Coupled 4-pin package, 105µm, 0.22NA, 1.5m long fiber w/ SMA connector, PD

Get Quote
brass colored to-56 laser diode package, circular with 3 electrical pins and a tall silver cap with optical window TO56-275

Triple Junction Laser Diode, 1550nm, 35W QCW, 95µm emitter, 5.6mm package, With Cap

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-126

Laser Diode, 1480nm, 1.8W, 95µm emitter, TO-9 package

Get Quote
brass colored to-56 laser diode package, circular with 3 electrical pins and a tall silver cap with optical window TO56-267

Triple Junction Laser Diode, 1550nm, 75W QCW, 350µm emitter, 5.6mm package, With Cap

Get Quote
brass colored to-56 laser diode package, circular with 3 electrical pins and a tall silver cap with optical window TO56-266

Triple Junction Laser Diode, 1550nm, 52W QCW, 180µm emitter, 5.6mm package, With Cap

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-184

Laser Diode, 1315nm, 2W (20000mW QCW), 95µm emitter, 9mm package, No Cap

Get Quote
brass colored to-56 laser diode package, circular with 3 electrical pins and a tall silver cap with optical window TO56-264

Triple Junction Laser Diode, 1550nm, 21W QCW, 50µm emitter, 5.6mm package, With Cap

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-185

Laser Diode, 1350nm, 2.5W (19000mW QCW), 95µm emitter, 9mm package, No Cap

Get Quote
gold colored square plate with diode chips and electrical connectors COC-267

Triple Junction Laser Diode, 1550nm, 75W QCW, 350µm emitter, Chip on Carrier

Get Quote
gold colored square plate with diode chips and electrical connectors COC-266

Triple Junction Laser Diode, 1550nm, 52W QCW, 180µm emitter, Chip on Carrier

Get Quote
gold colored square plate with diode chips and electrical connectors COC-265

Triple Junction Laser Diode, 1550nm, 35W QCW, 95µm emitter, Chip on Carrier

Get Quote
gold colored square plate with diode chips and electrical connectors COC-264

Triple Junction Laser Diode, 1550nm, 20W QCW, 50µm emitter, Chip on Carrier

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-149

Laser Diode, 1580nm, 2.2W (30W QCW), 350µm emitter, 9mm package, No Cap

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-148

Laser Diode, 1575nm, 1.8W (24W QCW), 180µm emitter, 9mm package, No Cap

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-133

Laser Diode, 1550nm, 1.3W (14W QCW), 95µm emitter, 9mm package, No Cap

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-117

Laser Diode, 1590nm, 1.6W (9W QCW), 50µm emitter, 9mm package, No Cap

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-116

Laser Diode, 1575nm, 1.6W (14W QCW), 95µm emitter, 9mm package, No Cap

Get Quote
brass colored to-56 laser diode package, circular with 3 electrical pins and a tall silver cap with optical window TO56-201

Laser Diode, 1550nm, 500mW (9W QCW), 50µm emitter, 5.6mm package, With Cap

Get Quote
brass colored to-56 laser diode package, circular with 3 electrical pins and a tall silver cap with optical window TO56-114

Laser Diode, 1550nm, 19W QCW, 95µm emitter, 5.6mm package, With Cap

Get Quote
brass colored to-56 laser diode package, circular with 3 electrical pins and a tall silver cap with optical window TO56-104

Laser Diode, 1550nm, 2.2W (27W QCW), 350µm emitter, 5.6mm package, With Cap

Get Quote
brass colored to-56 laser diode package, circular with 3 electrical pins and a tall silver cap with optical window TO56-103

Laser Diode, 1550nm, 300mW (24W QCW), 180µm emitter, 5.6mm package, With Cap

Get Quote
brass colored to-56 laser diode package, circular with 3 electrical pins and a tall silver cap with optical window TO56-102

Laser Diode, 1550nm, 950mW (14W QCW), 95µm emitter, 5.6mm package, With Cap

Get Quote
gold colored square plate with diode chips and electrical connectors COC-107

Laser Diode, 1585nm, 2.2W (14W QCW), 95µm emitter, Chip on Carrier

Get Quote
gold colored square plate with diode chips and electrical connectors COC-106

Laser Diode, 1585nm, 2.8W (24W QCW), 180µm emitter, Chip on Carrier

Get Quote
gold colored square plate with diode chips and electrical connectors COC-105

Laser Diode, 1550nm, 2.2W (9W QCW), 50µm emitter, Chip on Carrier

Get Quote
gold colored square plate with diode chips and electrical connectors COC-101

Laser Diode, 1550nm, 6.5W (30W QCW), 350µm emitter, Chip on Carrier

Get Quote
brass colored laser diode b-mount, rectangular block B-118

Laser Diode, 1550nm, 4.2W (13.5W QCW), 95µm emitter, B-mount package

Get Quote
brass colored 4CM laser diode package with electrical pins, output optical fiber and white top label 4CM-107

Laser Diode, 1580nm, 16W, Fiber Coupled 8-pin 4 Chip Module package, 400µm, 0.22NA, 1m long fiber w/ SMA connector, PD, Thermistor, Aiming beam

Get Quote

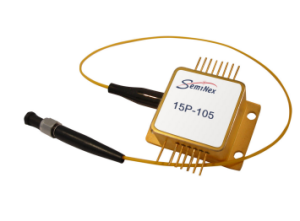

brass colored laser diode housing with electrical pins, optical fiber with connectors and white label 15P-103 w/AB

Laser Diode, 1550nm, 4.9W, Fiber Coupled 15-pin Butterfly package, 200µm, 0.22NA, 1m long fiber w/ SMA905 connector, PD, Thermistor, Aiming beam

Get Quote
brass colored laser diode housing with electrical pins, optical fiber with connectors and white label 15P-103 w/AB & TEC

Laser Diode, 1550nm, 4.9W, Fiber Coupled 15-pin Butterfly package, 200µm, 0.22NA, 1m long fiber w/ SMA905 connector, PD, Thermistor, Aiming beam, TEC

Get Quote
brass colored 4PN laser diode package with electrical pins, output optical fiber and white top label 4PN-108

Laser Diode, 1550nm, 3.3W, Fiber Coupled 4-pin package, 105µm, 0.22NA, 1.5m long fiber w/ SMA connector, PD

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-118

Laser Diode, 1550nm, 1.6W, 95µm emitter, TO-9 package

Get Quote
brass colored laser diode housing with electrical pins, fiber optic cable with connector and white label 2CM-104

Laser Diode, 1560nm, 5.5W, Fiber Coupled 8-pin 2 Chip Module package, 105µm, 0.22NA, 1m long fiber w/ SMA connector, Thermistor, Aiming beam

Get Quote
brass colored laser diode c-mount, square with circular through hole C-116

Laser Diode, 1565nm, 4.2W, 95µm emitter, C-mount package

Get Quote
brass colored to-9 laser diode package, circular with 3 electrical pins TO9-105

Laser Diode, 1565nm, 400mW, 4µm emitter (single-mode), TO-9 package

Get Quote
brass colored laser diode housing with electrical pins, fiber optic cable with connector and white label 2CM-102

Laser Diode, 1570nm, 7.7W, Fiber Coupled 8-pin 2 Chip Module package, 200µm, 0.22NA, 1m long fiber w/ SMA connector, Thermistor, Aiming beam

Get Quote

The SMX-MM is an American-made, high-power, thermally stable, cost-effective multimode laser diode. It is available at wavelengths from 1310nm to 1940nm making it perfect for medical, military, aerospace, LIDAR, free-space communications, and more! With a patented EPI structure, low-cost packaging, ISO-certified supply chain with full lifecycle traceability, focus on ease of integration, and custom design capabilities, this laser diode family is an excellent choice for reliable, high-power InP devices. We deliver the highest available power at infrared wavelengths, and when necessary, we will further optimize the design of our lasers to meet our customers’ specific optical and electrical performance needs. We have several standard packages and configurations available, as well as customization options. If you do not see exactly what you are looking for, let us know! We may have a standard product that suits your needs. However, we have many options to tailor a solution that fits your specifications. Diodes, bars, and packages are tested to meet customer and market performance demands.

Product Range:

Unmounted Package Types:

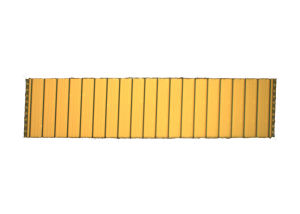

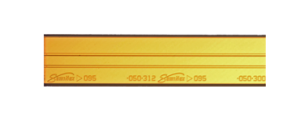

Chip Bar

Free-Space Package Types:

B-Mount Package C-Mount Package COC Package TO-9 Package TO-56 Package
brass colored laser diode b-mount, rectangular block brass colored laser diode c-mount, square with circular through hole gold colored square plate with diode chips and electrical connectors brass colored to-9 laser diode package, circular with 3 electrical pins brass colored to-56 laser diode package, circular with 3 electrical pins and a tall silver cap with optical window

Free-Space Options:

Optional attachments:

  • Optical Isolator
  • Internal TEC
  • Thermistor

Junction options:

  • Single Junction
  • Triple Junction

Lensing Options

  • Best Collimation FAC Lens
  • Squared Beam FAC Lens

Fiber-Coupled Package Types:

4-Pin Package 2CM Module 4CM Module
brass colored 4PN laser diode package with electrical pins, output optical fiber and white top label brass colored laser diode housing with electrical pins, fiber optic cable with connector and white label brass colored 4CM laser diode package with electrical pins, output optical fiber and white top label

Fiber Core Diameters Options

Fiber core size is dependent on package and fiber type.

95um 105um 200um 400um

Fiber-Coupled Options:

Optional attachments:

  • Optical Isolator
  • Internal TEC
  • Thermistor
  • Aiming Beam

Connector Options

  • FC/PC Connector
  • FC/APC Connector
  • SMA Connector

Benefits:

  • Cost-Effective: standard, low-cost packaging, ideal for high-volume professional and consumer needs
  • High Performance: high output power, high dynamic range, and high efficiency get you the performance you need while conserving energy and extending lifetimes
  • Thermal Stability: excellent performance over temperature range and heat resistance for consistent and reliable operation with the highest powers, even in industrial and automotive applications
  • “Eye-Safe” Wavelengths: SWIR wavelengths beyond 1400nm are considered retina-safe, as they transmit well through air and glass, but are readily absorbed by water (cornea)
  • Patented EPI Structure: High-power with single and triple-junction at elevated temperatures, ensuring consistent performance and reliability
  • Technology Integration: Low-cost packages for optical, mechanical, and electrical components, simplifying assembly, reducing costs, and enhancing reliability
  • Qualified Supply Chain: Rapid scaling for timely volume production, with full lifecycle traceability and ISO certification at every level of the supply chain
  • Custom Design Capability: Tailored solutions, built to your specifications, when a standard solution may not suffice. Tell us what you need!

If you have any questions or need more information, please contact us.

How can we help you?

Talk to one of our experienced product managers today!

Contact us
