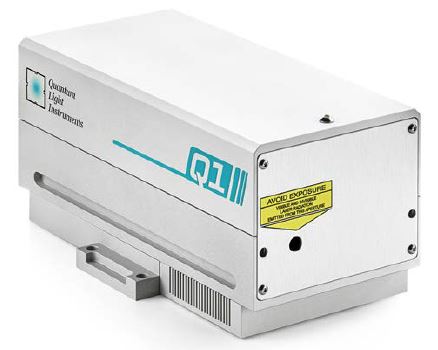

Quantas-Q1
DPSS Laser, ns pulsed, 211-1064nm, up to 40mJ, up to 50Hz
Key Features:
- 1064 or 1053 nm – Up to 5th harmonic
- Remote monitoring, control & diagnostics
- Air-cooled (water-free)
- Little to no maintenance
- Turnkey performance & user-friendly web interface
- <6 kg incl. heatsink, controller & AC/DC adapter
- >2 G-shot pump diode lifetime
- Many options, configurable & customizable
Get help selecting the right configuration for you!
If you do not see exactly what you need, please contact us!
The Q1 series is a compact, energy-efficient, diode pumped, air-cooled, Q-switched laser available with up to 32 mJ at 1064 or 40 mJ at 1053nm @ 10 Hz, and rep rates up to 50Hz. The high peak powers and low divergence of the Q1 series enable efficient harmonic conversion through the 5th harmonic (213 or 211nm). The innovative design results in a user-friendly, turnkey system that requires little maintenance, and the laser’s variable pulse repetition rate and built-in sync pulse generator provide flexibility for triggering user equipment.
We’re experts in selecting the right laser for your application!

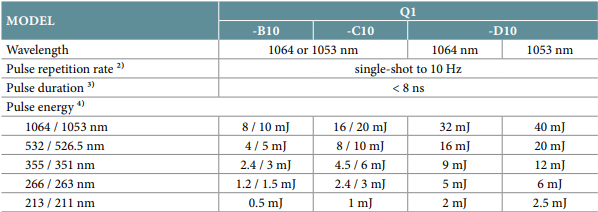

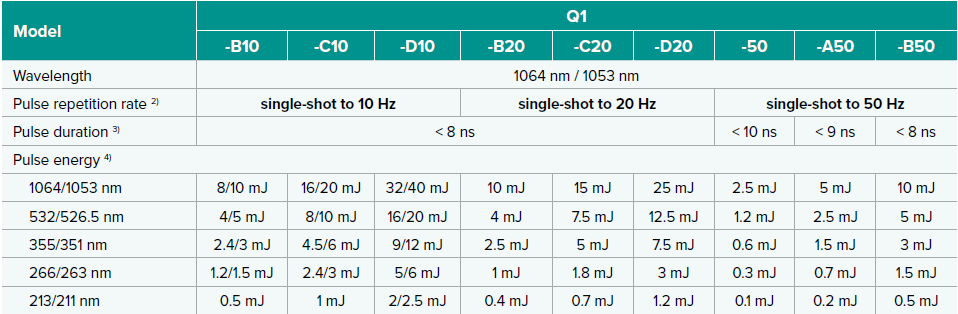

Q1 10 Hz Configuration Table:

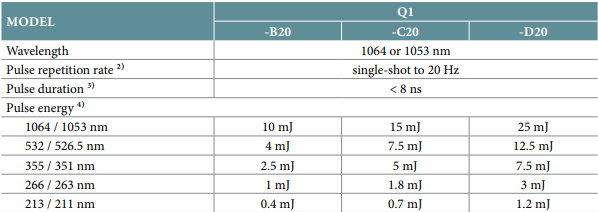

Q1 20 Hz Configuration Table:

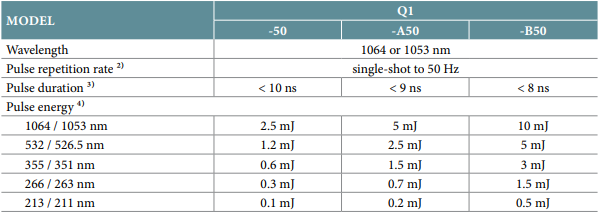

Q1 50 Hz Configuration Table:
Don’t hesitate to ask us anything!
The Q1 series offers a compact and energy-efficient solution for researchers and application specialists working with a range of applications. With high peak powers and low divergence, this laser enables efficient harmonic conversion through the 5th harmonic, making it ideal for a wide range of applications. Additionally, the laser’s remote control via built-in Ethernet interface and wide range of auxiliary equipment available make it a versatile and powerful tool for researchers and specialists.
Benefits:
- User-friendly, turnkey system – requires little maintenance:
Saves time and resources by reducing the need for frequent maintenance and technical support. - Compact, energy-efficient, air-cooled, Q-switched laser:
Takes up less space, uses less power, and no bulky water chiller to maintain. - High peak powers, low divergence – harmonic efficiency:
Allows for more efficient and accurate wavelength conversion, expanding the range of potential applications. - Variable pulse repetition rate.
Offers flexibility to adjust the laser’s output to suit different experimental conditions and requirements. - Built-in sync pulse generator user equipment triggering:
Enables seamless integration with other equipment, improving the efficiency and accuracy of experiments. - Remote control via built-in Ethernet interface:
Remote control, monitoring, diagnostics & support, providing convenience, flexibility, and time savings.
- Optional motorized attenuator for fundamental wavelength:
Enables precise control of pulse energy, optimizing experimental conditions and improving accuracy. - Optional pulse energy monitor with digital & analog readout:
Allows for real-time monitoring of pulse energy, enabling more accurate and efficient experimentation. - Optional fiber-coupled output:
Hassle-free beam delivery, precisely where you want it, with optional fiber-coupling - Optional baseplate – mounting Q1 & H1 or Q1 & fiber coupler:
Provides a convenient and customizable mounting option for integrating the laser with other equipment. - Optional stand-alone air-purging unit:
Extend the life of your UV optics with the optional closed loop filtered air purging unit
Don’t hesitate to ask us anything!
Wavelength (nm) | |
---|---|
Description | |
Type | Pulsed DPSS Lasers, Adjustable Rep Rate, High Pulse Energy, High Peak Power, Low Jitter, Turn-Key System, Customizable |
