|Picture||Part Number||Type||Wavelength (nm)||Output power (W)||Mode||Output||Linewidth||Pulse energy (uJ)||Pulse width||Rep rate|
|Aero-355||Pulsed DPSS Lasers||355, 355/532/1064||1.0||10000.0, 20000.0||20ns||Single Shot to 50Hz, Single Shot to 100Hz|
|CEUV Series||Pulsed DPSS Lasers||266, 355, 532, 1064||5.0, 10.0, 20.0||500.0, 1000.0, 2000.0||3ns||10kHz to 1MHz|
|NPS-355||Pulsed DPSS Lasers, Ultrafast Lasers||355||1.0||0.025||7ps||40MHz|
|Onda 355nm||Pulsed DPSS Lasers||355||0.300||150.0||3ns||Single shot to 2kHz|
|Quantas-Q-SPARK-355||Pulsed DPSS Lasers||355||0.010||2500.0||2ns||20Hz|
|Quantas-Q1-351||Pulsed DPSS Lasers||355||0.030, 0.060, 0.100, 0.130||3000.0, 6000.0, 10000.0, 13000.0||7ns, 8ns||Single Shot to 10Hz|
|Quantas-Q1-355||Pulsed DPSS Lasers||355||0.030, 0.060, 0.100, 0.130||3000.0, 6000.0, 10000.0, 13000.0||7ns, 8ns||10Hz|
|Quantas-Q2-355||Pulsed DPSS Lasers||355||0.024, 0.045, 0.090, 0.180, 0.240||2400.0, 4500.0, 9000.0, 18000.0, 24000.0||5ns, 7ns, 8ns||10Hz|
|Quantas-Q2HE-355||Pulsed DPSS Lasers||355||0.300, 0.500, 0.600, 1.0, 1.2||12000.0, 20000.0, 25000.0, 30000.0||6ns||10Hz, 20Hz, 50Hz, 100Hz|
|SB1-355||Pulsed DPSS Lasers, Microchip Lasers||355||0.010||Narrow||1.0||1.3ns||10kHz|
|SOL-355||Pulsed DPSS Lasers||355||4.0||650.0||15ns - 35ns||Single Shot to 100kHz|
|Wedge-HB/XB 355||Pulsed DPSS Lasers||355||0.400, 0.600||200.0, 600.0||1.2ns, 1.5ns||Single shot to 1kHz, Single shot to 2kHz|
|Wedge-HF/XF 355||Pulsed DPSS Lasers||355||0.800||40.0||500ps - 1ns||10kHz to 50kHz|
The Aero Series is a high-energy DPSS laser that operates at less than 15 nanoseconds with multiple wavelength options including 266, 355, 532, and 1064nm. This series provides unparalleled precision and accuracy in even the most challenging environments. All models come enclosed in an extremely compact and ruggedized single unit with a conductively cooled heatsink with a water-cooled option. It comes with available options for beam expanding and collimating optics. This laser series is ideal for applications like LIBS, spectroscopy, and Atmospheric LIDAR.

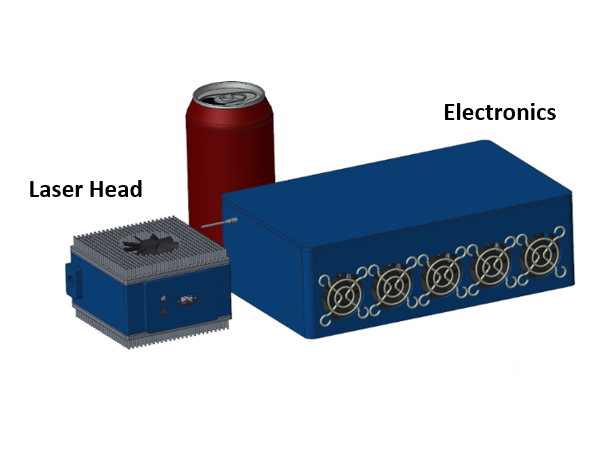

The CEUV series is a commercial line of compact and efficient DPSS laser sources, capable of operating over a wide range of pulsing conditions (duty-cycle and PRF), in a low SWaP package, with average power up to ≈5W @ 266nm, 10W @ 355nm or 532nm, 20W @ 1064nm. This series of DPSS lasers provides a combination of compact, efficient, and high-power performance in a rugged design suitable for harsh environments and airborne applications. The design has been tested in brassboard hardware and a prototype is being developed.

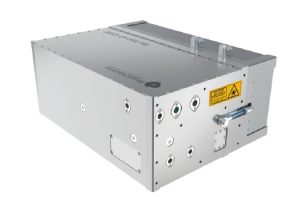

The NPS series of ultrafast lasers is the ultimate solution for OEM integrators and researchers working with nonlinear optics applications like OPO pumping and narrowband Raman spectroscopy. The NPS series boasts remarkable features such as up to 10W average output power, <7ps pulse width, and a 40MHz repetition rate. The transform-limited operation, with a spectral width of <0.3nm, and accurate central wavelengths make these lasers a suitable candidate for highly efficient amplification by Nd-doped DPSS amplifiers.

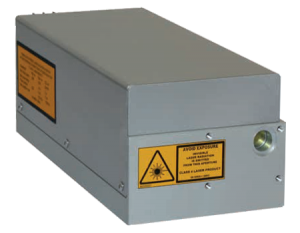

The Onda series is a DPSS nanosecond OEM laser platform designed for high-end applications requiring excellent beam quality and high peak power in materials such as metals, glass, plastics, and various delicate and hard materials. This compact and easy to use laser series is available in wavelengths of 266, 355, 532, and 1064nm, with an extended operating temperature range and superior performance to cost ratio. The Onda series’ internal optical layout and accurate temperature management enable high output energies without compromising the lifetime of the THG and FHG stages.

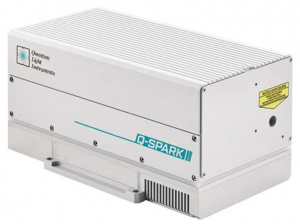

The Q-SPARK series is an air-cooled, diode-pumped, Q-switched laser designed for researchers and application specialists working with ablation, LIDAR, remote sensing, and LIBS applications. The laser produces sub-nanosecond or nanosecond pulses with peak power up to 20 MW and pulse energies up to 10 mJ, making it ideal for a wide range of applications. With a short <1.5 ns pulse, compact air-cooled package, and innovative water-free laser crystal end-pumping technology, the Q-SPARK series delivers high-quality, low divergence, Gaussian-like laser beams.
The Q1 series is a compact, energy-efficient, diode pumped, air-cooled, Q-switched laser available at 1064 and 1053nm with up to 45 mJ of pulse energy and rep rates up to 50Hz. The high peak powers and low divergence of the Q1 series enable efficient harmonic conversion through the 5th harmonic (213 or 211nm). The innovative design results in a user-friendly, turnkey system that requires little maintenance, and the laser’s variable pulse repetition rate and built-in sync pulse generator provide flexibility for triggering user equipment.
The Q2 series is a diode-pumped, fully air-cooled, Q-switched laser designed for a wide range of applications that require high peak power pulses. Its innovative water-free laser crystal end-pumping technology produces Gaussian-like, low divergence laser beams with high peak powers, allowing for efficient harmonics conversion through the 5th harmonic. This versatile platform can be configured in many ways, including up to 80mJ pulse energy at 10 Hz pulse repetition rate or up to 20mJ at 100 Hz. The laser can emit either 1053 nm or 1064 nm wavelength, and in the short cavity configuration, pulse duration can be reduced by 50% in comparison to standard configuration.
The Q2HE series is a high–energy, q-switched, diode-pumped solid-state (DPSS) laser series, available in either 1053nm or 1064nm fundamental wavelengths, with optional 2nd, 3rd, 4th, or 5th harmonic generation. This air-cooled series of lasers is designed for a wide range of applications that require high peak power pulses. Due to a short laser cavity, excellent thermal properties of the crystal, and an innovative water-free crystal cooling technology, the Q2HE series can deliver up to 120mJ of pulse energy and/or up to 4W average output power. This advanced laser design results in a compact, user-friendly turnkey system that requires little maintenance.
The Microchip series is a line of ultra-compact, passively q-switched, single longitudinal mode (SLM), narrow linewidth, DPSS lasers that offer exceptional performance in a compact form factor. The lasers feature pulse durations ranging from 400 ps to 2 ns, energy levels up to 80 µJ, and repetition rates up to 100 kHz. Available in wavelengths from the UV to the NIR, this series is designed for OEM integrators and researchers working with LIDAR, 3D scanning, LIBS, night vision, and more. The lasers offer both nanosecond and picosecond options and are interchangeable with the same form factor and electrical and software interfaces across wavelengths, making them a flexible and versatile solution.

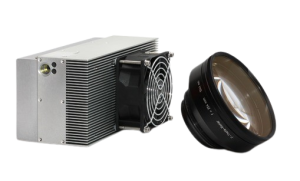

The SOL series is the most compact, air-cooled, Q-switched DPSS nanosecond laser available in the power range from 4W to 40W @ 1064nm. Available @ 1064nm, 532nm, and 355nm, the SOL laser series offers excellent beam quality and high peak power, capable of up to 10W and 650µJ at 532nm and 4W @ 355nm, making it the ideal source for the most demanding industrial and scientific applications. With a rugged, compact, lightweight, and easy to use single unit design, the SOL laser is easy to integrate into micro-machining and marking applications, providing superior operational flexibility and performance/cost ratio.
The Wedge series is a line of DPSS lasers designed specifically for OEM applications such as micro machining of hard and soft materials, specialty marking, glass and crystal engraving, LIDAR, LIBS, spectroscopy, and medical diagnostics. These diode–pumped lasers, based on proprietary fast Q-switching technology, are compact, sealed, and monolithic which makes them insensitive to vibrations and harsh environments. With high peak powers and relatively low energy and heat generation, they allow efficient ablation and non-linear interaction with most materials. The compact and lightweight package is a great benefit in LIDAR and other aerospace applications, while short pulses provide extremely precise time-of-flight measurements.
